AR41.10-P-0085-01SX Measure Absolute Angle at Transmission



AR41.10-P-0085-01SX Measure absolute angle at transmission

Component Identification:





Electronic driveline inclinometer
1 Press the STEP button. "Inclination angle" "Measurement' is selected.

Selection menu screen

Selection menu screen:





Measurement - Angle 1
2 Press STEP button while main menu is displayed. "Measurement' is selected.

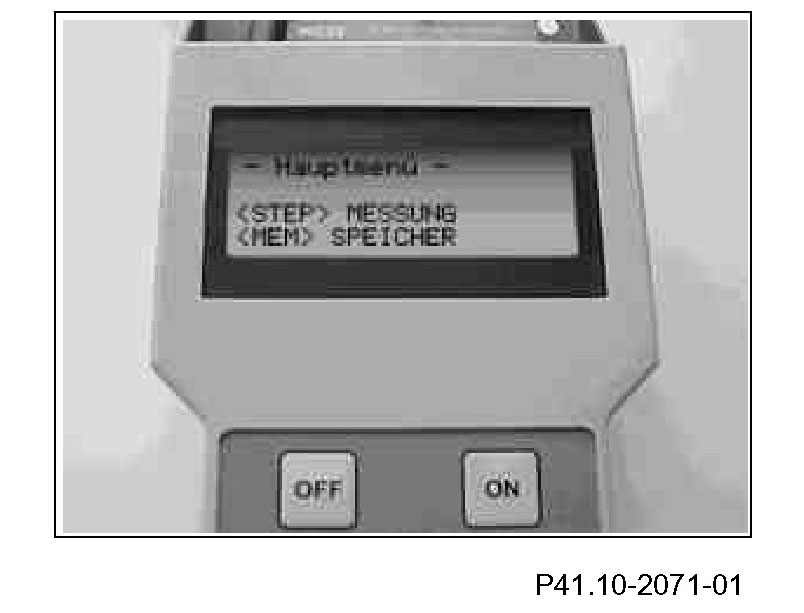

Main menu screen

Main menu screen:





The vehicle must be on its wheels for the measurement.

The measurement of all angles (four angles on vehicles with 2-piece propeller shaft and five for vehicles with 3-piece propeller shaft) should be conducted without any interruption. An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

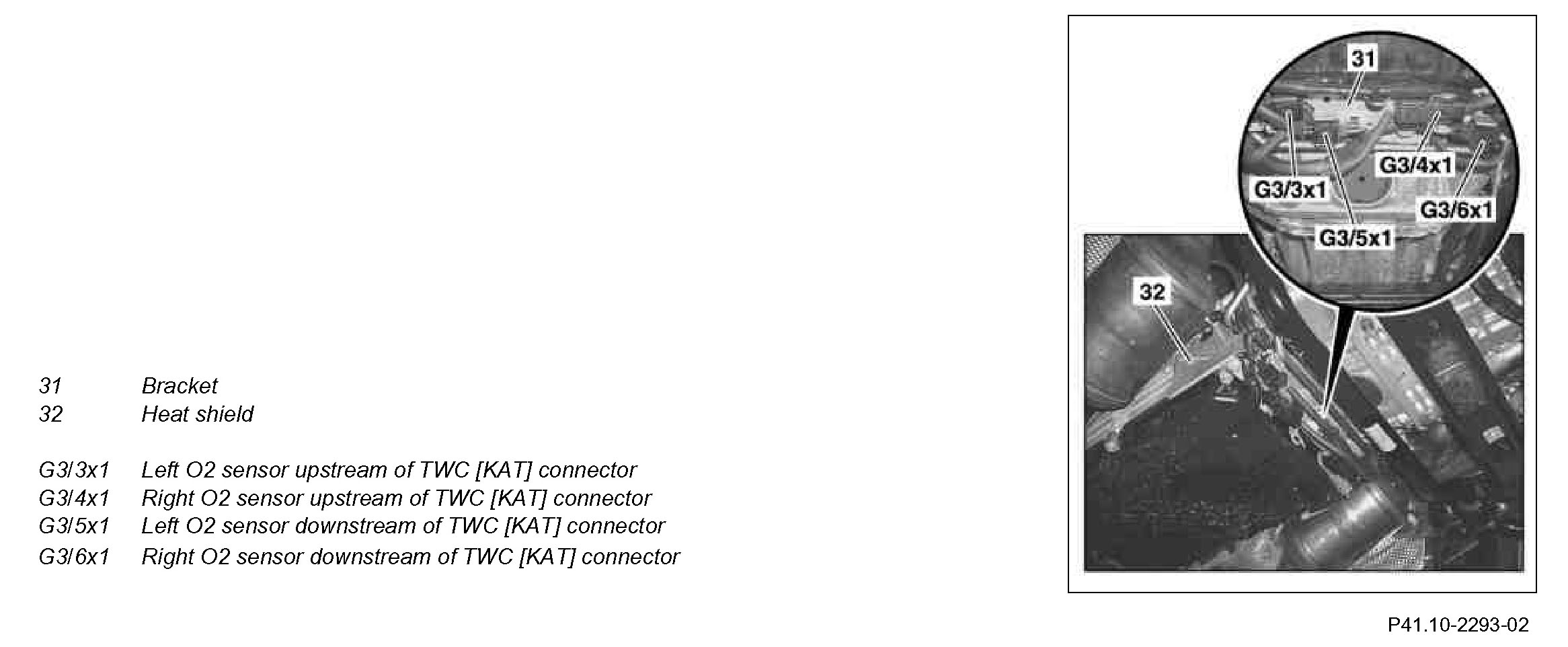

3 Unclip electrical lines and electrical connectors (G3/3x1, G3/4x1, G3/5x1, G3/6x1) of 02 sensors from bracket (31).
4 Detach bracket (31) and heat shield (32) from transmission.

Component Identification:

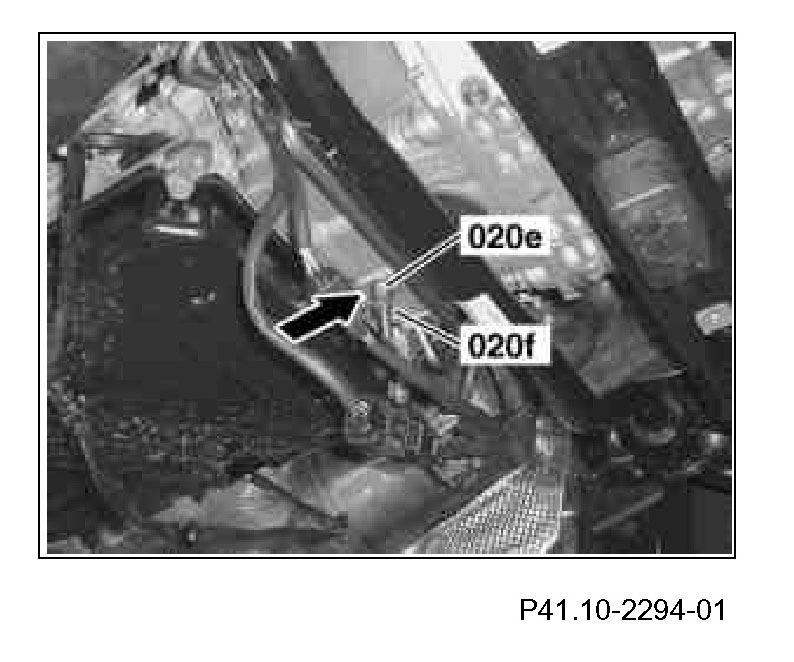

5 Clean transmission bore and surroundings (arrow).
6 Select suitable adapter for transmission bore.
7 Remove measuring sleeve socket (020e) from adapter, insert in transmission bore and fix. Do so by turning lower threaded stud (020f) to left and tightening.

Component Identification:

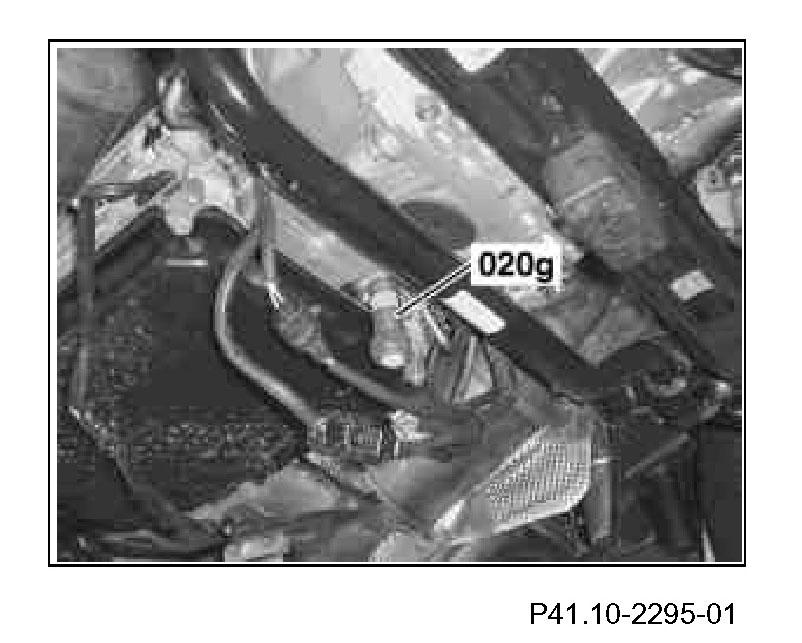

8 Screw measuring sleeve adapter (020g) on to measuring sleeve socket (020e) and tighten all the way to transmission by hand.

Ensure that the measuring sleeve adapter (020g) contacts the surface of the transmission exactly.

Component Identification:

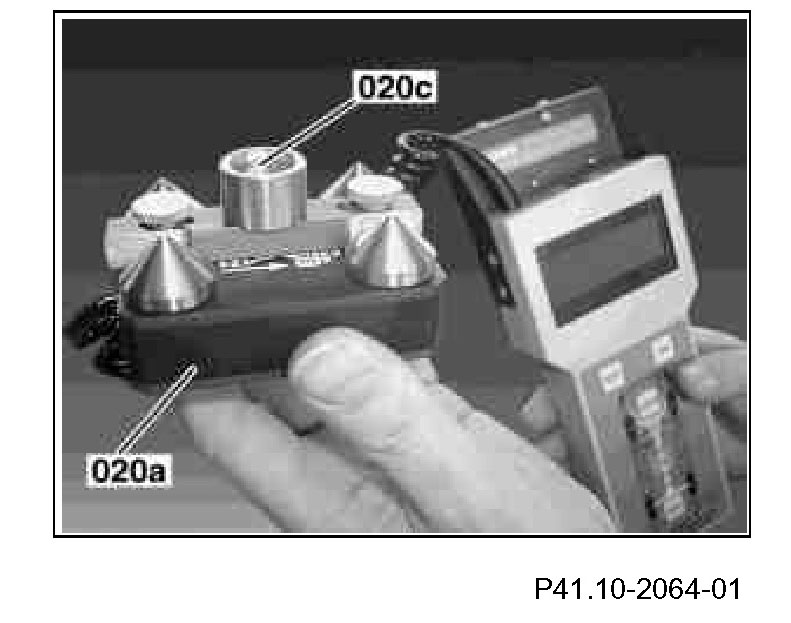

9 Mount sensor mount (020c) with the two knurled bolts centrally on the sensor (020a).

Component Identification:

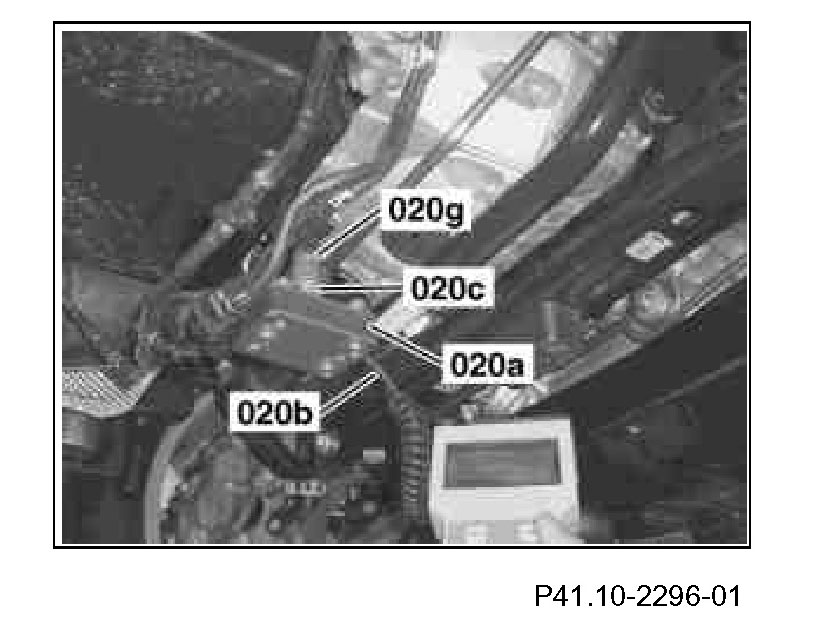

10 Fit sensor mount (020c) with sensor (020a) to measuring sleeve adapter (020g) by turning slightly to left/right (magnetic).
For each measurement the helical line (020b) of the sensor (020a) must point in the direction of travel, otherwise an incorrect measurement will ensue.

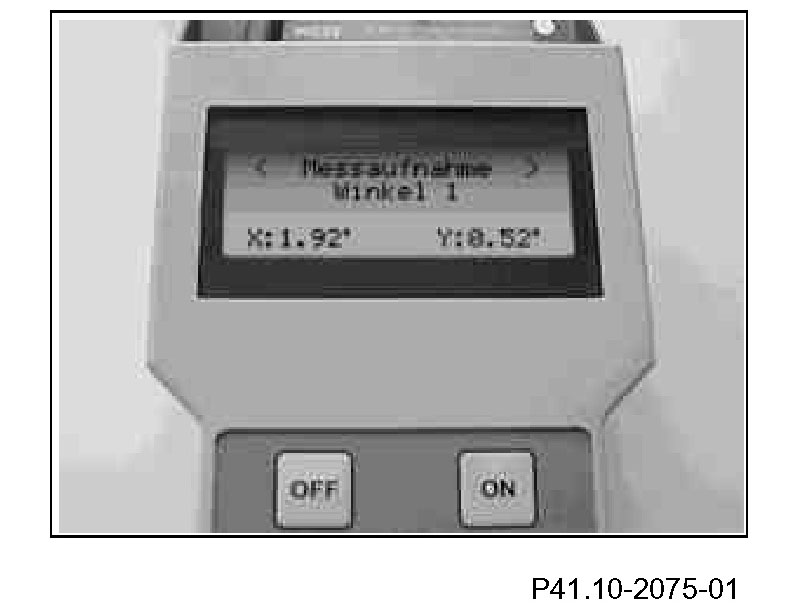

Measured values screen for angle 1: display e.g. 1.92 degrees:





The equipment is ready for measurement, the measured values are shown in the display.
11 Press SAVE button. The values are saved.

Measured values screen for angle 1: display e.g. 1.92 degrees

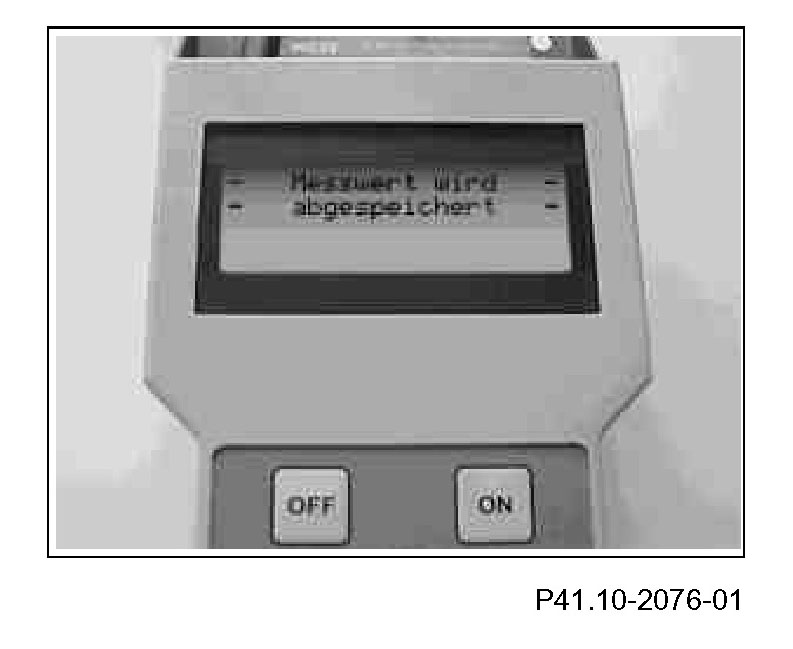

Confirmation screen:





A confirmation message appears briefly.

Confirmation screen

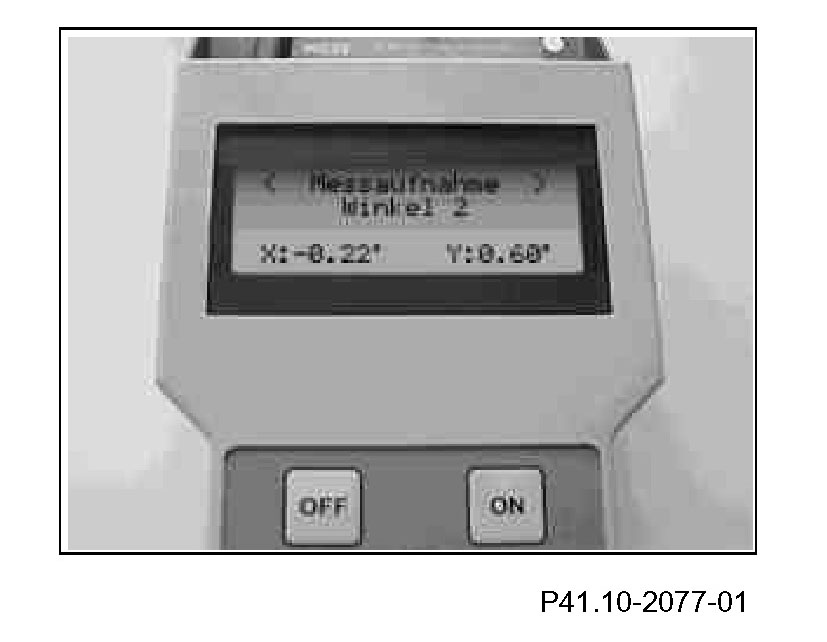

Ready screen for angle 2:





The display then indicates that the device is ready for the next measurement (angle 2).
12 Remove sensor (020a) from transmission.
13 Detach sensor mount (020c) from sensor (020a).
14 Unscrew measuring sleeve adapter (020g) from measuring sleeve socket (020e).
15 Unscrew measuring sleeve socket (020e) from transmission bore.
16 Attach bracket (31) and heat shield (32) to transmission.
17 Clip electrical lines and electrical connectors (G3/3x1, G3/4x1, G3/5x1, G3/6x1) of 02 sensors into bracket (31).

Ready screen for angle 2
