AR41.10-P-0050-09TX Release Fitting Sleeves on Flex Disks

AR41.10-P-0050-09TX Release fitting sleeves on flex disks

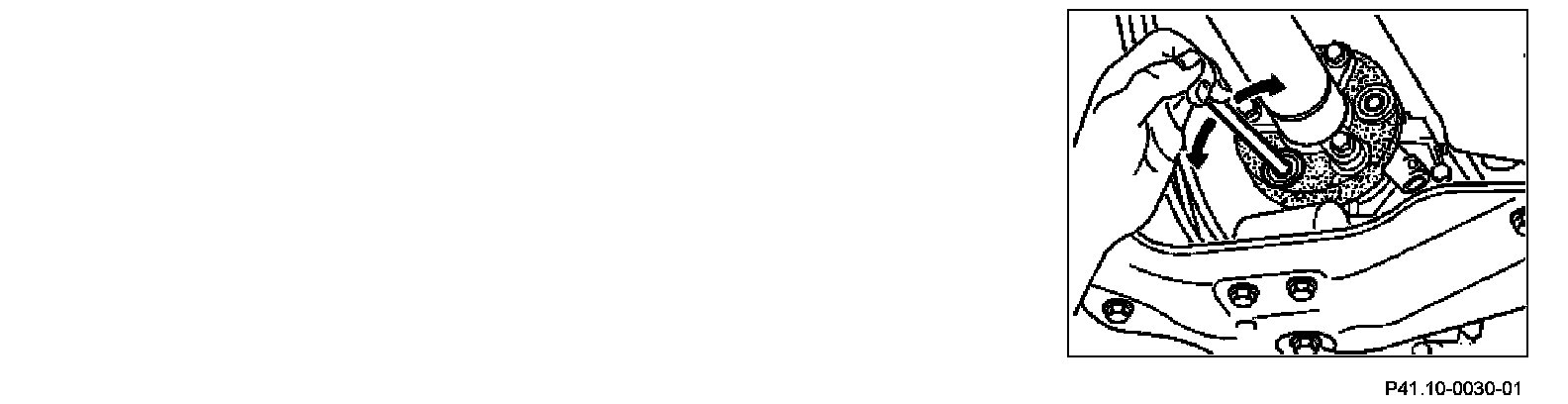

Installed propeller shaft:

1.1 Loosen the fitted sleeves of the flexible couplings at the transmission and rear axle center assembly using the drift (shop-made tool).
Only when installed.

Installed propeller shaft

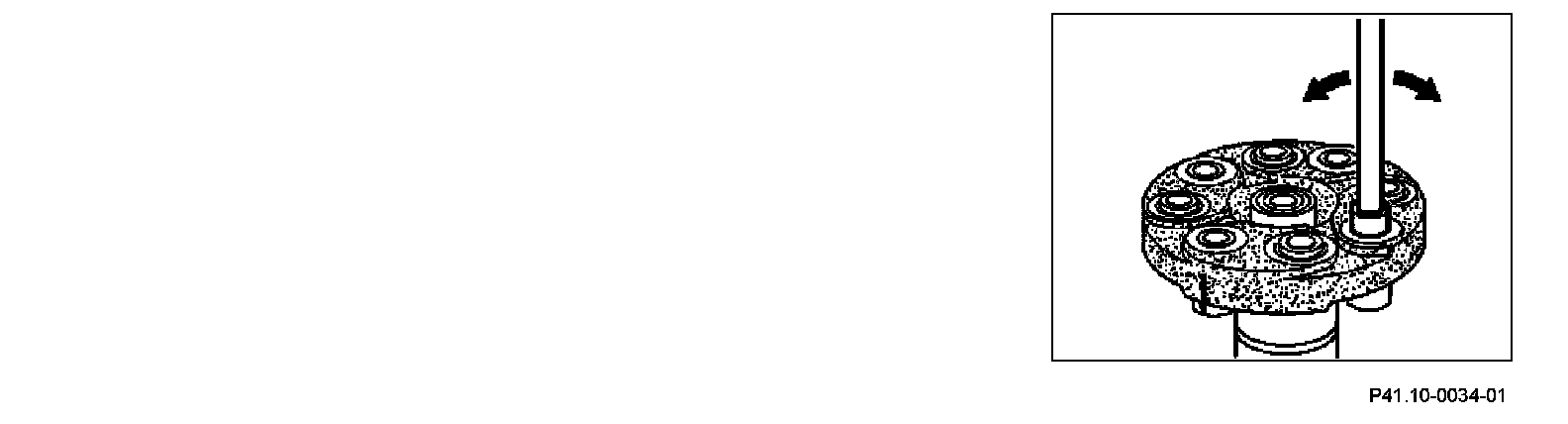

Removed propeller shaft:

1.2 Loosen fitting sleeves of flexible couplings on joint flange using drift (shop-made tool)
Only when removed.

Removed propeller shaft
