AR41.10-P-0050-05SX Connect sections of propeller shaft Long-life grease (NLGI grade 2)





1 Coat the splined profile with long-life grease before assembly.
2 Connect sections of propeller shaft.

The humps on the front half of the propeller shaft must be between the two humps on the linkage arm (arrows). Ensure the rubber seal is properly installed.

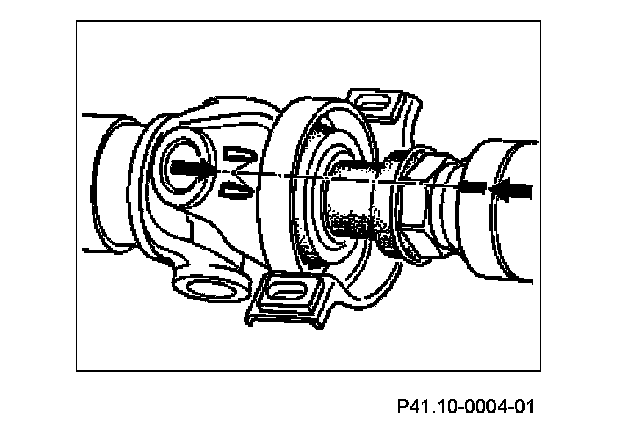

Position of propeller shaft without clamp connection

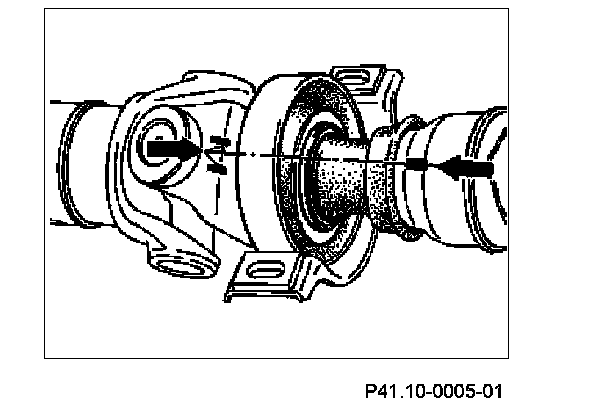

Position of propeller shaft with clamp connection
