AR41.10-P-0100SX Remove/install propeller shaft intermediate bearing and replace grooved ball bearing

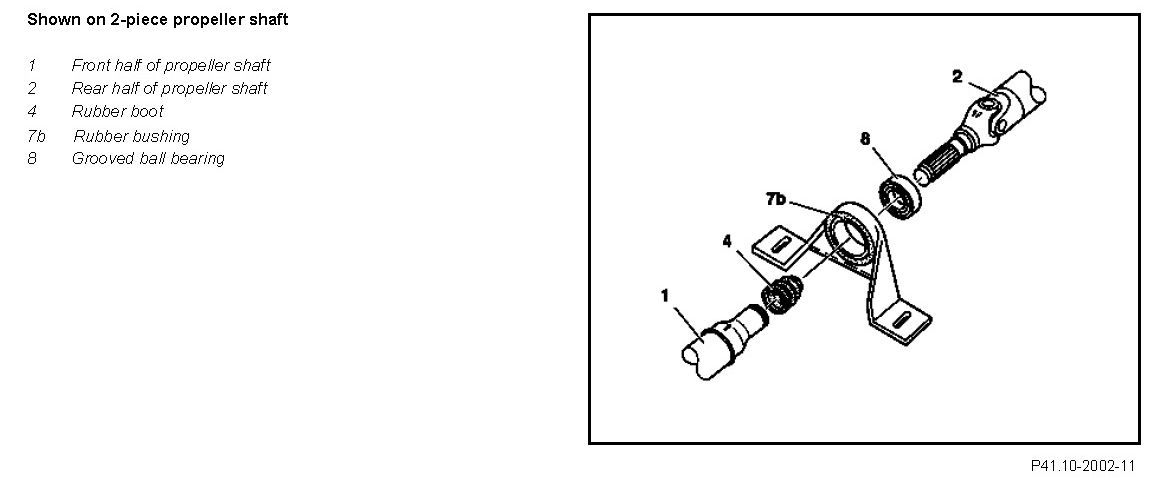

Component Identification:

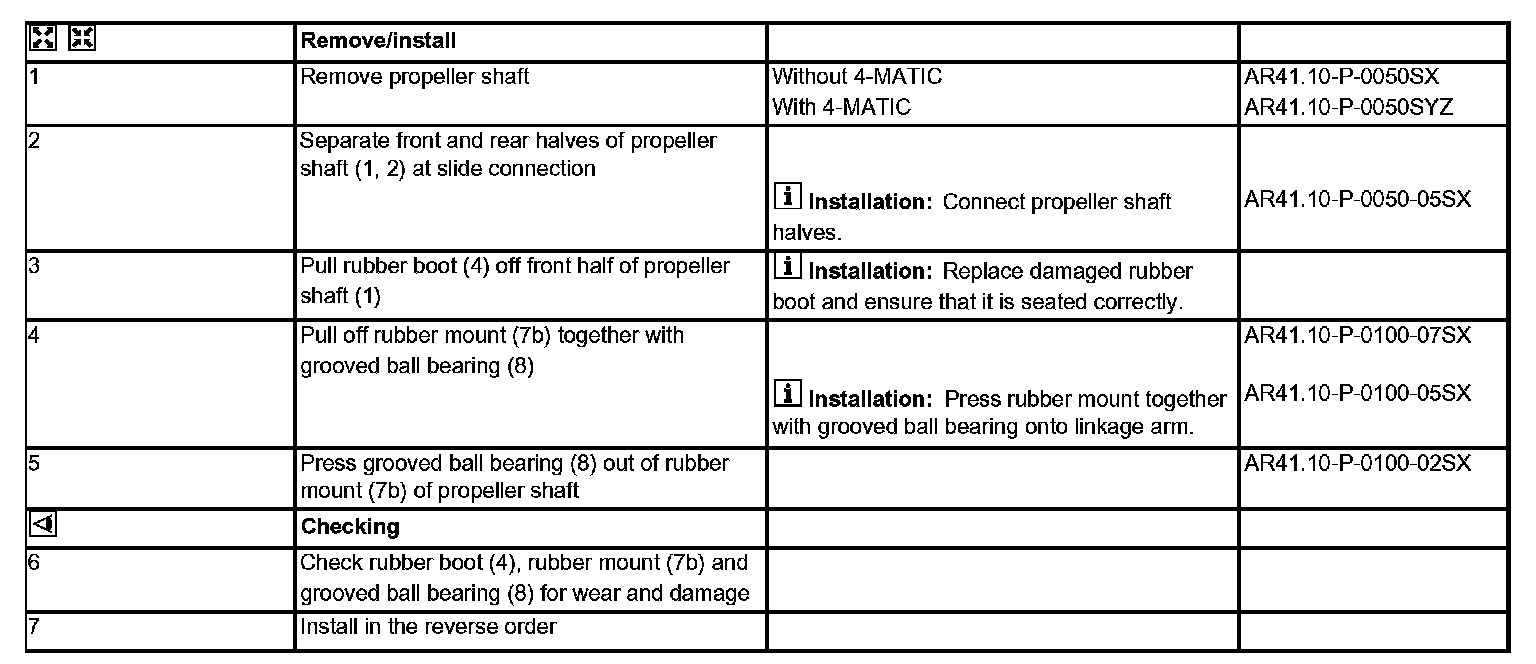

Remove/install Steps 1-7:
