AR41.10-P-0100-02SX Pressing Grooved Ball Bearing Out of Rubber Mount of Propeller Shaft, Pressing In

AR41.10-P-0100-02SX Pressing grooved ball bearing out of rubber mount of propeller shaft, pressing in

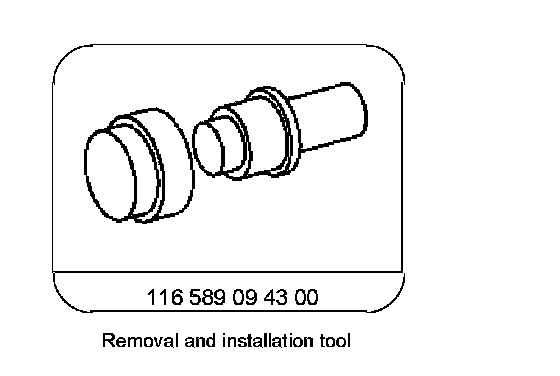

Special Tools:

Component Identification:

Press out

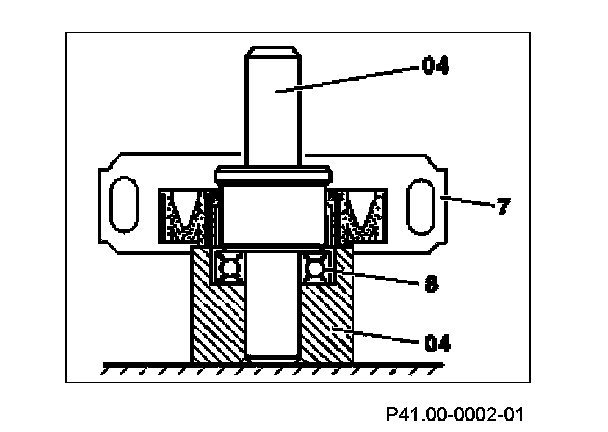

1 Using extraction and insertion tool (04), press grooved ball bearing (8) out of bearing seat lined with rubber(7).

Component Identification:

Pressing in

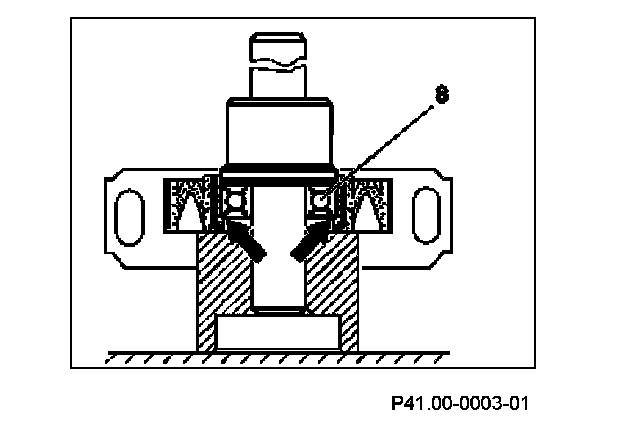

2 Using extraction and insertion tool, press in grooved ball bearing (8) up to the contact surface (arrows) in bearing seat lined with rubber.

Ensure correct seat of grooved ball bearing.
