AR41.10-P-0050-11SX Mount Propeller Shaft Intermediate Bearing

AR41.10-P-0050-11SX Mount propeller shaft intermediate bearing

Propeller shaft intermediate bearing:

Component Identification:

1 Mount propeller shaft intermediate bearing.

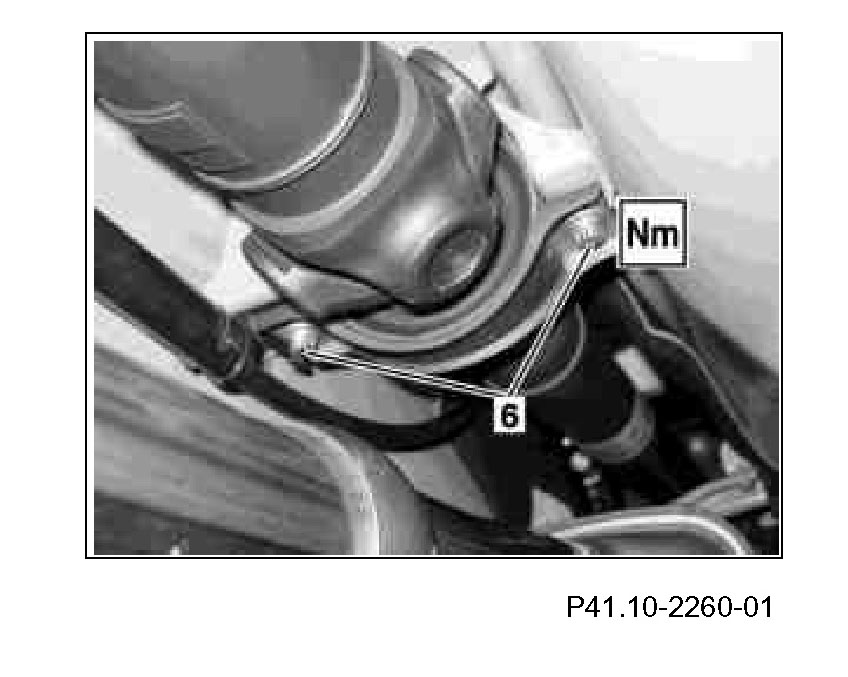

Insert the bolts (6) for the propeller shaft intermediate bearing but do not tighten. Tighten bolts (6) only after fastening the flex disks to the transmission and rear axle center assembly.

On models 221.154/ 156 the front propeller shaft intermediate bearing is mounted to the vehicle underbody with 2 bolts and the rear propeller shaft intermediate bearing is mounted on the vehicle underbody with 4 bolts.

Shown on propeller shaft intermediate bearing on model 221.171
