AR41.10-P-0050-10SX Loosen Bolts of Propeller Shaft Intermediate Bearing

AR41.10-P-0050-10SX Loosen bolts of propeller shaft intermediate bearing

Component Identification:

1 Loosen bolts (6) on propeller shaft intermediate bearing and remove if necessary.

On models 221.154/ 156 the front propeller shaft intermediate bearing is mounted to the vehicle underbody with 2 bolts and the rear propeller shaft intermediate bearing is mounted on the vehicle underbody with 4 bolts.

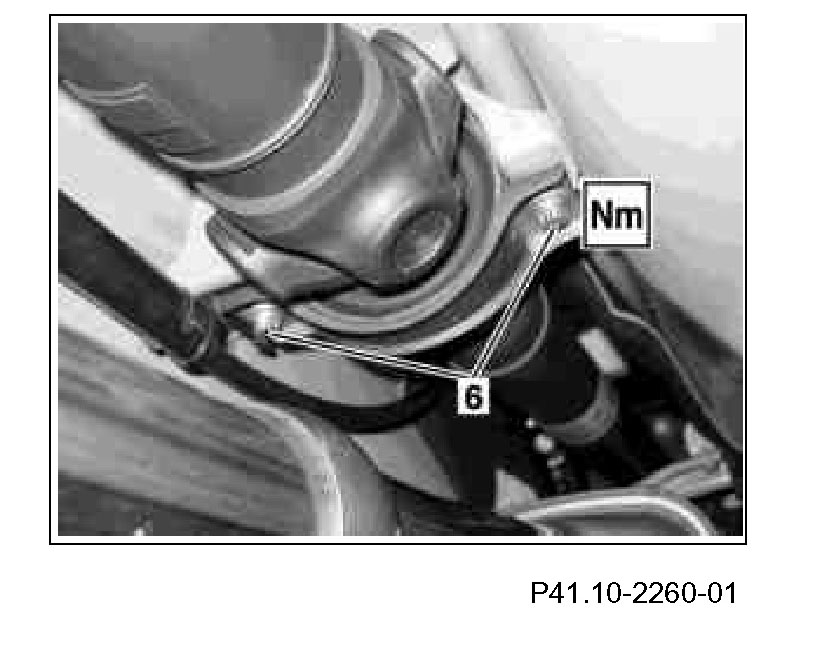

Shown on propeller shaft intermediate bearing on model 221.171
