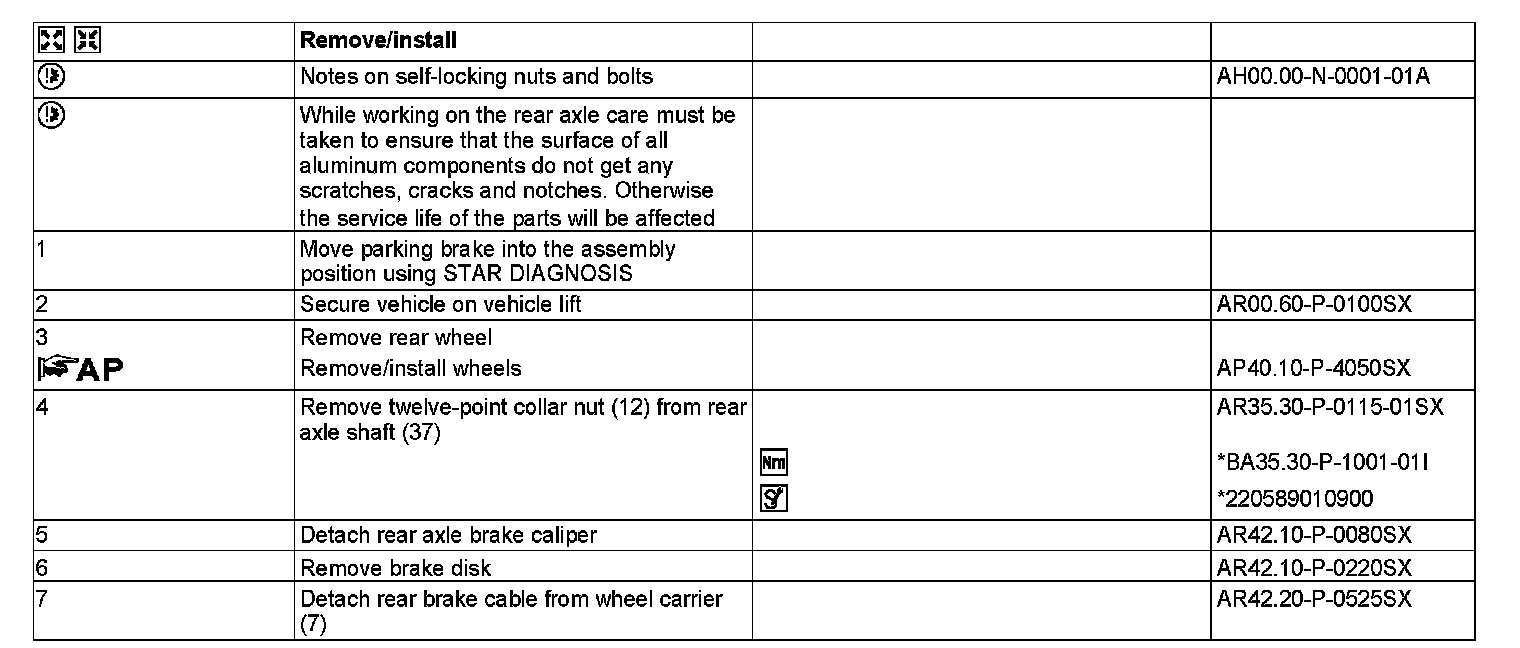

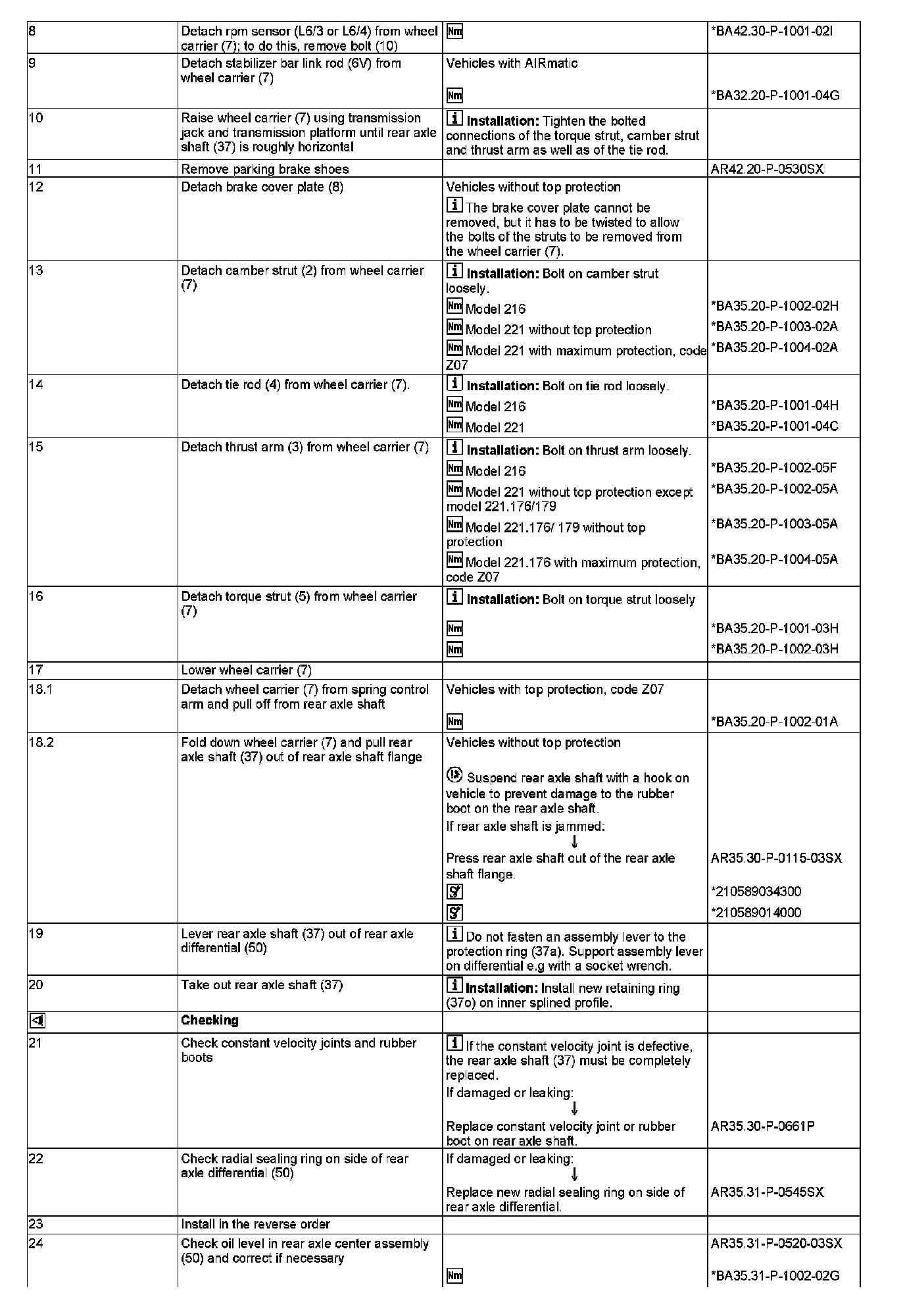

AR35.30-P-0620SX Remove/Install Rear Axle Shaft

AR35.30-P-0620SX Remove/Install Rear Axle Shaft
MODEL 221
With inserted rear axle shafts
MODEL 216

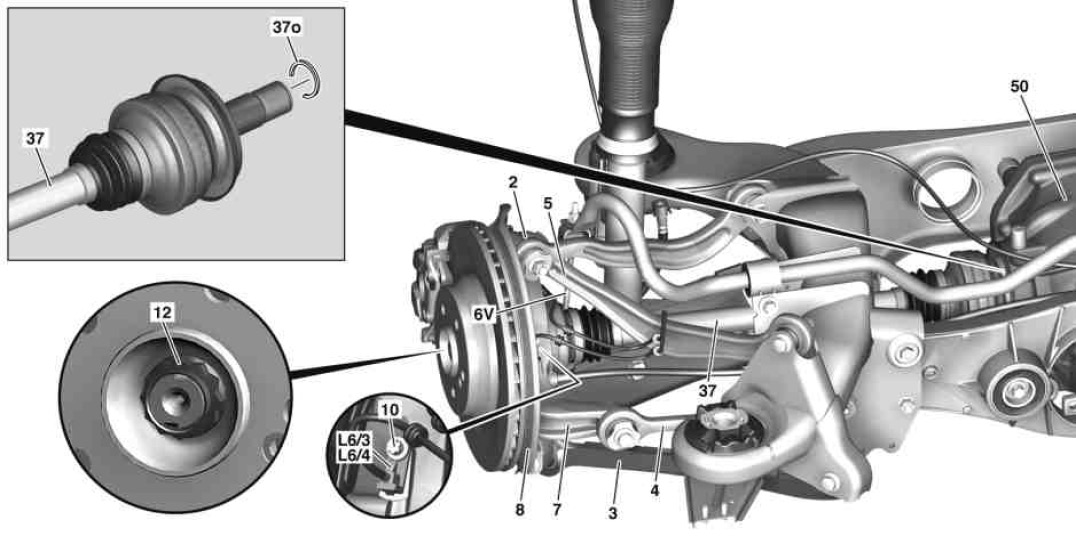

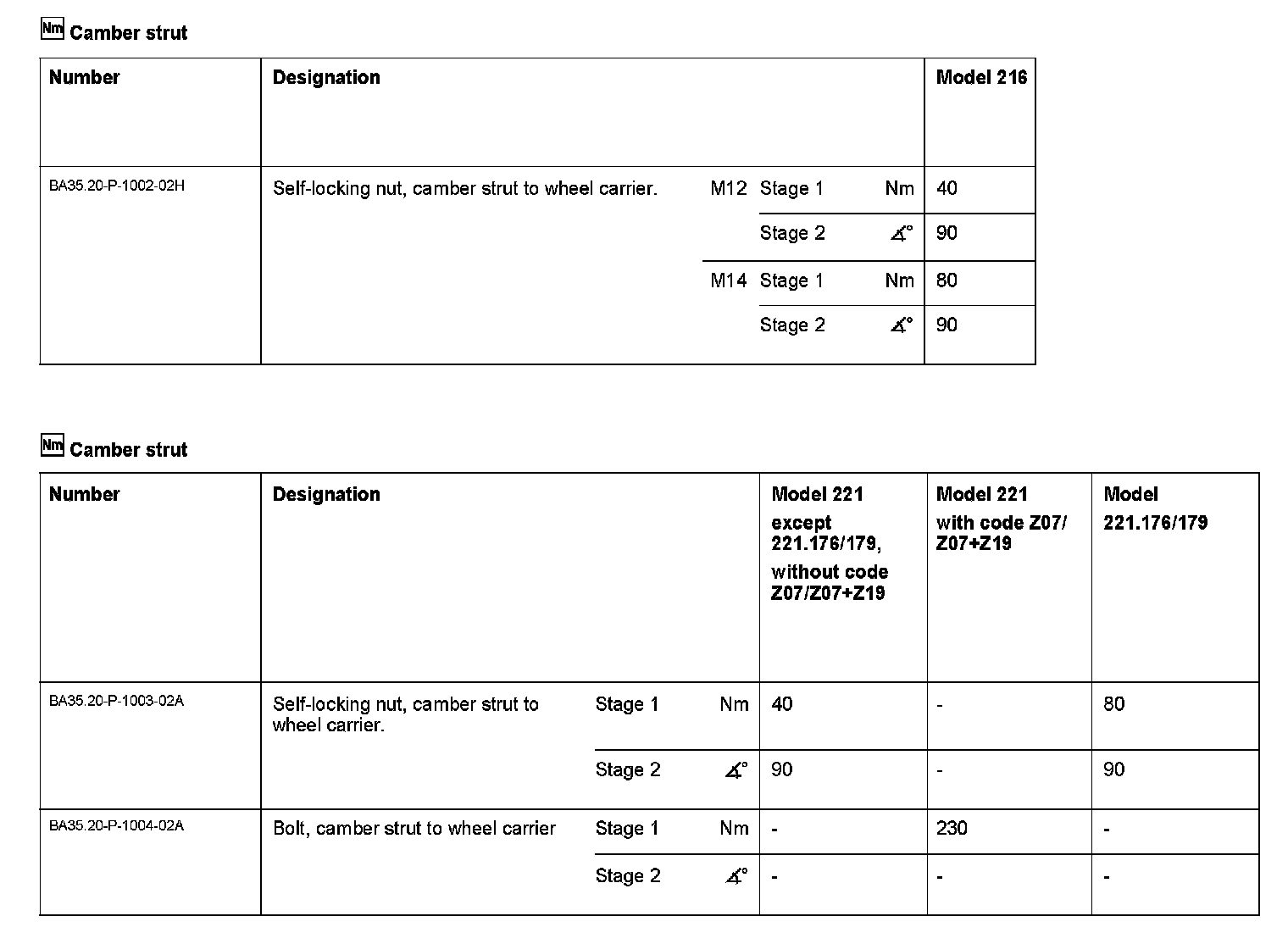

2 Camber strut
3 Thrust arm

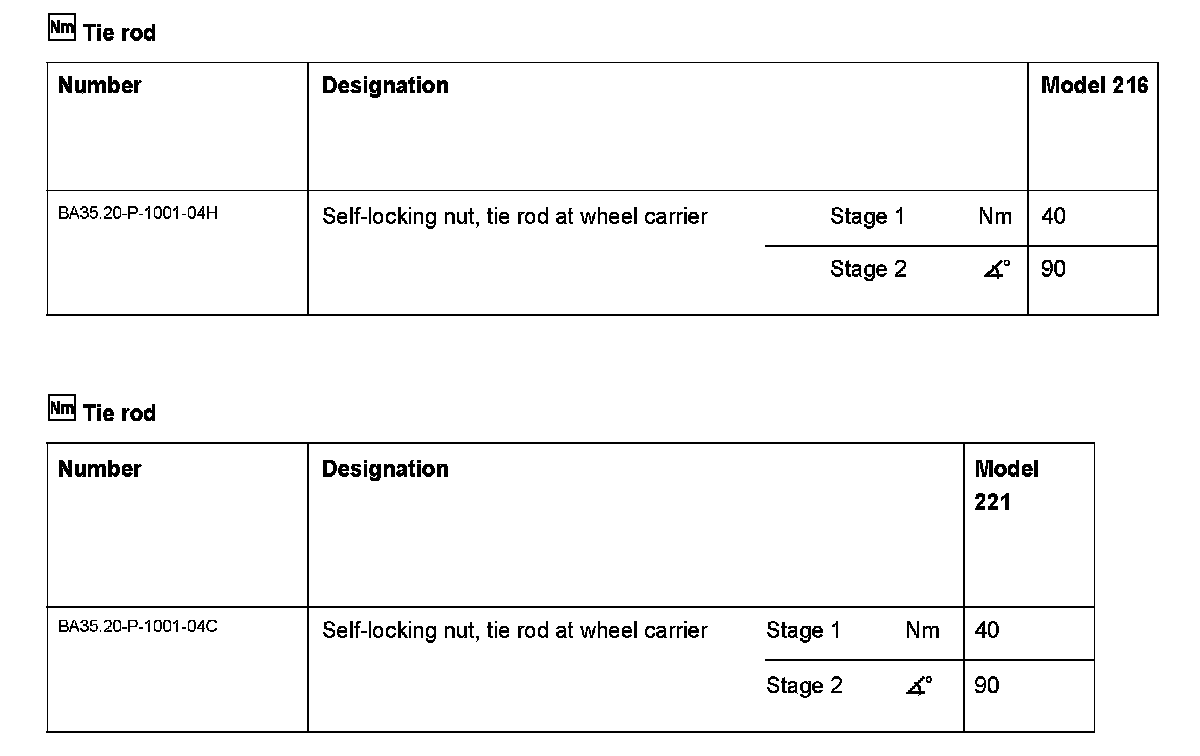

4 Tie rod

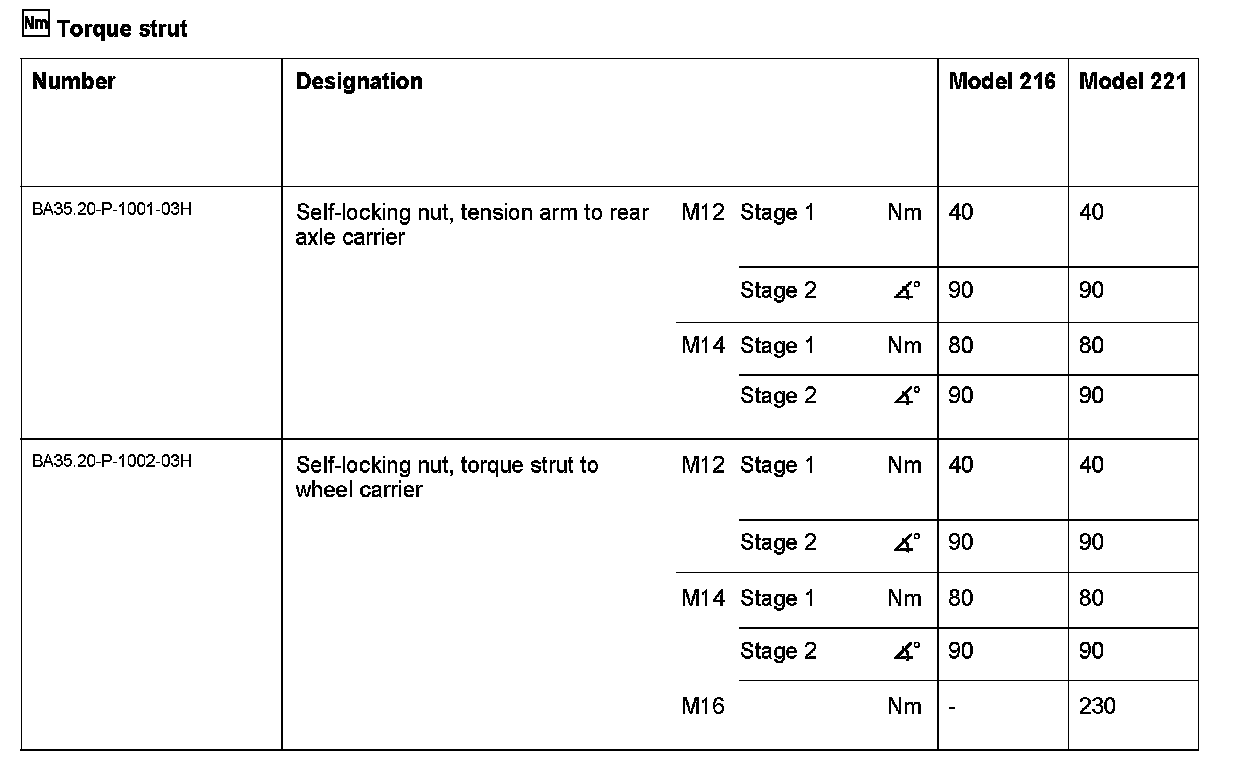

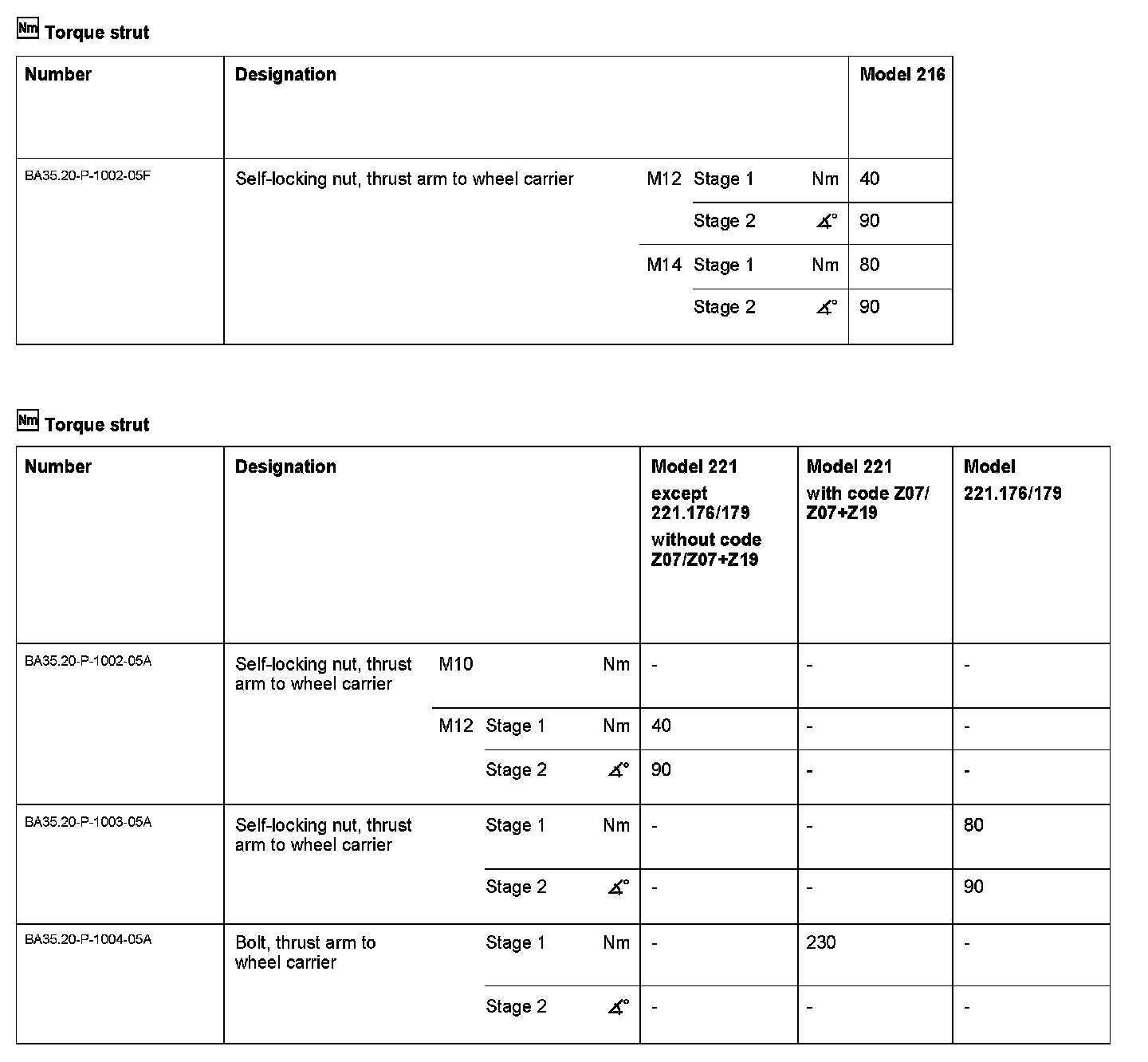

5 Torque strut

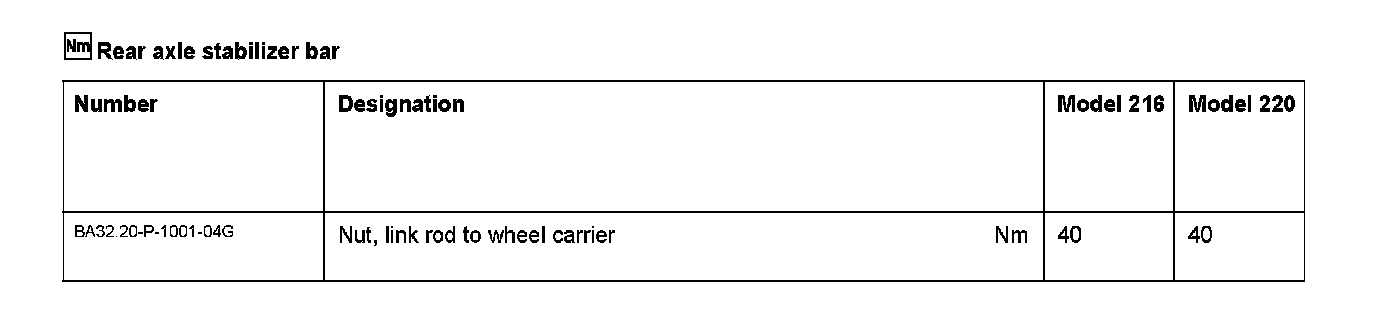

6V Stabilizer bar link rod
7 Wheel carrier
8 Brake caliper dust shield
10 Screw
12 Twelve-point collar nut

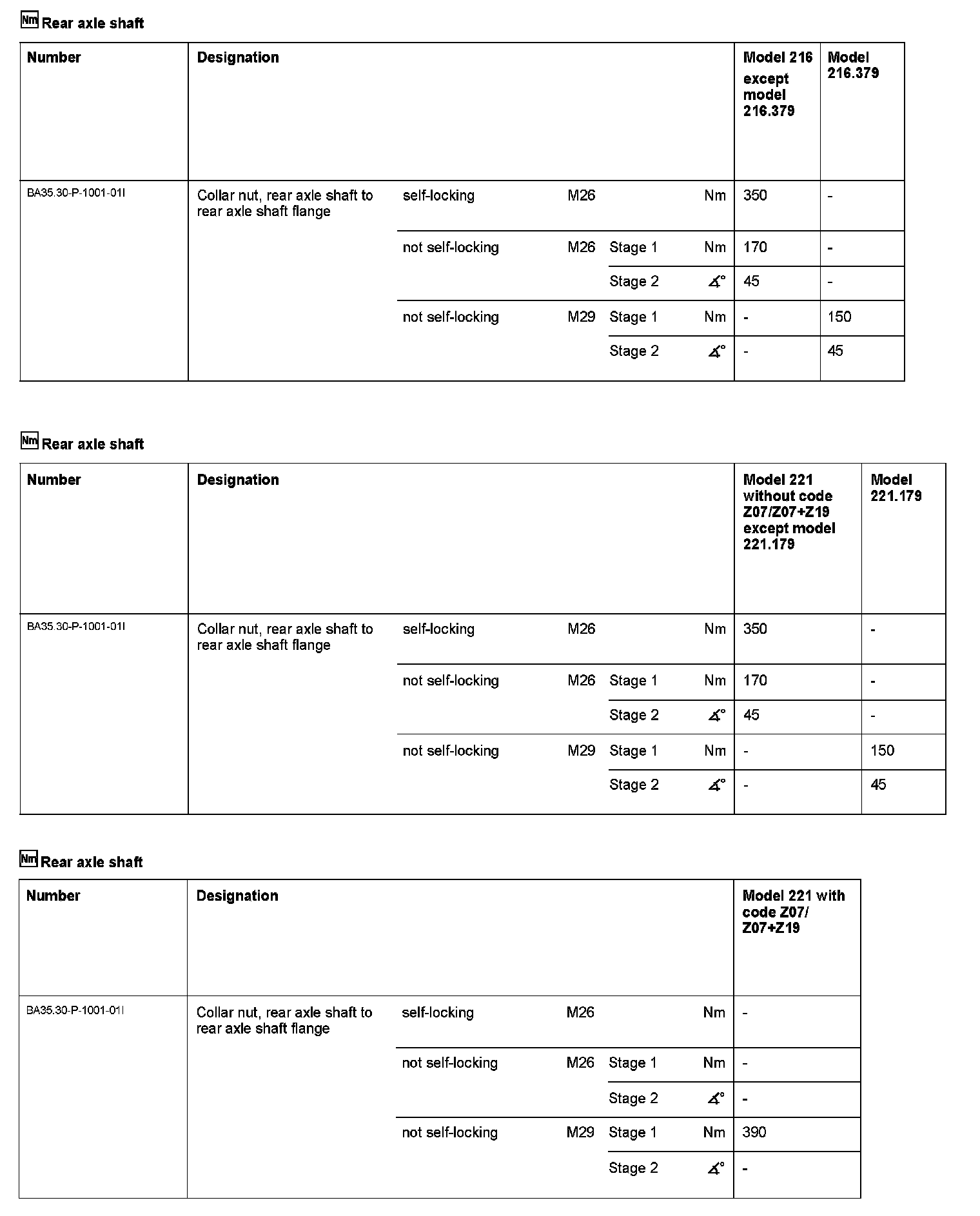

37 Rear axle shaft
37o Retaining ring

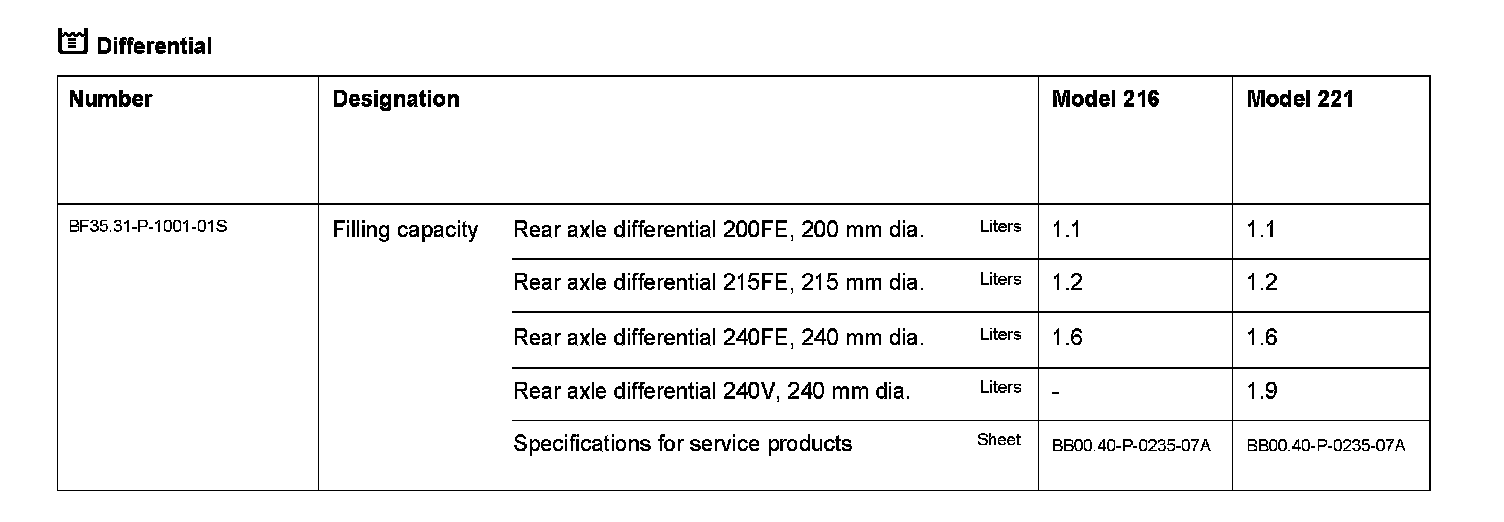

50 Differential

L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor

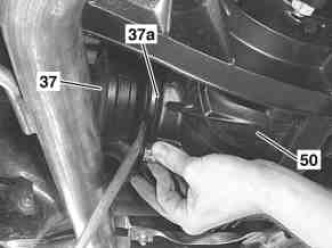

37 Rear axle shaft
37a Protective ring
50 Differential












































220 589 01 09 00
Wrench socket





210 589 03 43 00
Extraction and insertion tool





210 589 01 40 00
Bracket
