AR35.30-P-0115-01SX Remove/Install and Secure Rear Axle Shaft Twelve-Point Collar Nut

AR35.30-P-0115-01SX Remove/install and secure rear axle shaft twelve-point collar nut

Modification notes:

Special Tools:

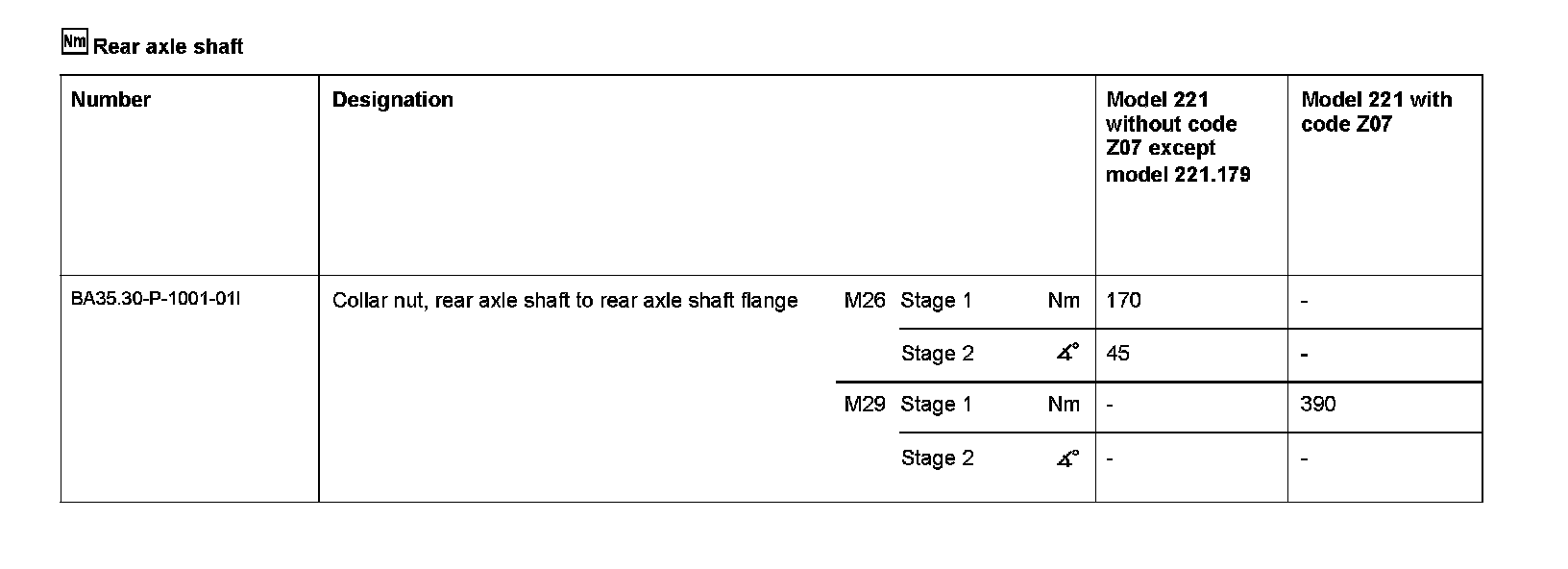

Rear axle shaft:

Component Identification:

Detaching
1 Apply parking brake
2 Unscrew twelve-point collar nut (12).

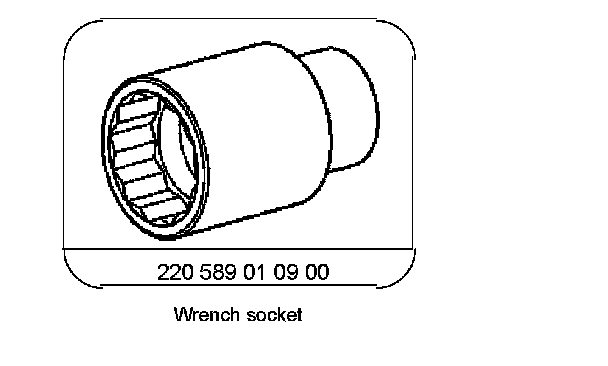

Socket for twelve-point collar nut M29

Mount on and secure
Replace twelve-point collar nut (12).

3 Tighten twelve-point collar nut (12).
4 Use caulker to secure twelve-point collar nut (12) with no residual gap between the groove and the securing tabs (arrow).
5 Release parking brake.
