AR33.30-P-0620SYZ Remove/Install Front Axle Shafts
AR33.30-P-0620SYZ Remove/Install Front Axle Shafts
AR33.30-P-0620SYZ Remove/install front
axle shafts

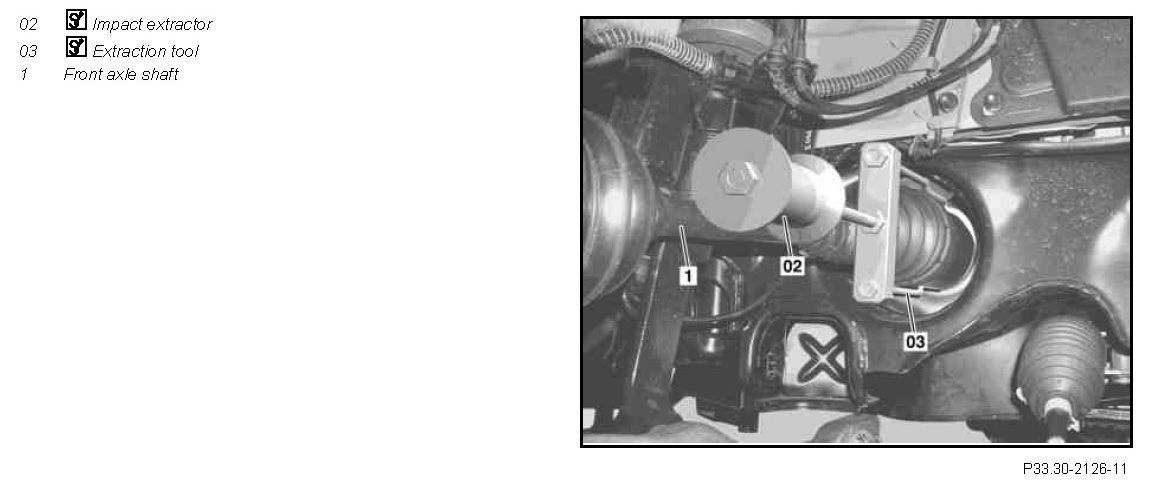

Component Identification:

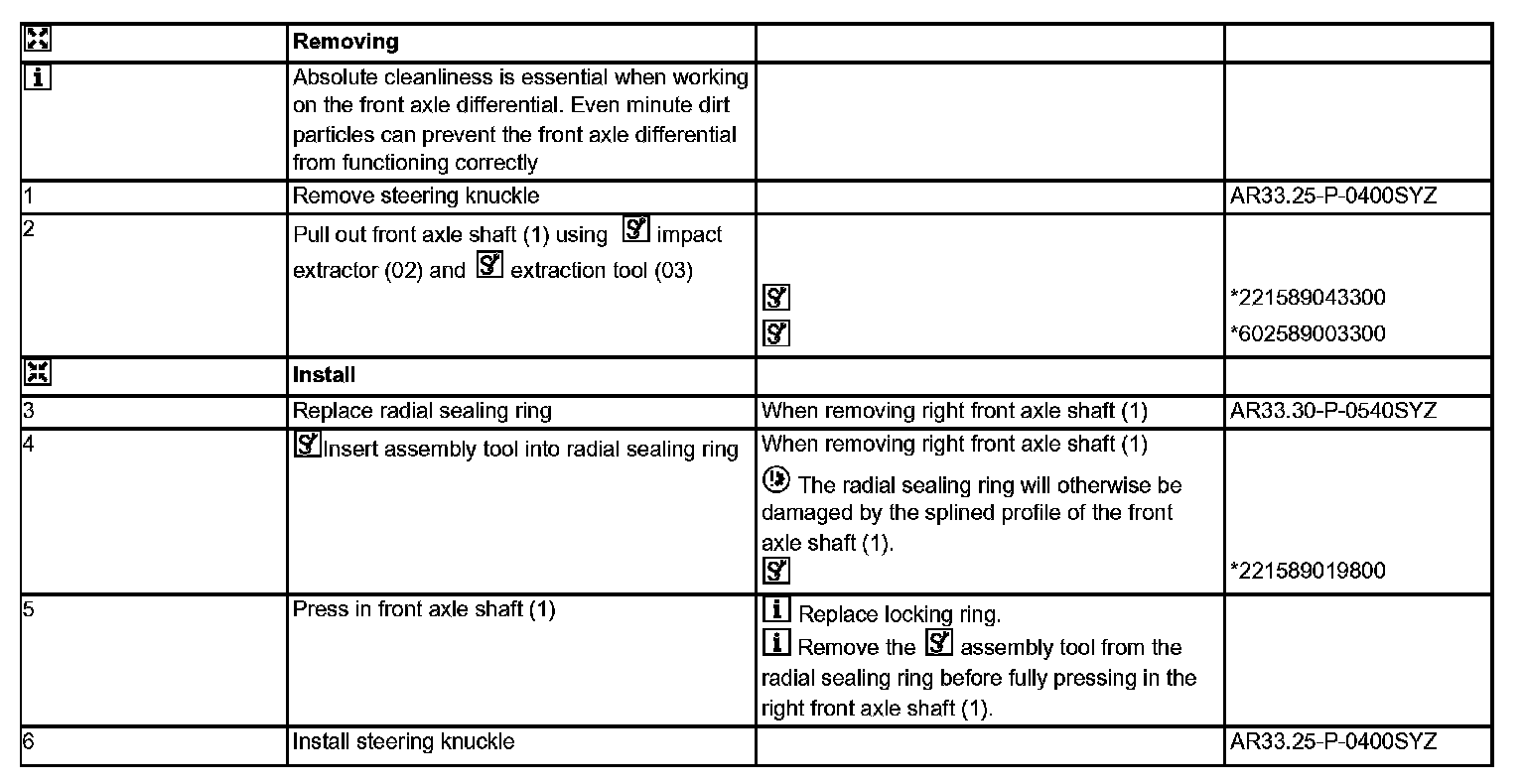

Steps 1-6:

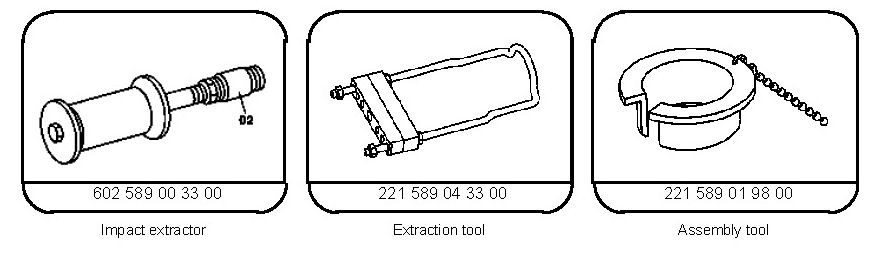

Special Tools:
