AR35.20-P-0130-06SX Pull Rear Axle Shaft Flange Out of Angular Contact Ball Bearing

AR35.20-P-0130-06SX Pull rear axle shaft flange out of angular contact ball bearing
- Model 221 (except 221.179) except CODE (Z07) Top protection

Modification notes:

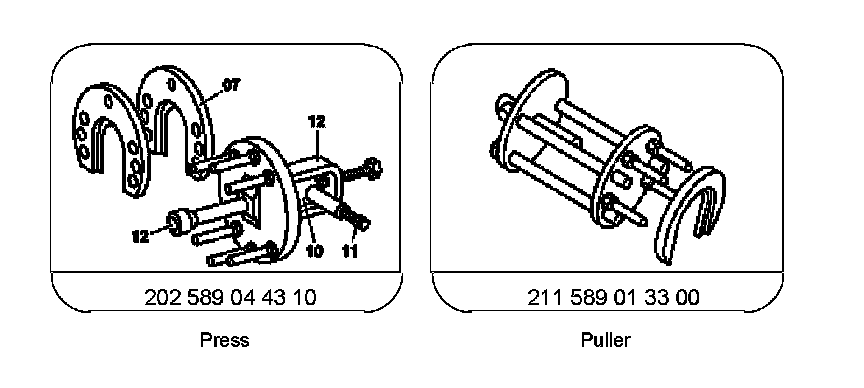

Special Tools:

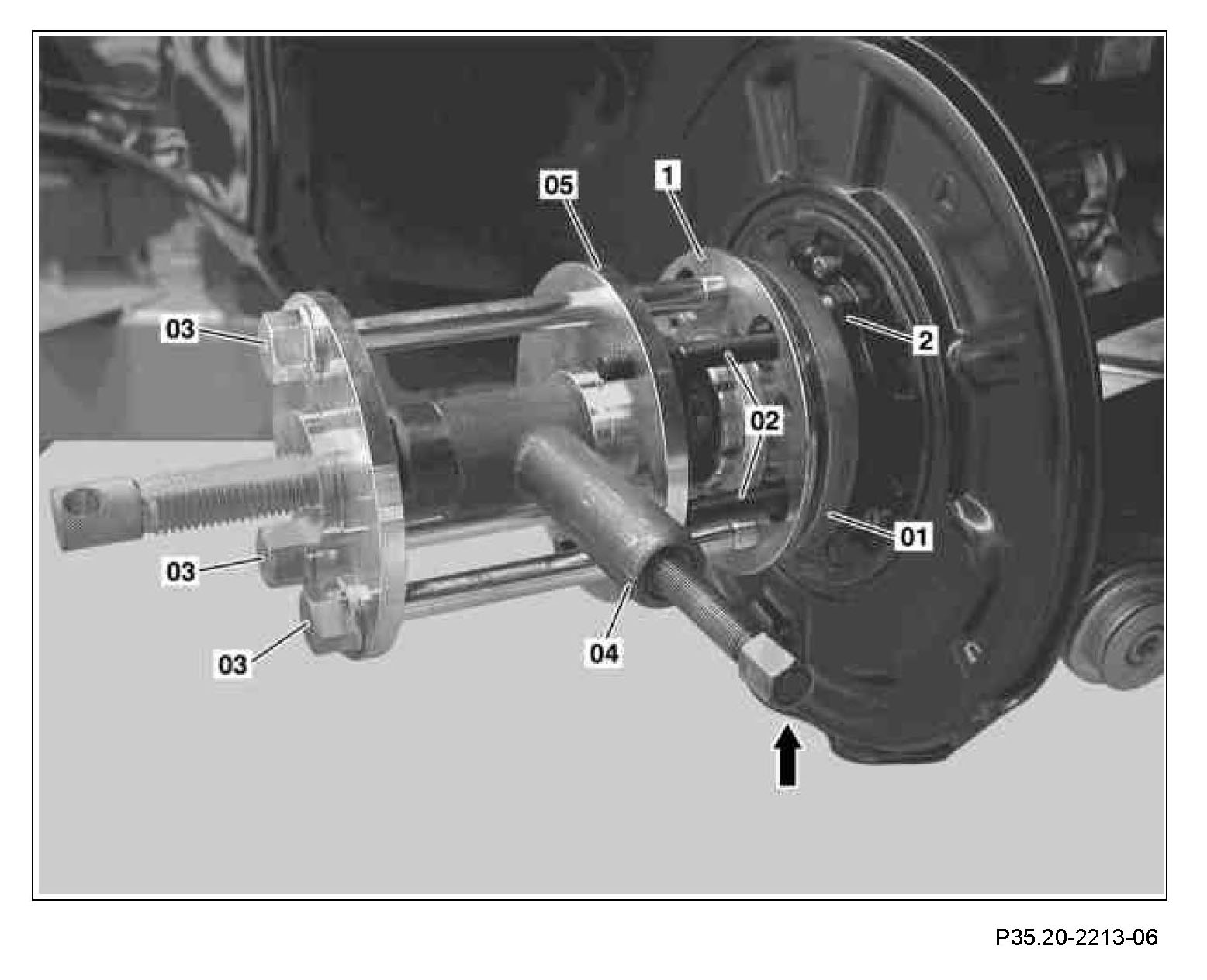

1 Position the pressure plate (01) behind the rear axle shaft flange (1).

Component Identification:

2 Screw retaining bolts (03) into the rear axle shaft flange (1).
3 Slide the guide plate (05) forwards until the guide pins (02) are fixed in pressure plate (01).
4 Insert press (04) and pull rear axle shaft flange (1) out of angular contact ball bearing (2) by turning the spindle (arrow).
