AR35.20-P-0130-02SX Pull Inner Bearing Race Off Rear-Axle Shaft Flange

AR35.20-P-0130-02SX Pull inner bearing race off rear-axle shaft flange
- with CODE (Z07) Top Protection

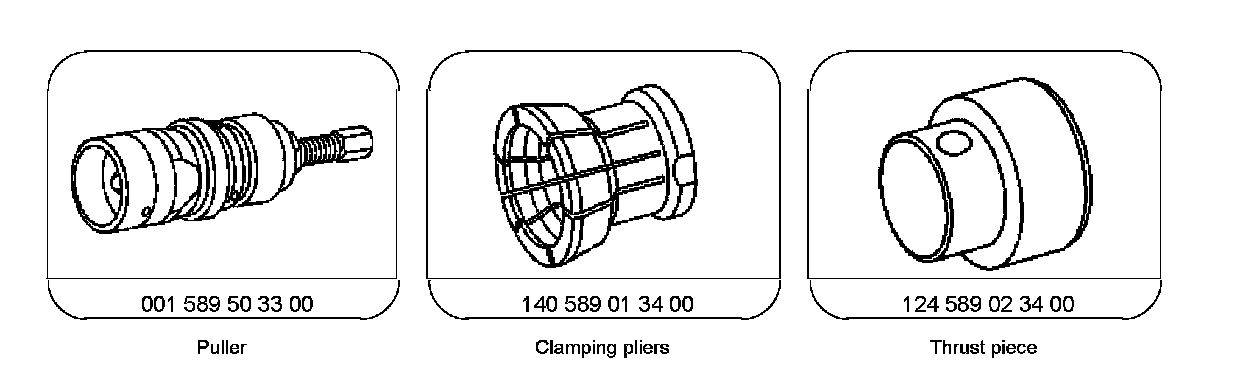

Special Tools:

Component Identification:

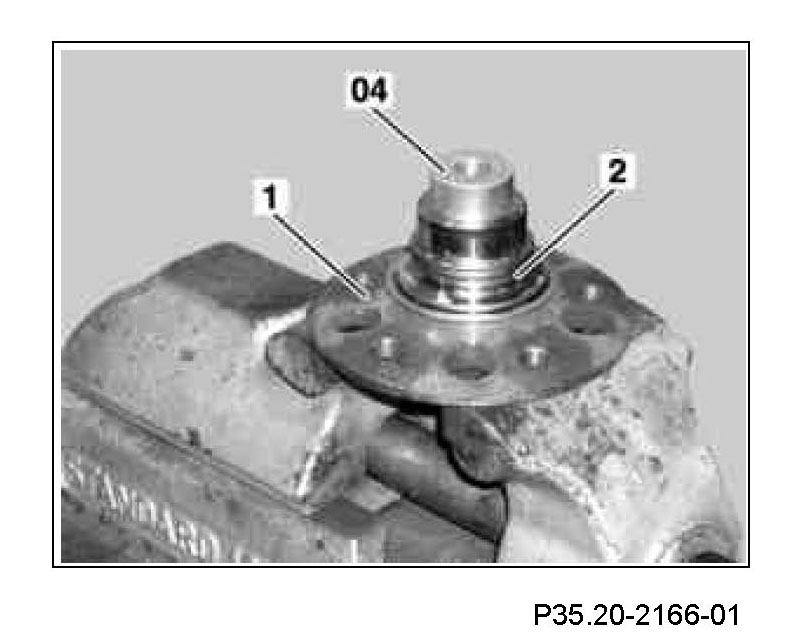

1 Clamp rear axle shaft flange (1) in vise.
2 Mount thrust piece (04) on rear axle shaft flange (1).

Component Identification:

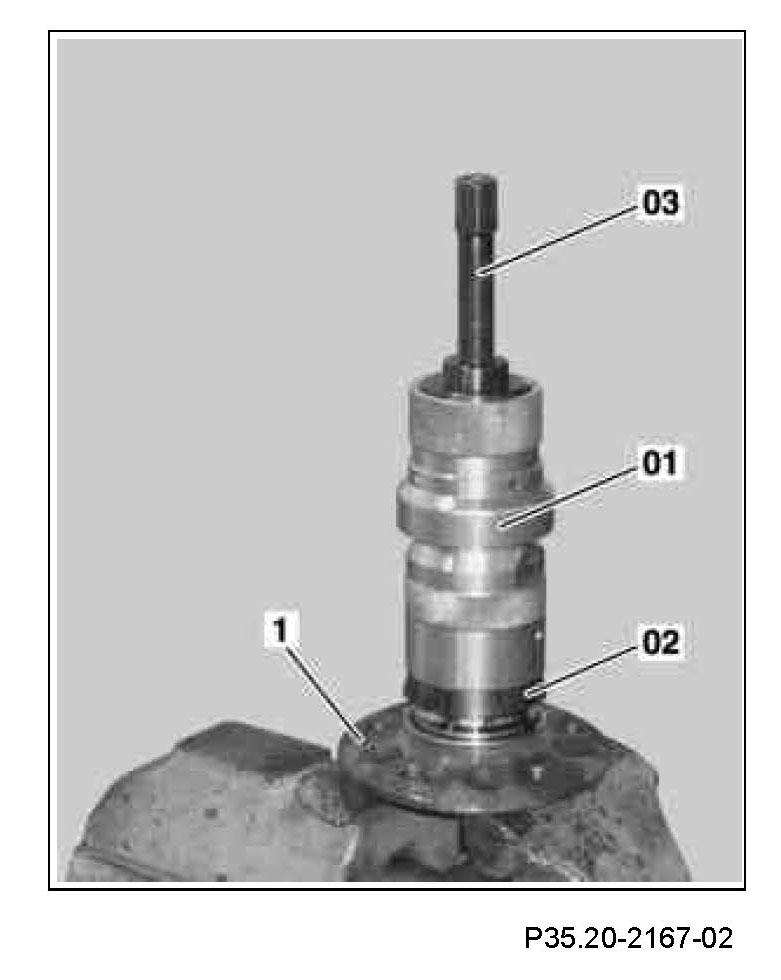

3 Screw clamping pliers (02) onto puller (01) and tighten.
4 Mount puller (01) on bearing inner race (2) and clamp securely.
5 Turn in threaded rod (03) of puller (01) and remove bearing inner race (2) using puller (01) from rear axle shaft flange (1).
