AR33.30-P-0085-03H Lock Collared Nut



AR33.30-P-0085-03H Lock collared nut
- with CODE (Z07) Top protection

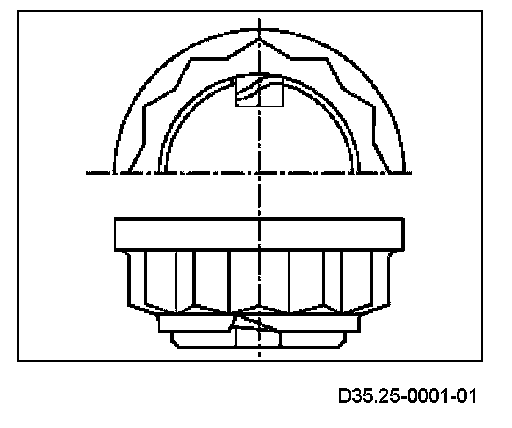

1 Shear off collar of tightened collar nut axially in area around locking slot.
2 Drive collar into locking slot so that it touches the left sidewall of the slot.
