AR33.30-P-0690T Remove/Install Boots on Front Axle Shaft

AR33.30-P-0690T Remove/Install Boots On Front Axle Shaft
MODEL 203.08 /28, 204.08 /09 /28 /29 /98 /99, 207.38, 211.08 /09 /28 /29, 212.08 /09 /28 /29, 218.39, 220.08 /18
Outer boot
MODEL 216, 221 with 4MATIC, outer boot

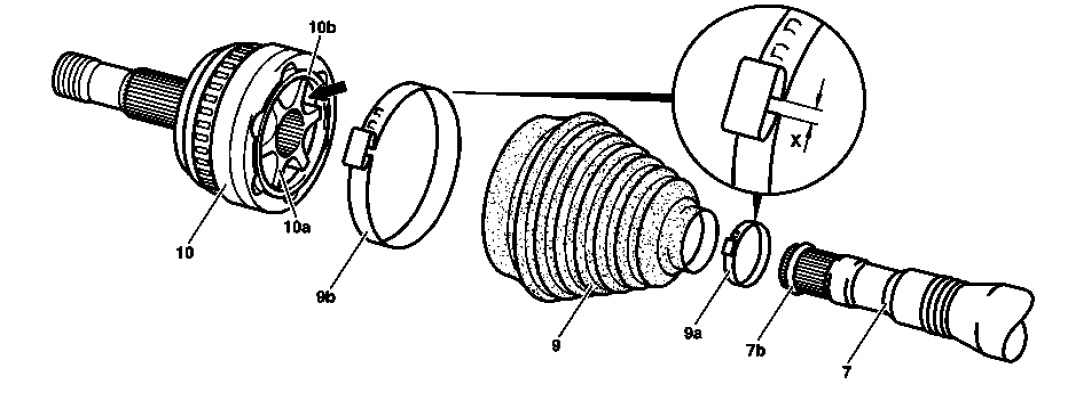

7 Front axle shaft
7b Retaining ring
9 Boot
9a Clamp
9b Clamp
10 Articulated
10a Internal spider
10b Cage
