AR33.30-P-0690CW Remove/Install Boots on Front Axle Shaft

AR33.30-P-0690CW Remove/Install Boots On Front Axle Shaft
MODEL 203, 204, 207, 211, 212, 216, 218, 220, 221

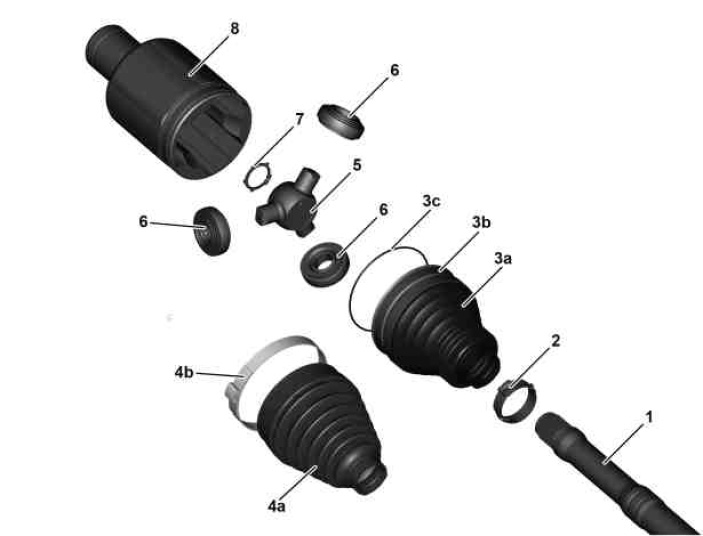

Inner boot





1 Front axle shaft
2 Clamp
3a Boot
3b Cup seal
3c Sealing ring
4a Boot
4b Clamp
5 Internal spider
6 Bearing
7 Retaining ring
8 Joint hub
