AR33.30-P-0525SYZ Remove/Install Front Axle Gear



AR33.30-P-0525SYZ Remove/install front axle gear

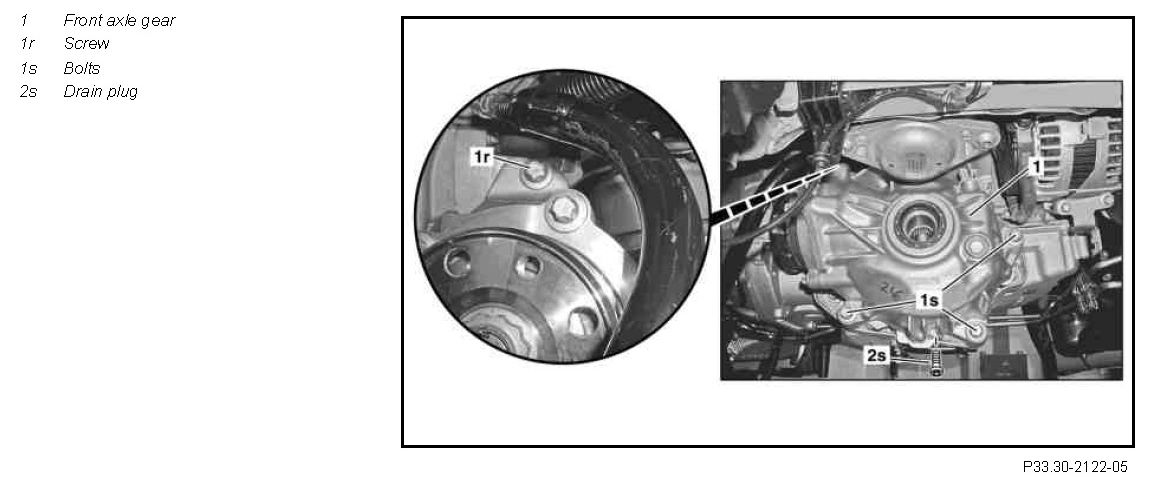

Component Identification:




Modification notes:

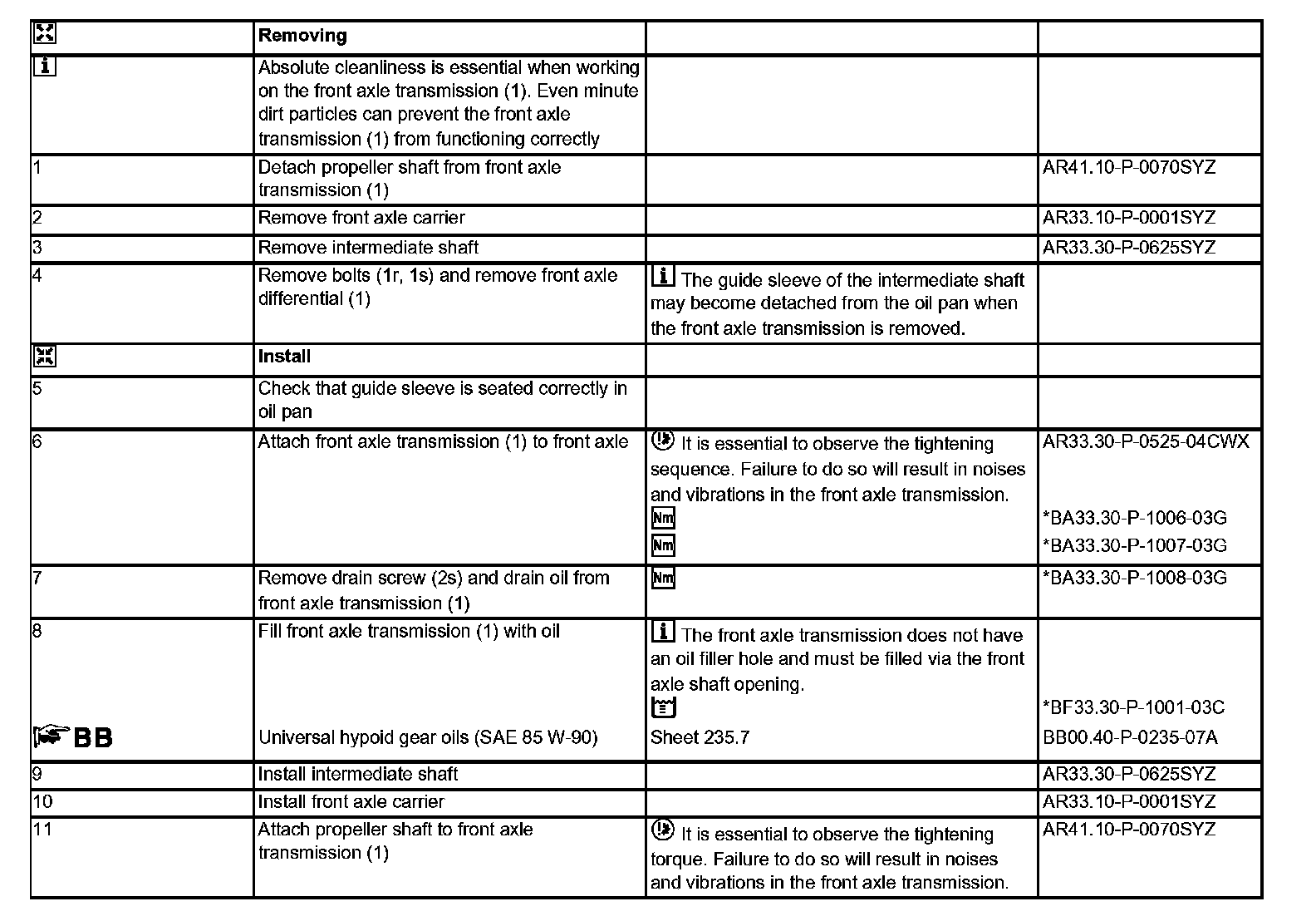

Steps 1-11:

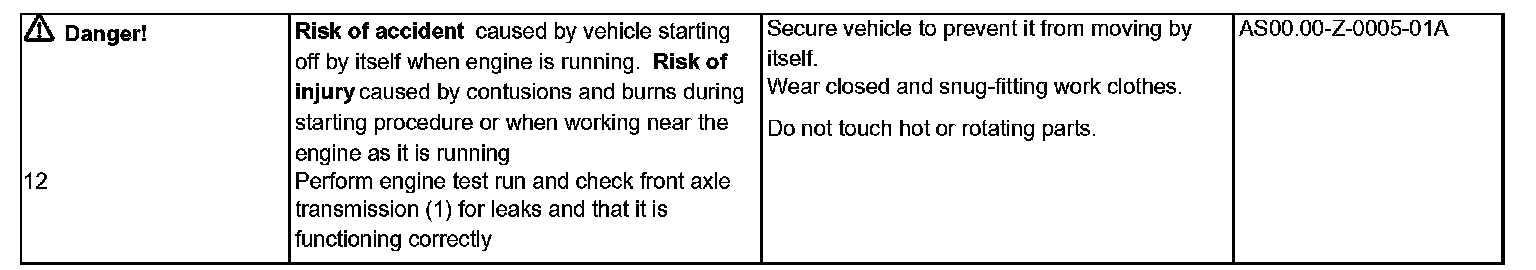

Step 12:

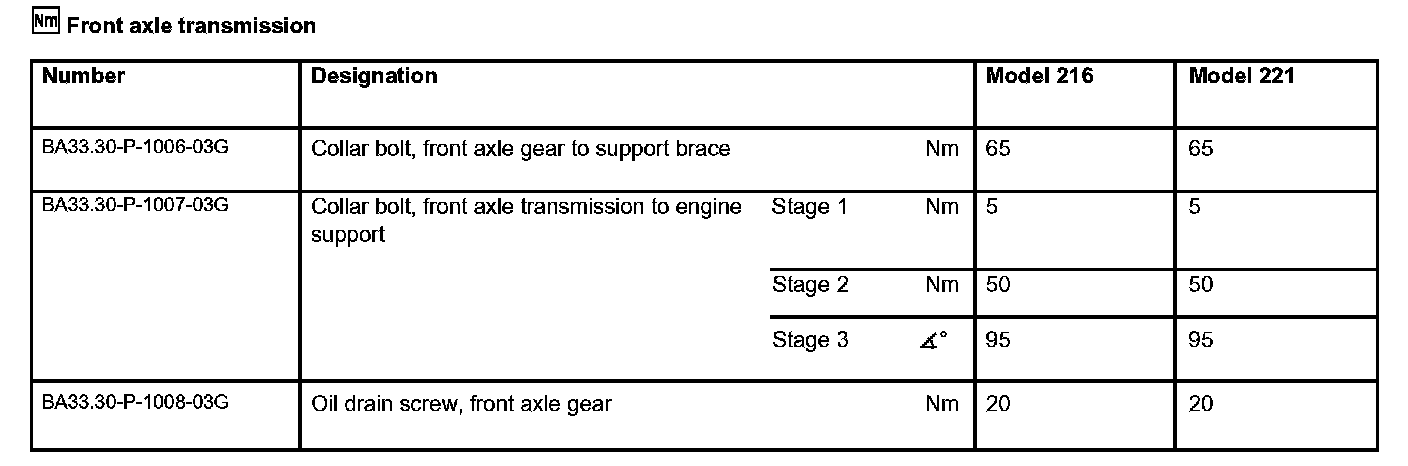

Front axle transmission:

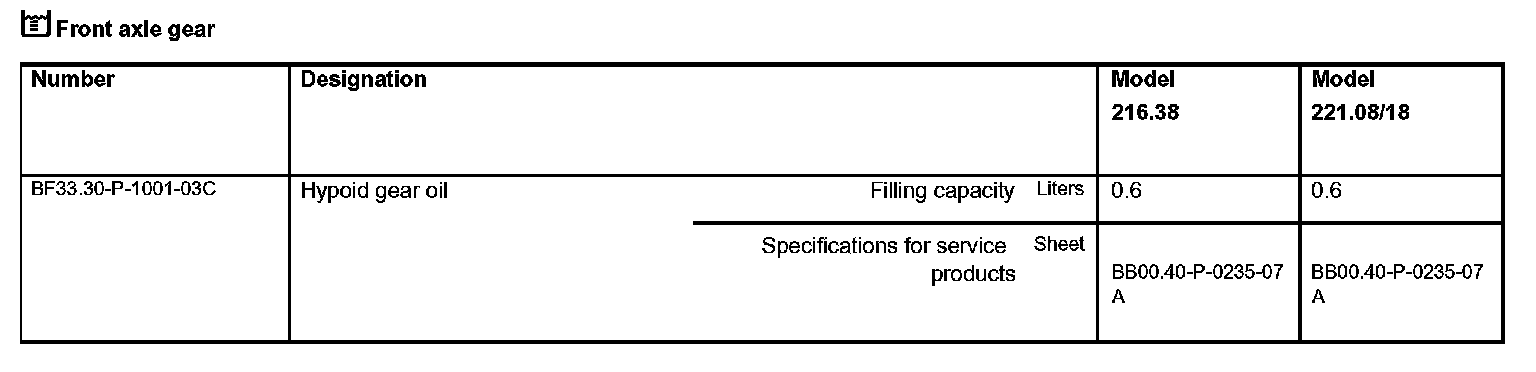

Front axle gear:
