AR33.30-P-0525-04CWX Attaching Front Axle Gear to Front Axle

AR33.30-P-0525-04CWX Attaching front axle gear to front axle

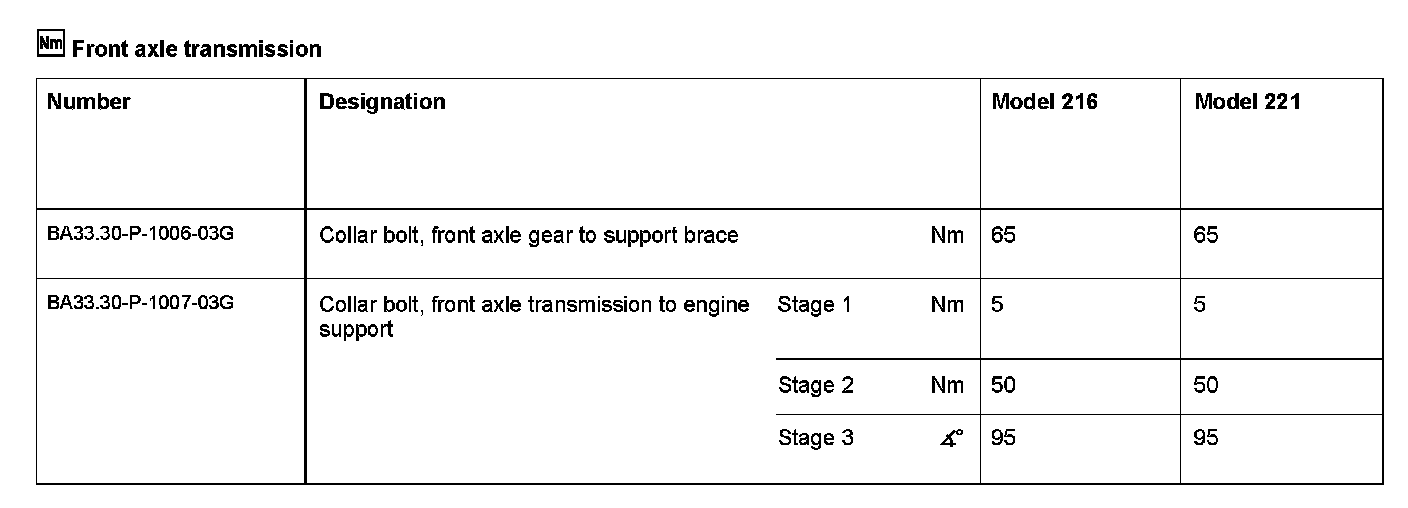

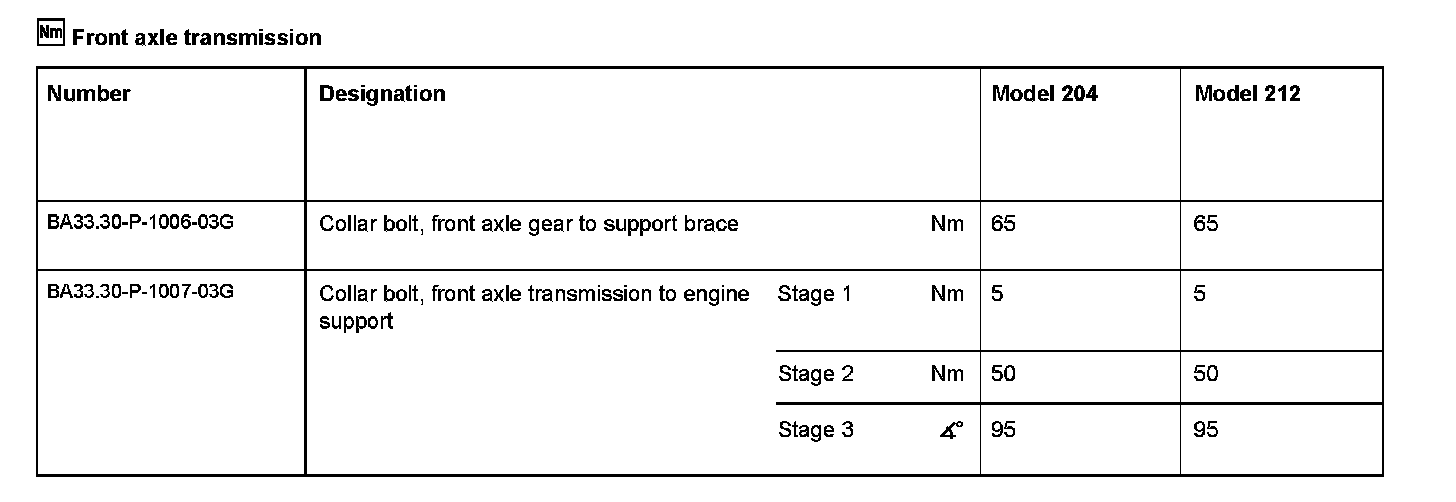

Front Axle Transmission:

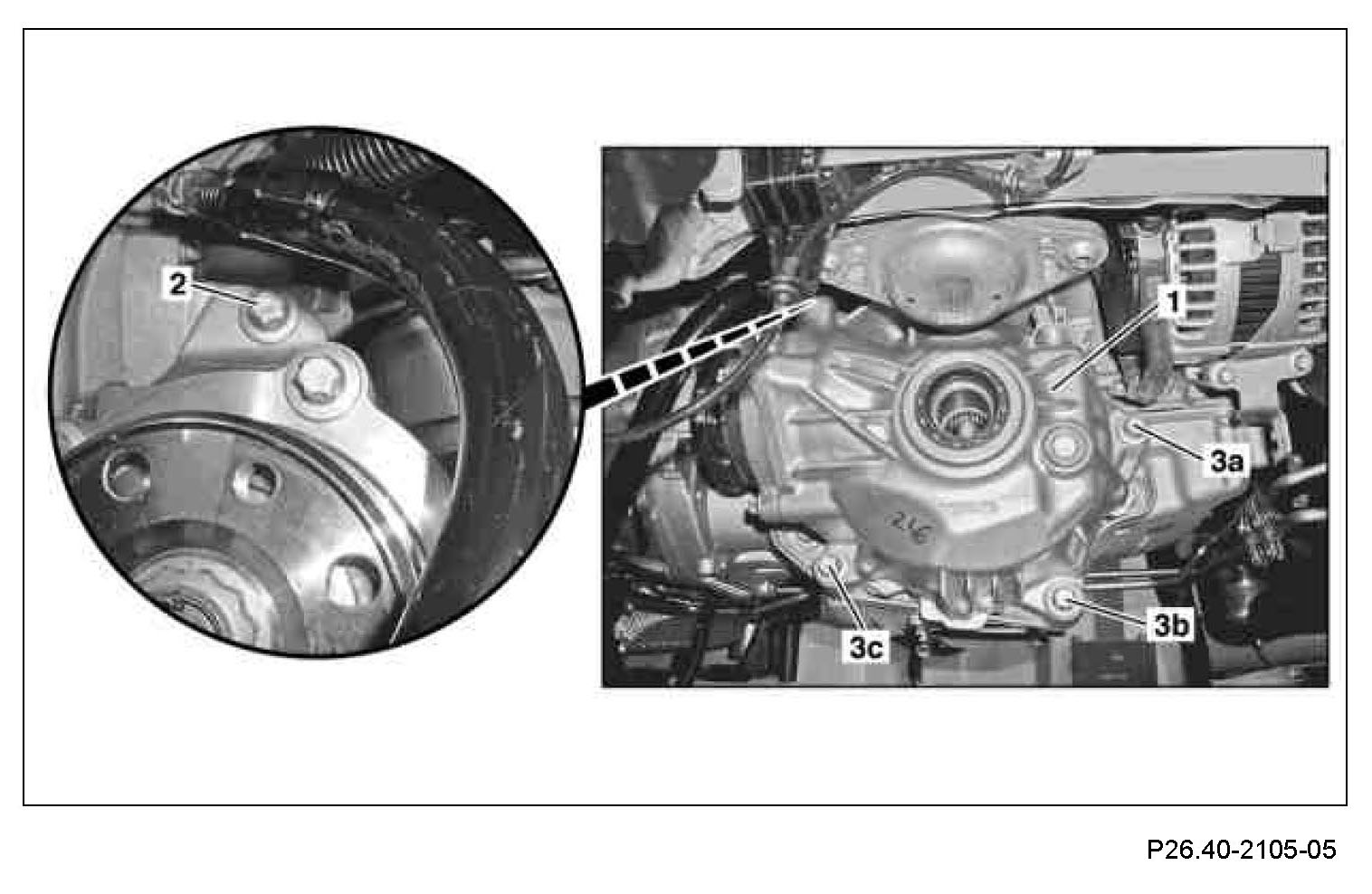

Component Identification:

It is essential to observe the tightening sequence. Failure to do so will result in noises and vibrations in the front axle transmission (1).
1 Insert front axle transmission (1) and tighten bolts (2, 3a, 3b, 3c) clockwise until finger-tight.
2 Tighten bolt (2) at engine support to stage 1.
3 Tighten bolts (3a, 3b, 3c) at support brace clockwise, starting with bolt (3a).
4 Tighten bolt (2) to stage 2 and stage 3.
