AR33.30-P-0469SYZ Remove/Install Pinion Housing With Drive Pinion



AR33.30-P-0469SYZ Remove/install pinion housing with drive pinion

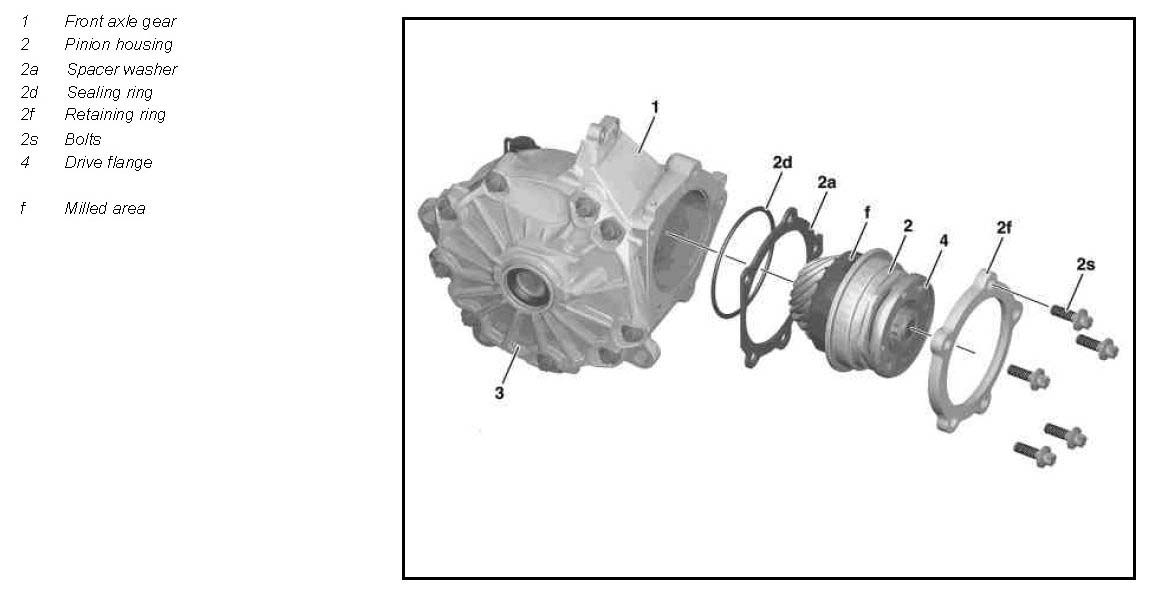

Component Identification:

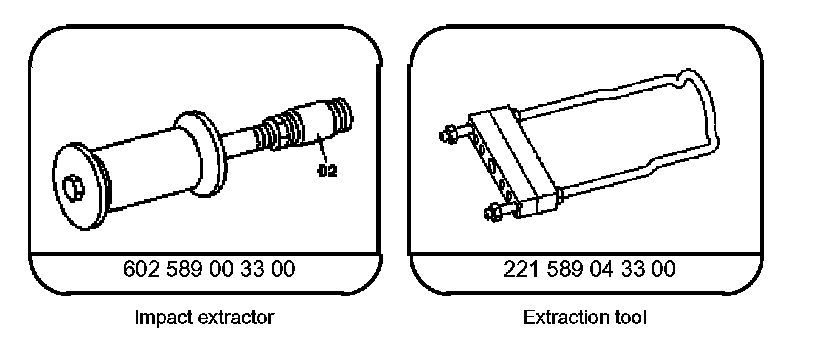

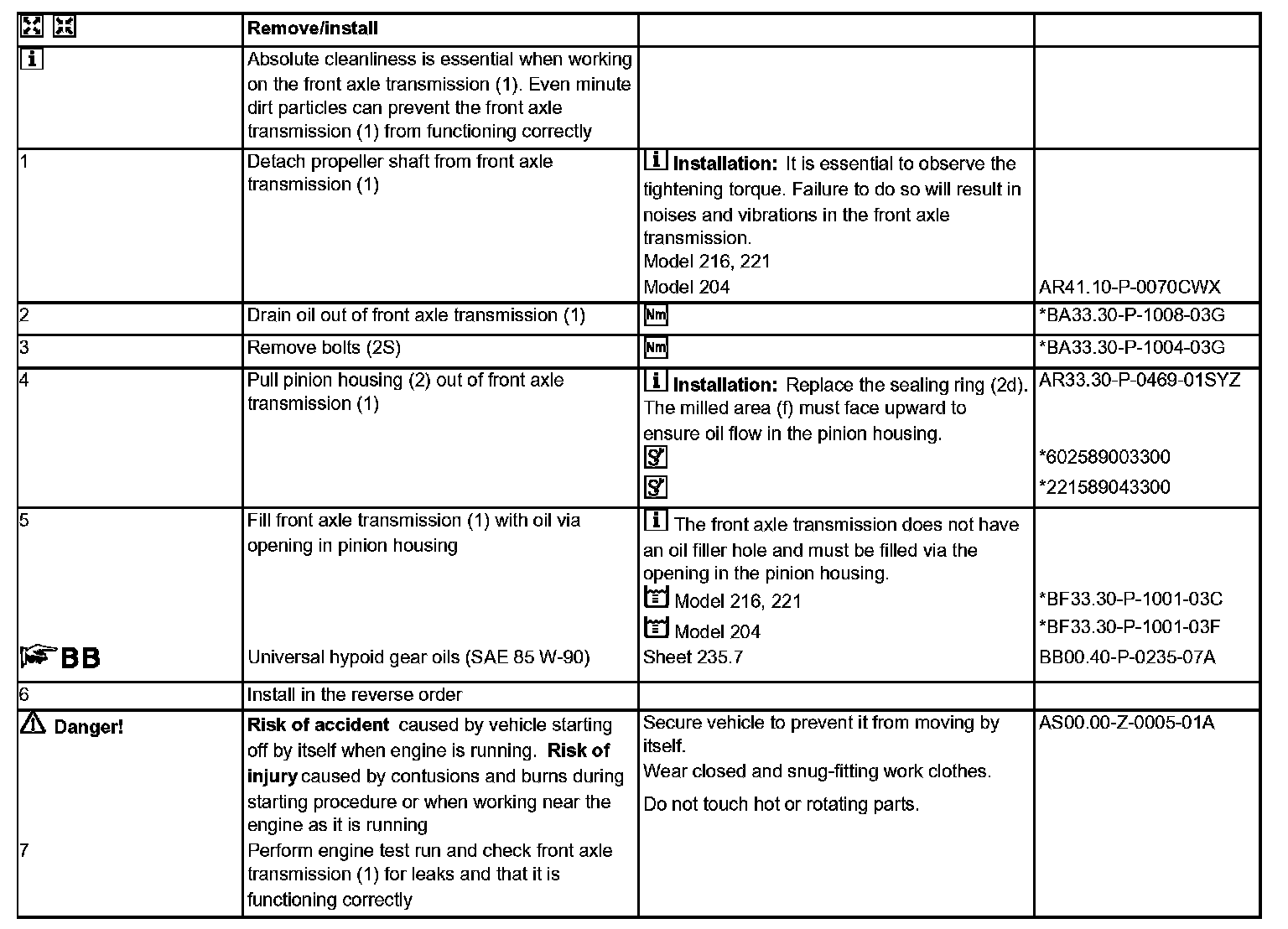

Remove/install Steps 1-7:

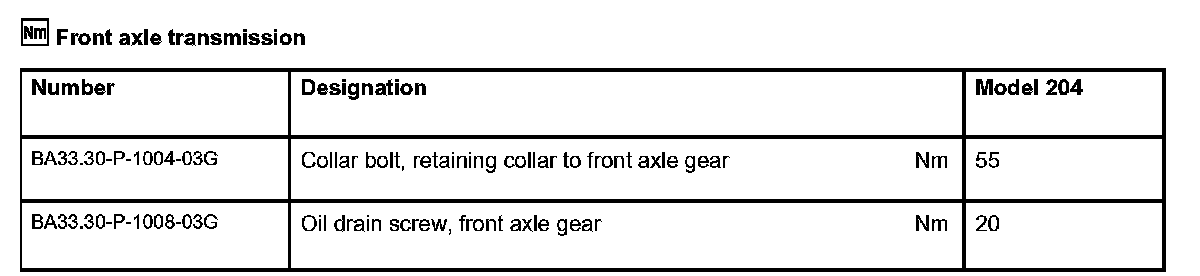

Front axle transmission:

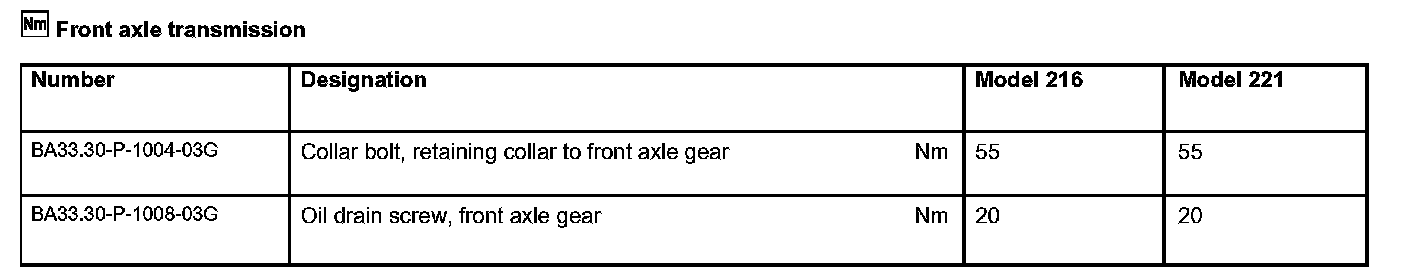

Front axle transmission:

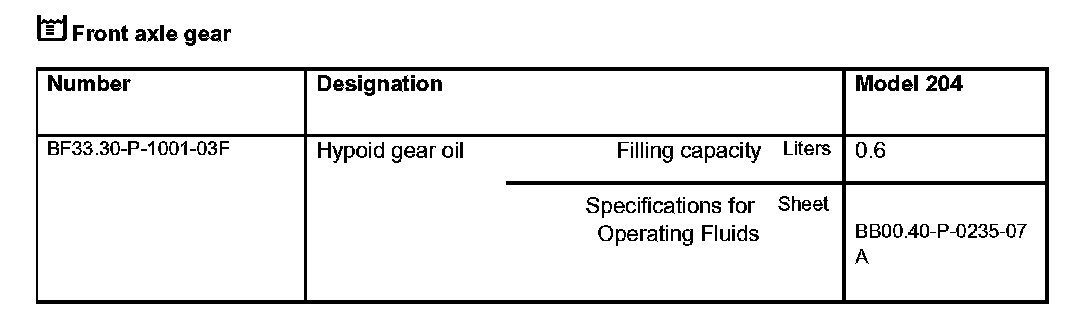

Front axle gear:




Front axle gear:
