AR35.10-P-0010SX Remove/Install Complete Rear Axle

AR35.10-P-0010SX Remove/Install Complete Rear Axle
MODEL 221, 216

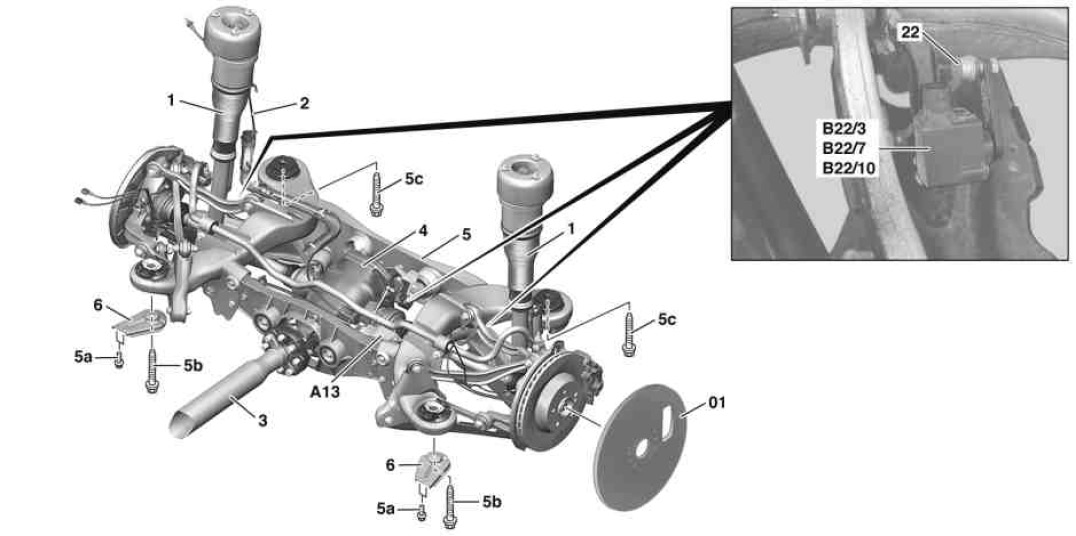

Shown on model 221 with Active Body Control (ABC) code 487

01 Guard plate
1 Suspension strut
2 Mechanical release cable
3 Propeller shaft
4 Differential
5 Rear axle
5a Screw
5b, 5c Screw
6 End stop
22 Link rod
A13 Electric parking brake control unit
B22/3 Rear axle level sensor
B22/7 Left rear level sensor
B22/10 Right rear level sensor

















220 589 01 31 00
Guard plate





202 589 01 31 00
Tensioning device





202 589 13 63 00
Clamping plates
