AR35.10-P-0010-02SX Disconnect Electrical Connectors at Rear Axle

AR35.10-P-0010-02SX Disconnect electrical connectors at rear axle

Component Identification:

1 Detach fender liners in left and right rear fender and fold to one side.

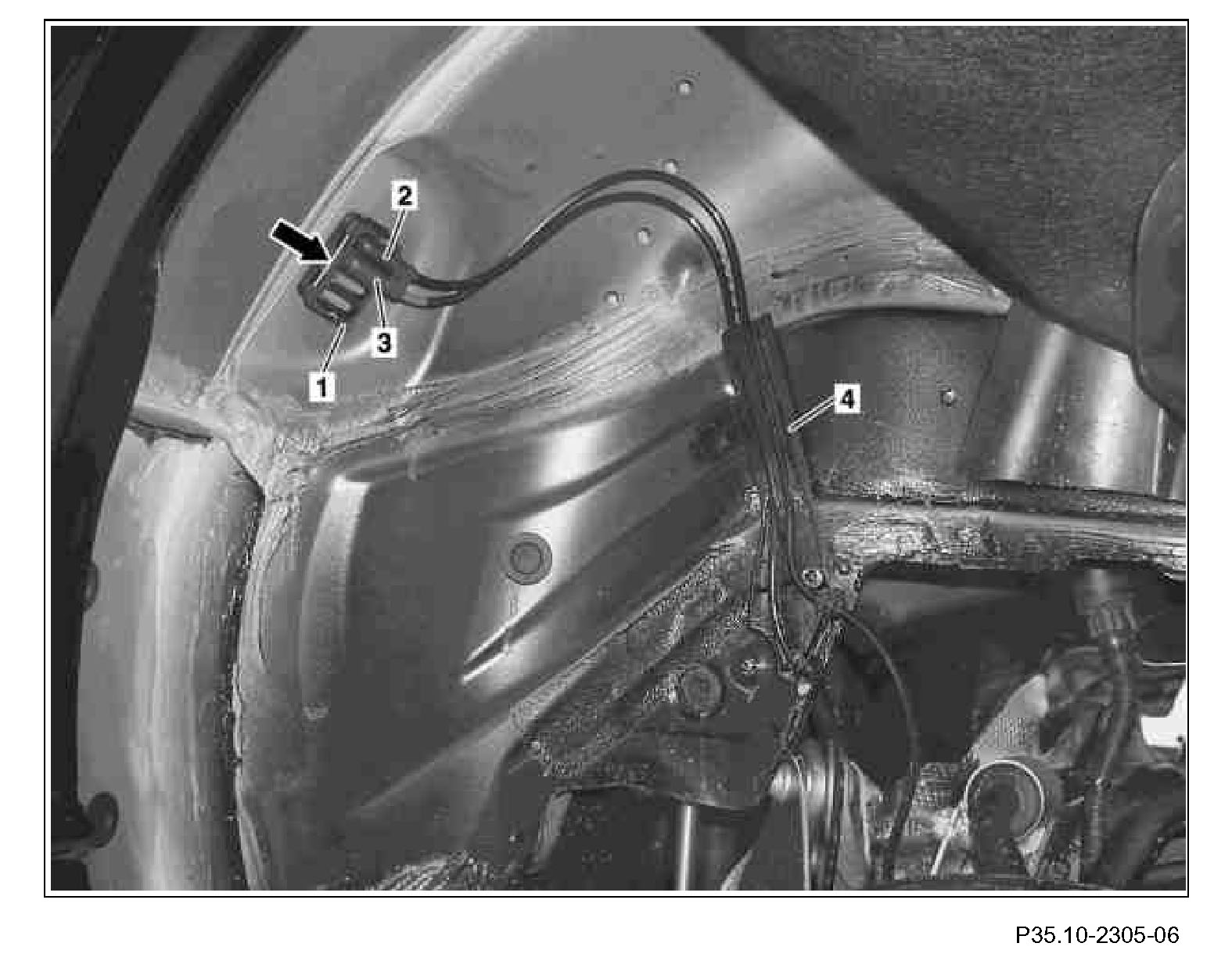

2 Press catch on hub (1) in left rear wheelhouse towards the arrow and
^ remove connector (2) of left rear rpm sensor
^ and connector (3) of left rear axle damping valve unit (vehicles with AIRmatic only)
from hub (1).

3 Unclip electrical feed lines from wiring (4).

Component Identification:

4 Press catch on hub (5) in right rear wheelhouse towards the arrow and
^ remove connector (6) of right rear rpm sensor
^ and connector (7) of right rear axle damping valve unit (vehicles with AIRmatic only)
^ and connector (8) of right rear brake pad contact sensor
from hub (5).

5 Unclip electrical feed lines from wiring (9).
