AR35.31-P-0530SX Replace Radial Sealing Ring at Drive Pinion Gear (With Rear Axle Differential Installed)
AR35.31-P-0530SX Replace radial sealing ring at drive pinion gear (with rear axle differential installed)
- Transmission 722.9/6 in MODEL 221,216

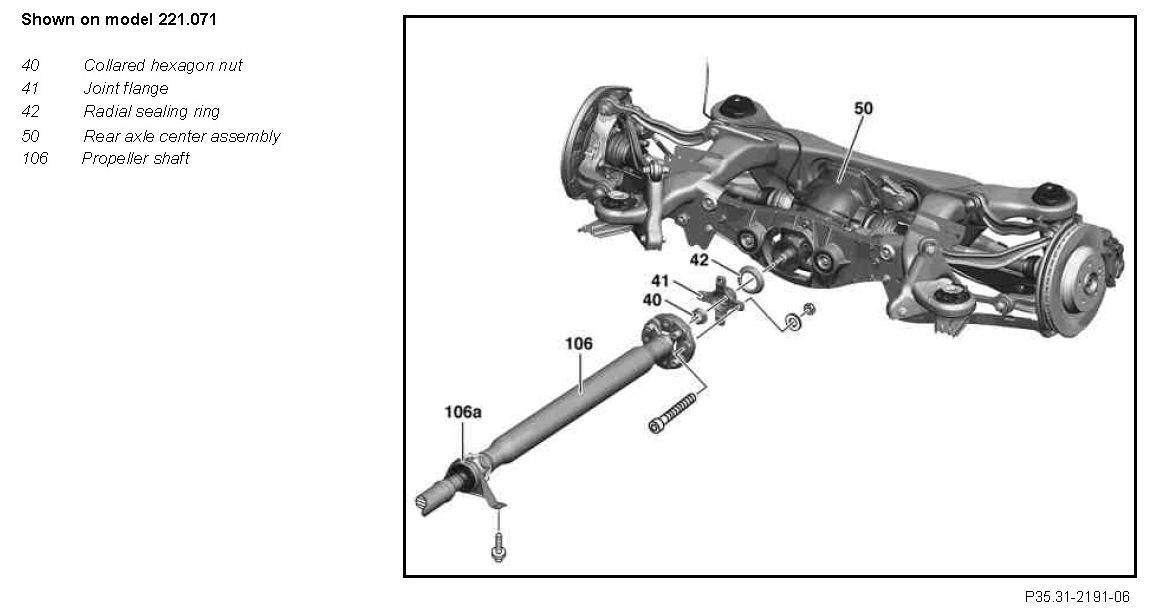

Component Identification:
Modification notes:

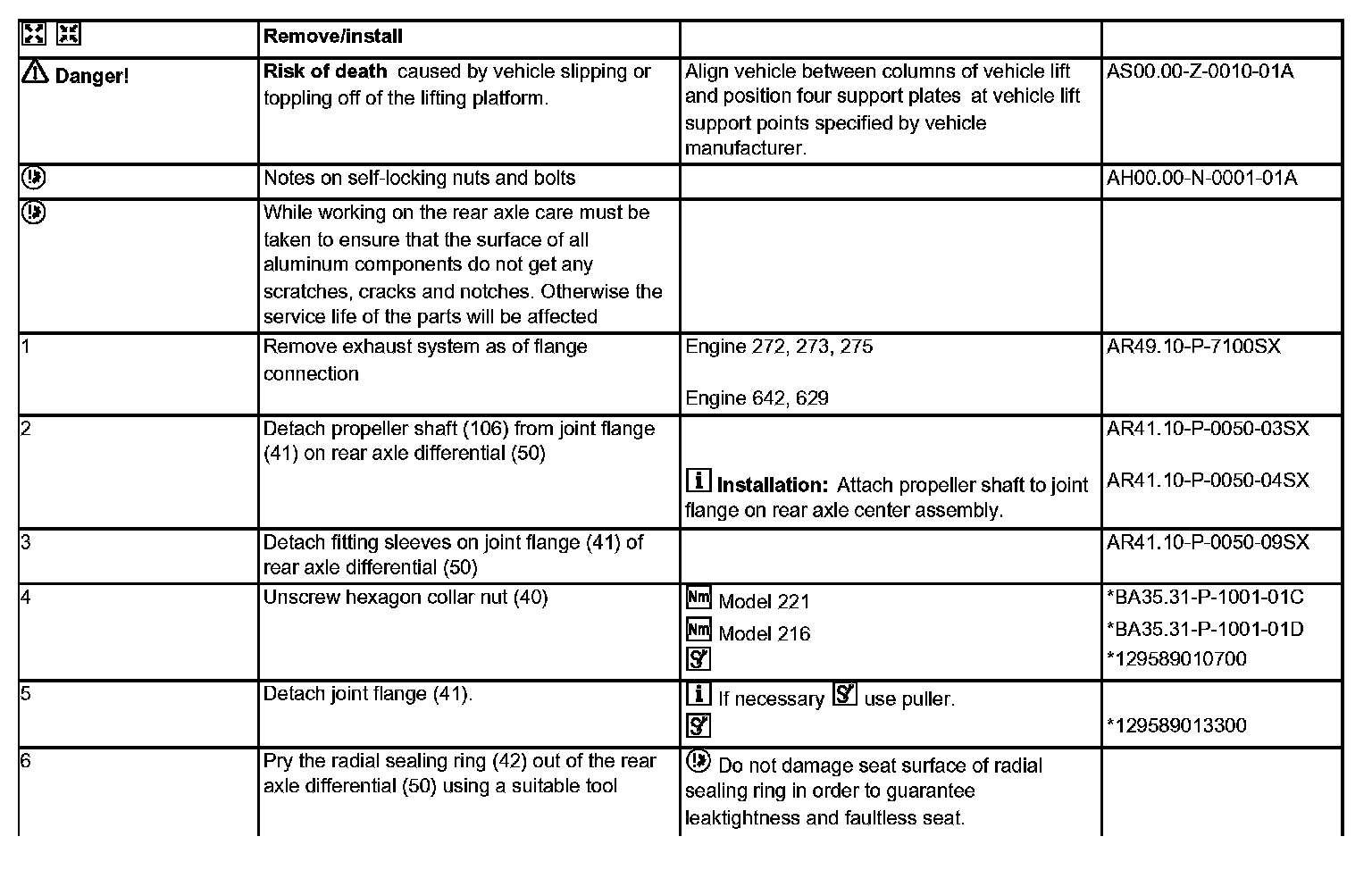

Remove/install Steps 1-6:

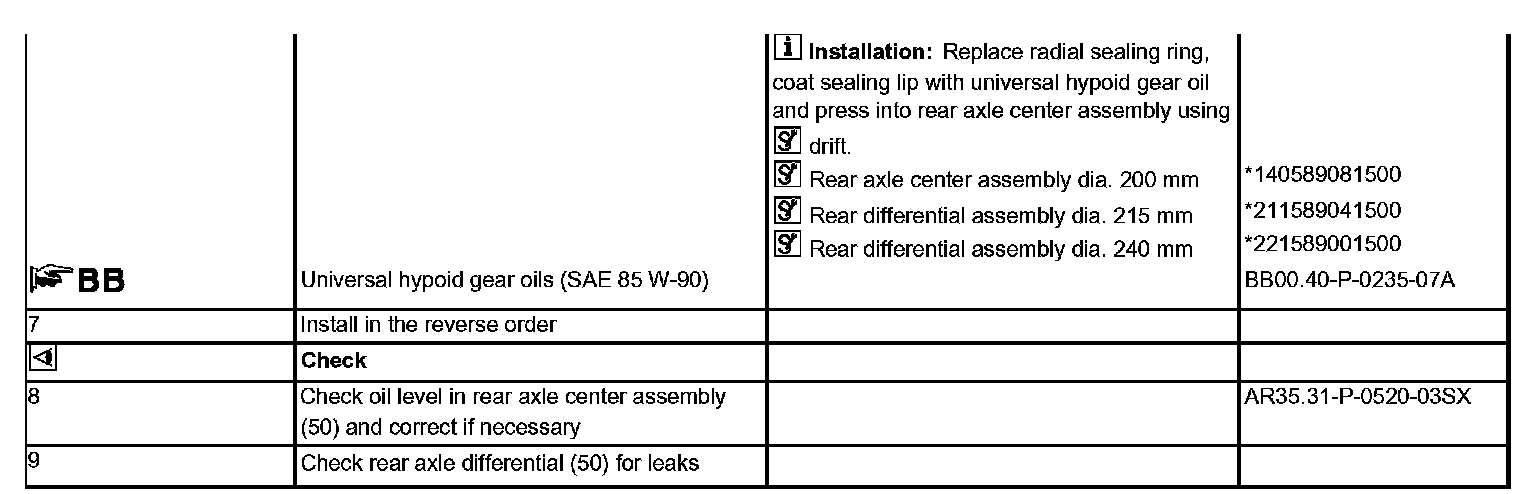

Remove/install Steps 6 (Continued)-9:
Rear axle differential gear set:
Rear axle differential gear set:
Special Tools:
