AR33.30-P-0530SYZ Replace Shaft Seal on Drive Pinion



AR33.30-P-0530SYZ Replace shaft seal on drive pinion


Component Identification:




Modification notes:

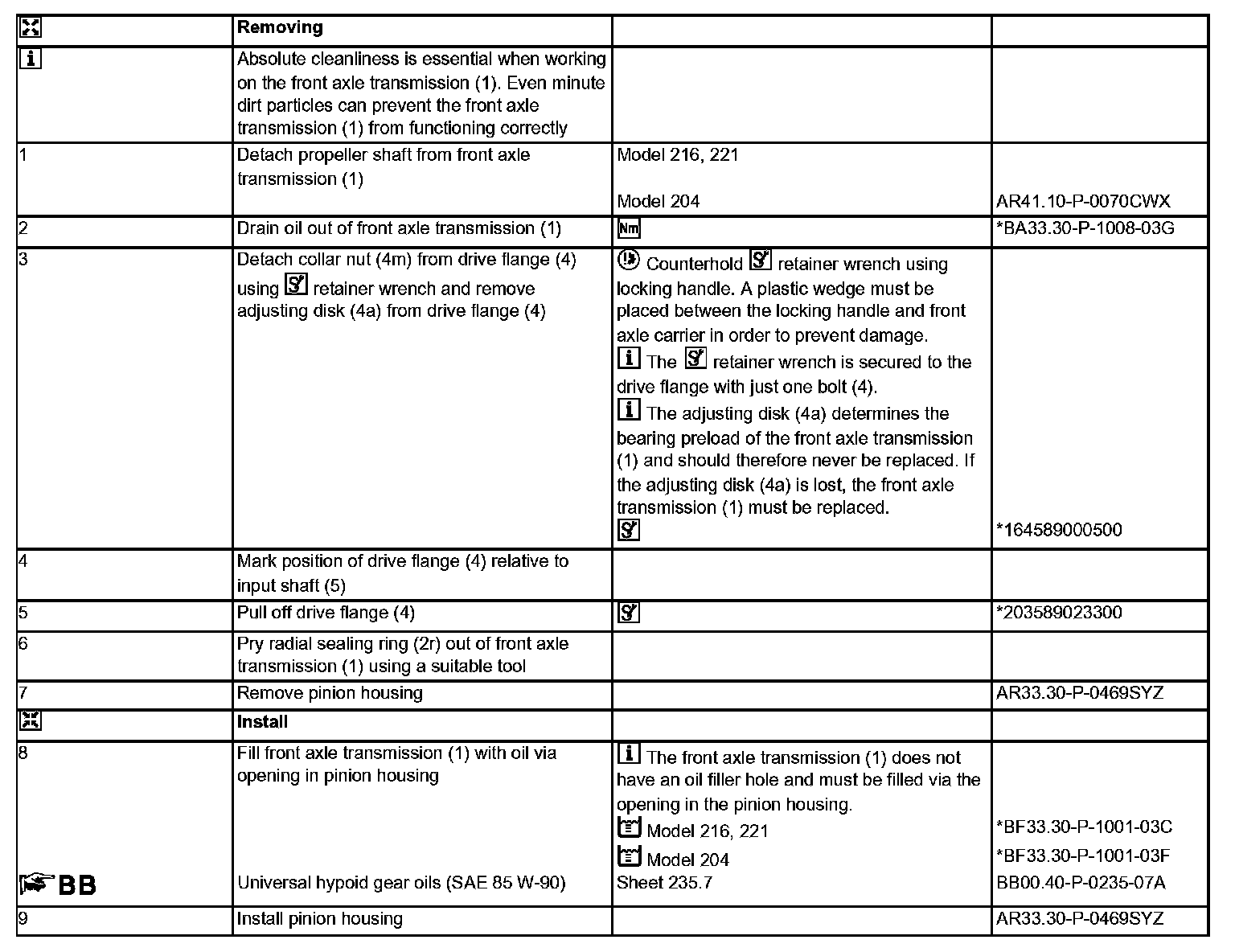

Remove/install Steps 1-9:




Remove/install Steps 10-15:

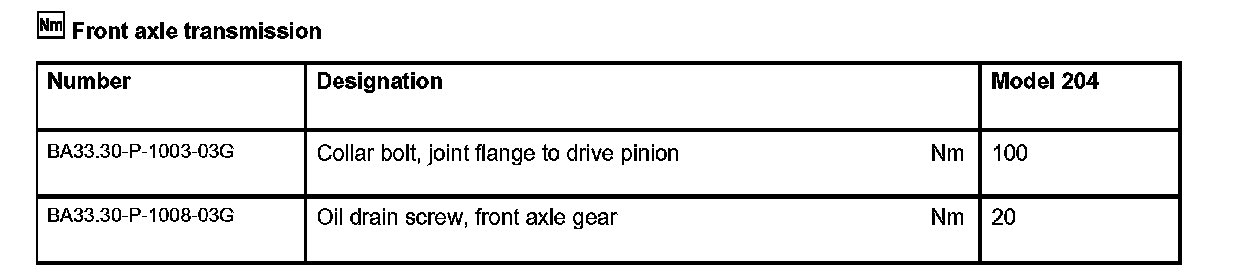

Front axle transmission:

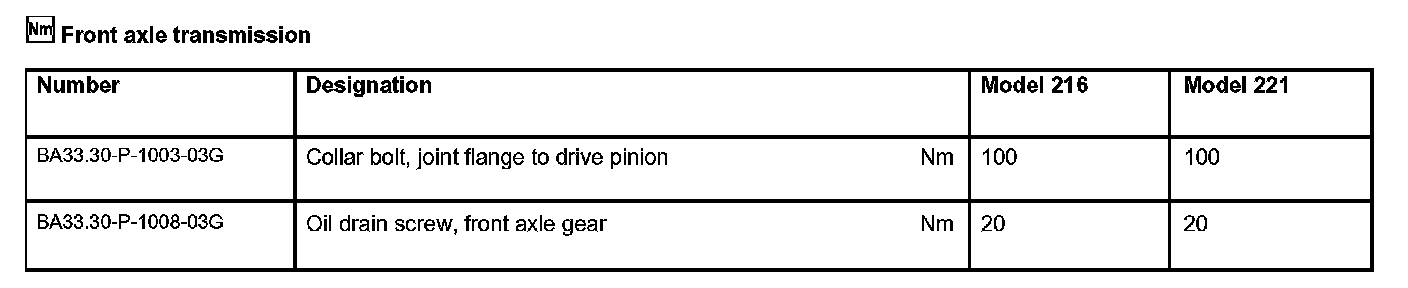

Front axle transmission:

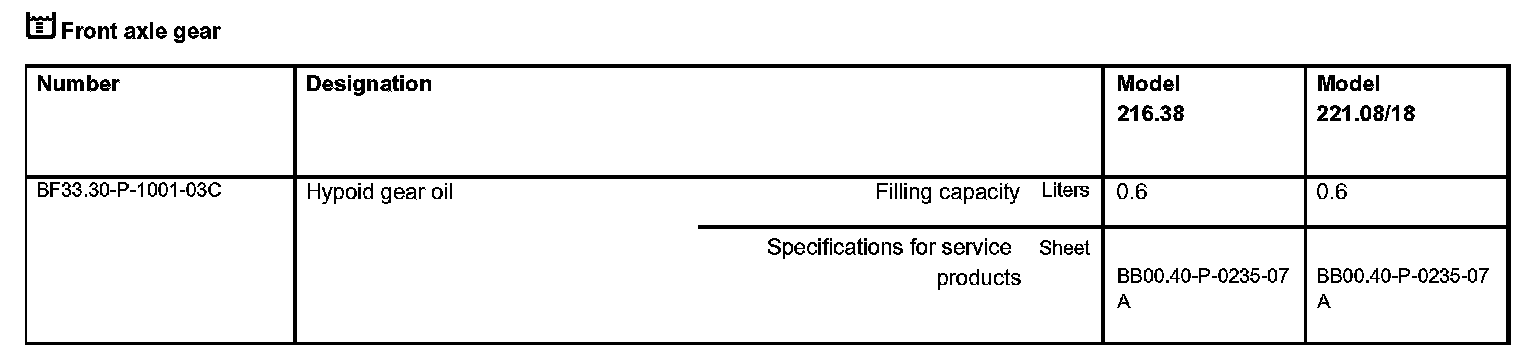

Front axle gear:




Front axle gear:

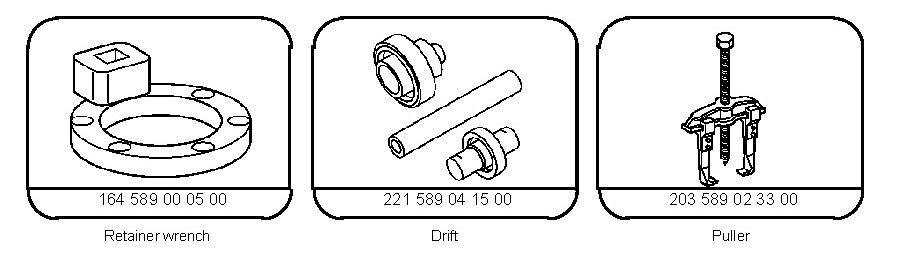

Special Tools:




pro multis Credits:Operation CHARM About Operation CHARM
