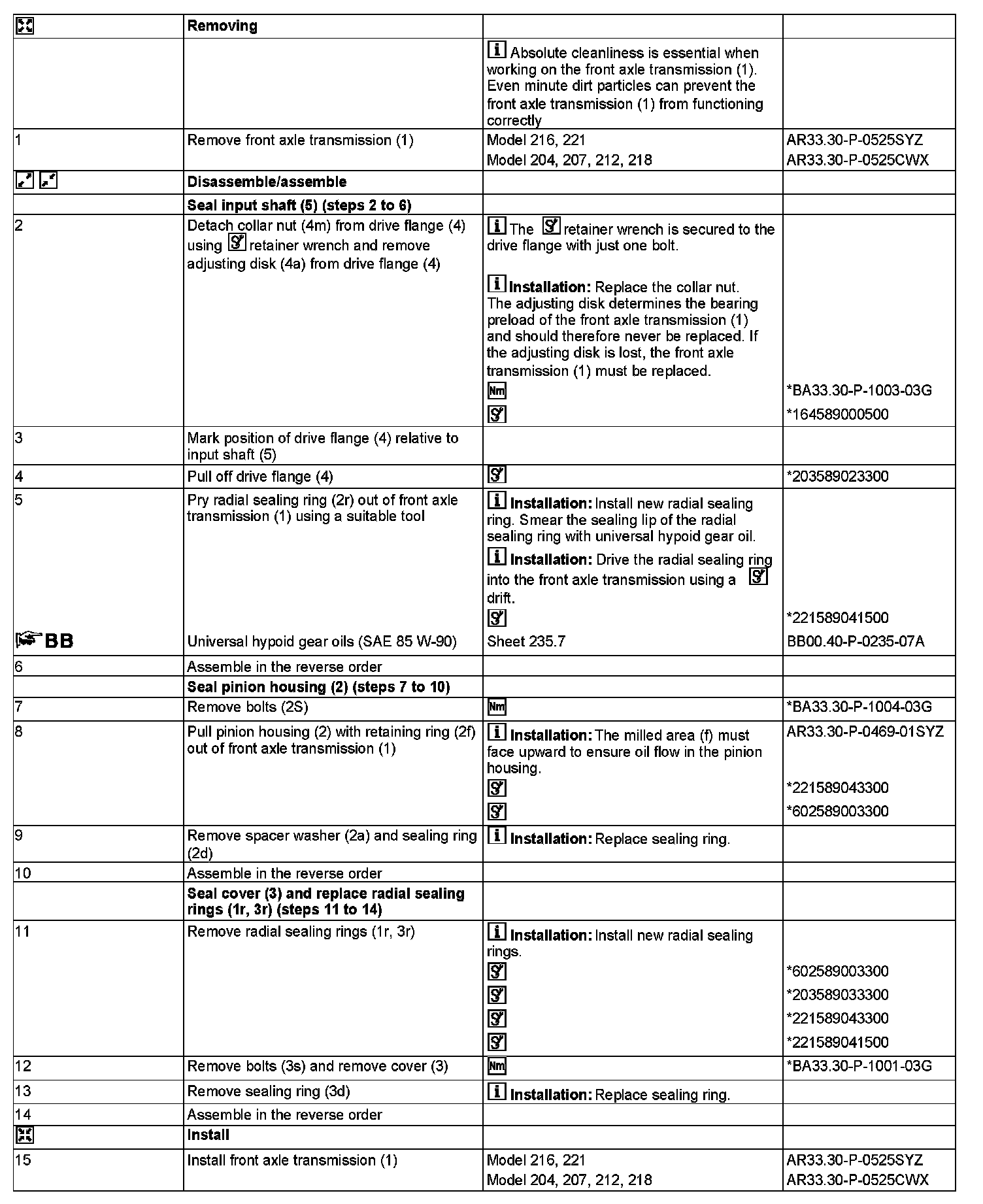

AR33.30-P-0542SYZ Seal Front Axle Transmission

AR33.30-P-0542SYZ Seal Front Axle Transmission
MODEL 204.08 /09 /28 /29 /98, 207.38, 212.08 /09 /28 /29, 218.39
MODEL 216, 221 with 4MATIC





1 Front axle transmission
1r Radial sealing ring
2 Pinion housing
2a Spacer washer
2d Sealing ring
2f Retaining ring
2r Radial sealing ring
2s Bolts
3 Cover
3d Sealing ring
3r Radial sealing ring
3s Bolts
4 Drive flange
4a Adjusting disk

4m Collar nut
5 Input shaft
f Milled area











602 589 00 33 00
Impact extractor





203 589 03 33 00
Internal puller





164 589 00 05 00
Retainer wrench





221 589 04 15 00
Drift





221 589 04 33 00
Extraction tool





203 589 02 33 00
Puller
