AR33.30-P-0540SYZ Install New Radial Sealing Ring on Outside Right of Front Axle Gear

AR33.30-P-0540SYZ Install New Radial Sealing Ring On Outside Right Of Front Axle Gear
MODEL 204.08 /09 /28 /29 /98 /99, 207.38, 212.08 /09 /28 /29, 218.39
MODEL 216, 221 with 4MATIC

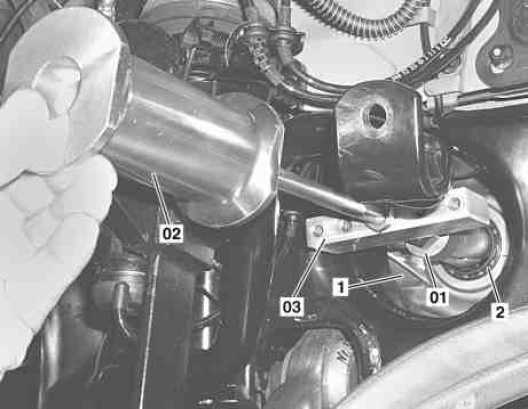

Illustrated on model 221.08

01 Internal extractor
02 Impact extractor
03 Extraction tool
1 Front axle transmission
2 Radial sealing ring














203 589 03 33 00
Internal puller





221 589 04 15 00
Drift





221 589 04 33 00
Extraction tool





602 589 00 33 00
Impact extractor
