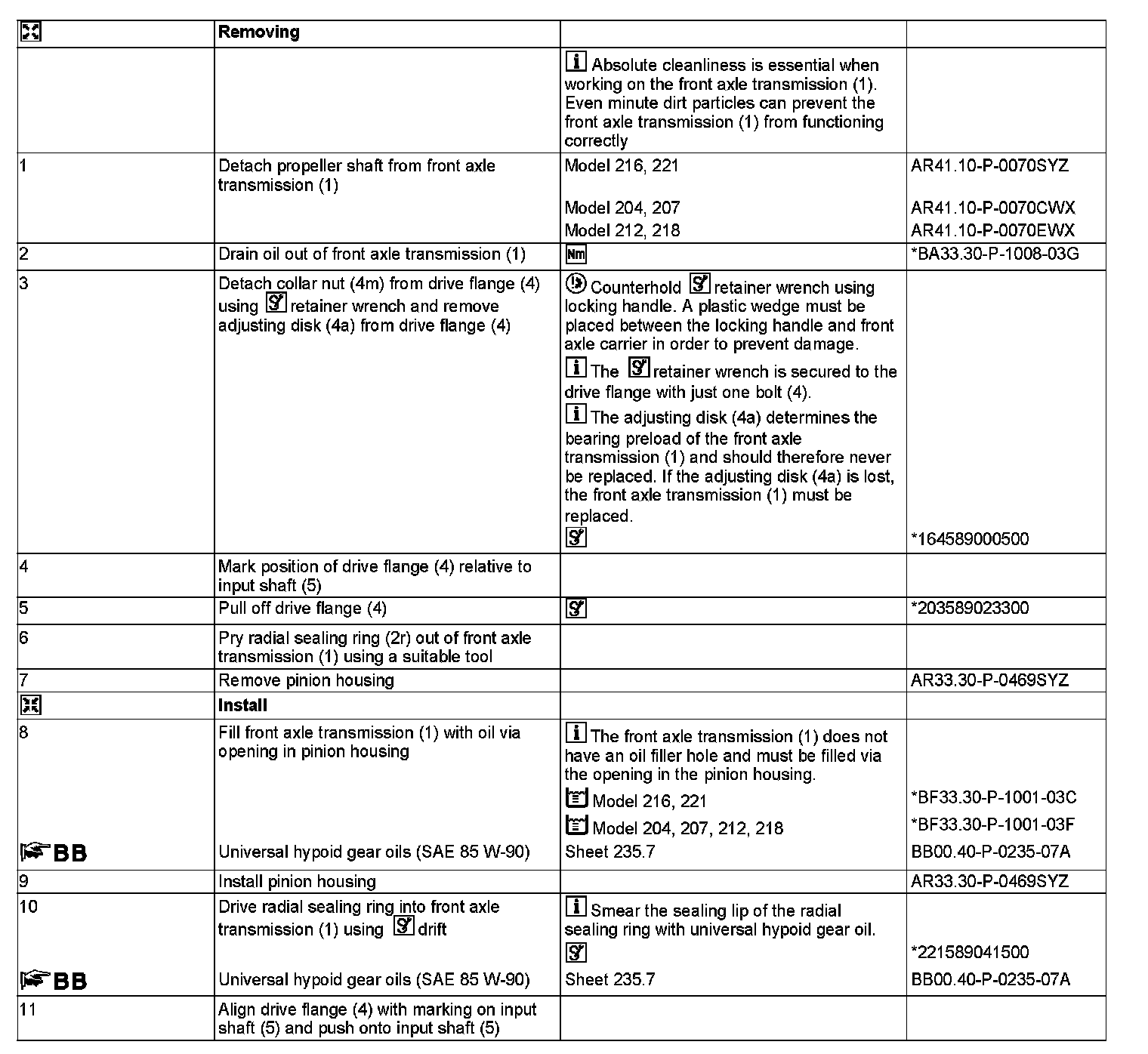

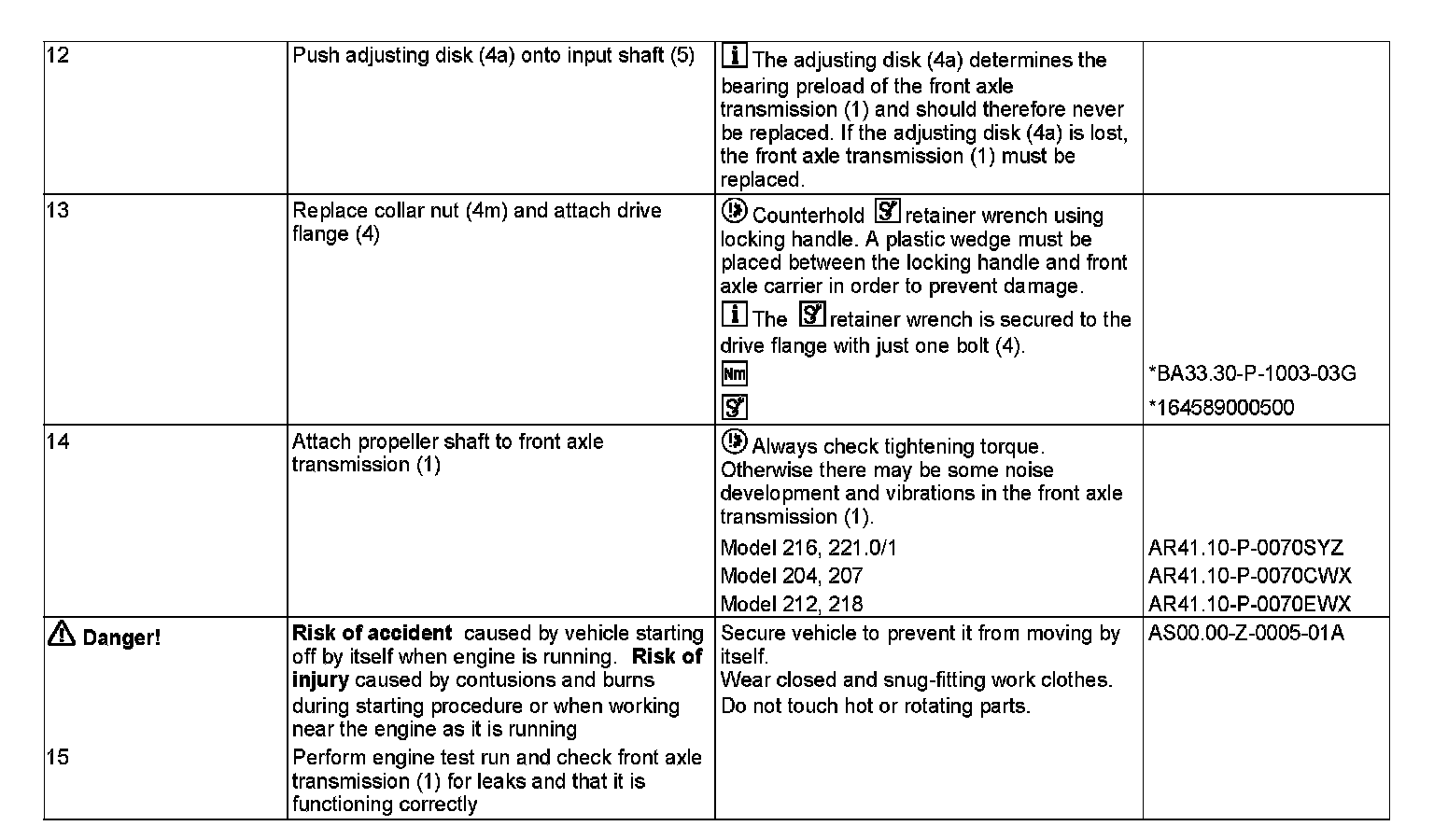

AR33.30-P-0530SYZ Replace Sealing Ring on Drive Pinion

AR33.30-P-0530SYZ Replace Sealing Ring On Drive Pinion
MODEL 204.08 /09 /28 /29 /98, 207.38, 212.08 /09 /28 /29, 218.39
MODEL 216, 221 with 4MATIC

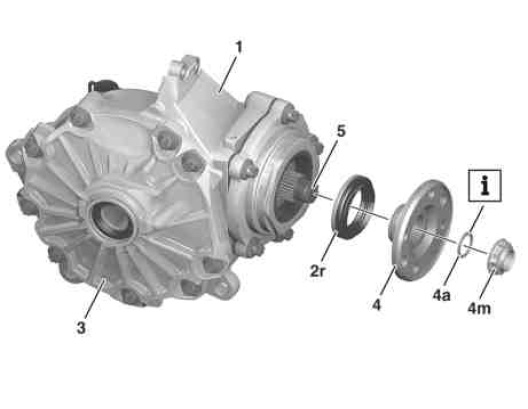

1 Front axle transmission
2r Radial sealing ring
4 Drive flange
4a Adjusting disk
4m Collar nut
5 Input shaft

















164 589 00 05 00
Retainer wrench





221 589 04 15 00
Drift





203 589 02 33 00
Puller
