Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Mount >> Service and Repair >> AR35.10-P-0050SX Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier

AR35.10-P-0050SX Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier



AR35.10-P-0050SX Remove/install rear rubber mounts for differential mount in rear axle carrier

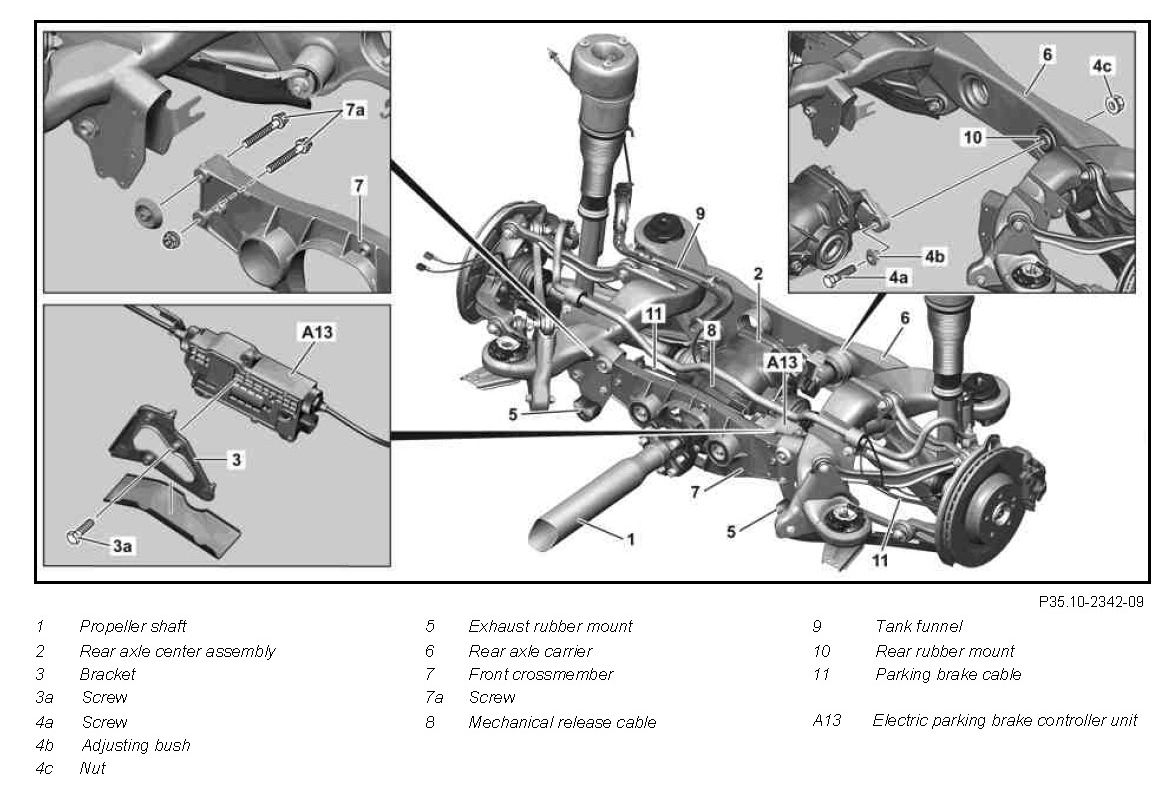

Component Identification:

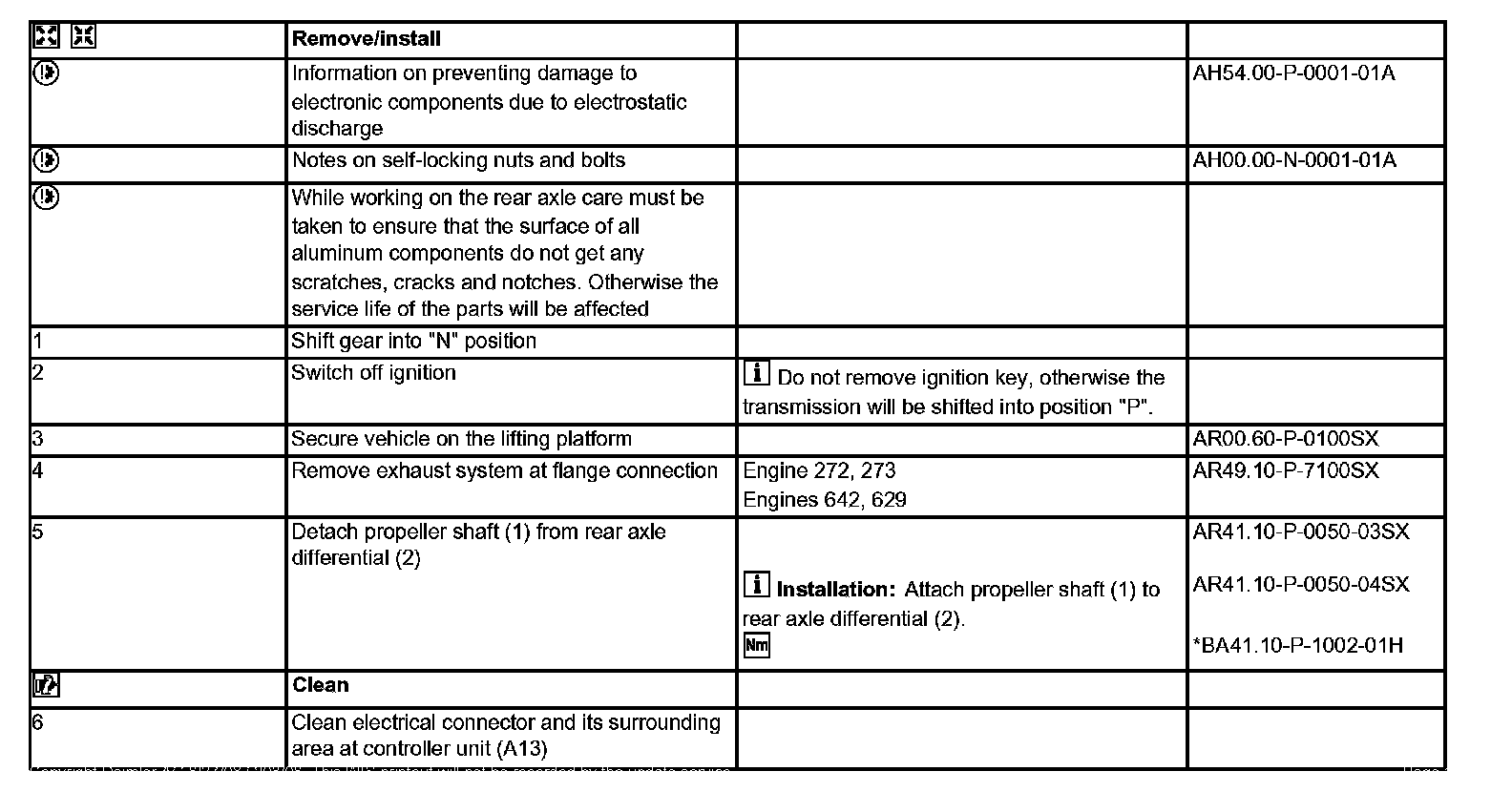

Remove/install Steps 1-6:

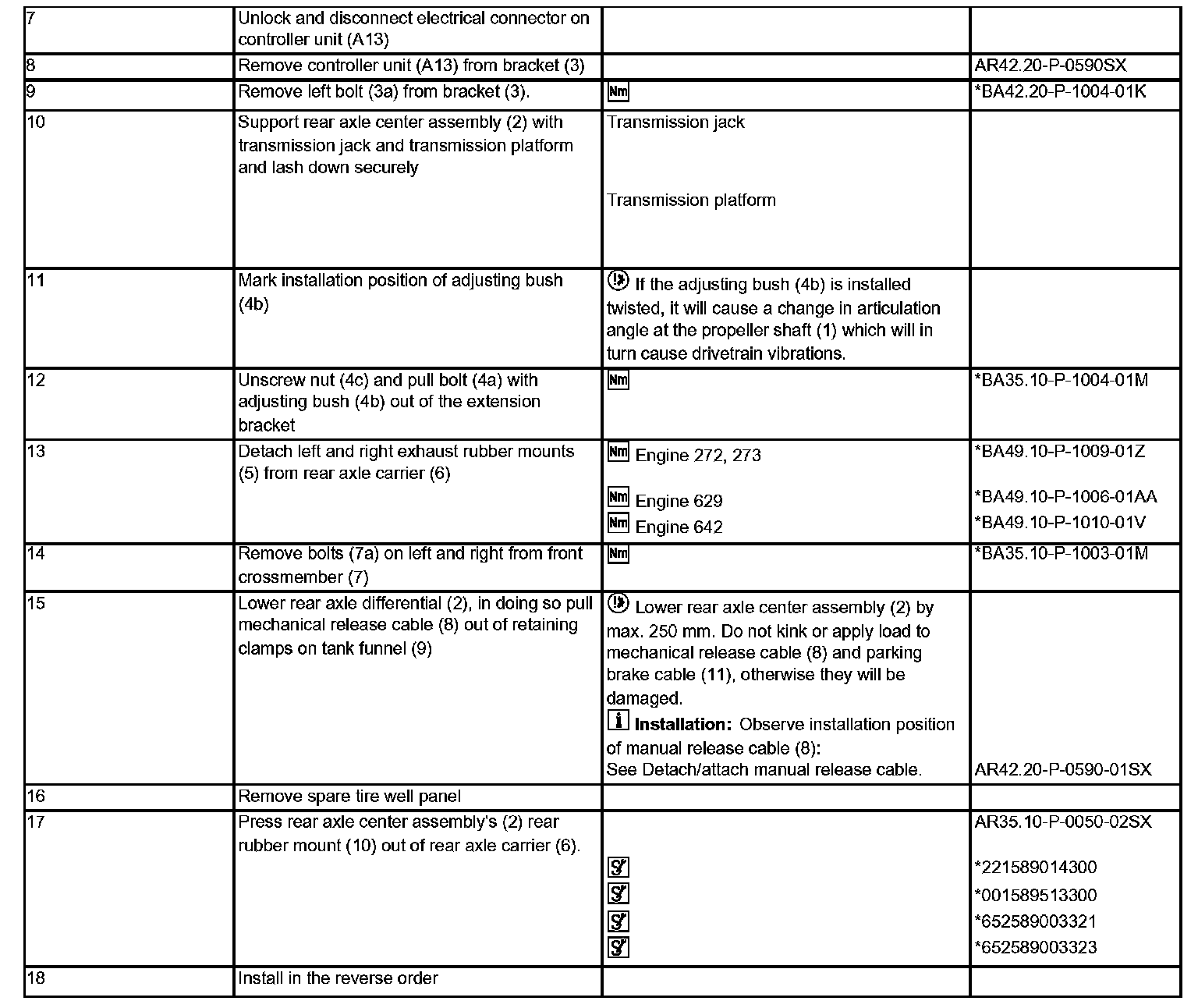

Remove/install Steps 7-18:

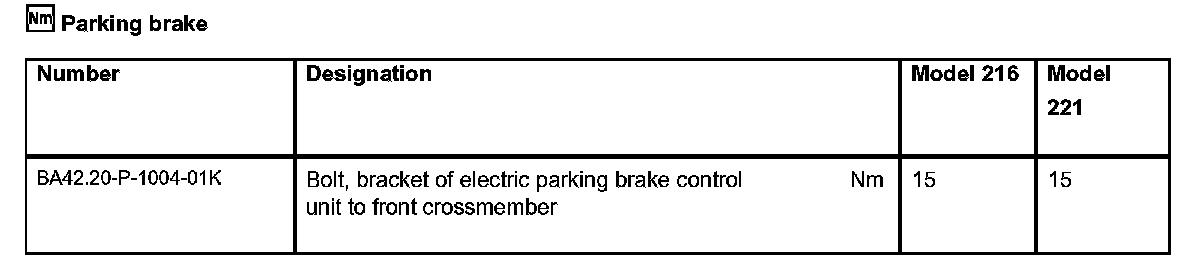

Parking brake:

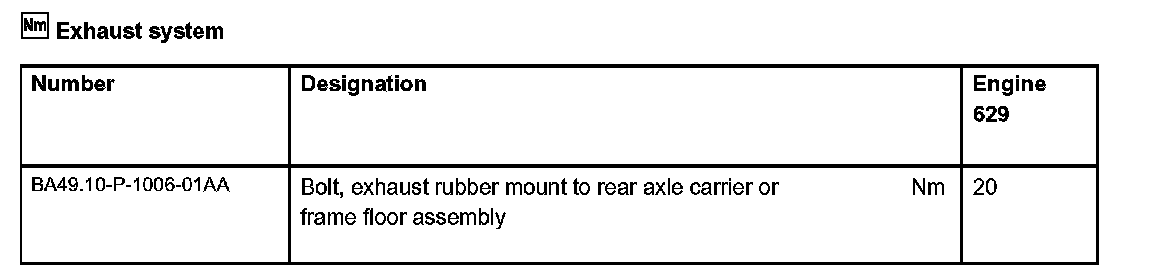

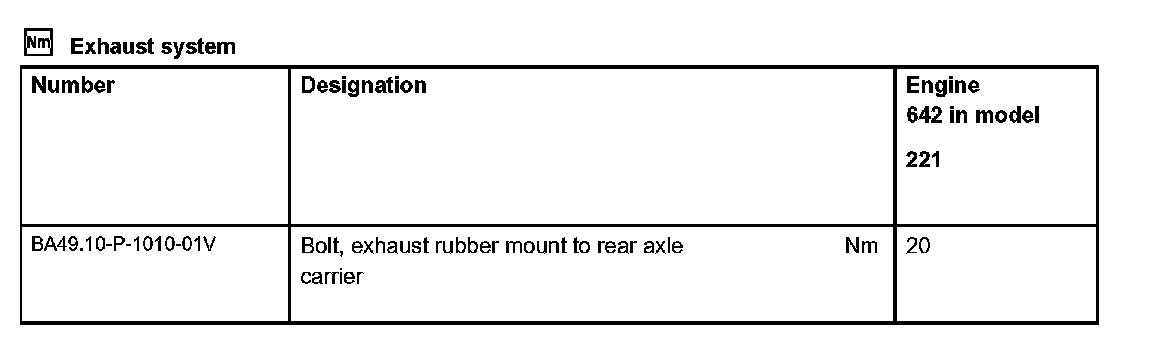

Exhaust system:

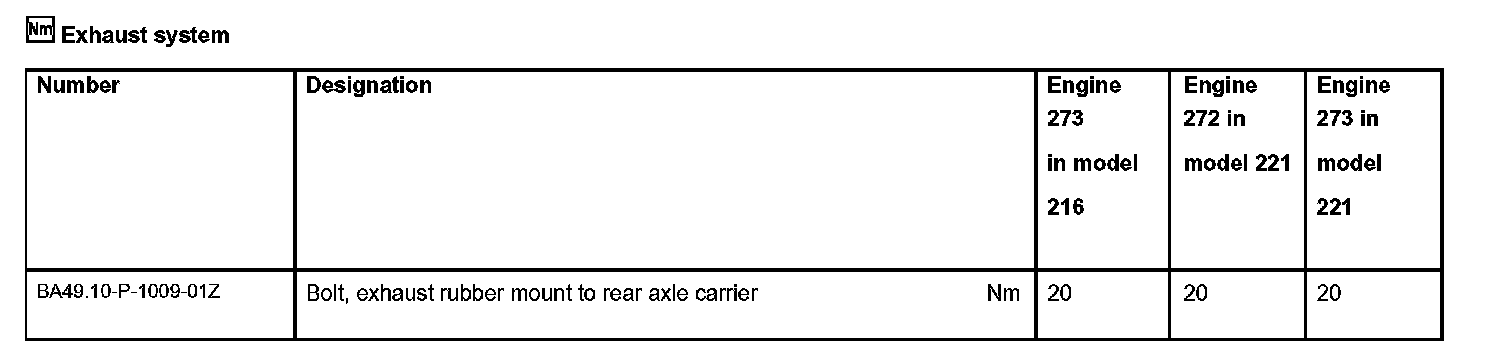

Exhaust system:




Exhaust system:

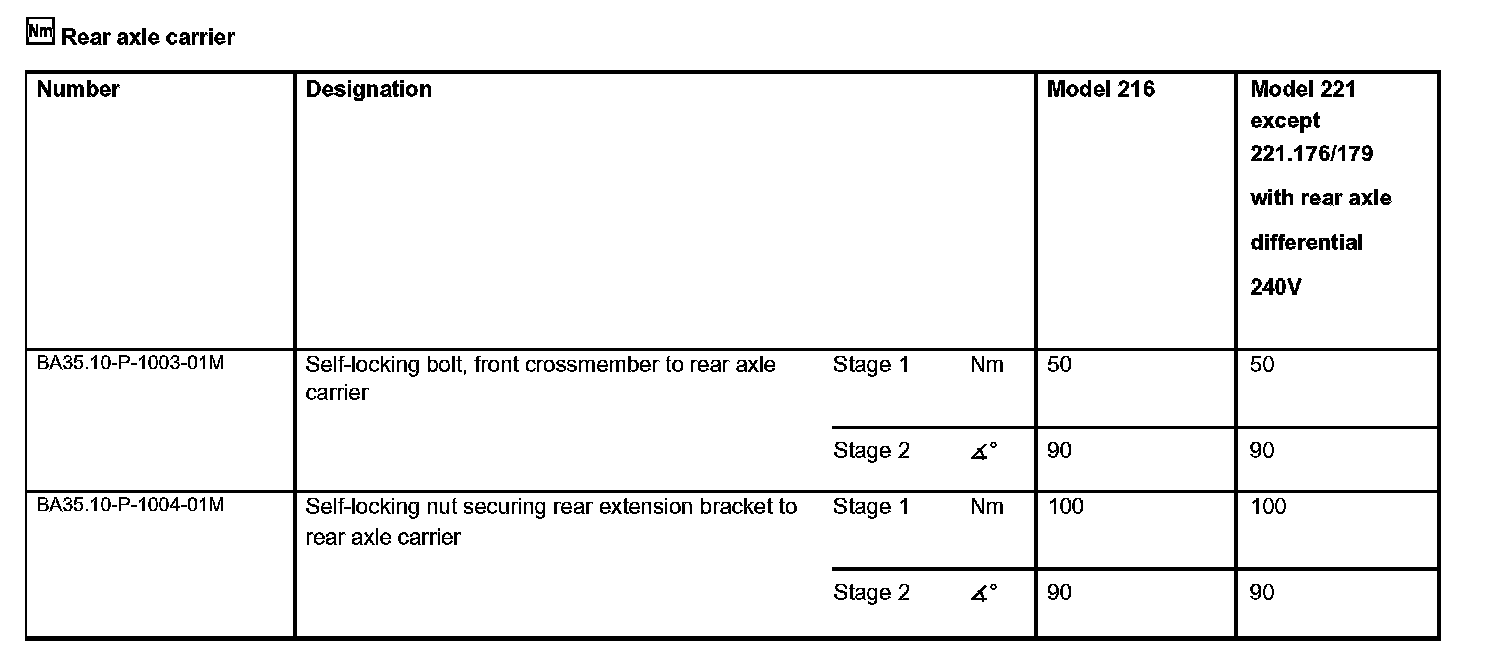

Rear axle carrier:

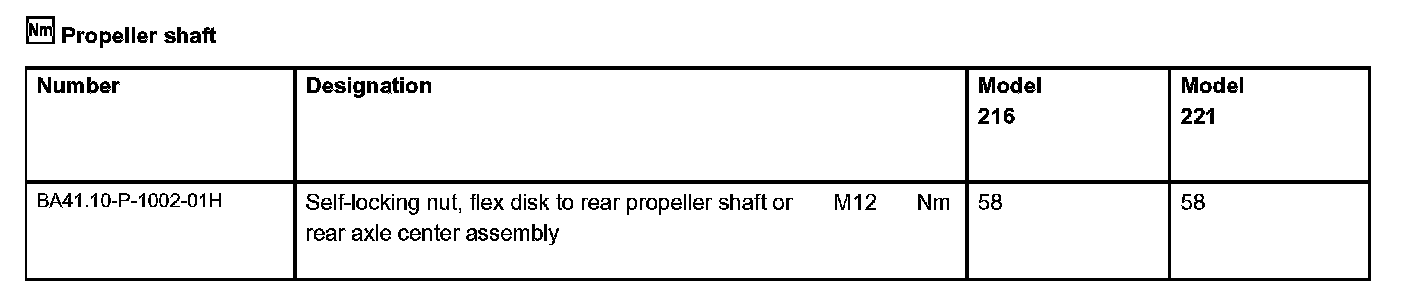

Propeller shaft:

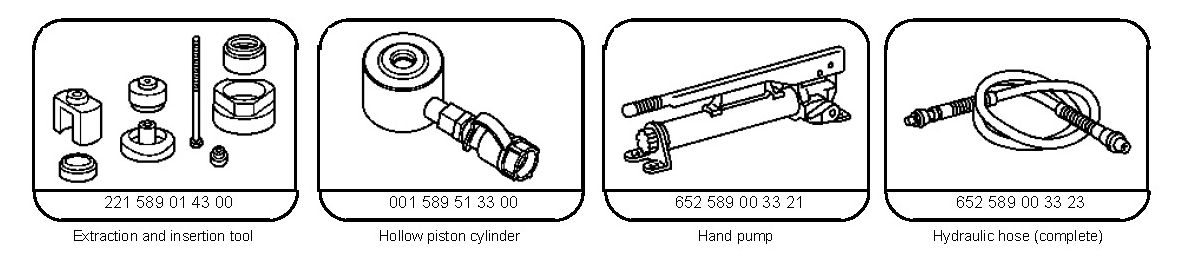

Special Tools:
