AR35.10-P-0042SXS Rear Rubber Bushing, Rear Axle Mount - Removal and Installation



AR35.10-P-0042SXS Rear rubber bushing, rear axle mount - Removal and installation
- with CODE (Z07) Top protection

Component Identification:




Component Identification:




Component Identification:

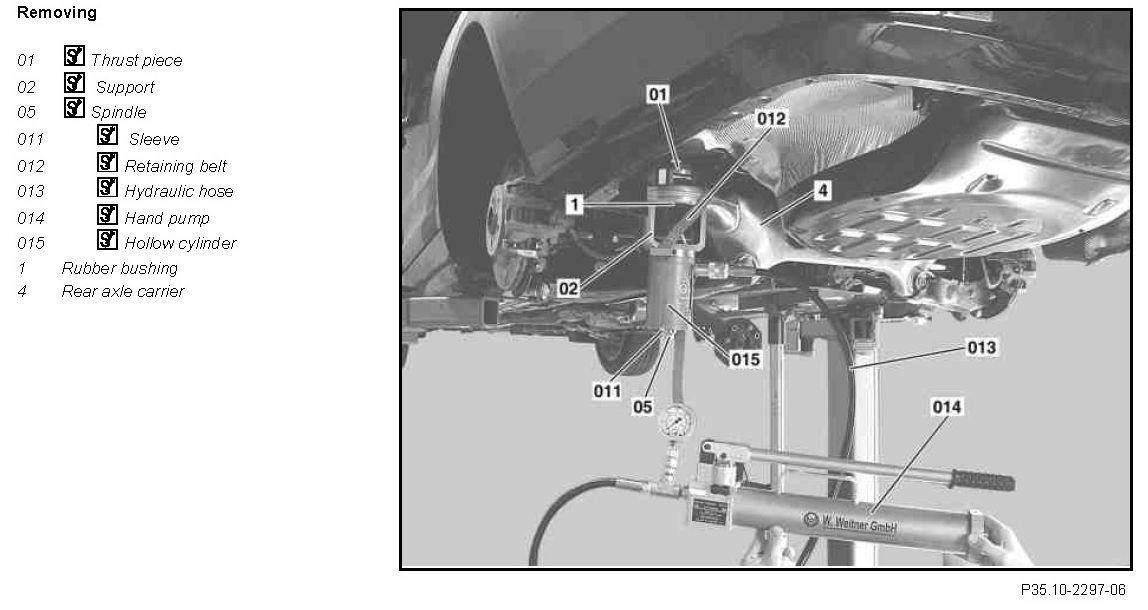

Steps 1-11:

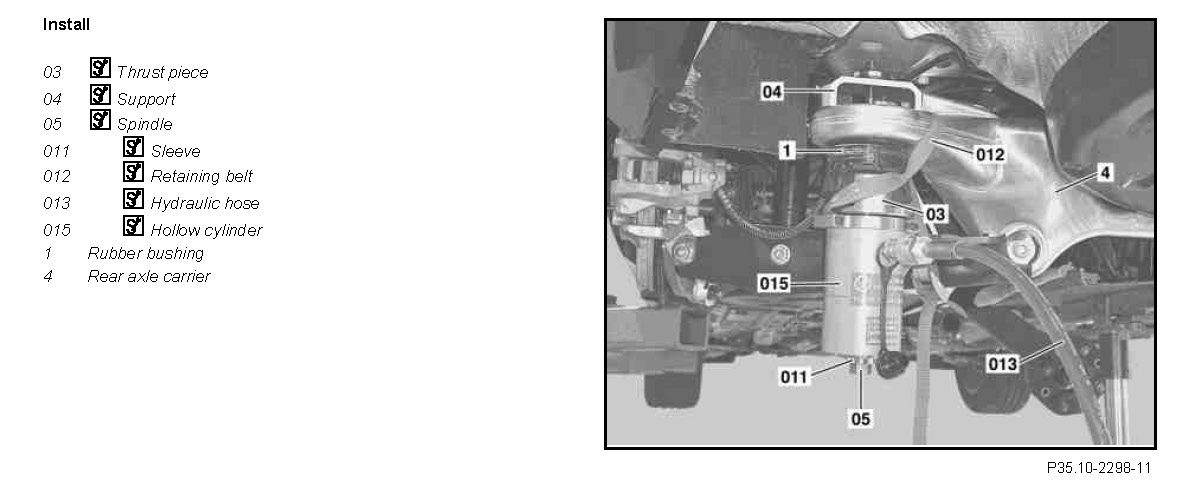

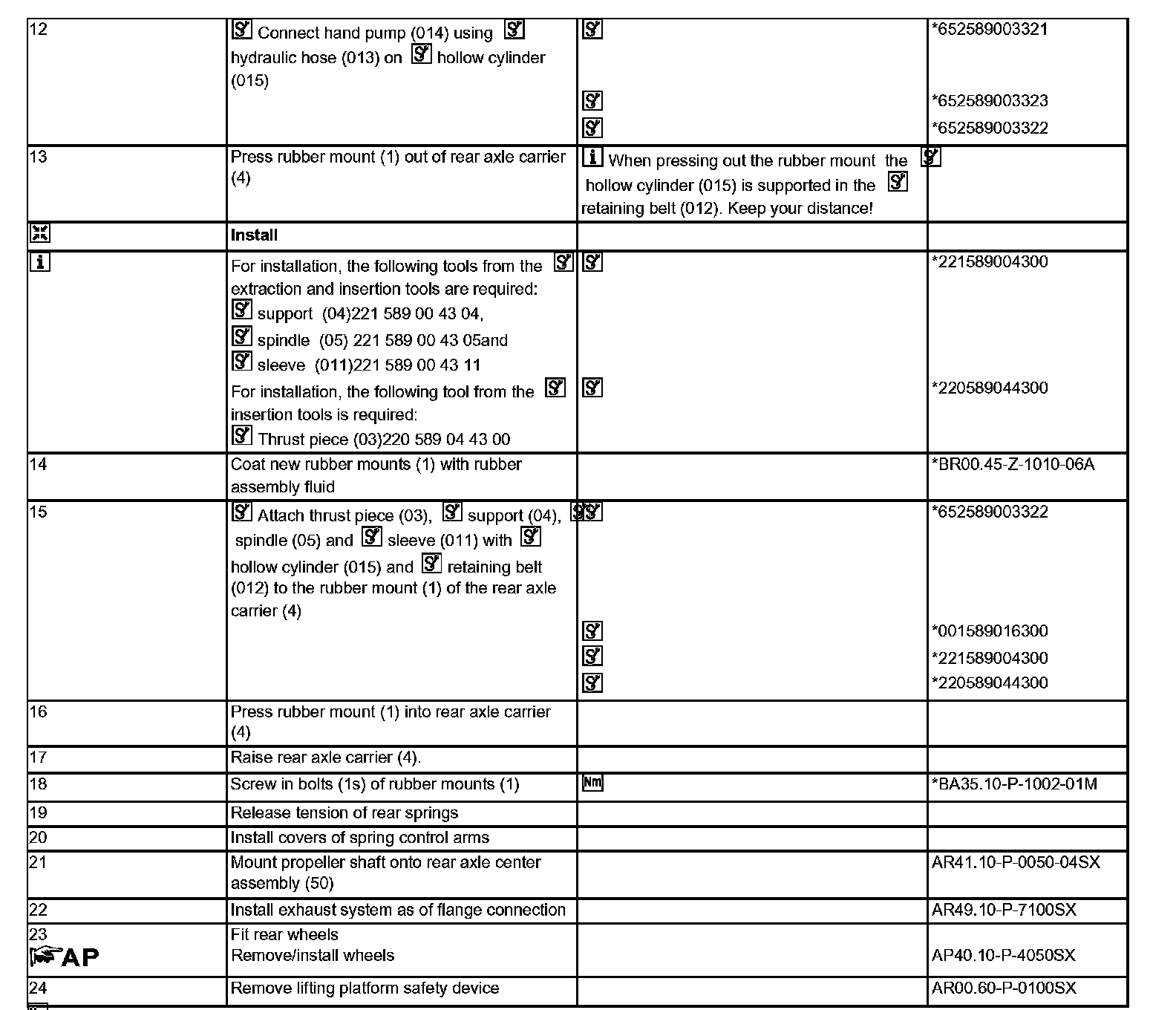

Steps 12-24:

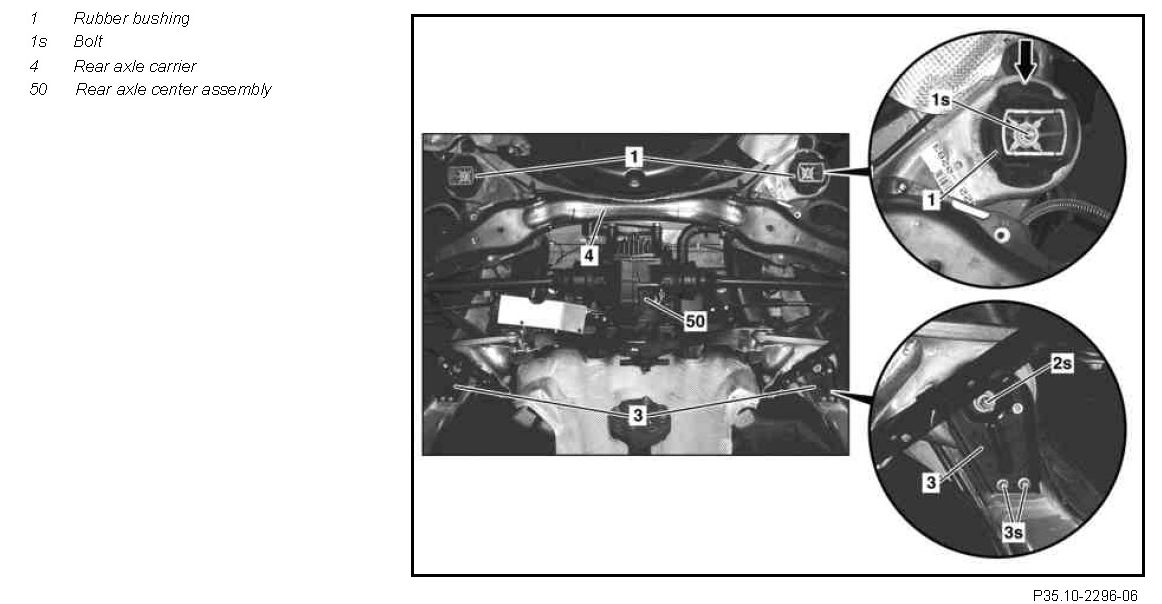

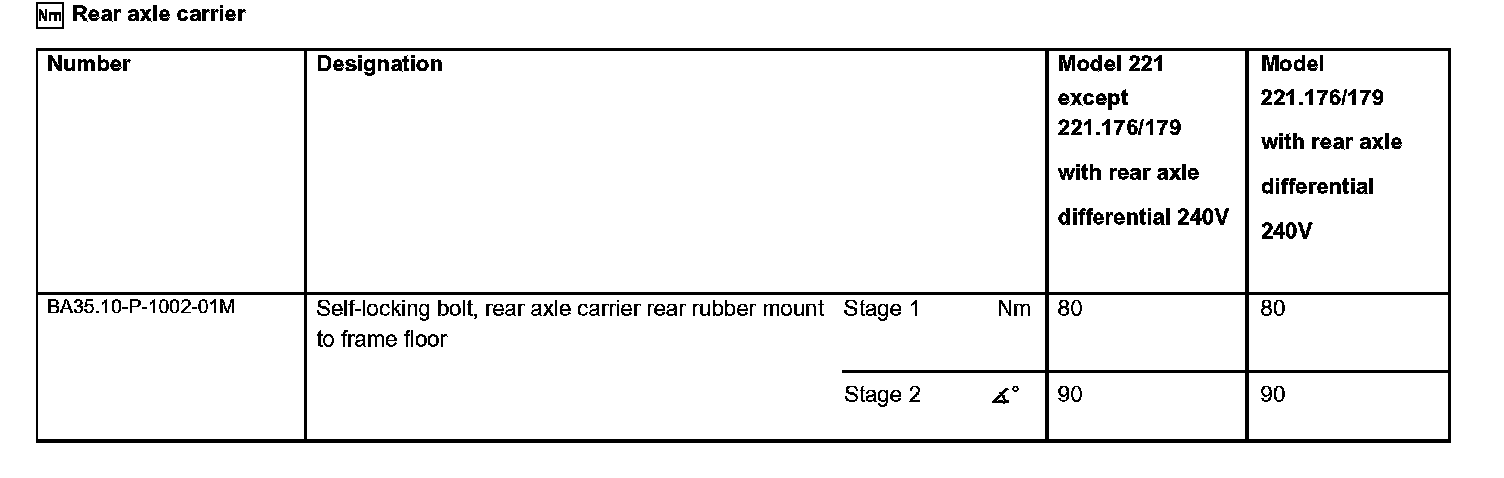

Rear axle carrier:

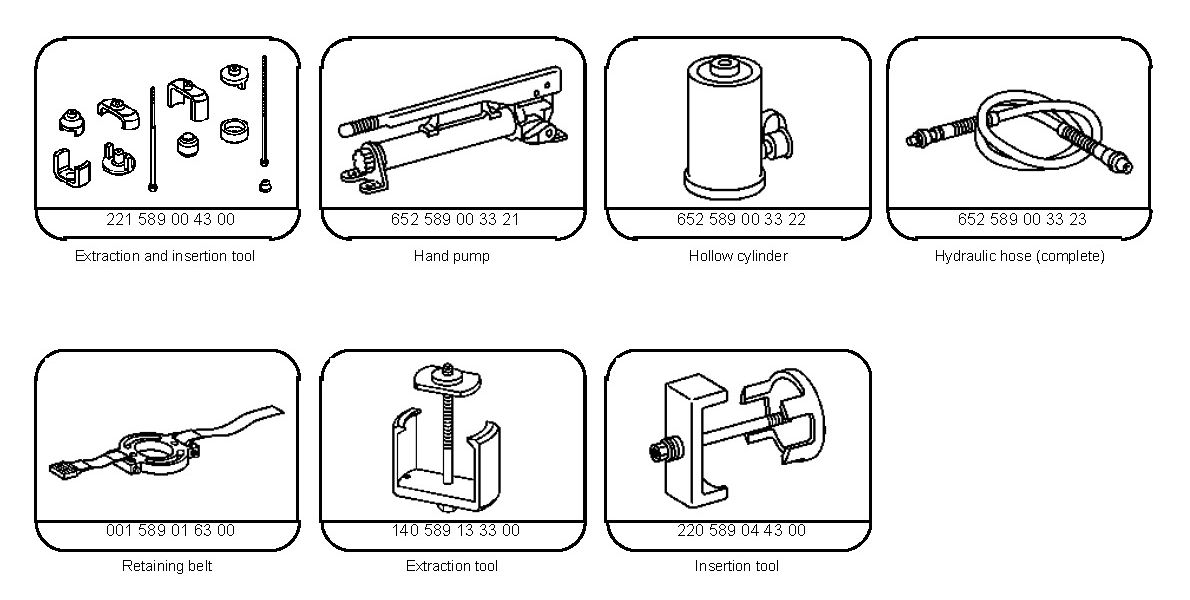

Special Tools:

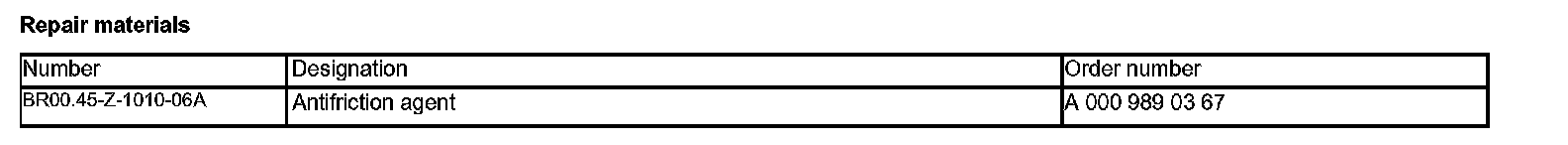

Repair materials:
