AR35.10-P-0042SX Rear Rubber Bushing, Rear Axle Mount - Removal and Installation
AR35.10-P-0042SX Rear rubber bushing, rear axle mount - Removal and installation
- except CODE (Z07) Top protection [MODEL 221]

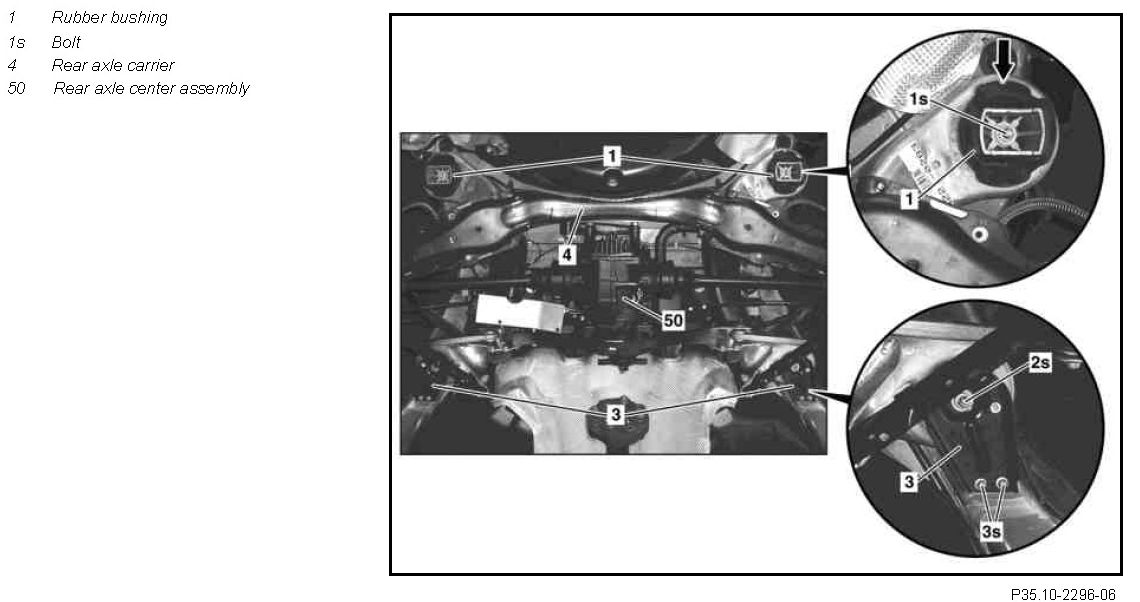

Component Identification:

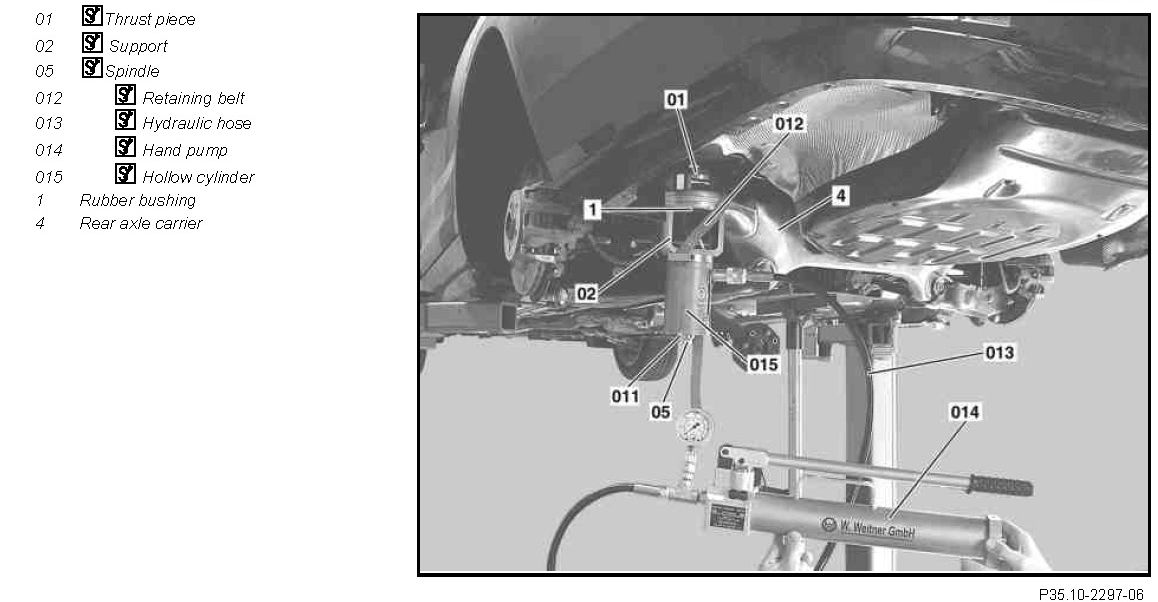

Component Identification:

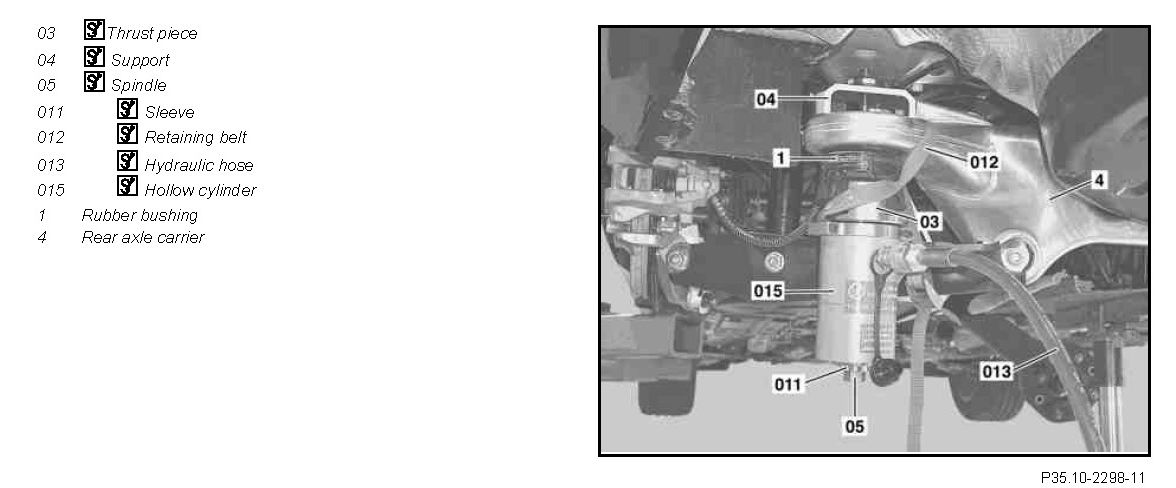

Component Identification:

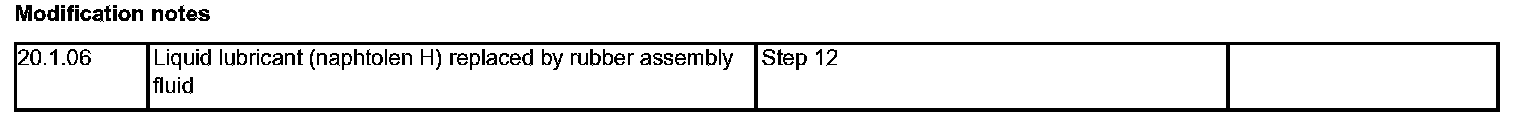

Modification notes:

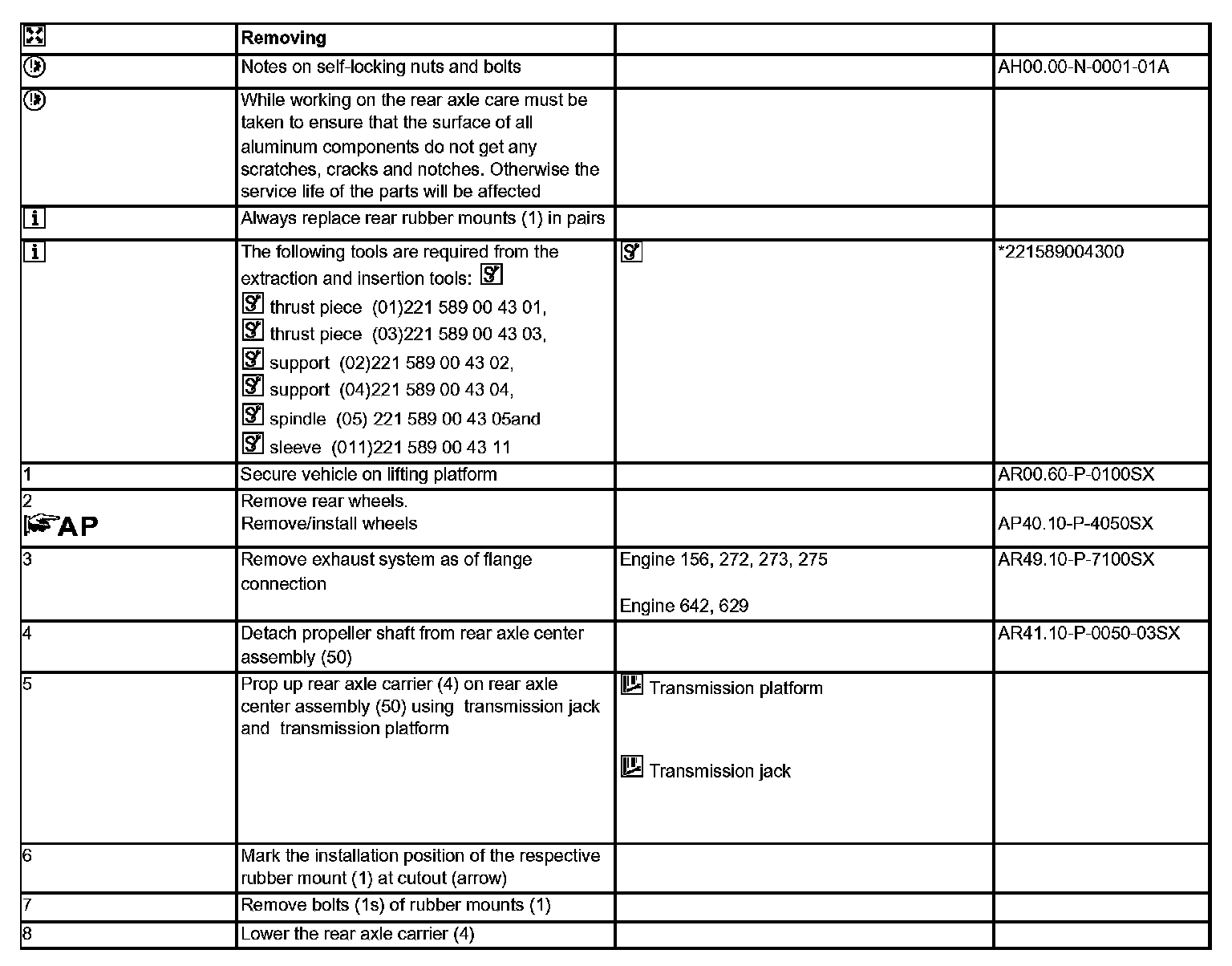

Steps 1-8:

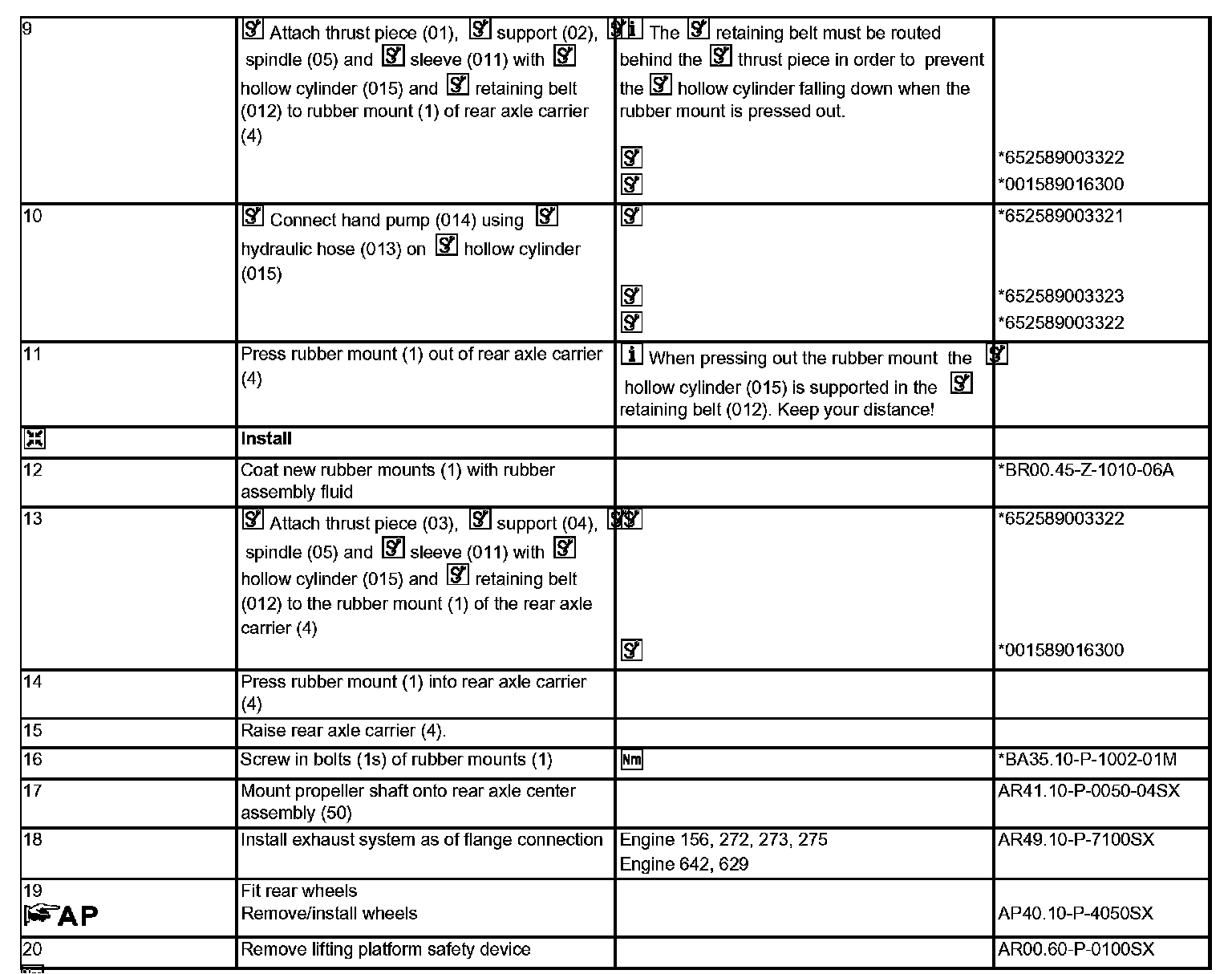

Steps 9-20:

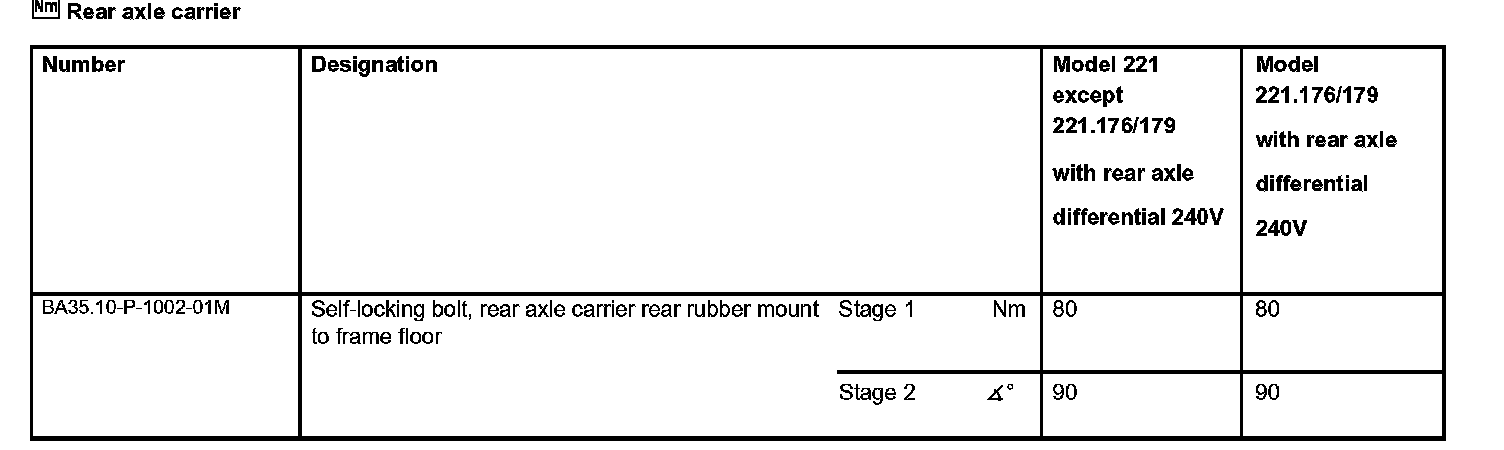

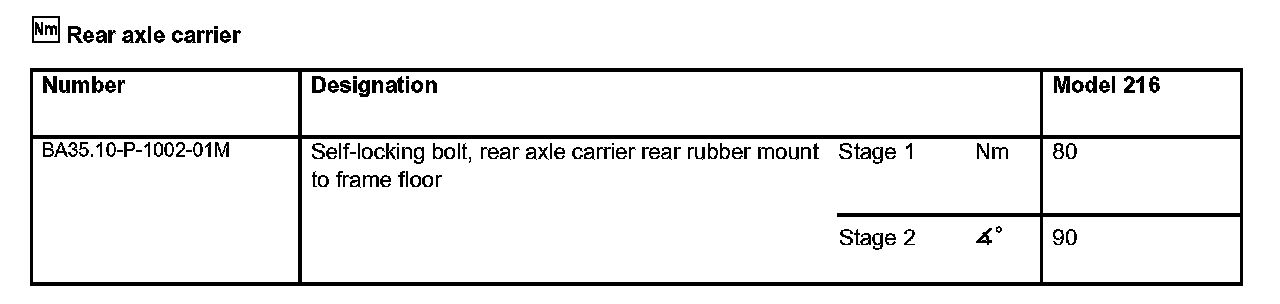

Rear axle carrier:
Rear axle carrier:

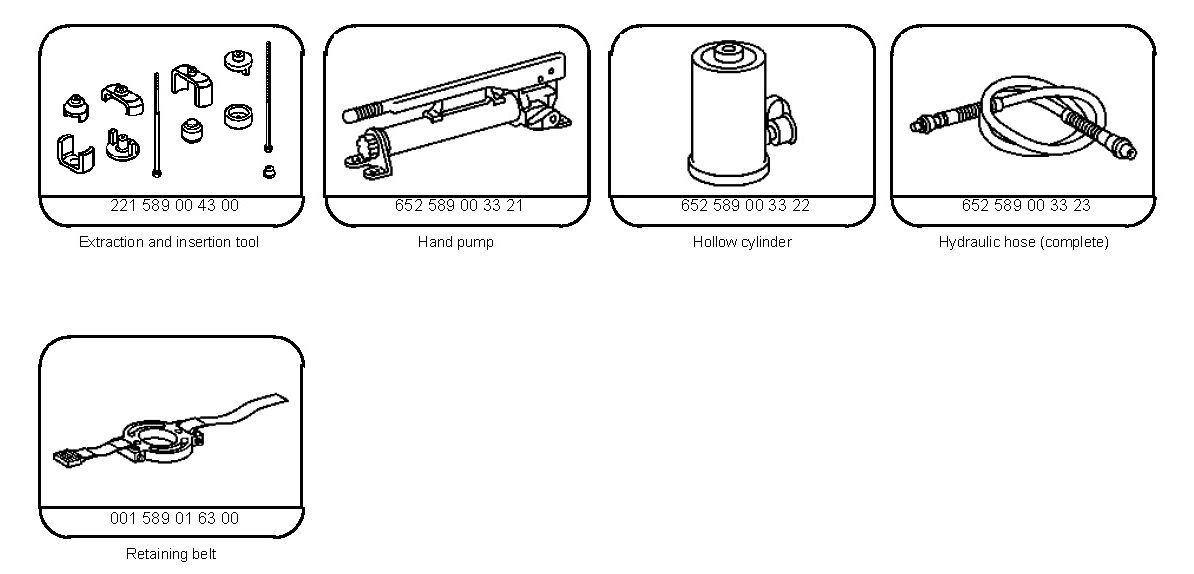

Special Tools:

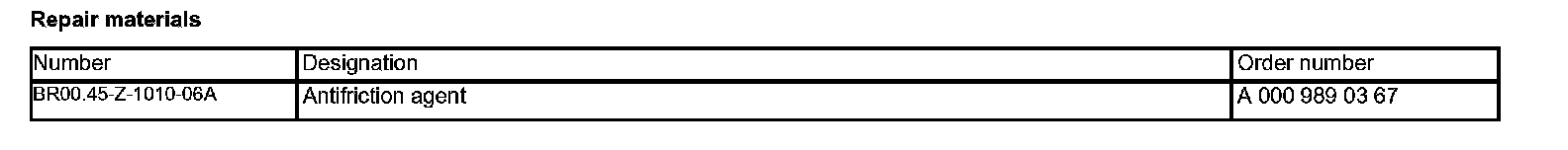

Repair materials:
