AR35.10-P-0041SXS Front Rubber Mount of Rear Axle Mount - Removal and Installation



AR35.10-P-0041SXS Front rubber mount of rear axle mount - Removal and installation
- with CODE (Z07) Top protection

Component Identification:

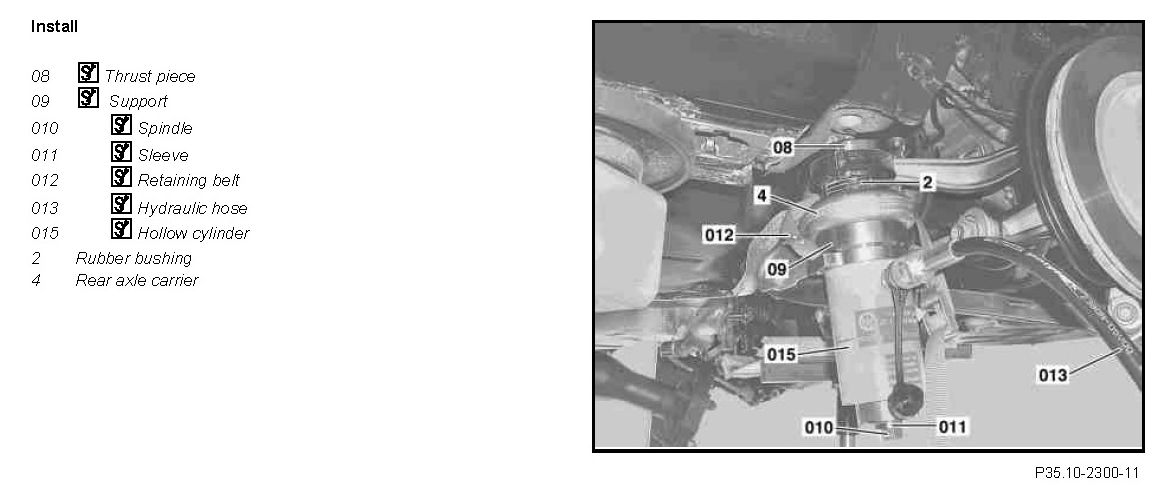

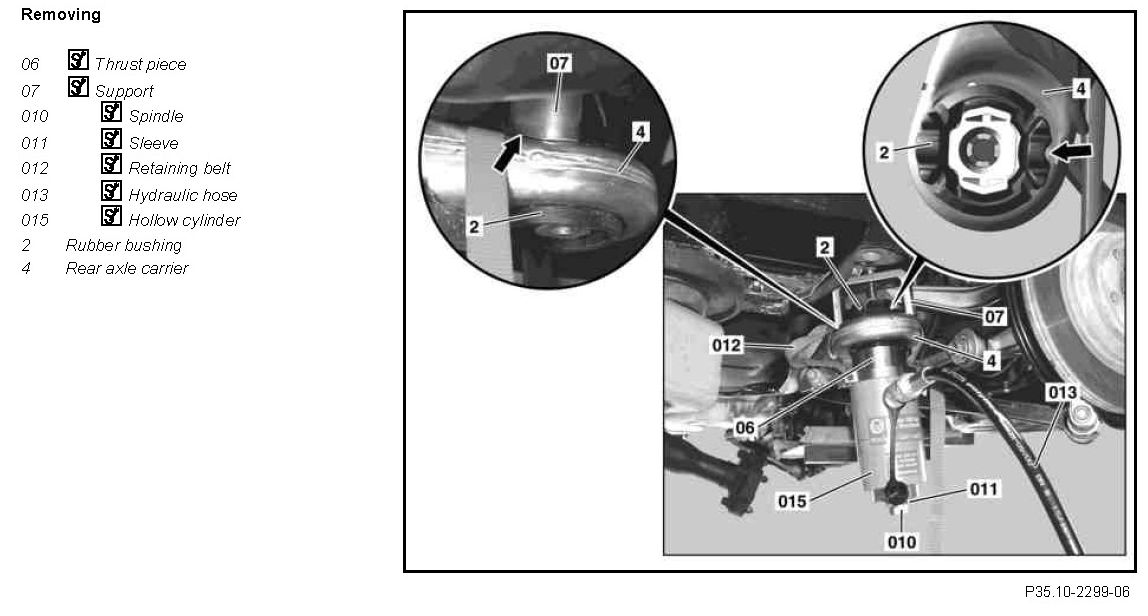

Component Identification:

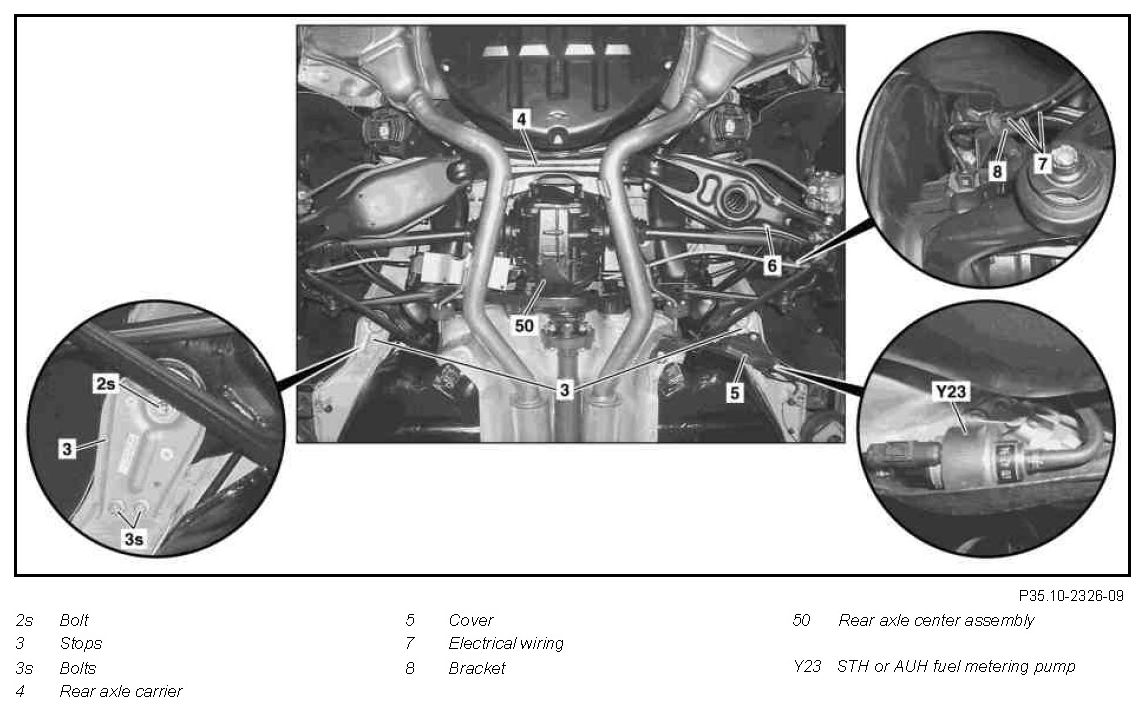

Component Identification:




Steps 1-14:

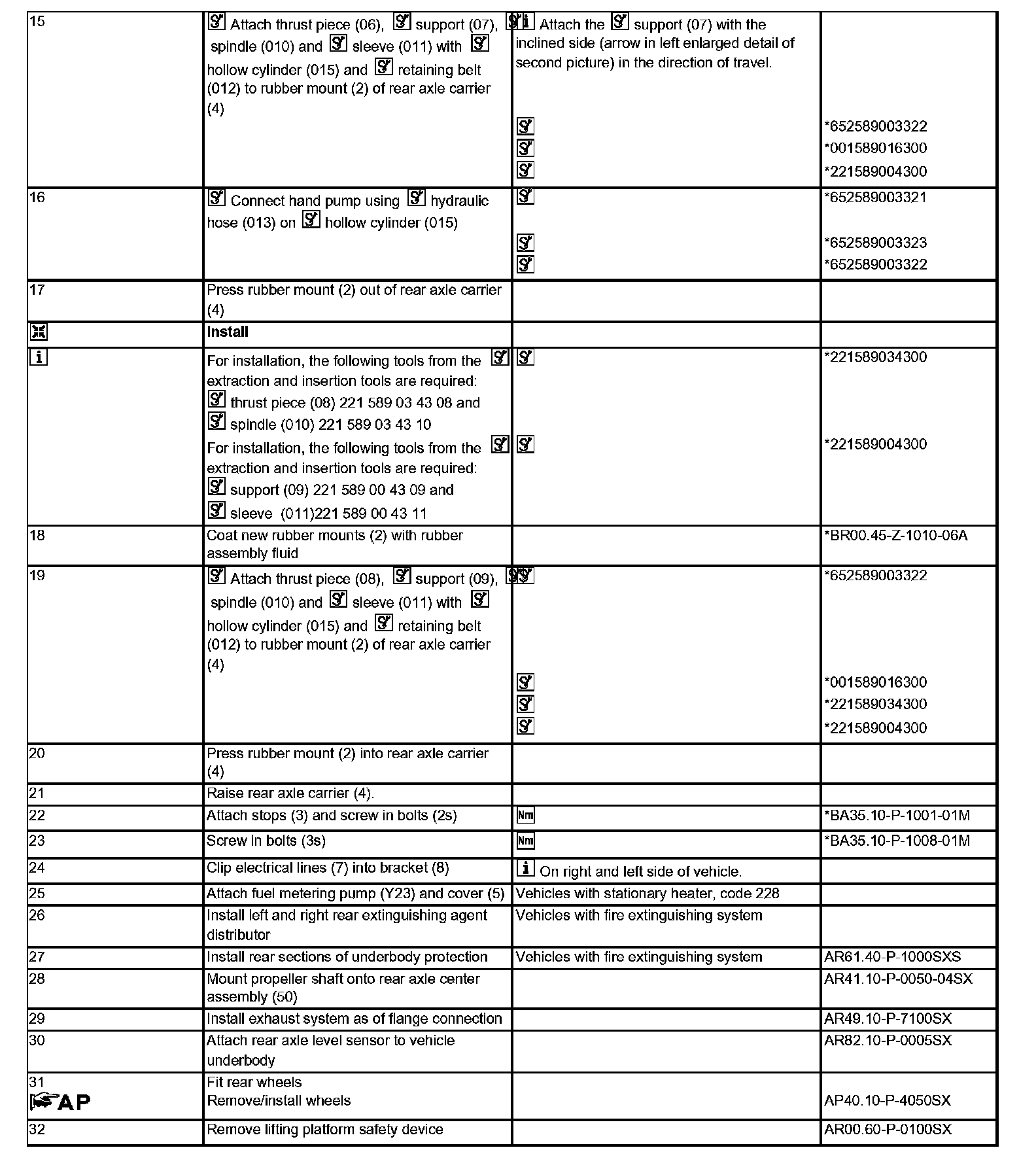

Steps 15-32:

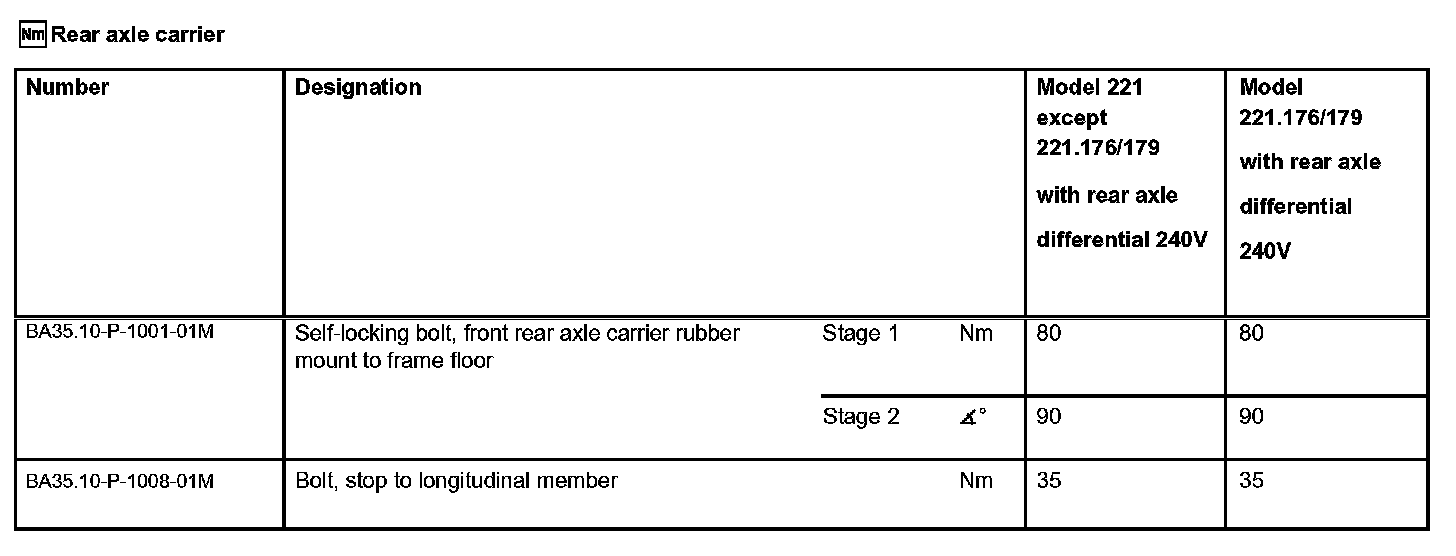

Rear axle carrier:

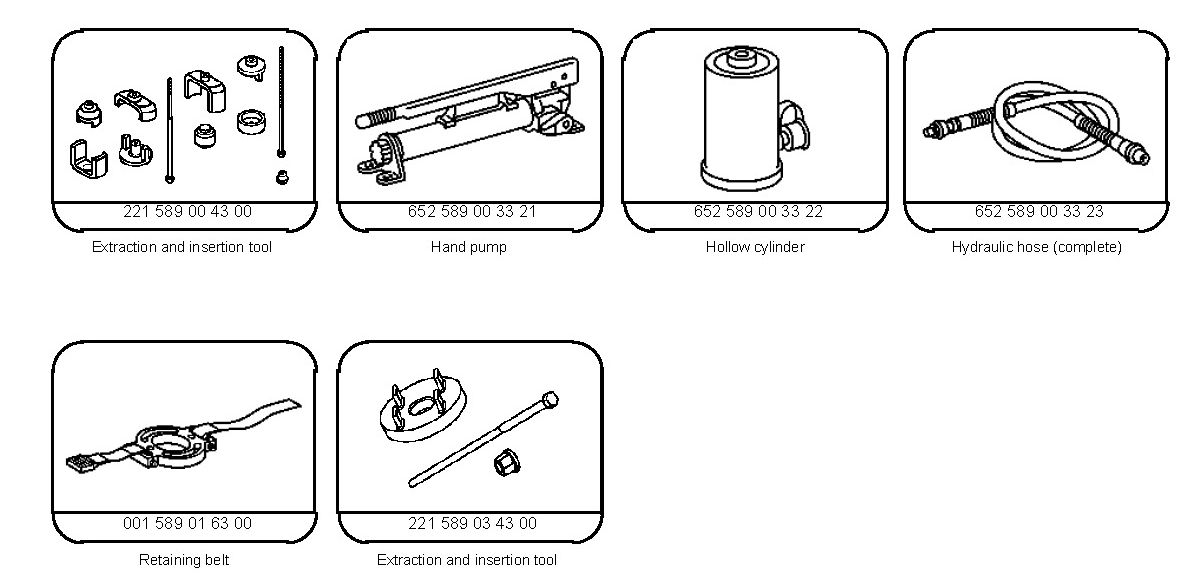

Special Tools:




Repair materials:
