AR27.55-P-0001SYZ Flushing Out Oil Cooler Lines and Oil Cooler



AR27.55-P-0001SYZ Flushing out oil cooler lines and oil cooler
- with TRANSMISSION 722.9

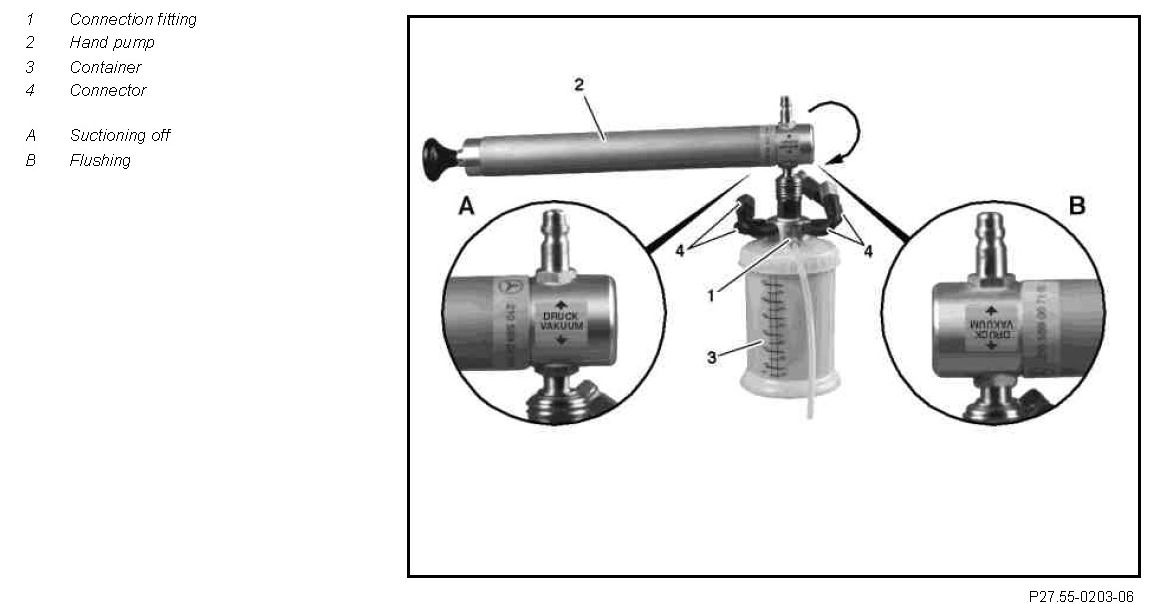

Component Identification:




Component Identification:




Component Identification:

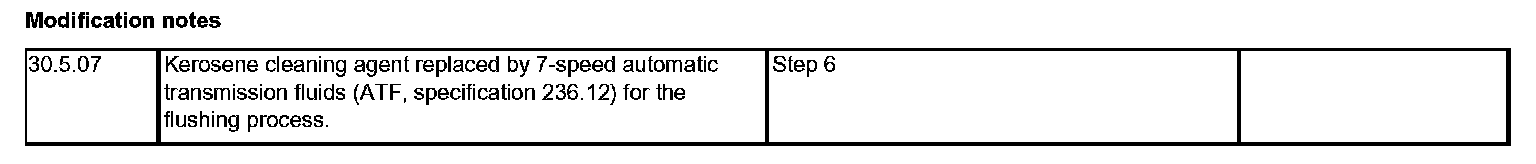

Modification notes:

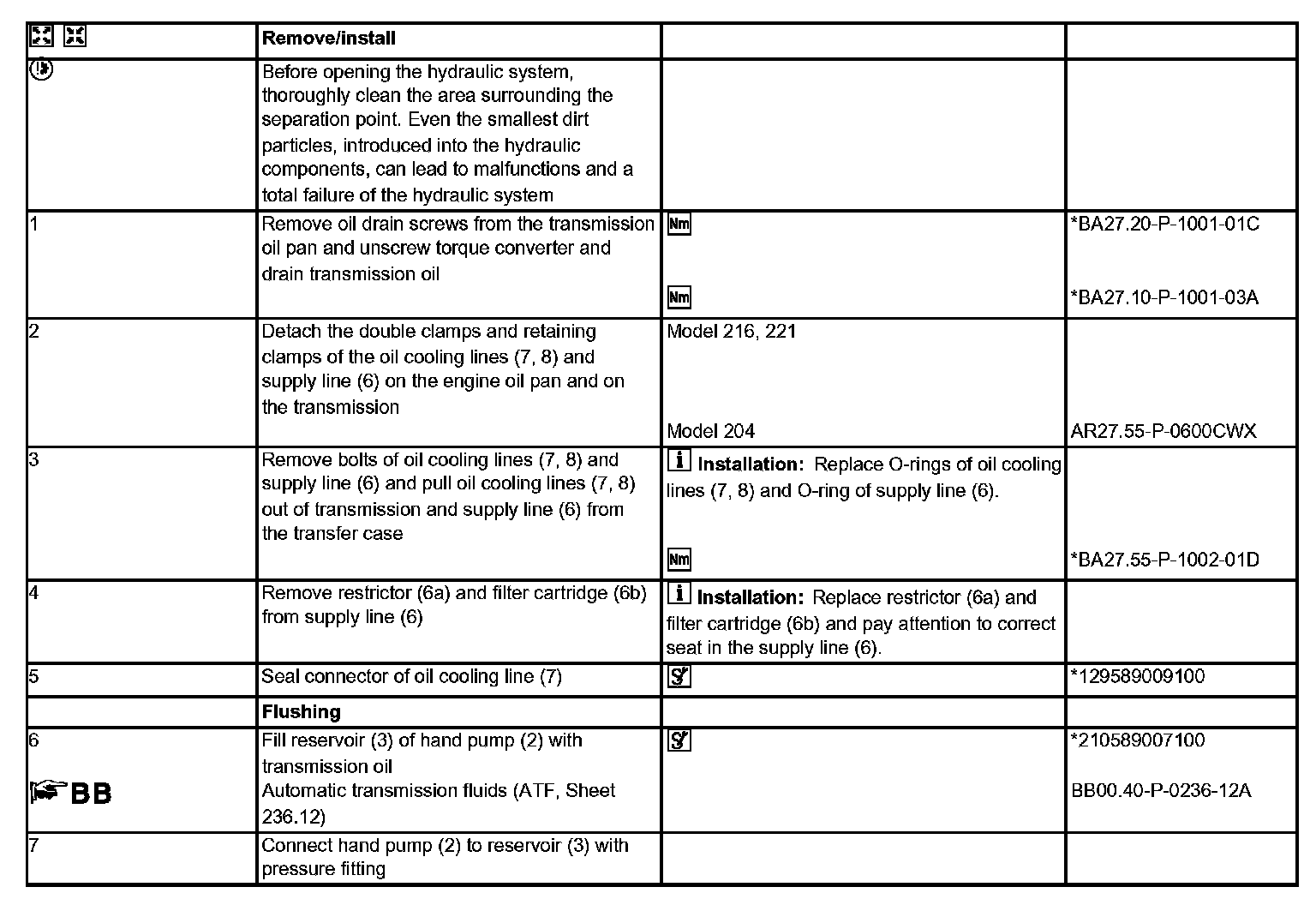

Remove/install Steps 1-7:

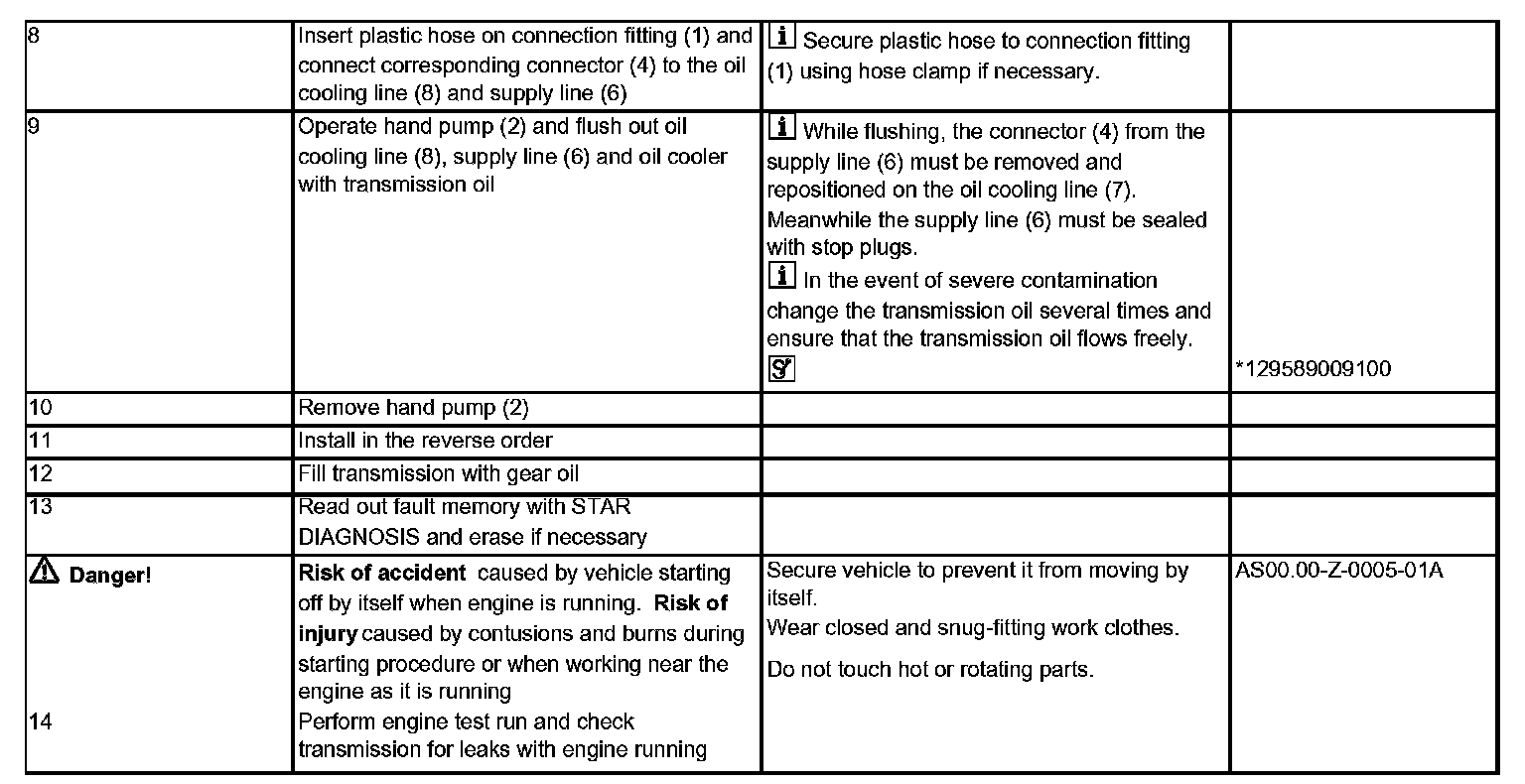

Remove/install Steps 8-14:

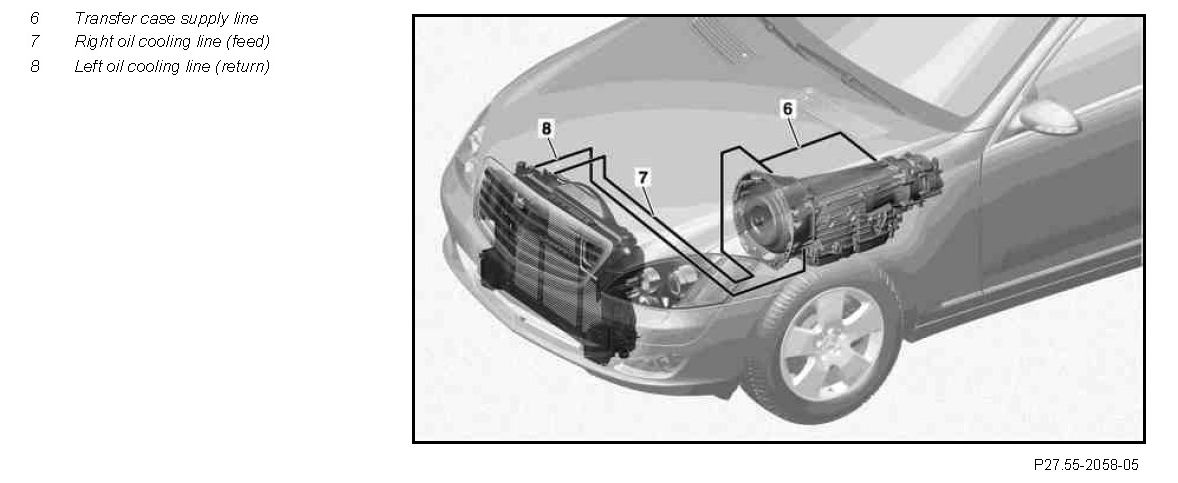

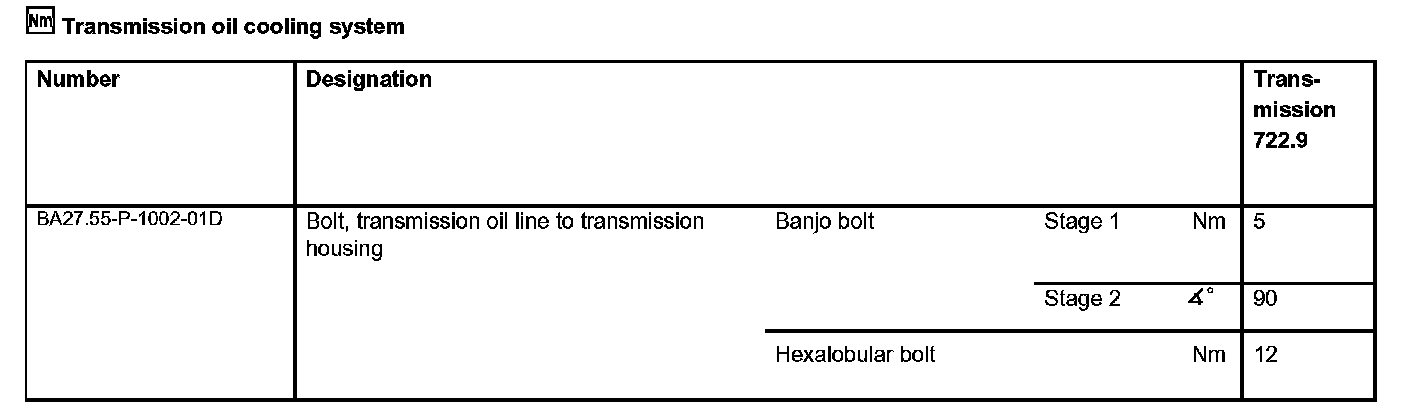

Transmission oil cooling system:

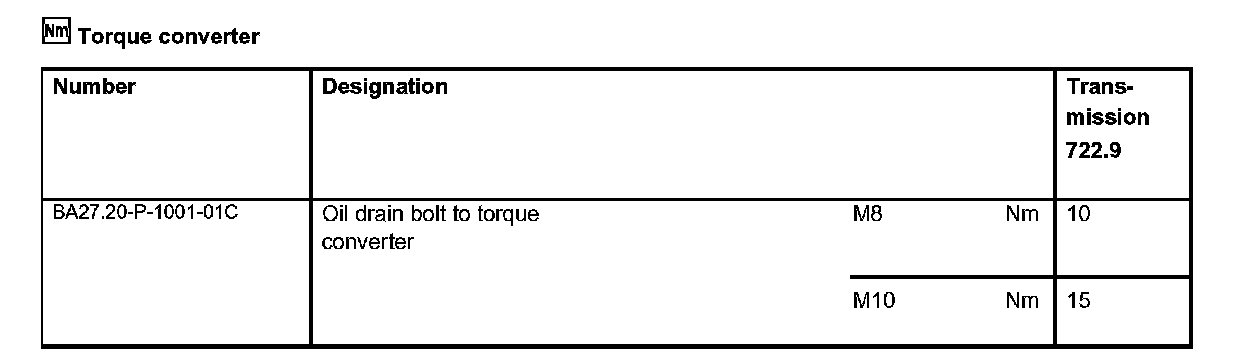

Torque converter:

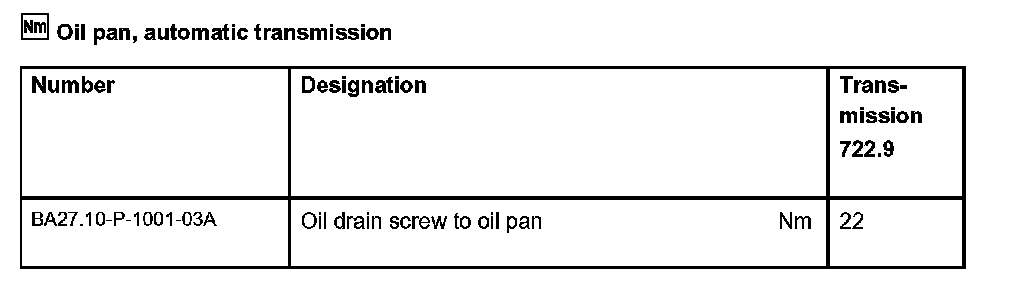

Oil pan, automatic transmission:

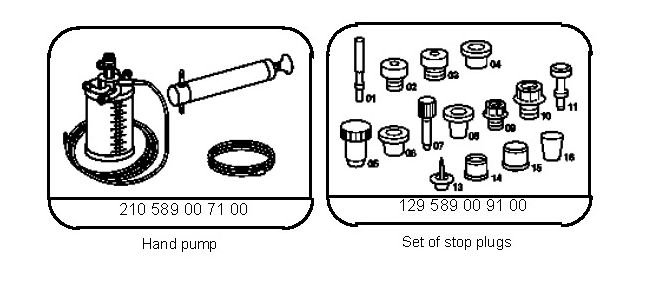

Special Tools:
