AR27.55-P-0001SX Flushing Out Oil Cooler Lines and Oil Cooler

AR27.55-P-0001SX Flushing out oil cooler lines and oil cooler
- with TRANSMISSION 722.9 [MODELS 221.0/1, 216.3 (except 221.08/18, 216.38/39)]

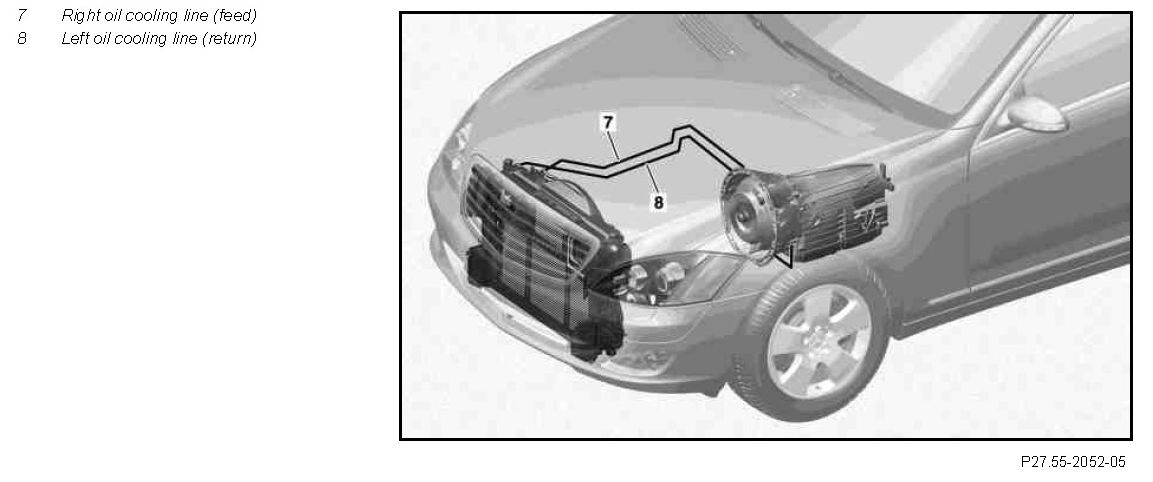

Component Identification:

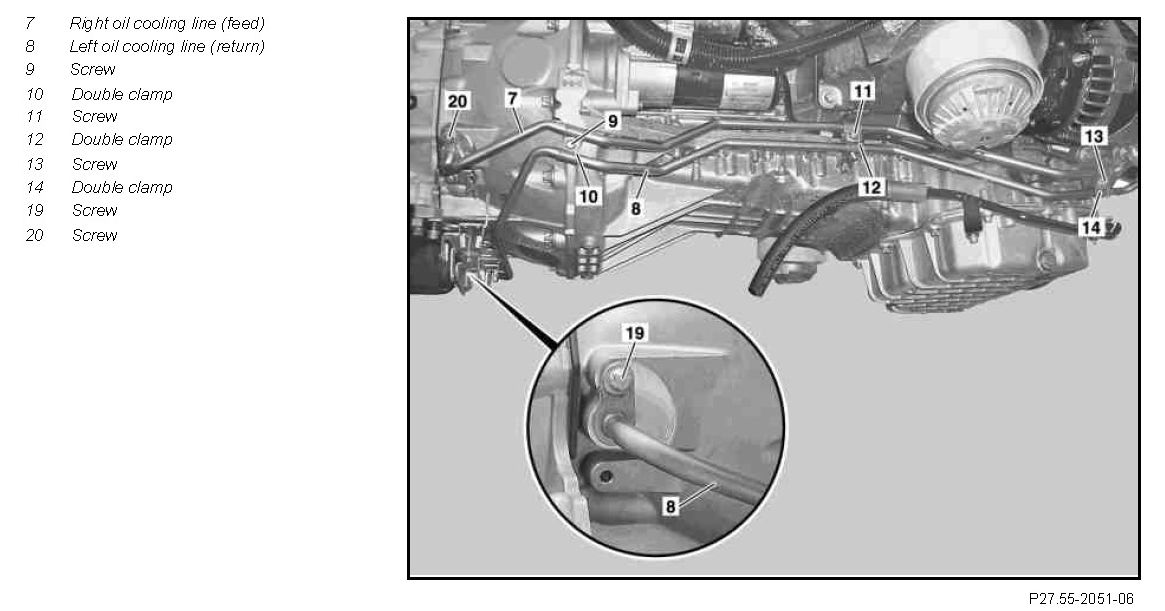

Component Identification:

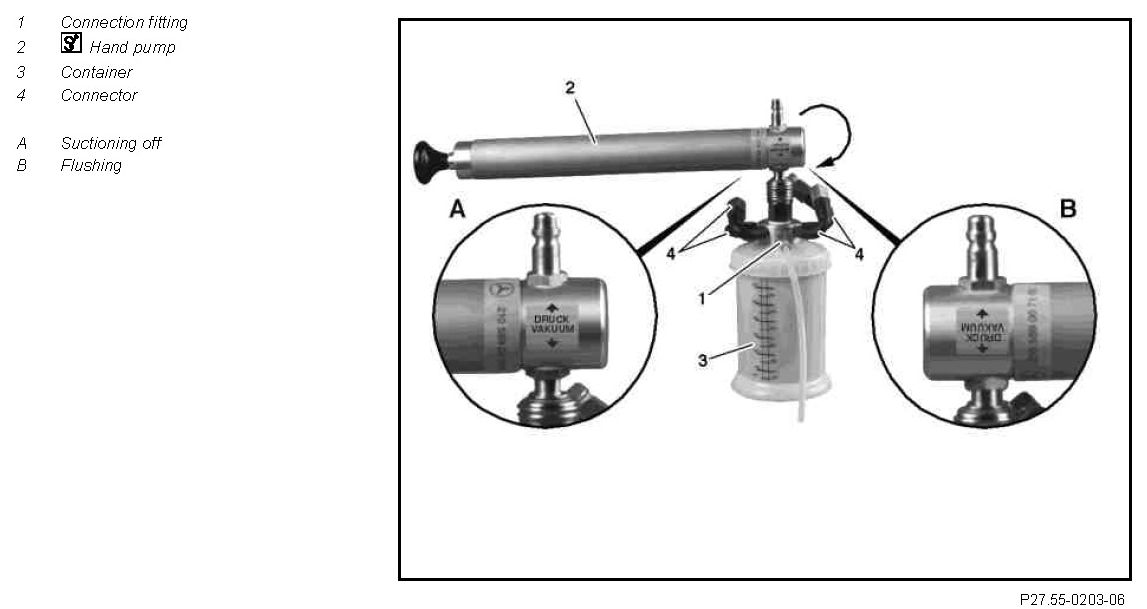

Component Identification:

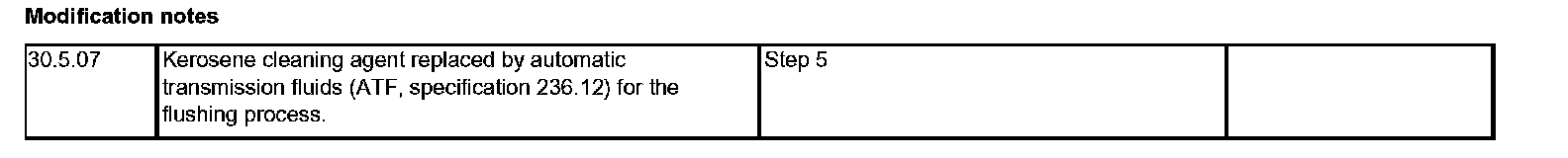

Modification notes:

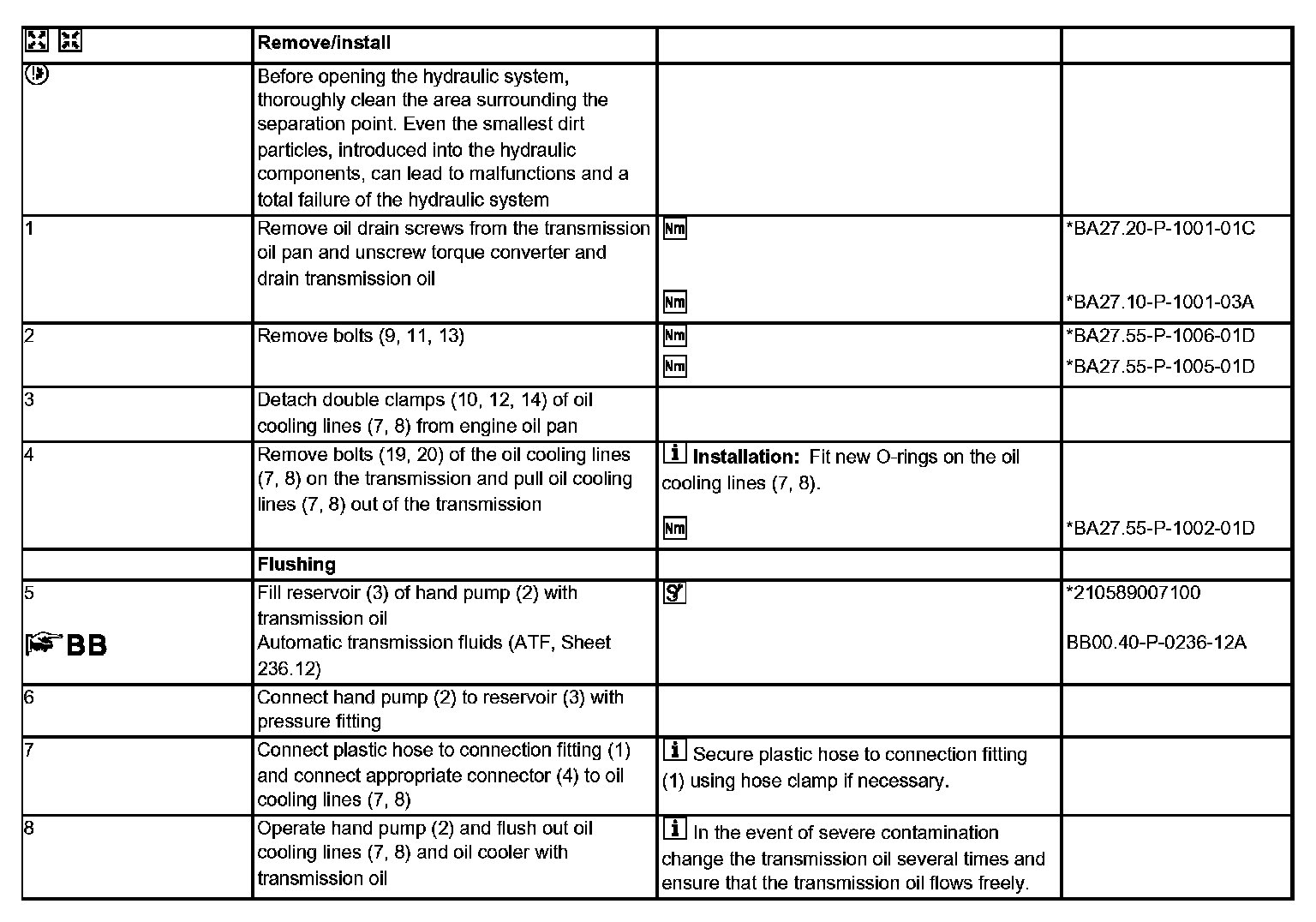

Remove/install Steps 1-8:

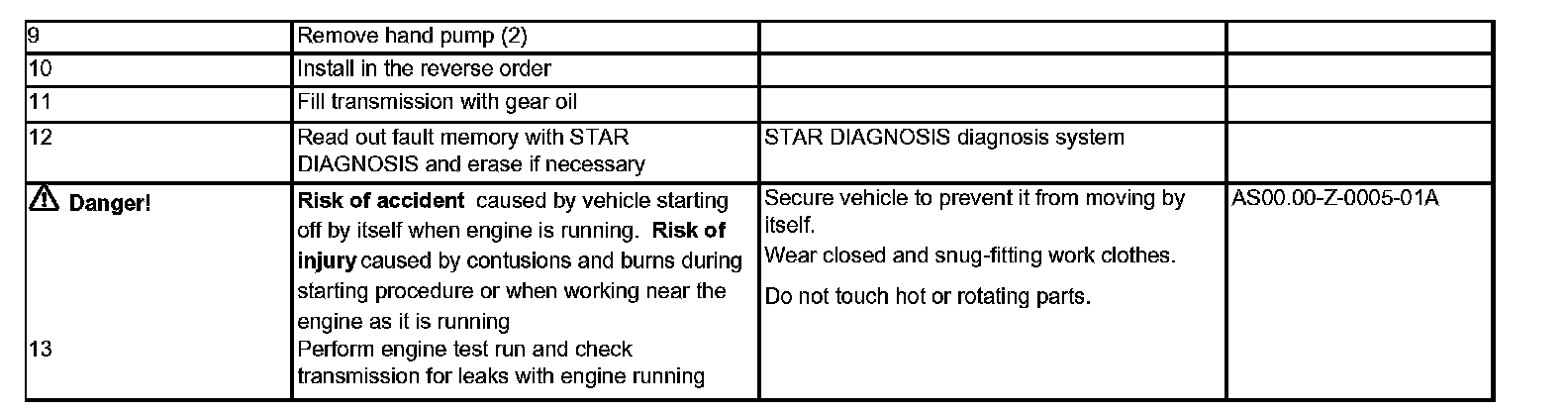

Remove/install Steps 9-13:

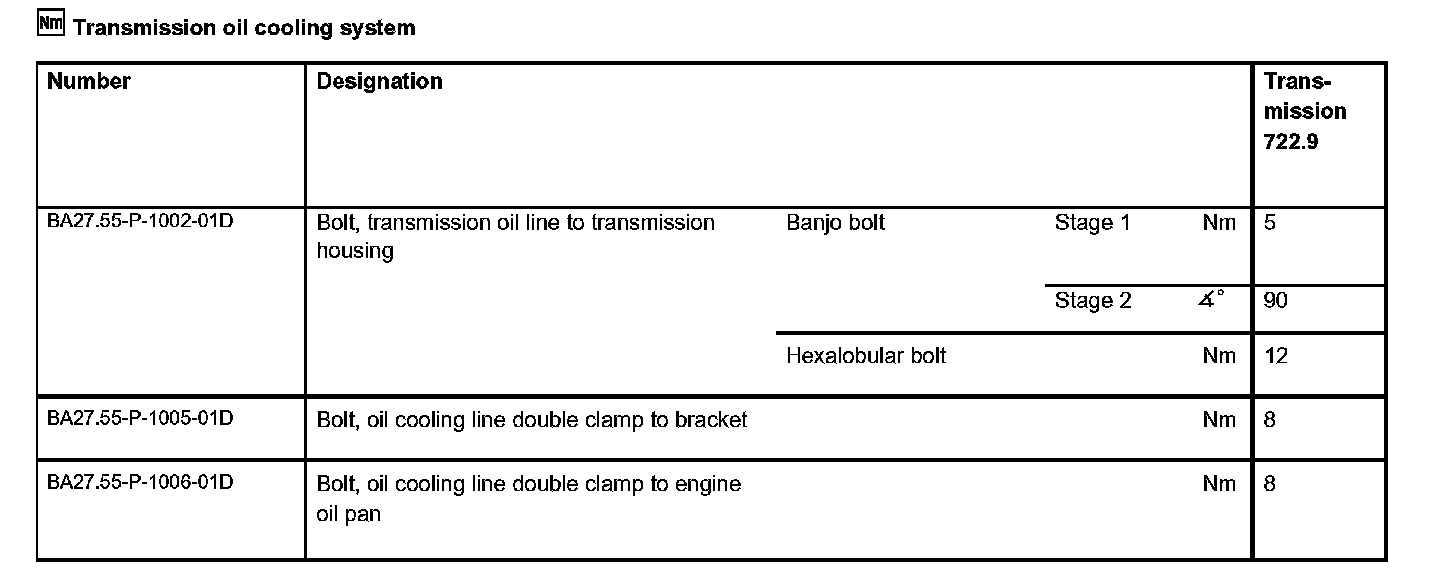

Transmission oil cooling system:

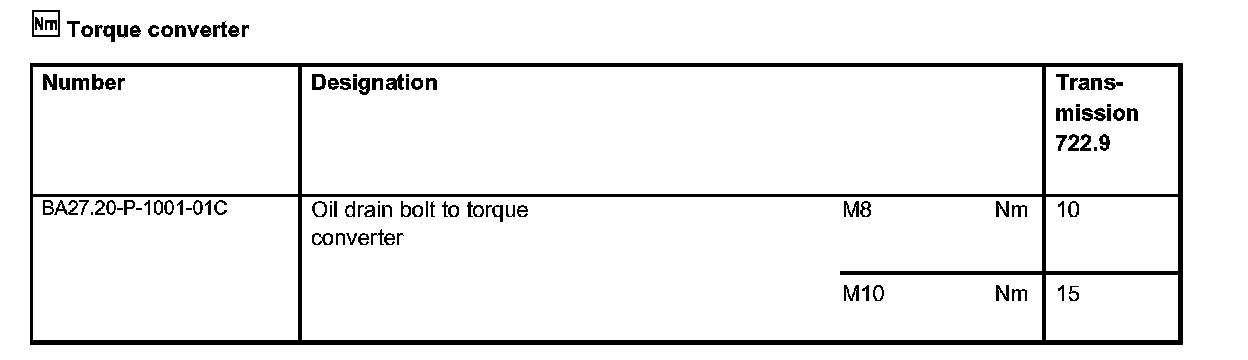

Torque converter:

Oil pan, automatic transmission:

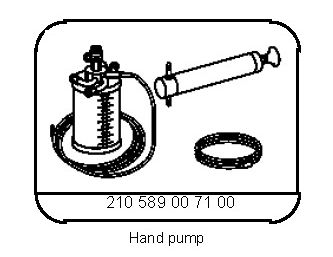

Special Tools:
