AR27.40-P-0700-01SX Remove/Install Shield at Transmission

AR27.40-P-0700-01SX Remove/install shield at transmission
- Transmission 722.6/9

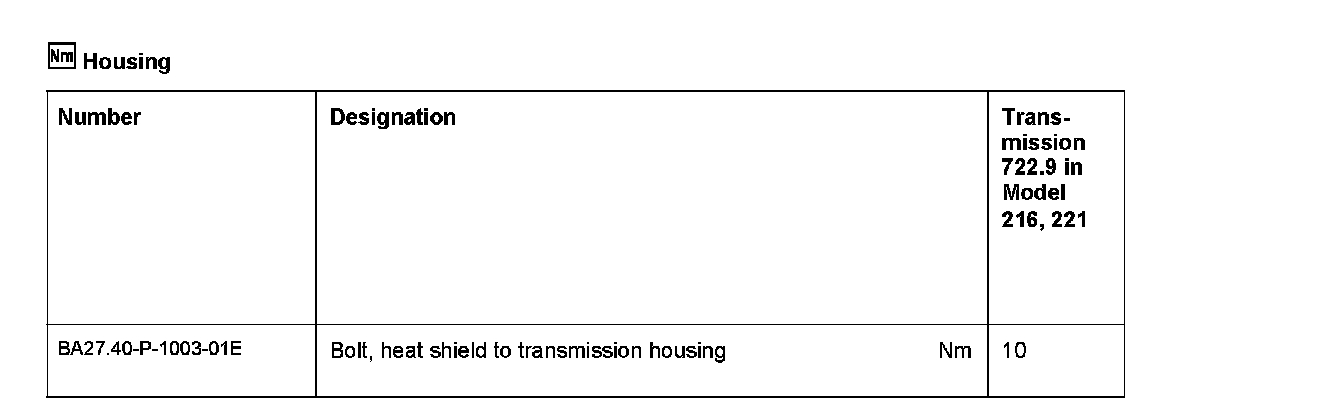

Housing:

Housing:

Housing:

Component Identification:

1 Remove bolt (1) and remove shield (2) downwards.
2 Press cable holder (4) out of shield (2) and remove shield (2).

Installation: The shield (2) must be positioned under the leaf spring (3).

The leaf spring (3) must be modified if a new transmission is installed.
