AR27.19-P-0550SX Remove/Install Intelligent Servo Module

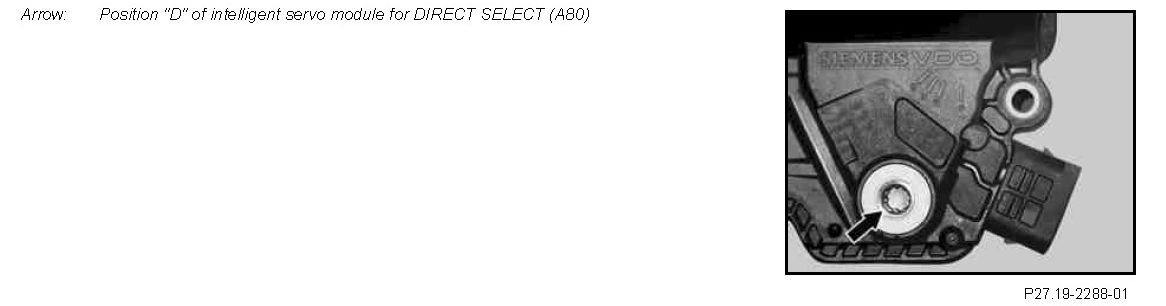

Component Identification:

Component Identification:

Modification notes:

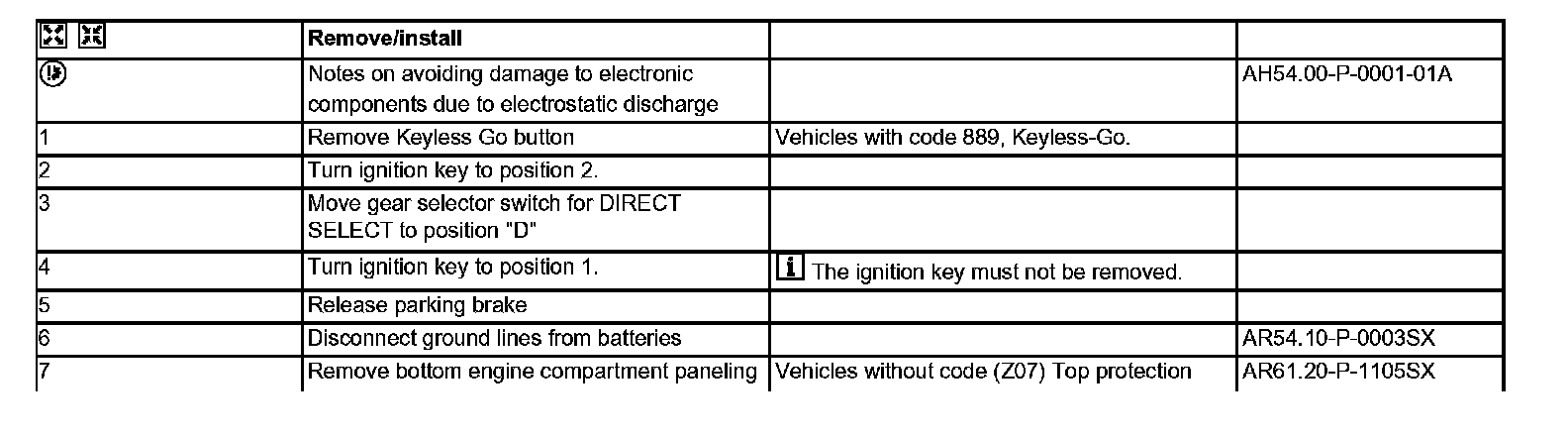

Remove/install Steps 1-7:

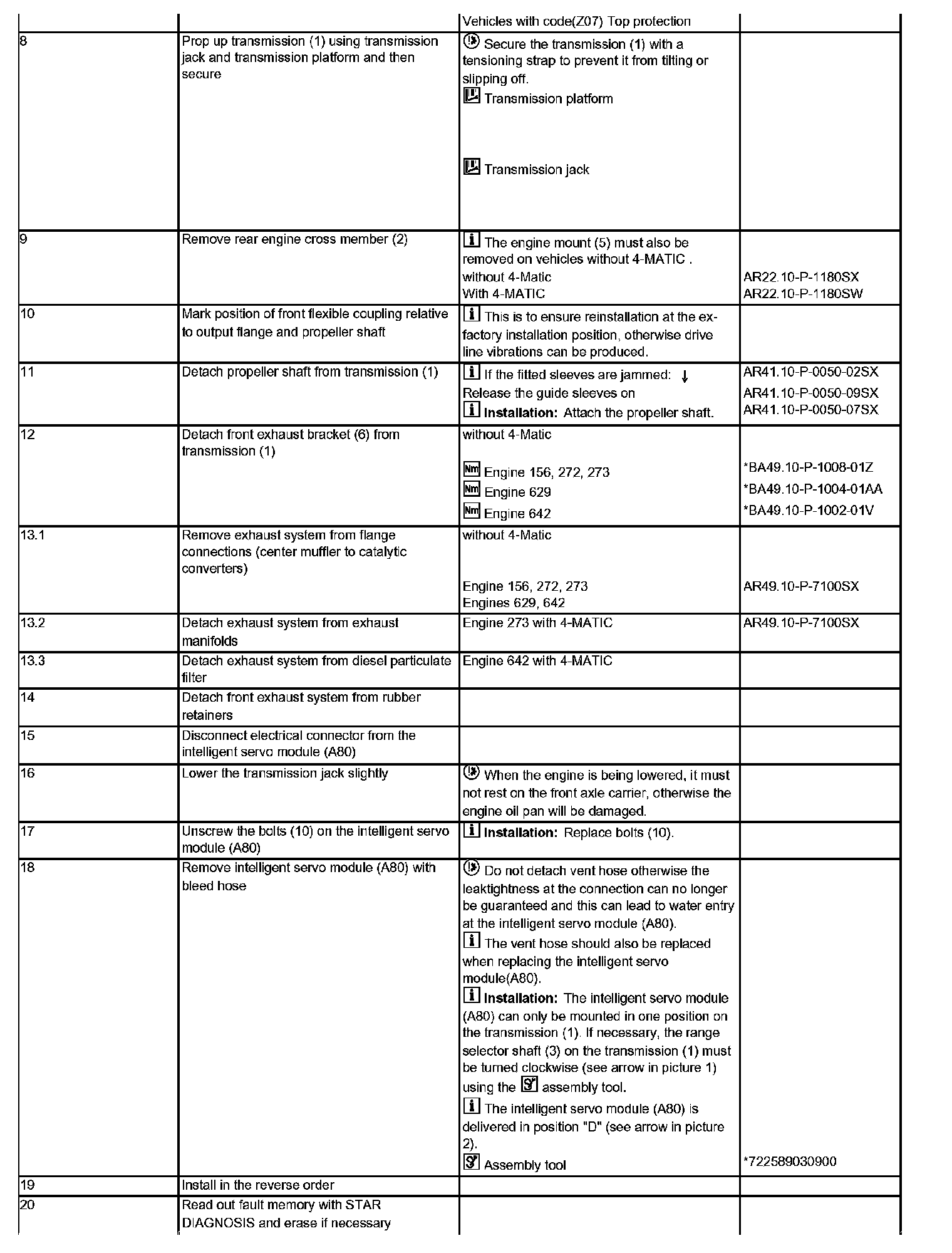

Remove/install Steps 7 (Continued)-20:

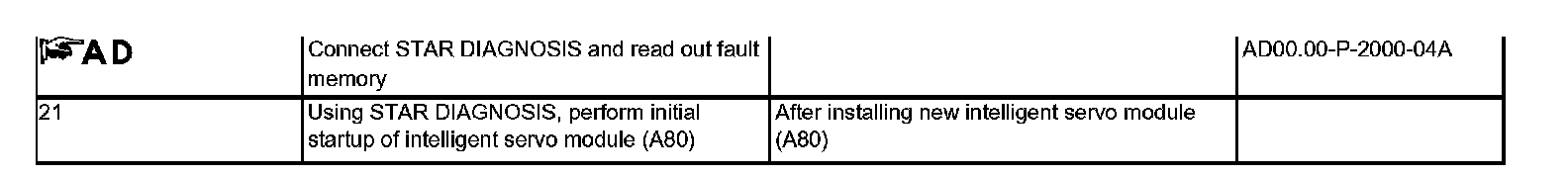

Remove/install Steps 20 (Continued)-21:

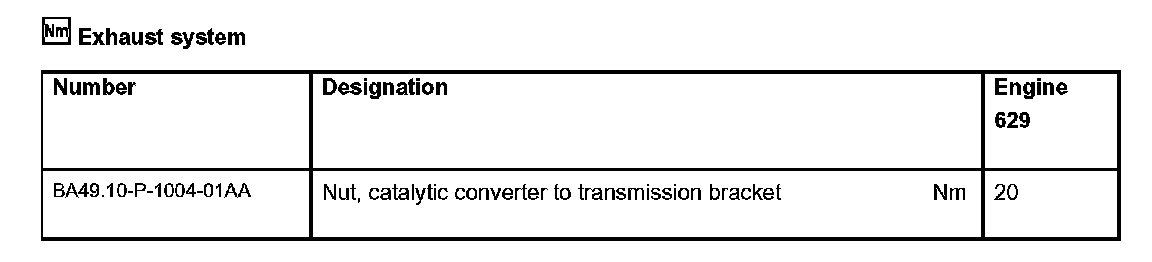

Exhaust system:

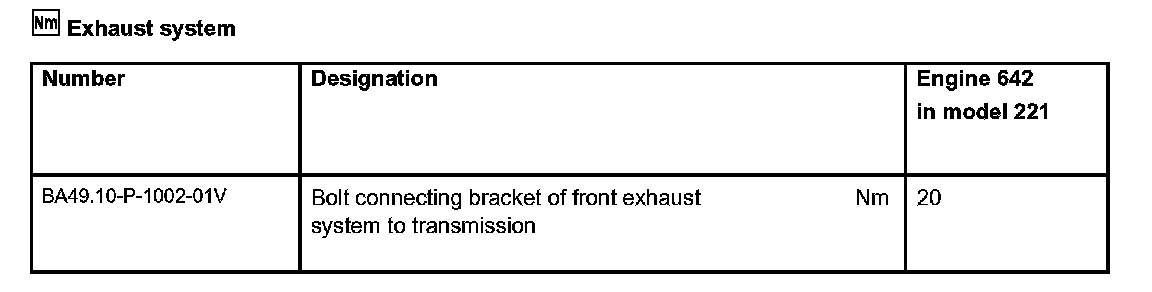

Exhaust system:

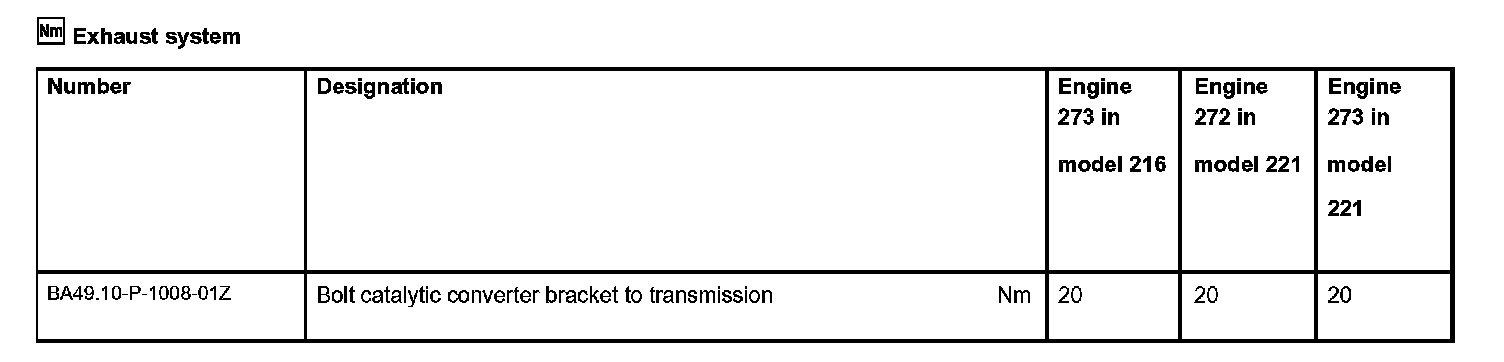

Exhaust system:

Exhaust system:

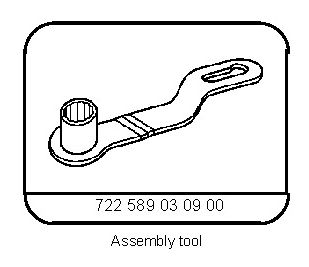

Special Tools:
