AR27.10-P-7010SZ Remove/Install Oil Filler Pipe For Automatic Transmission



AR27.10-P-7010SZ Remove/install oil filler pipe for automatic transmission
- with TRANSMISSION 722.6

Component Identification:

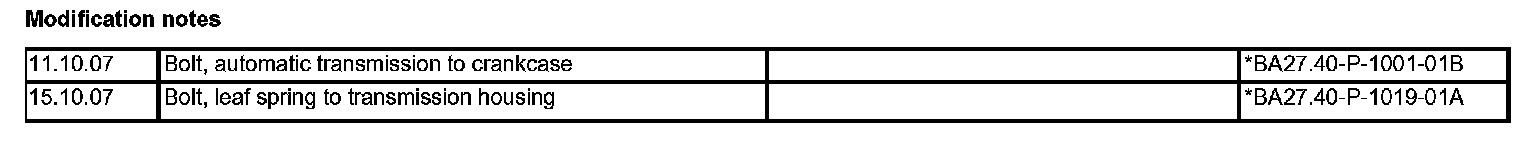

Modification notes:

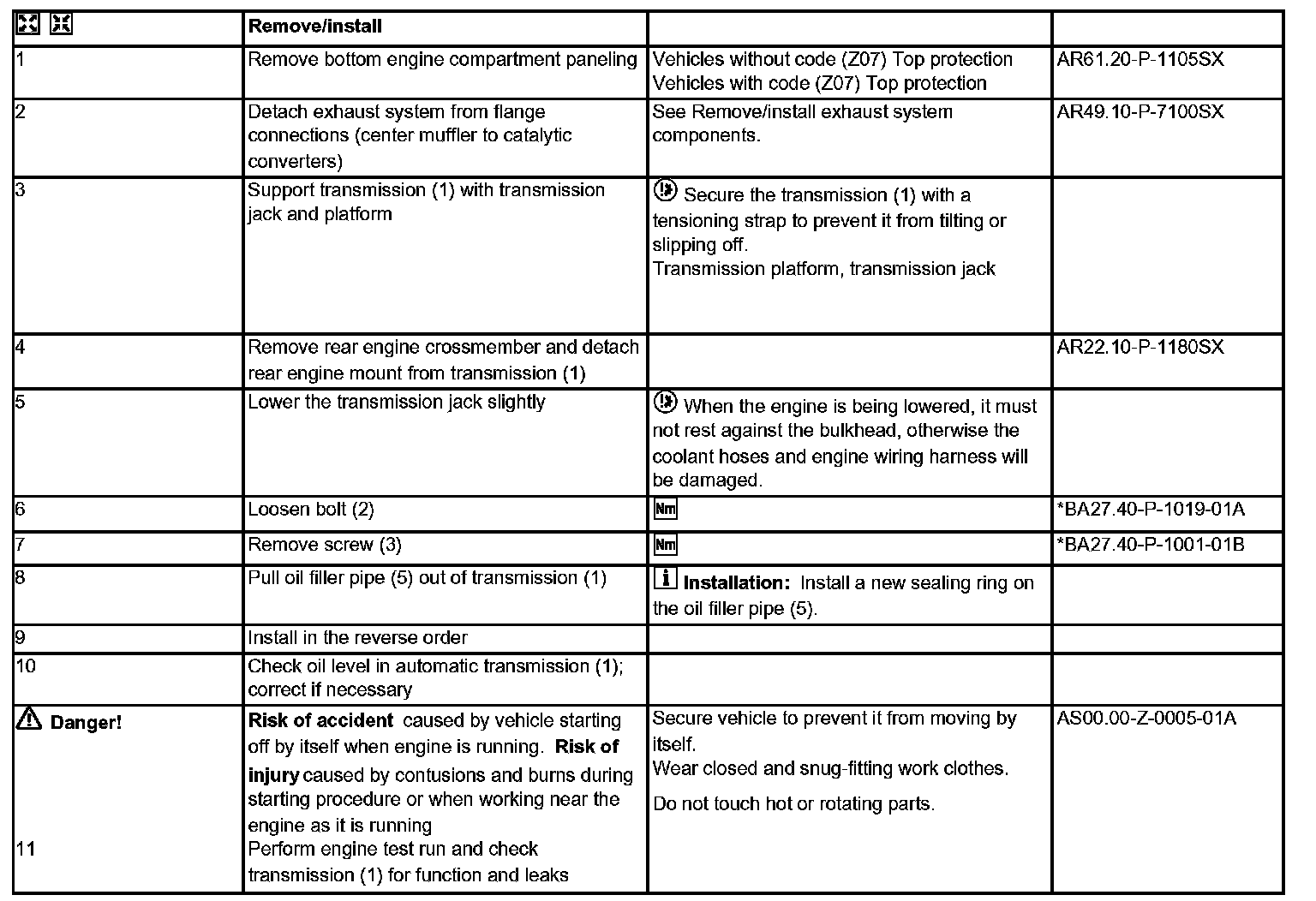

Remove/install Steps 1-11:

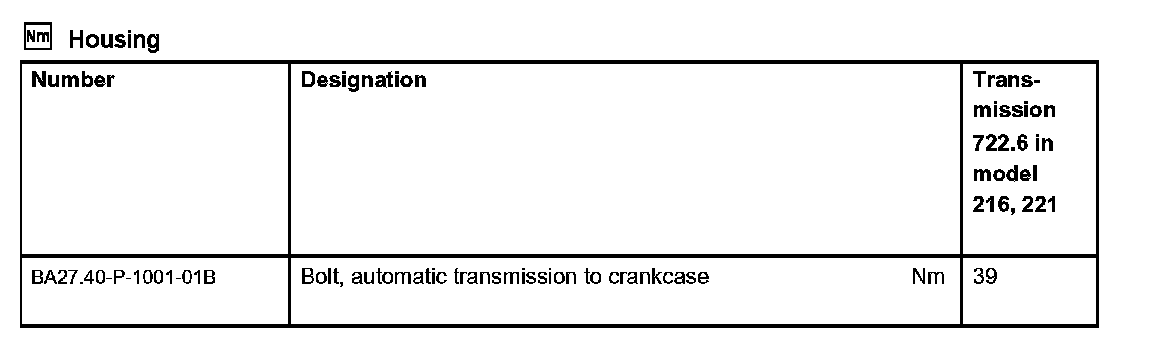

Housing:




Housing:
