AR27.10-P-0500SZ Remove/Install Transmission With Torque Converter

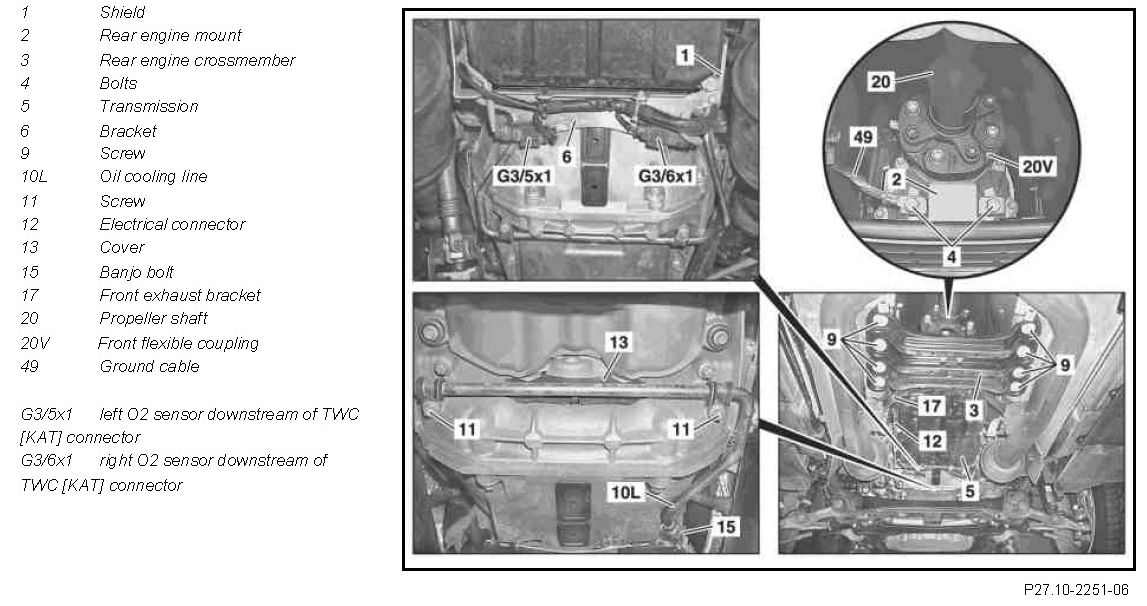

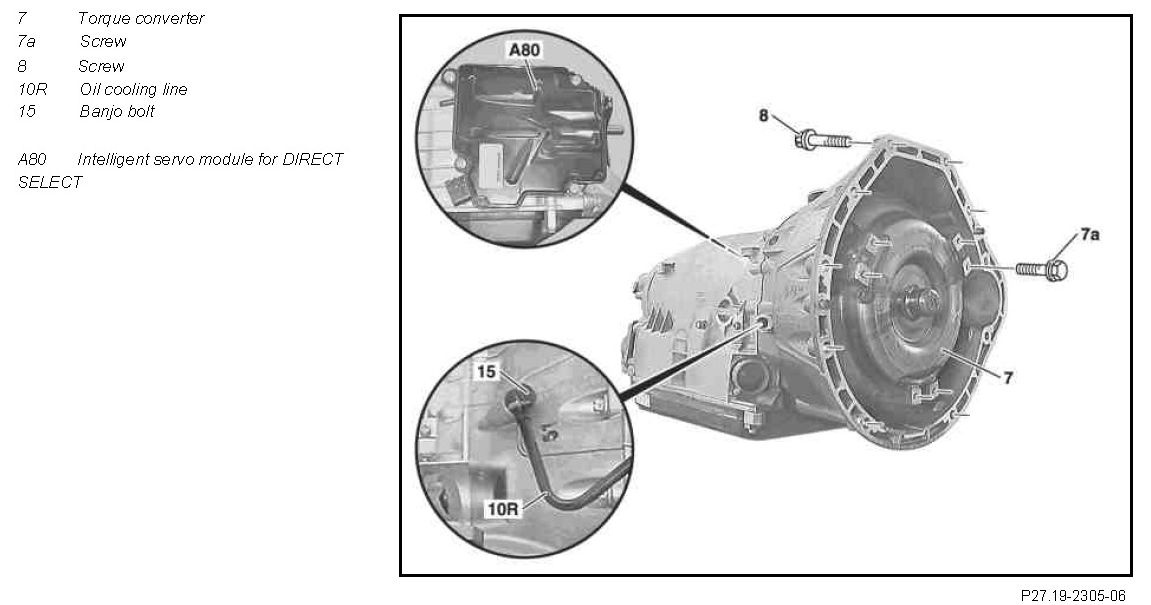

Component Identification:

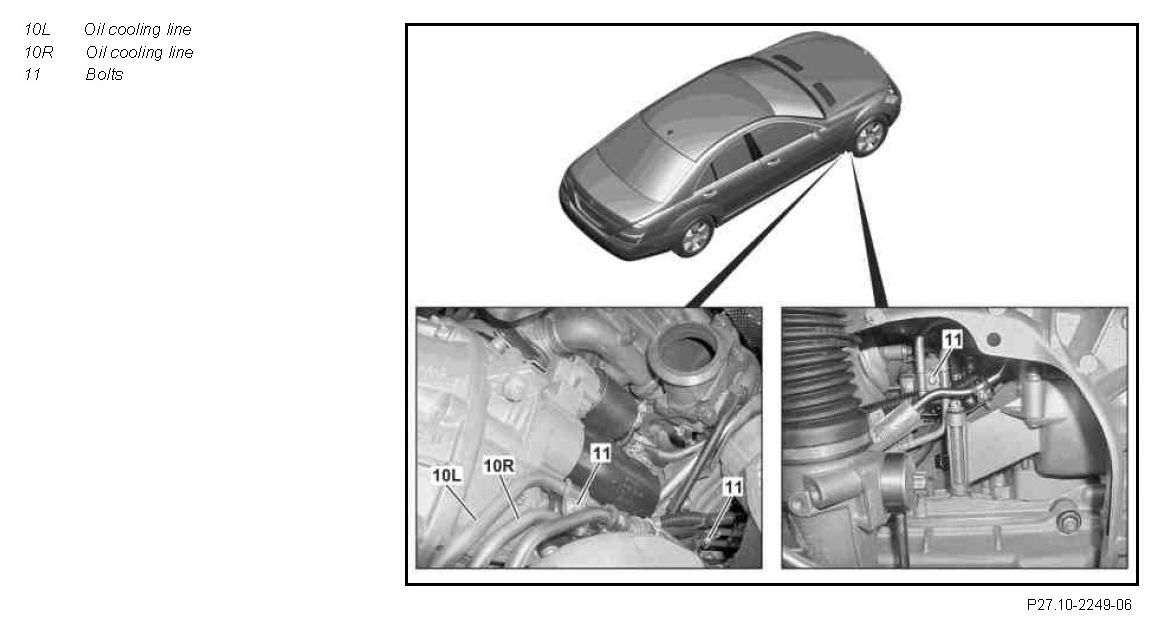

Component Identification:

Component Identification:

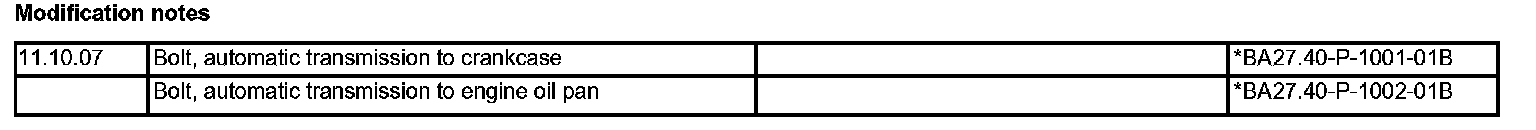

Modification notes:

Remove/install Steps 1-13:

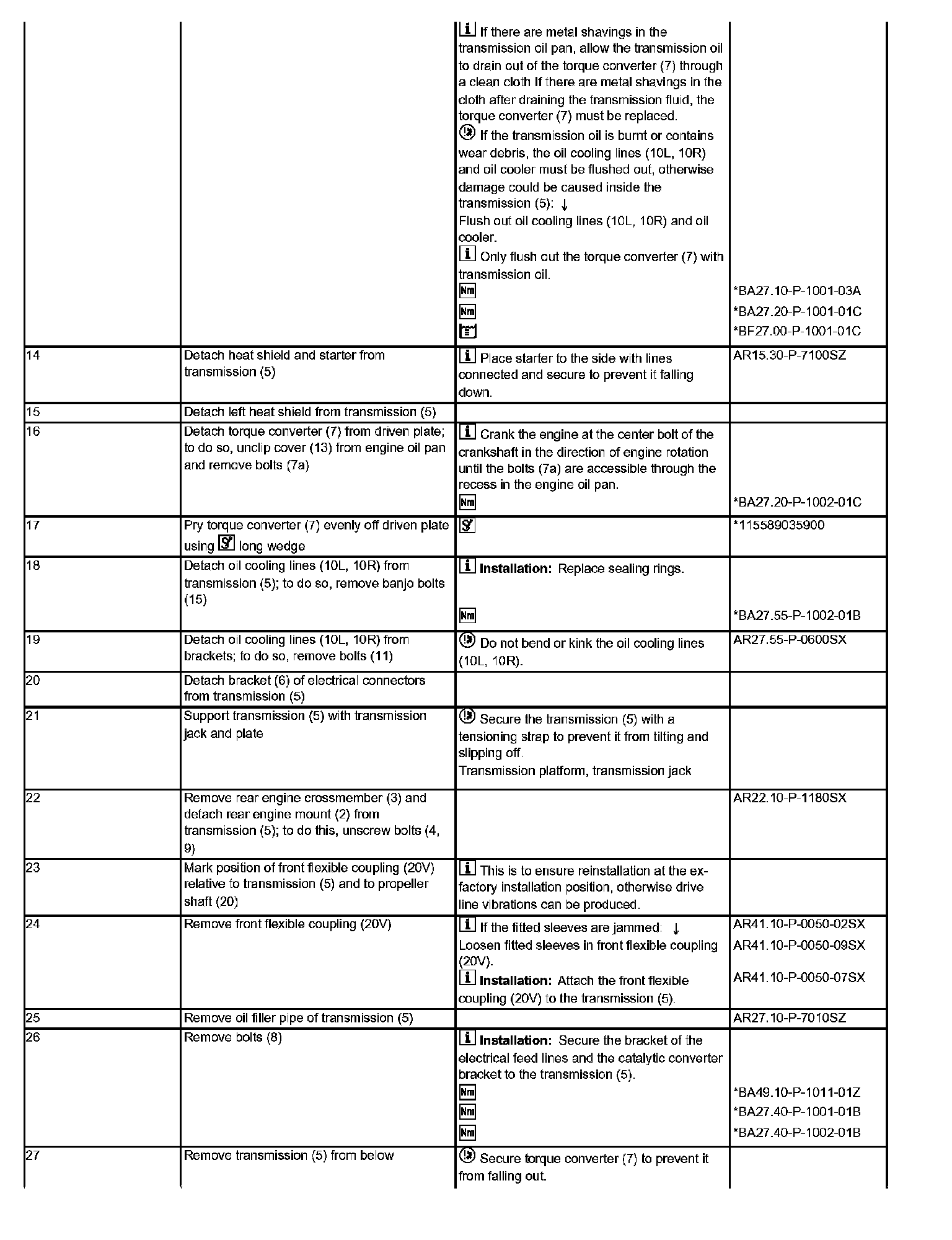

Remove/install Steps 13 (Continued)-27:

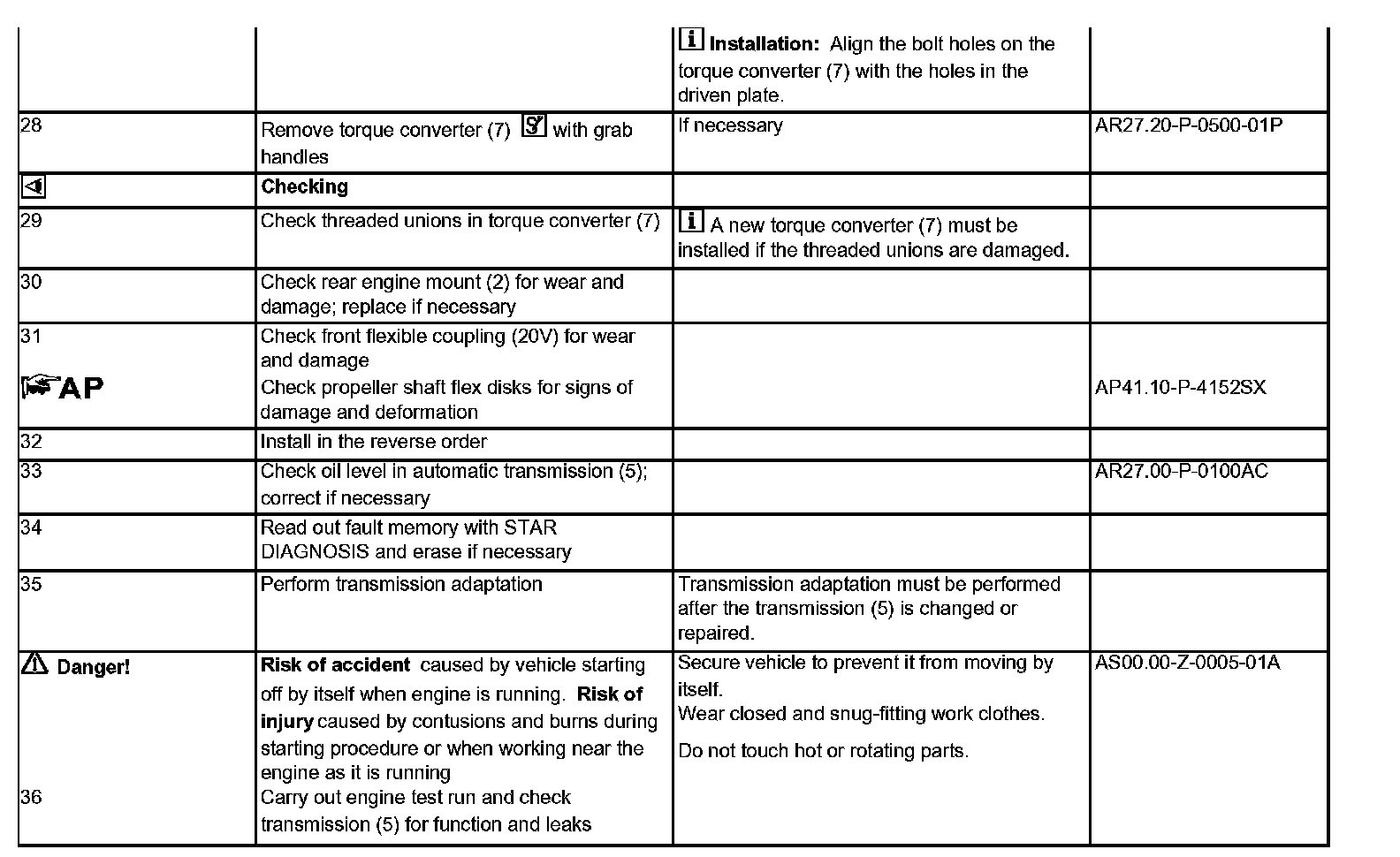

Remove/install Steps 27 (Continued)-36:

Torque converter:

Housing:

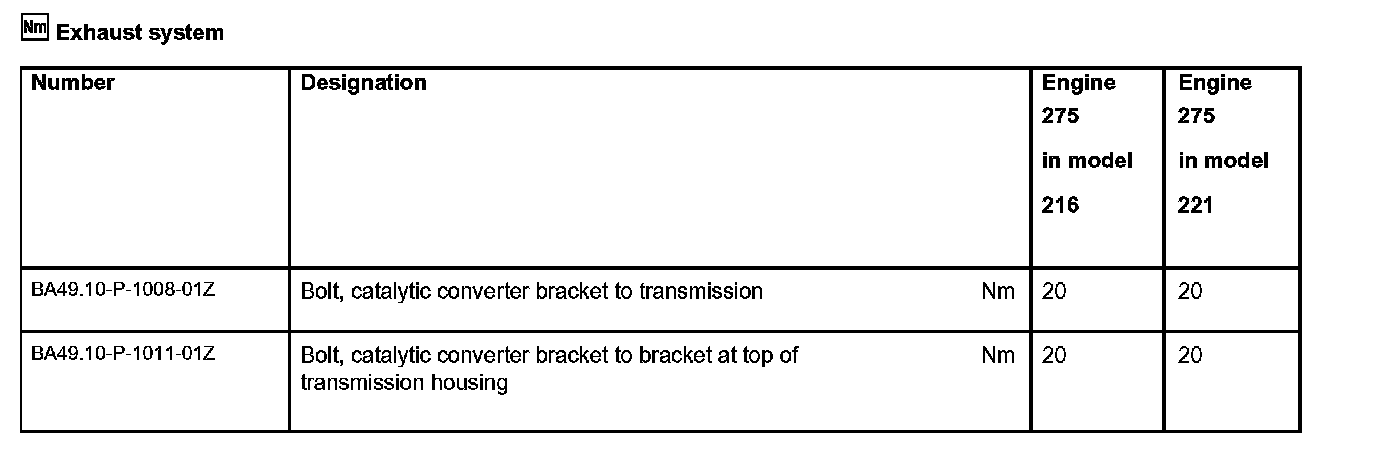

Exhaust system:

Oil pan, automatic transmission:

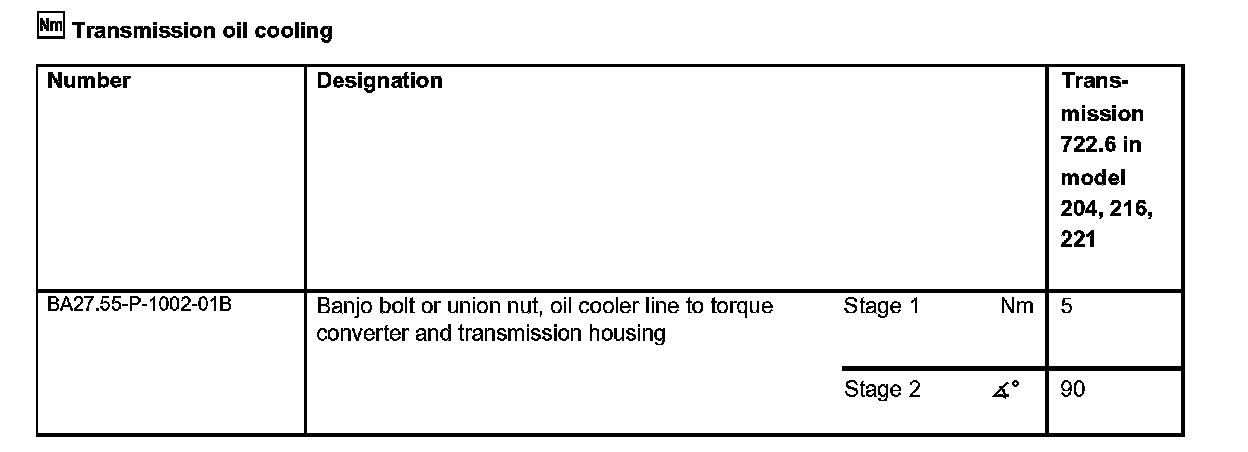

Transmission oil cooling:

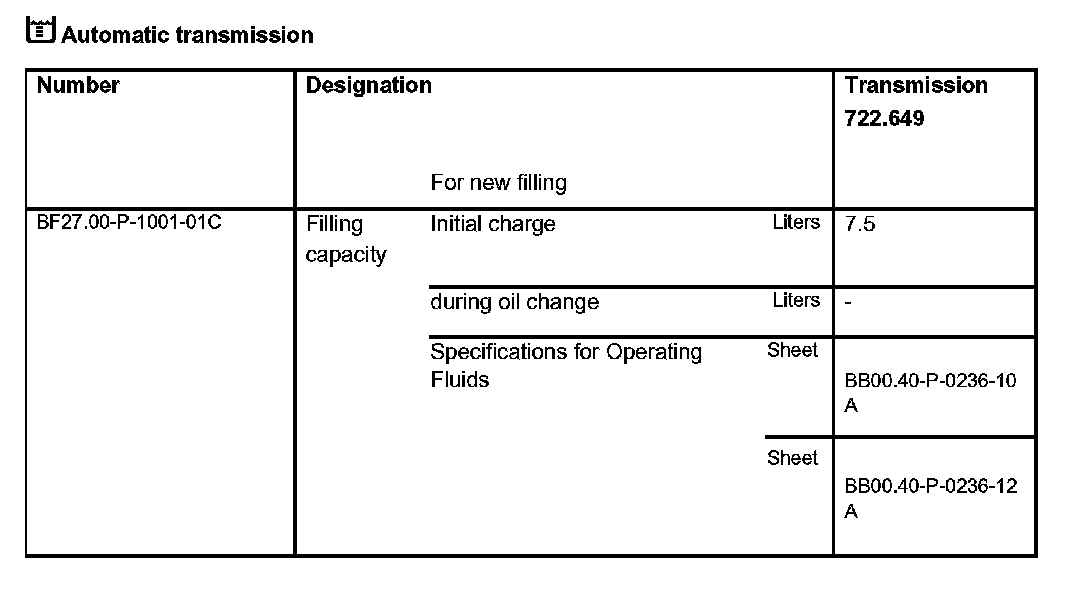

Automatic transmission:

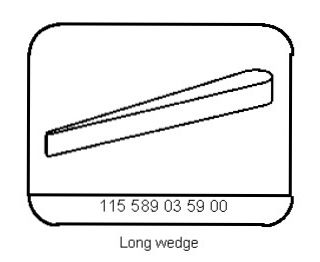

Special Tools:
