AR27.30-P-0651SXH Remove/Install Auxiliary Oil Pump For Automatic Transmission



AR27.30-P-0651SXH Remove/install auxiliary oil pump for automatic transmission
- Transmission 722.9

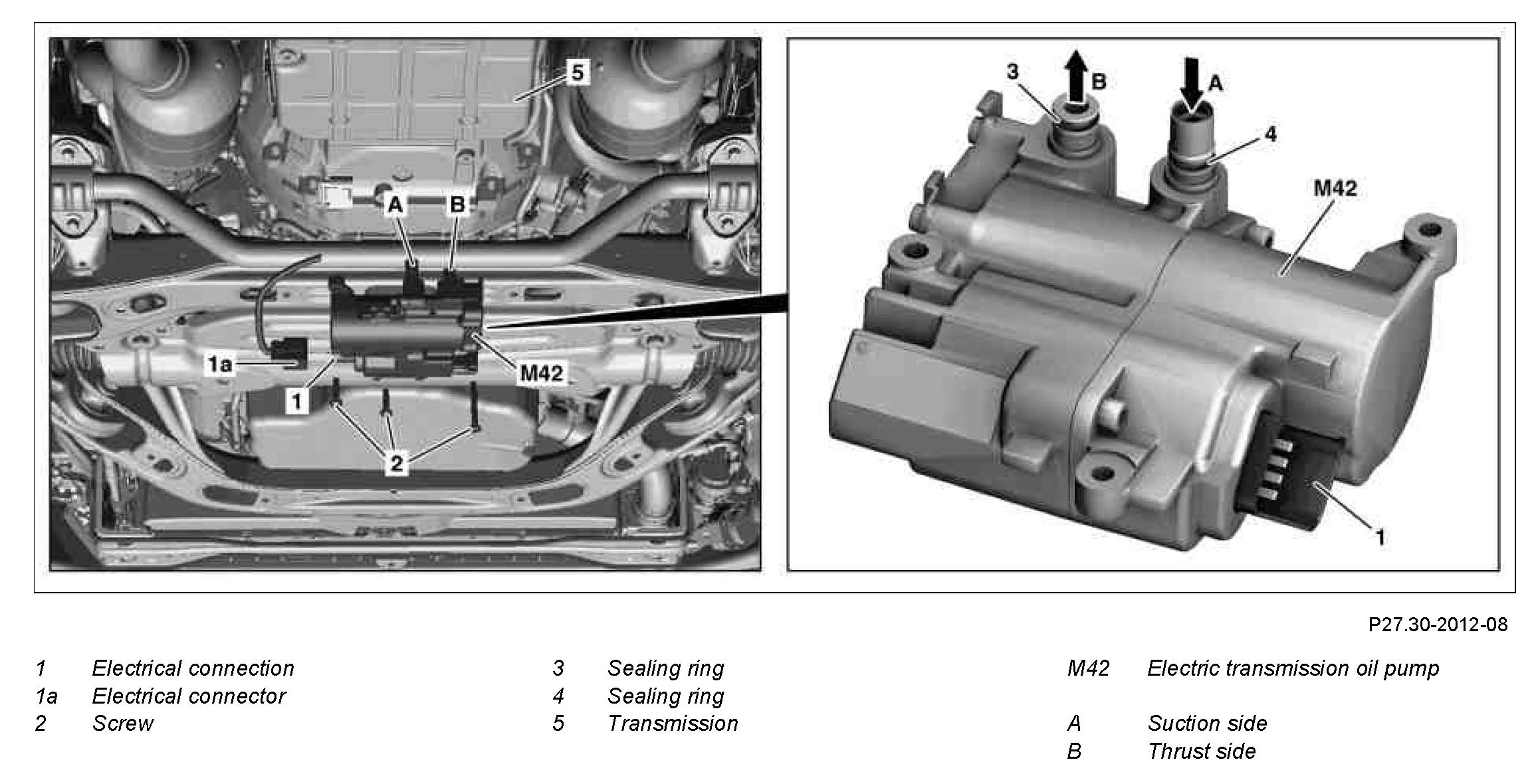

Component Identification:

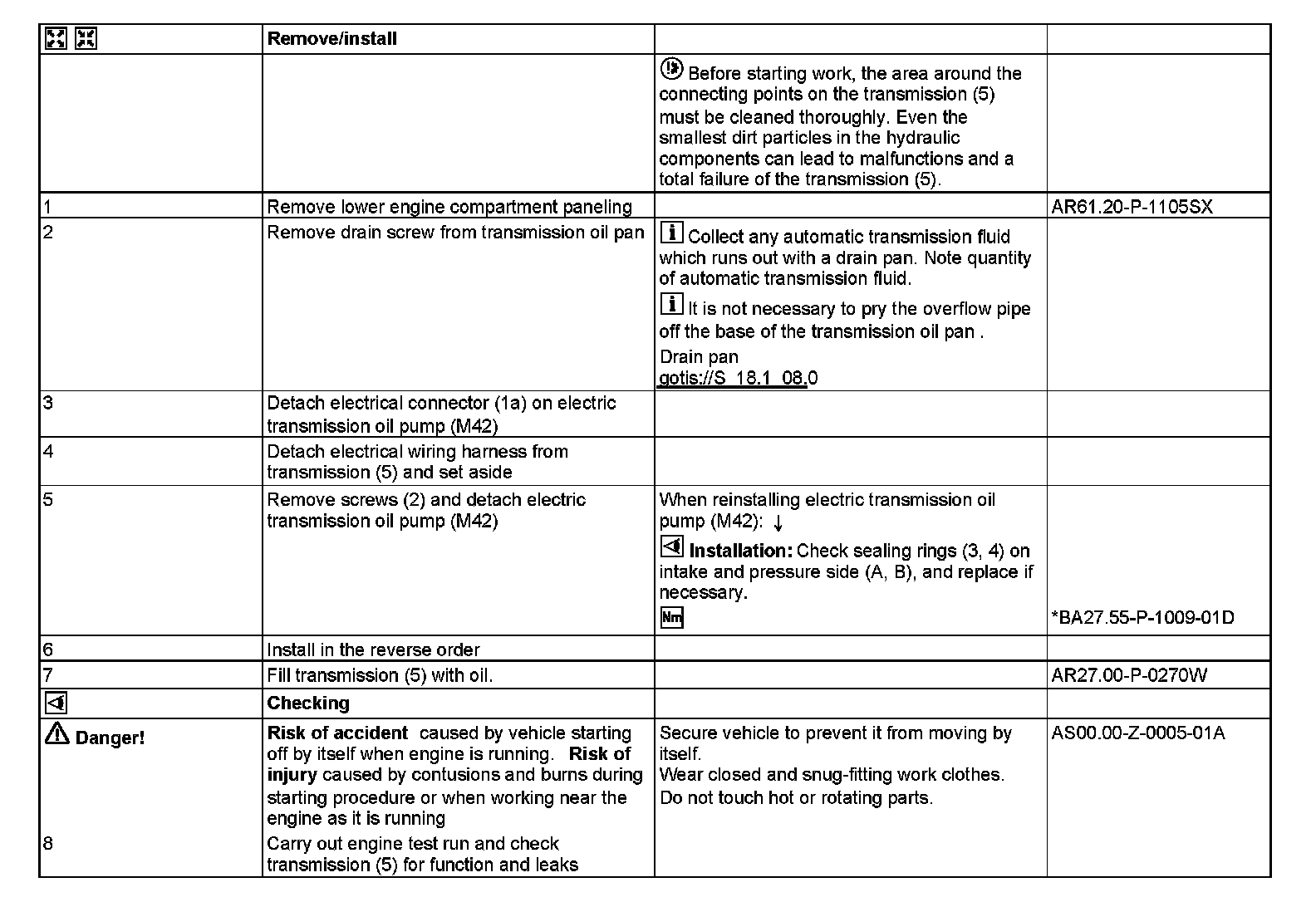

Steps 1-8:

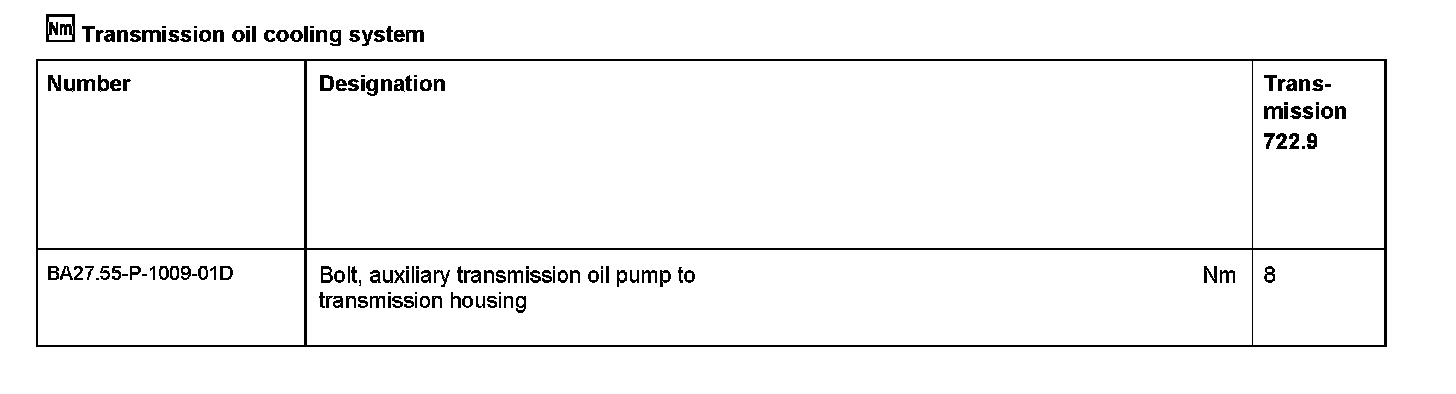

Transmission Oil Cooling System:
