AR27.10-P-0502-01SX Remove/Install Lines at Automatic Transmission

AR27.10-P-0502-01SX Remove/install lines at automatic transmission
- Transmission 722.6, 722.9

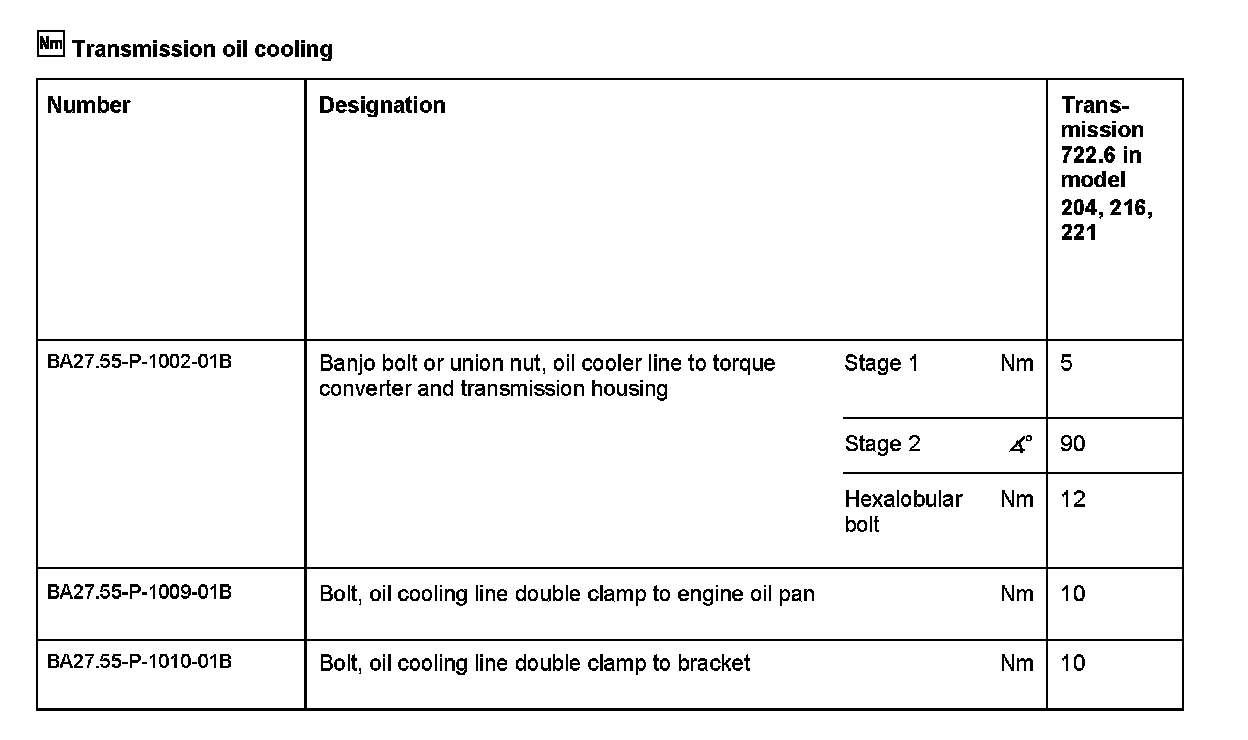

Transmission Oil Cooling:

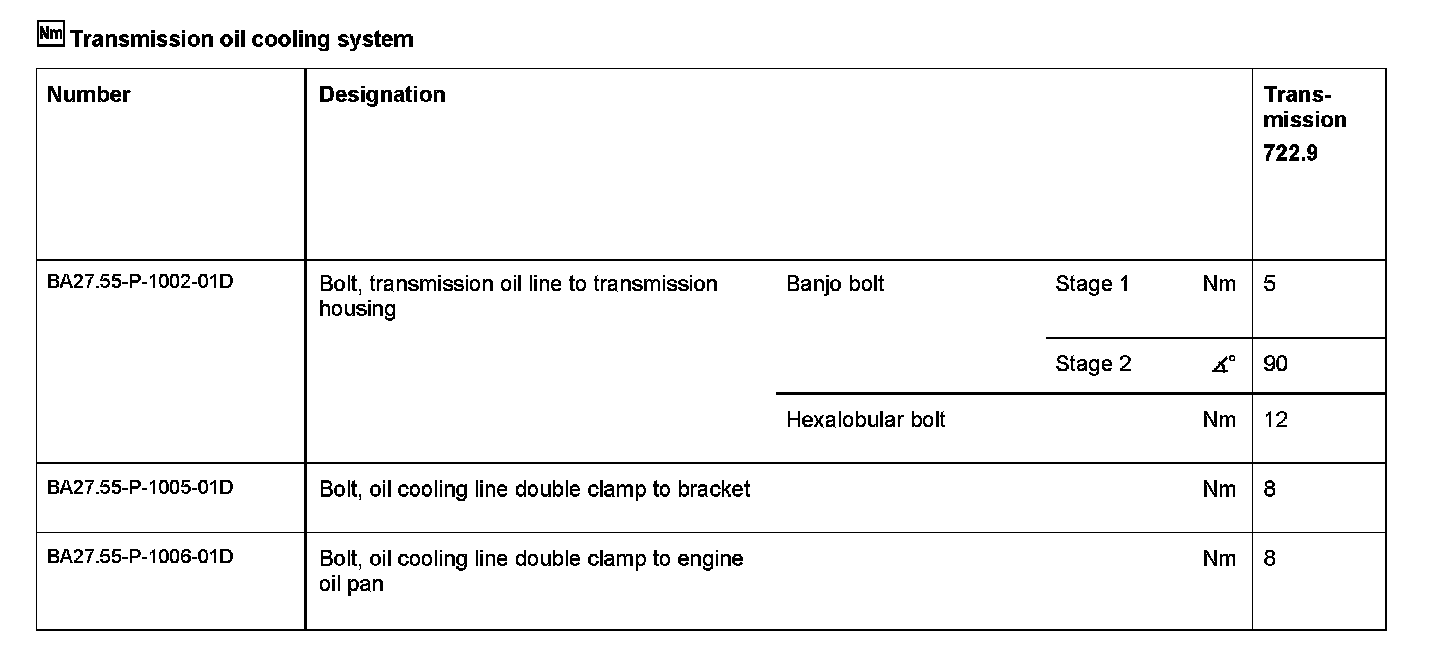

Transmission Oil Cooling System:

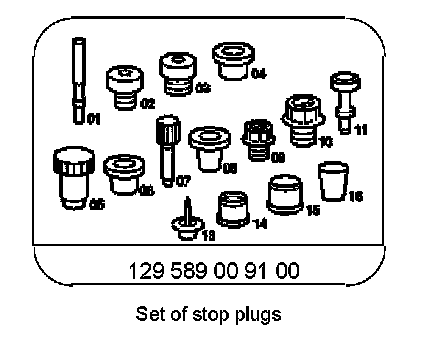

Special Tools:

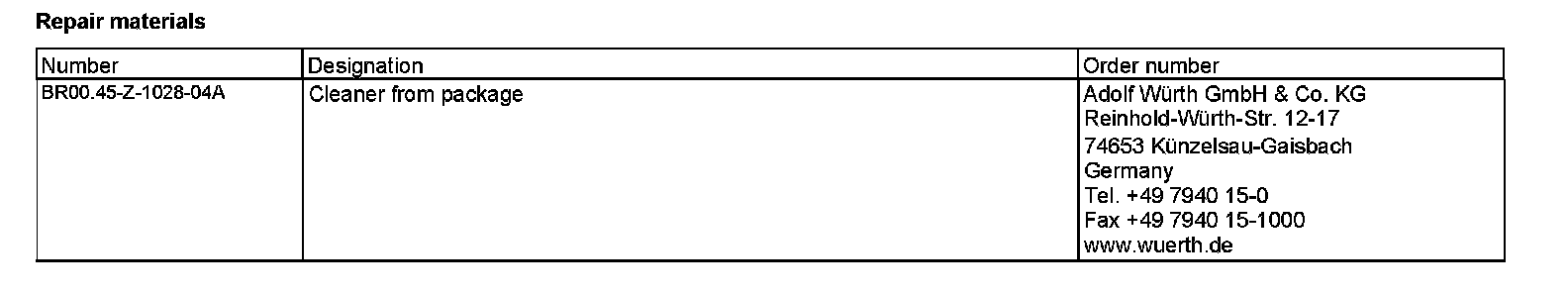

Repair Materials:

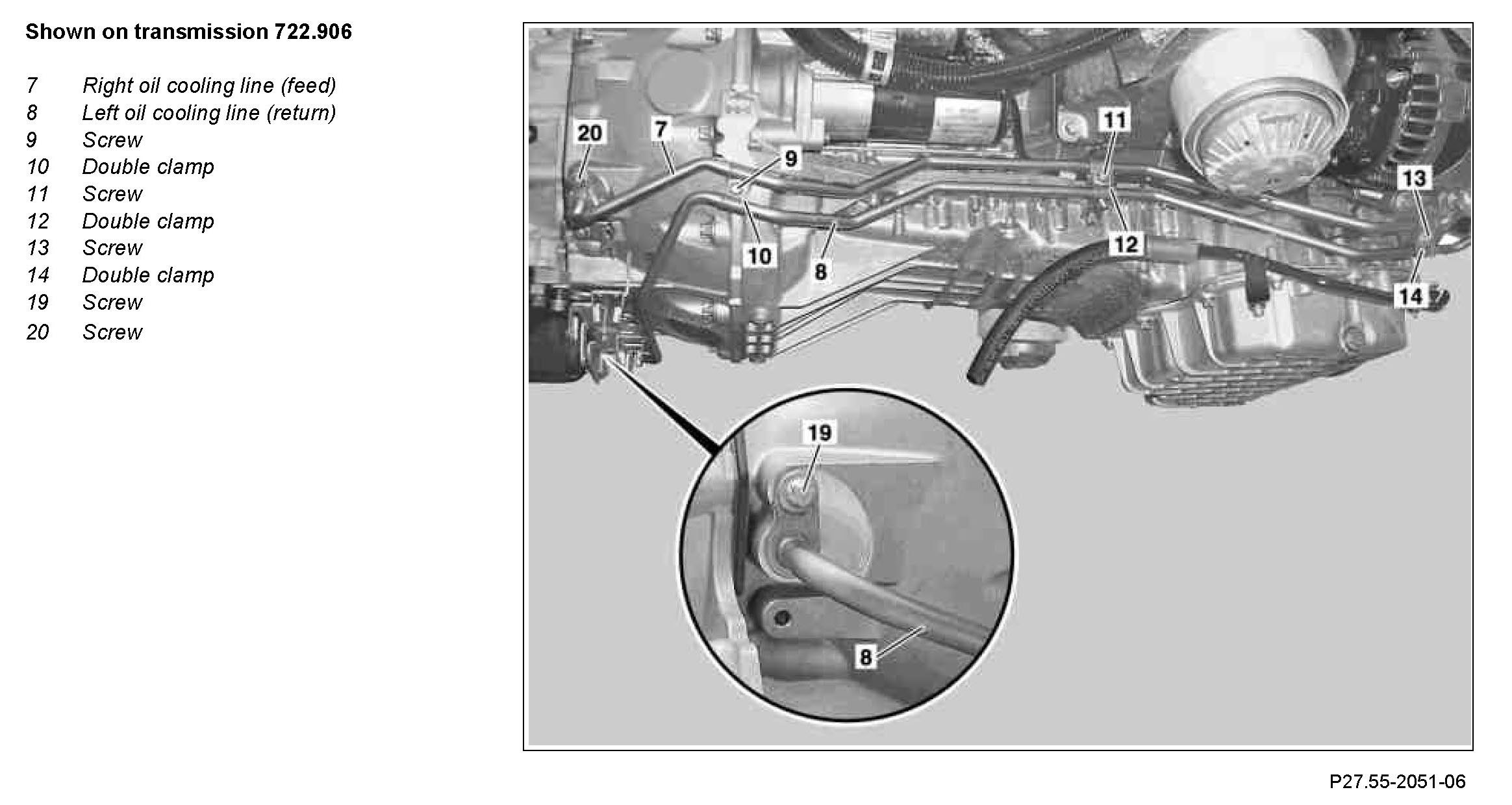

Component Identification:

1 Thoroughly clean area around separation point at hydraulic system.

Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission.

2 Remove bolts (9, 11, 13).
3 Remove double clamps (10, 12, 14) and retaining clamps.
4 Remove bolt (20).
5 Pull right oil cooling line (7) out of transmission and seal line connection and oil hole in transmission using stop plugs.
6 Remove bolt (19).
7 Pull left oil cooling line (8) out of transmission and seal line connection and oil hole in transmission using stop plugs.

To prevent damage and leaks, do not kink or bend the left oil cooling line (8).

Installation: Install new gasket

8 Install in the reverse order.

To prevent damage and leaks, do not kink or bend the right oil cooling line (7).

Installation: Install new gasket
