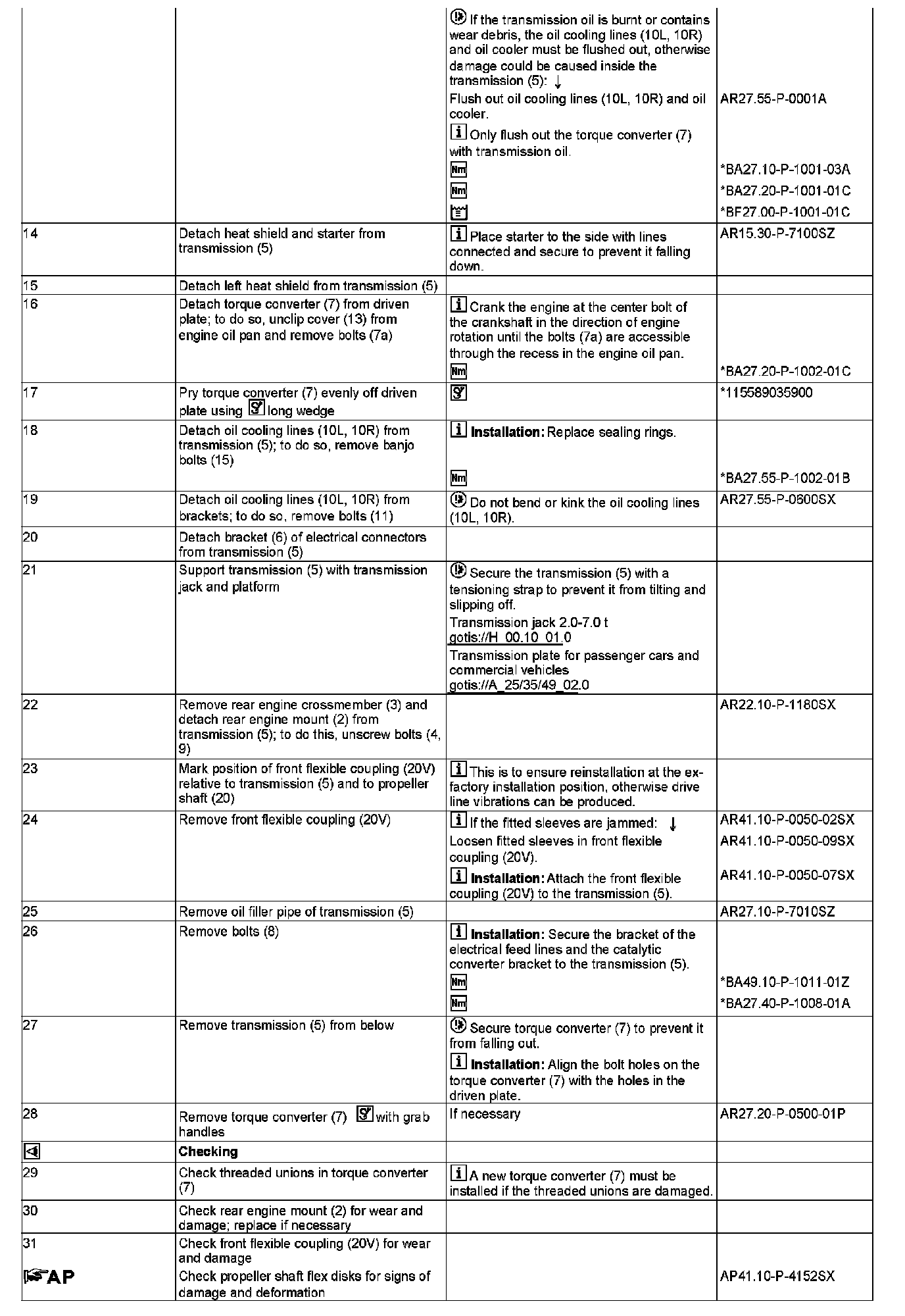

AR27.10-P-0500SZ Remove/Install Transmission With Torque Converter

AR27.10-P-0500SZ Remove/Install Transmission With Torque Converter
TRANSMISSION 722.6 in MODEL 221.1, 216.3

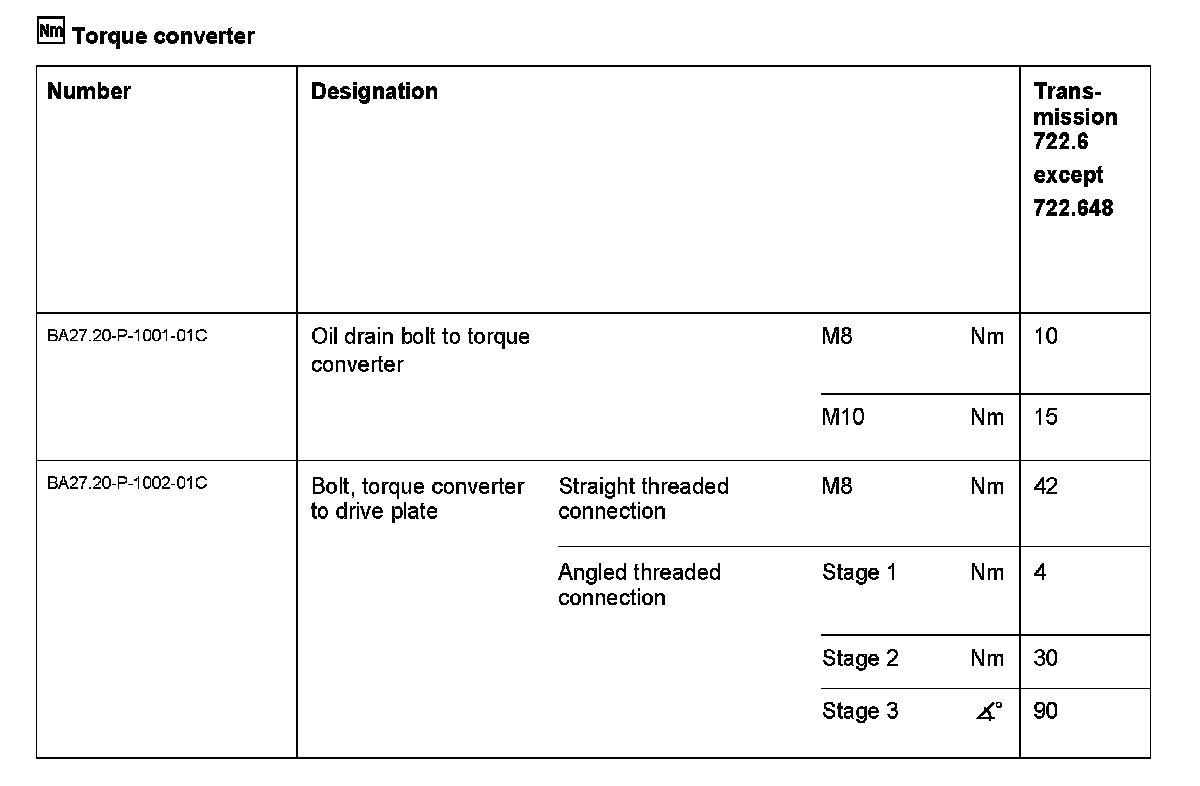

7 Torque converter
7a Screw
8 Screw
10R Oil cooling line
15 Banjo bolt

A80 Intelligent servo module for DIRECT SELECT

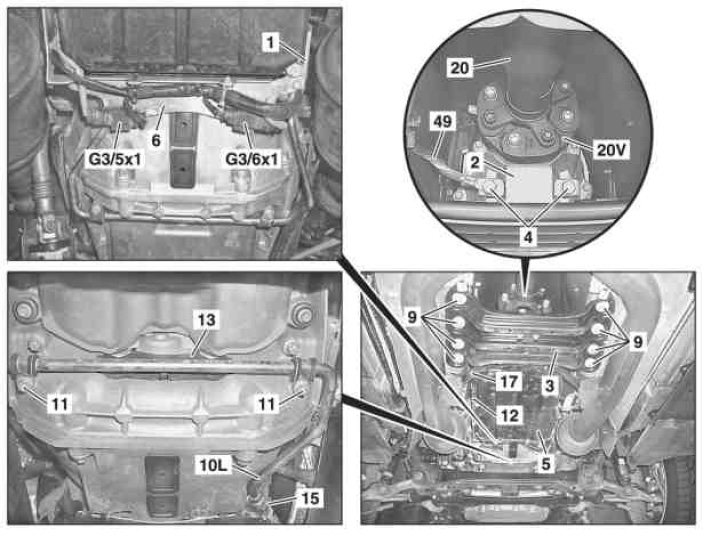

1 Shield
2 Rear engine mount
3 Rear engine crossmember
4 Bolts
5 Transmission
6 Bracket
9 Screw
10L Oil cooling line
11 Screw
12 Electrical connector
13 Cover
15 Banjo bolt
17 Front exhaust bracket
20 Propeller shaft
20V Front flex disk
49 Ground cable

G3/5x1 Left O2 sensor downstream of TWC [KAT] connector
G3/6x1 Right O2 sensor downstream of TWC [KAT] connector





10L Oil cooling line
10R Oil cooling line
11 Bolts



































115 589 03 59 00
Long wedge
