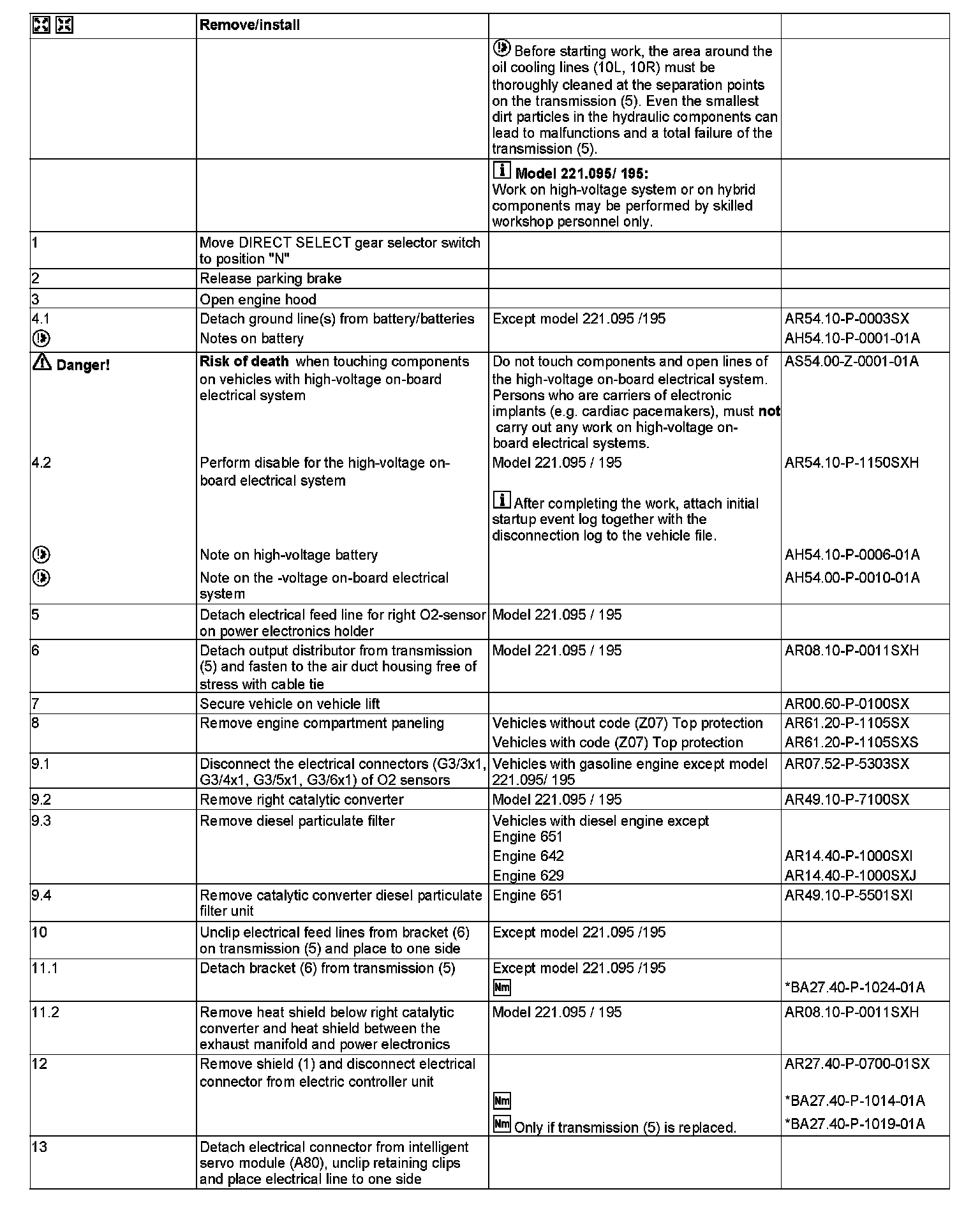

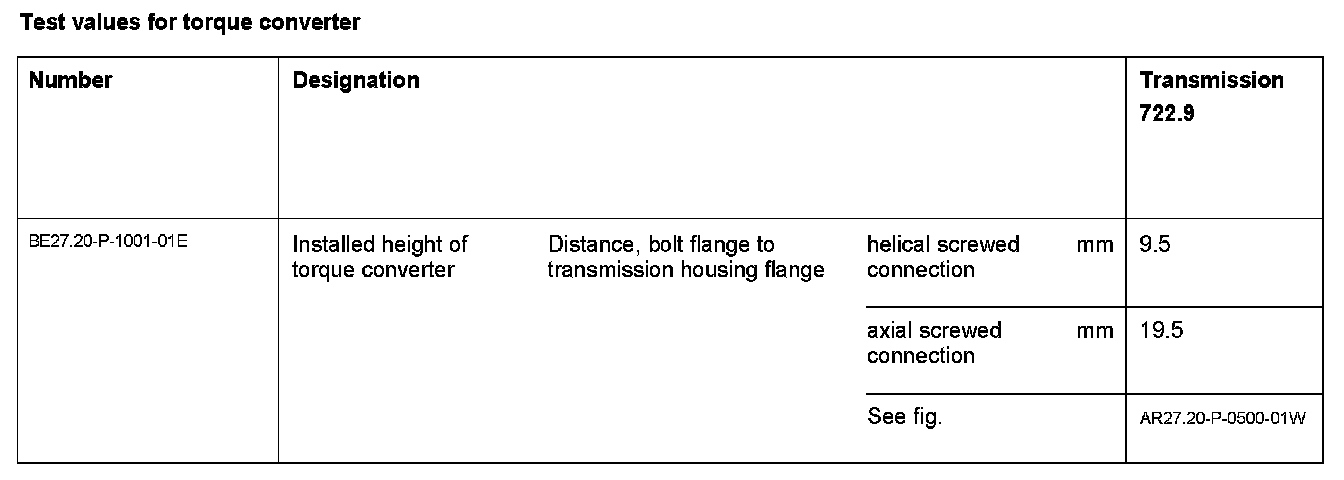

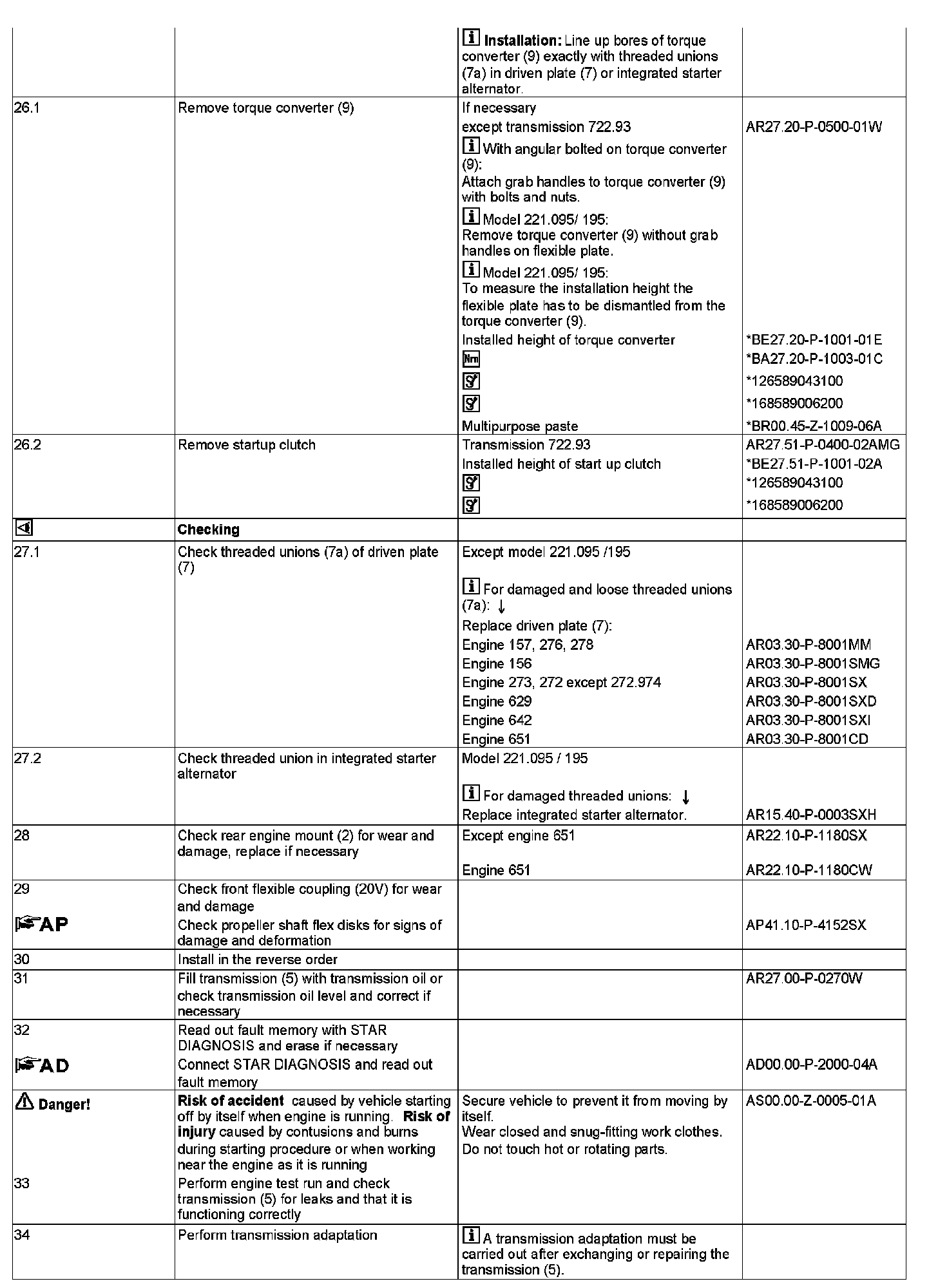

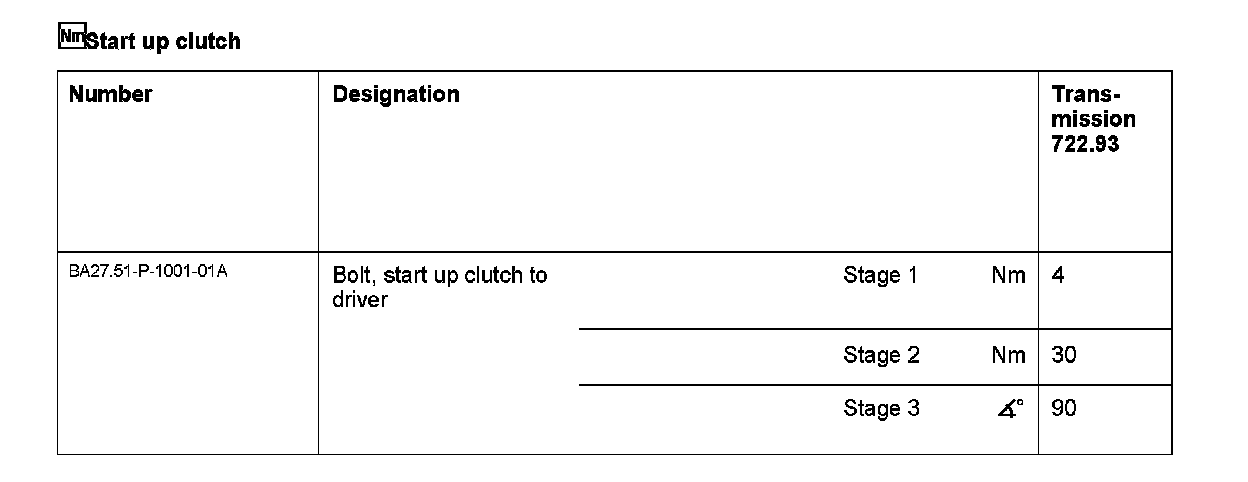

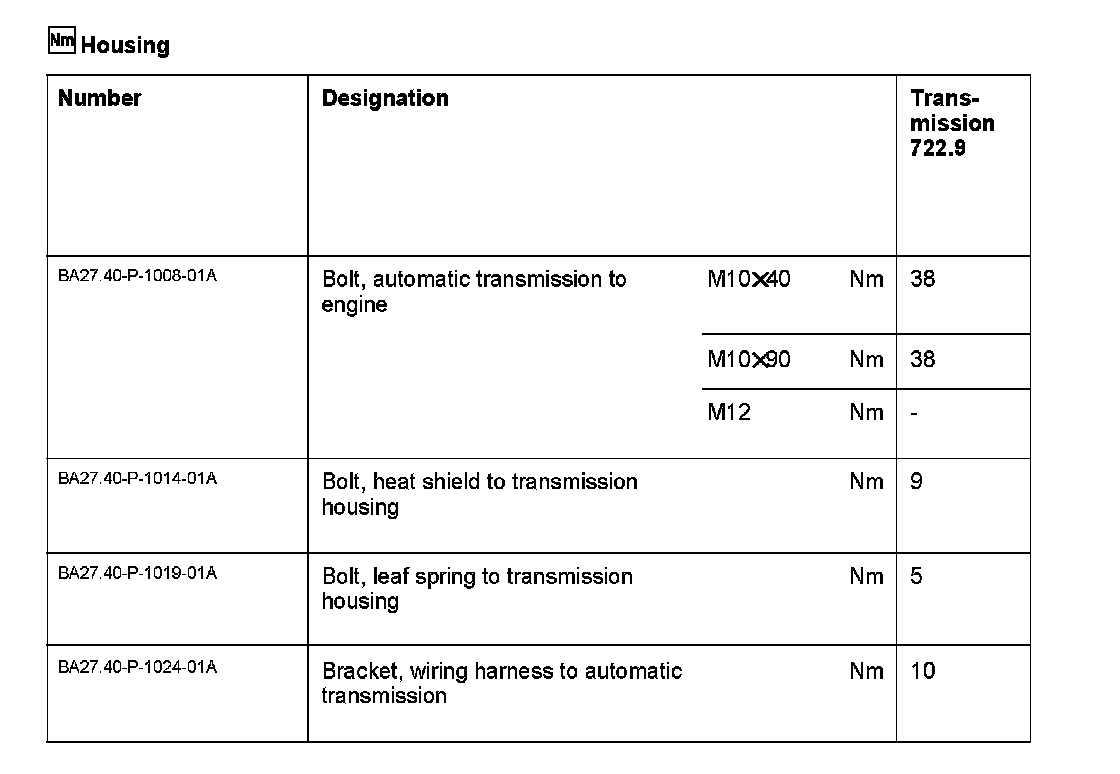

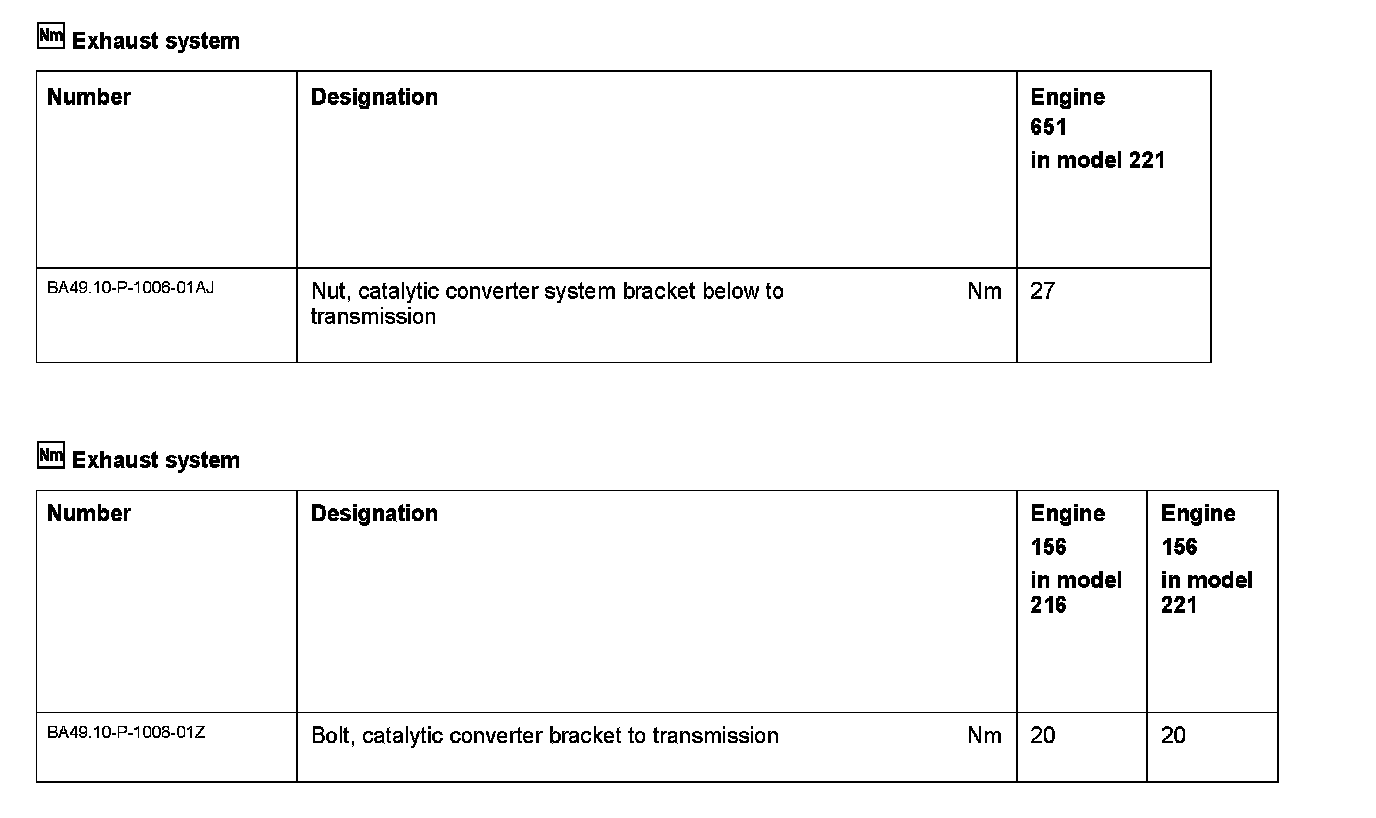

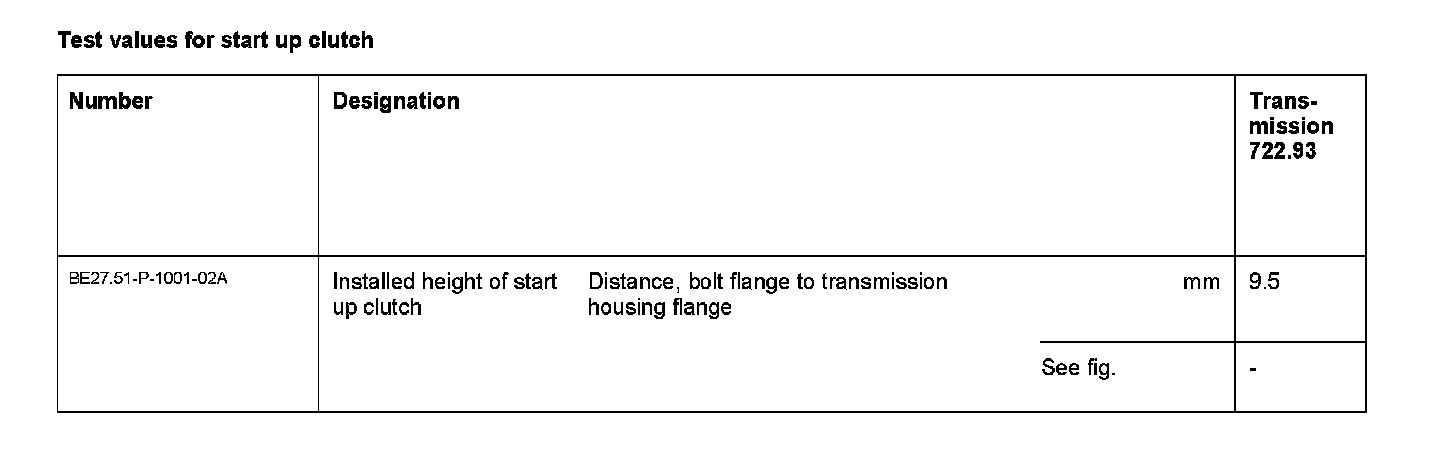

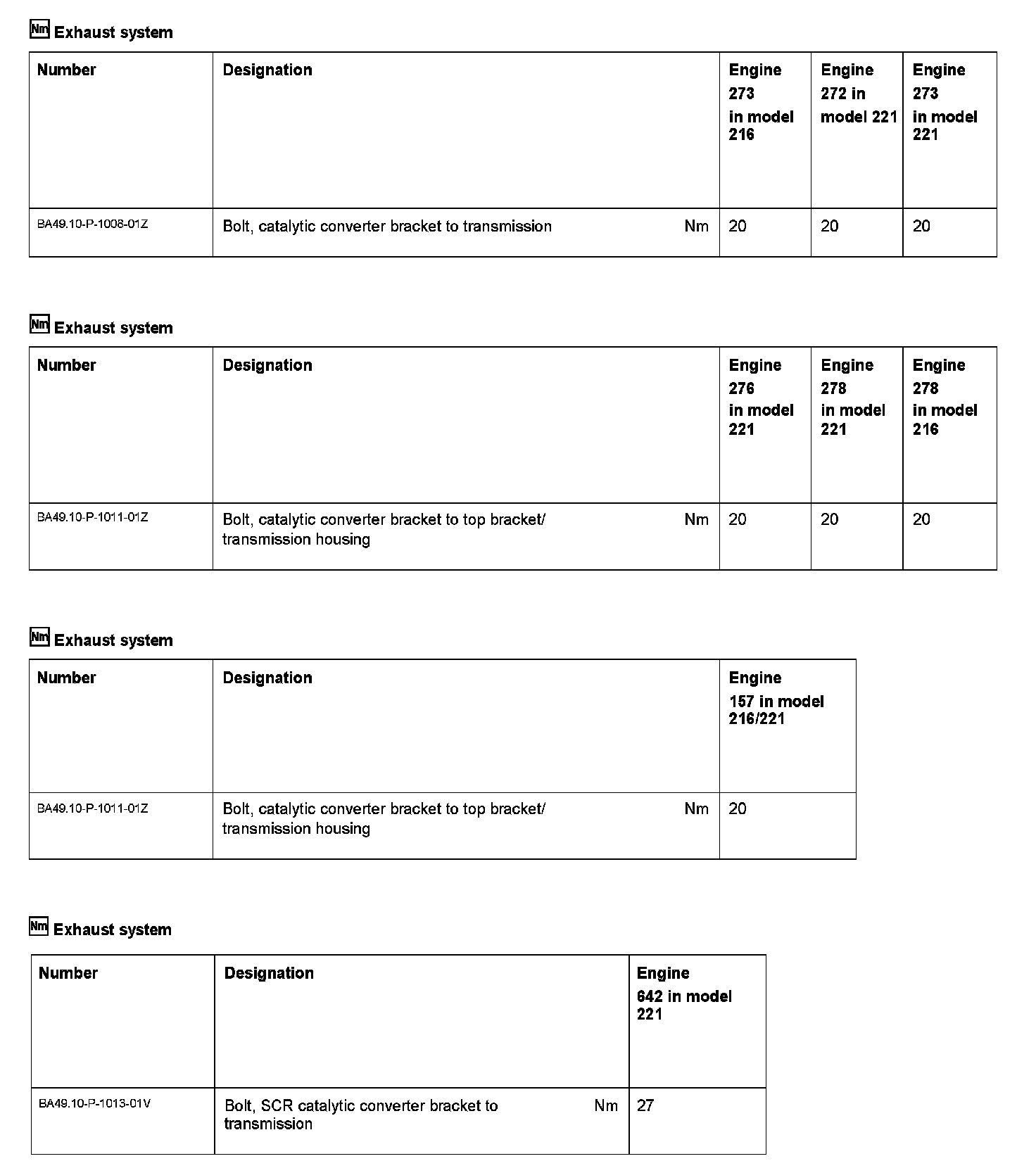

AR27.10-P-0500SX Remove/Install Transmission With Torque Converter

AR27.10-P-0500SX Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 221.0 /1, 216.3
without 4MATIC





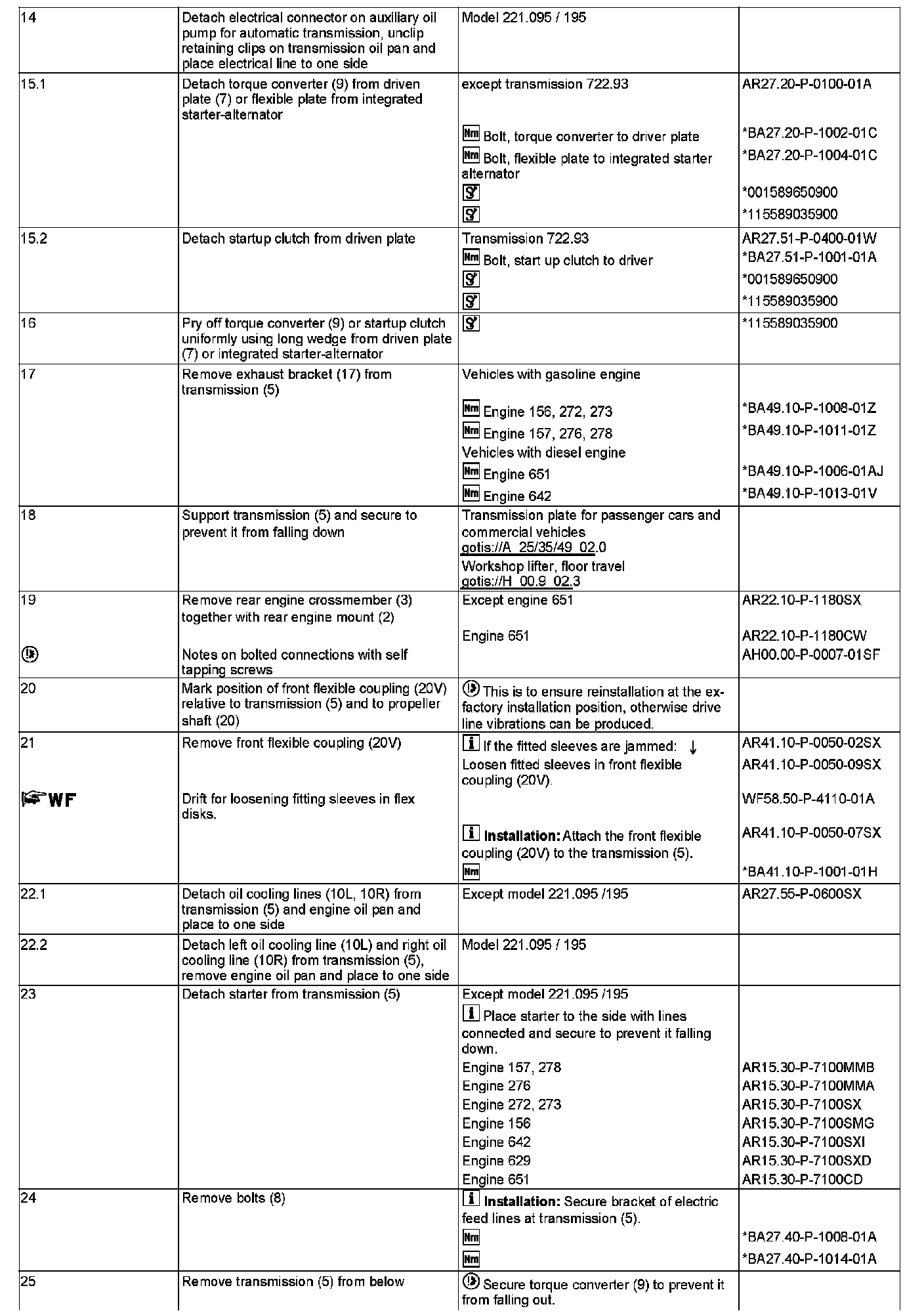

5 Transmission
8 Screw

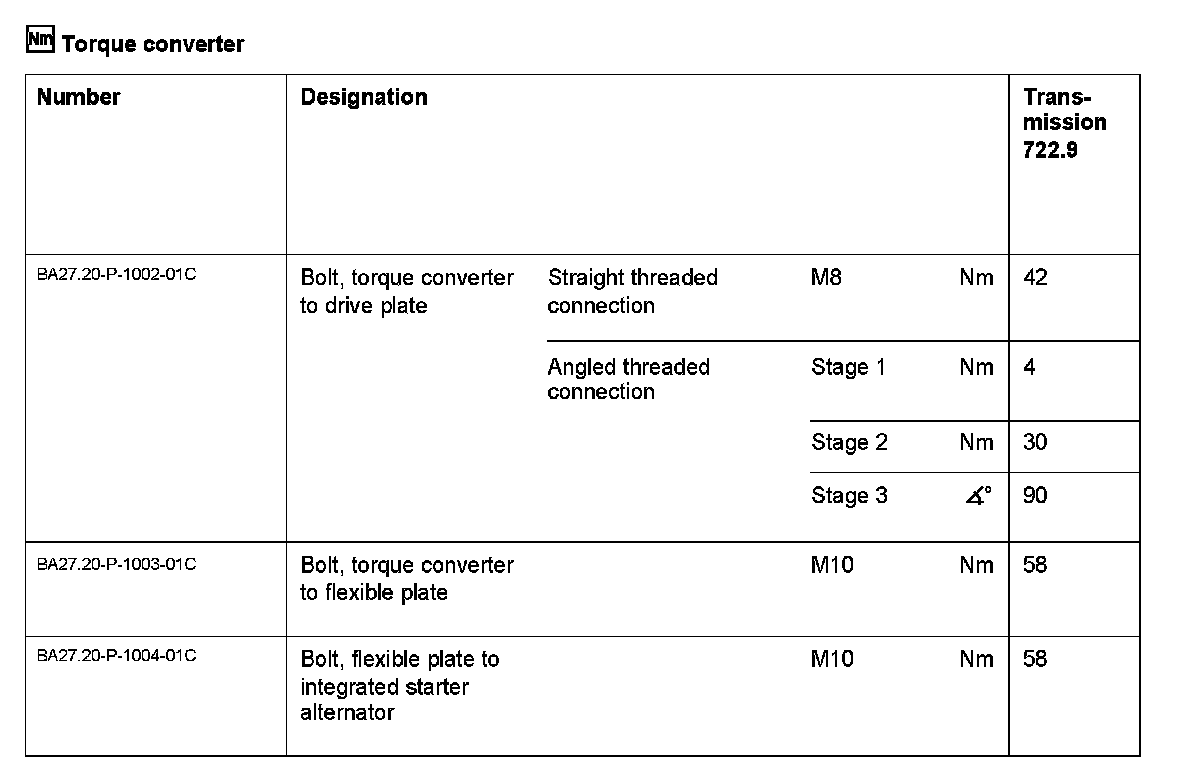

9 Torque converter

A80 Intelligent servo module for DIRECT SELECT





Shown on model 221.071

1 Shield
2 Rear engine mount
3 Rear engine crossmember
4 Bolts
5 Transmission
6 Bracket
10L Left oil cooling line
10R Right oil cooling line
17 Front exhaust bracket

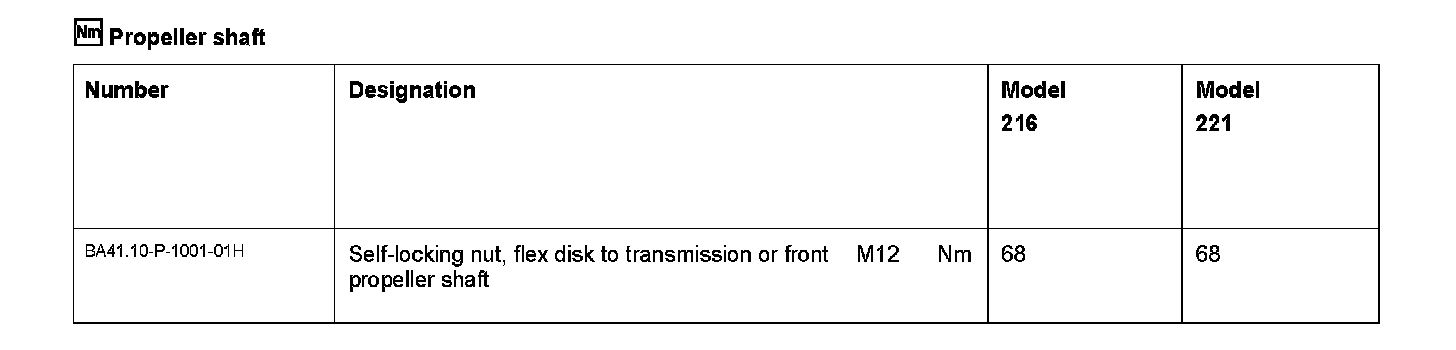

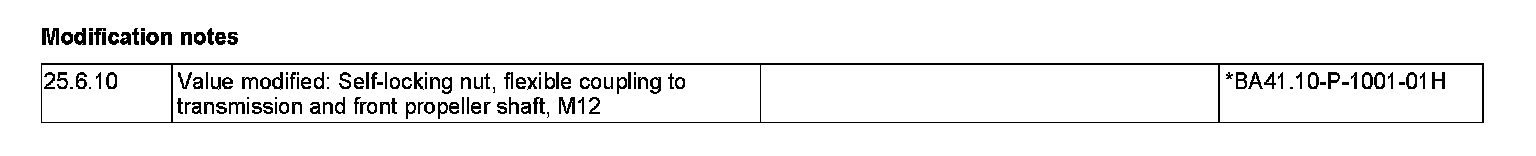

20 Propeller shaft
20V Front flex disk
49 Ground cable
G3/3x1 Left O2 sensor upstream of TWC [KAT] connector
G3/4x1 Right O2 sensor upstream of TWC [KAT] connector
G3/5x1 Left O2 sensor downstream of TWC [KAT] connector
G3/6x1 Right O2 sensor downstream of TWC [KAT] connector





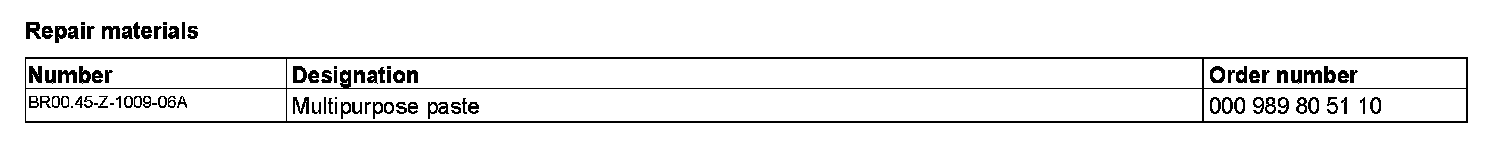

7 Driven plate
7a Threaded unions









































001 589 65 09 00
Wrench socket





115 589 03 59 00
Long wedge





126 589 04 31 00
Parallel support





168 589 00 62 00
Grab handle
