AR27.55-P-0001SX Flushing Out Oil Cooler Lines and Oil Cooler

AR27.55-P-0001SX Flushing Out Oil Cooler Lines and Oil Cooler
TRANSMISSION 722.9 in MODEL 221.0 /1, 216.3
without 4MATIC

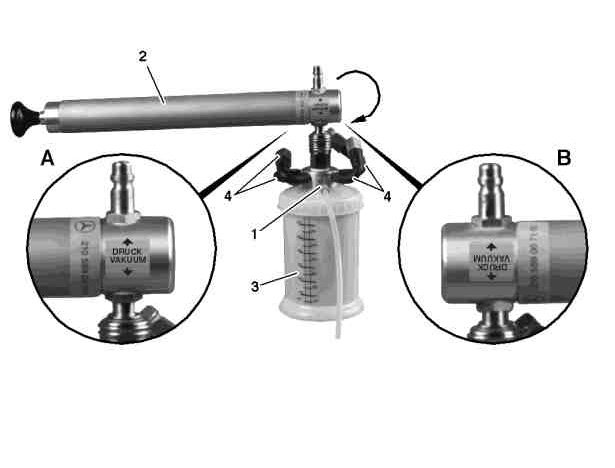

1 Connection fitting
2 Hand pump
3 Container
4 Connector

A Suctioning off
B Flushing

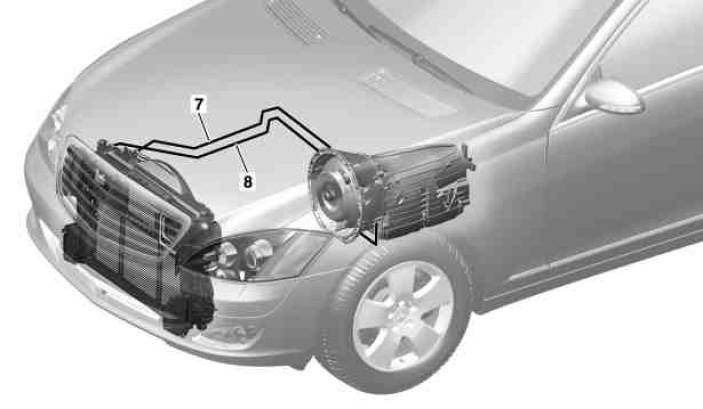

7 Right oil cooling line (feed)
8 Left oil cooling line (return)





7 Right oil cooling line (feed)
8 Left oil cooling line (return)
9 Screw
10 Double clamp
11 Screw
12 Double clamp
13 Screw
14 Double clamp
19 Screw
20 Screw




















210 589 00 71 00
Hand pump
