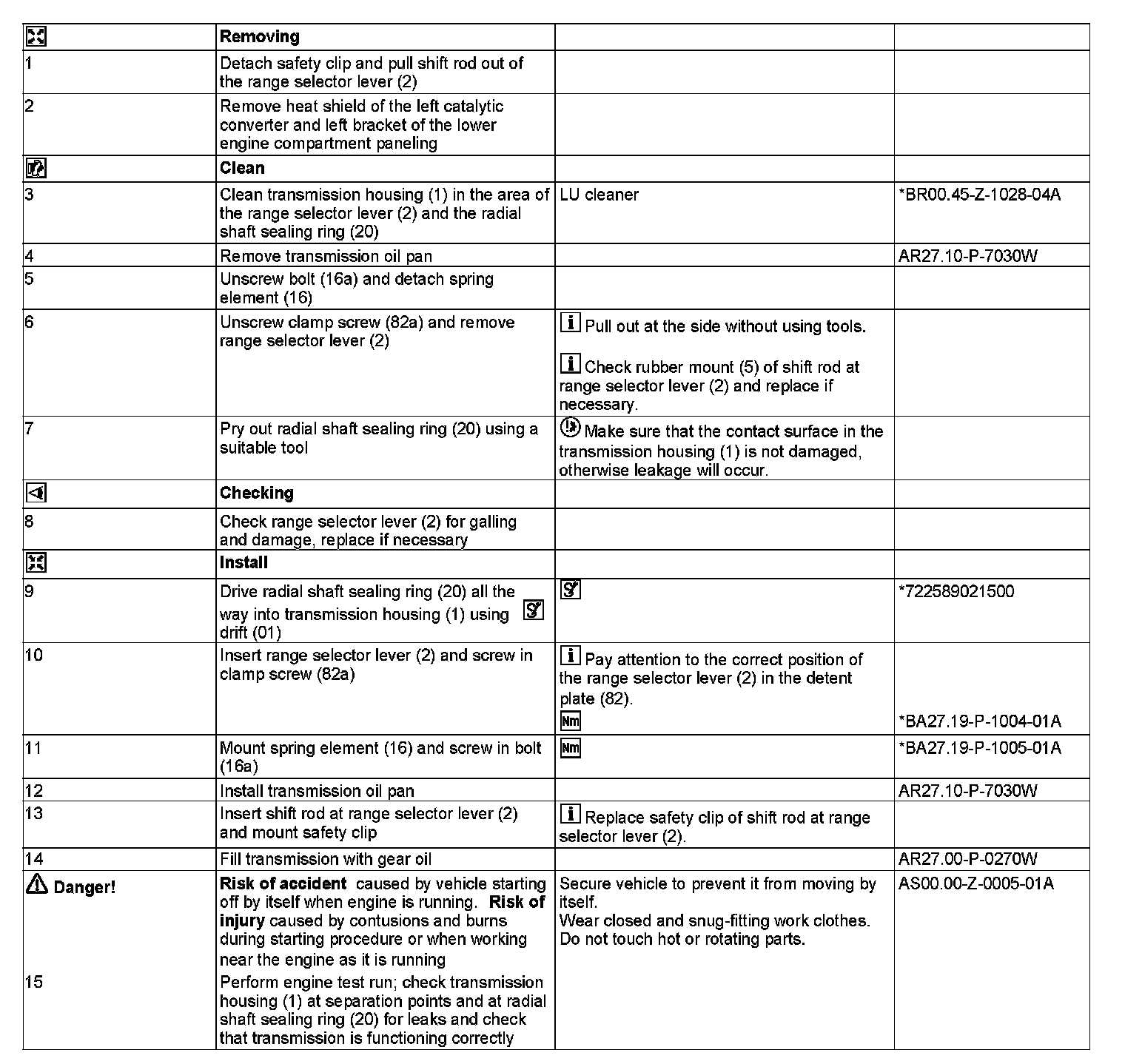

AR27.40-P-0220B Remove/Install Shift Shaft Radial Shaft Sealing Ring

AR27.40-P-0220B Remove/Install Shift Shaft Radial Shaft Sealing Ring
TRANSMISSION 722.9
Transmission with range selector lever, with propeller shaft detached and rear engine crossmember removed





01 Drift
1 Transmission housing
2 Range selector lever
5 Rubber bushing
16 Detent plate spring element
16a Bolt
20 Radial shaft seal
82 Detent plate
82a Detent plate clamp bolt











722 589 02 15 00
Drift
