AR27.40-P-0220A Remove/Install Shift Shaft Radial Shaft Sealing Ring

AR27.40-P-0220A Remove/Install Shift Shaft Radial Shaft Sealing Ring
TRANSMISSION 722.9 /55
Transmission with intelligent servo module (ISM)

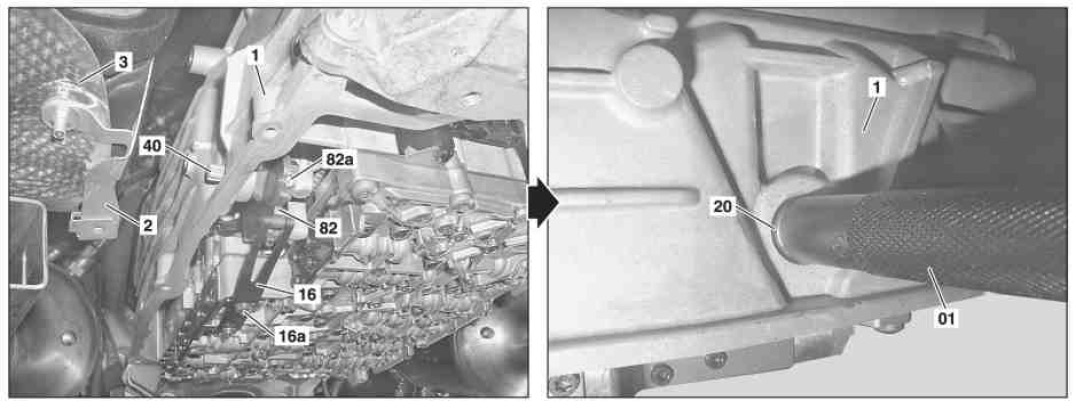

Shown on transmission 722.9

01 Drift
1 Transmission housing
2 Bracket
3 Heat shield
16 Detent plate spring element
16a Screw
20 Radial shaft seal
40 Shift shaft
82 Detent plate
82a Detent plate clamp bolt














722 589 02 15 00
Drift
