AR27.40-P-0205SX Remove/Install Radial Shaft Sealing Ring at Output Flange

AR27.40-P-0205SX Remove/install radial shaft sealing ring at output flange
- with TRANSMISSION 722.9 [MODELS 221.0/1, 216.3 (except 221.08/18, 216.38/39)]
- with TRANSMISSION 722.6

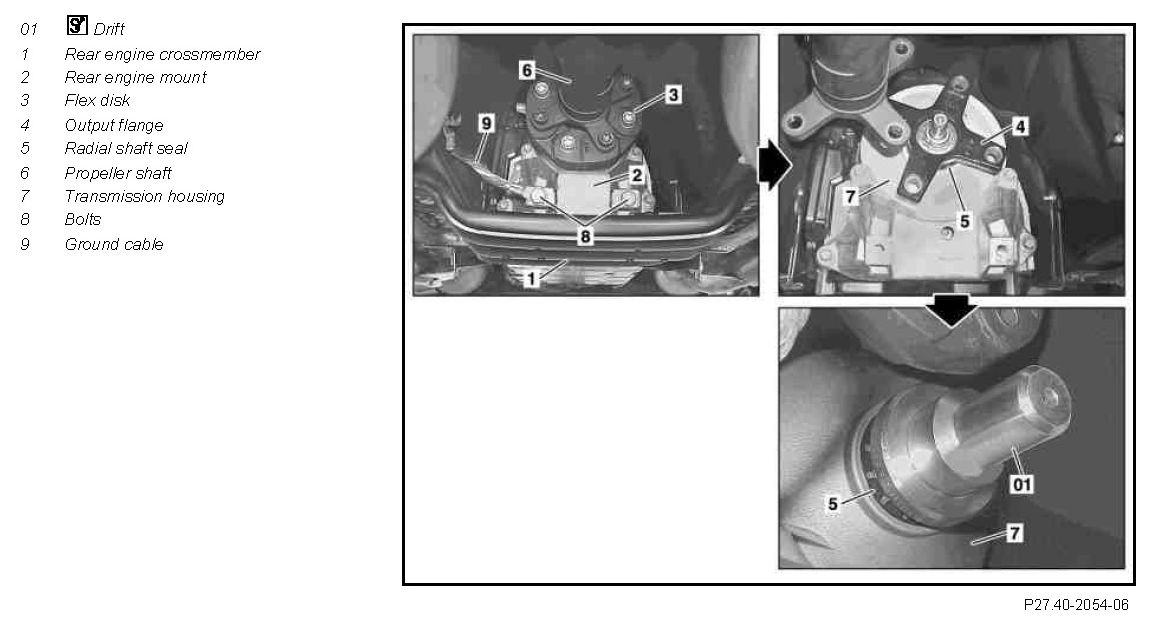

Component Identification:

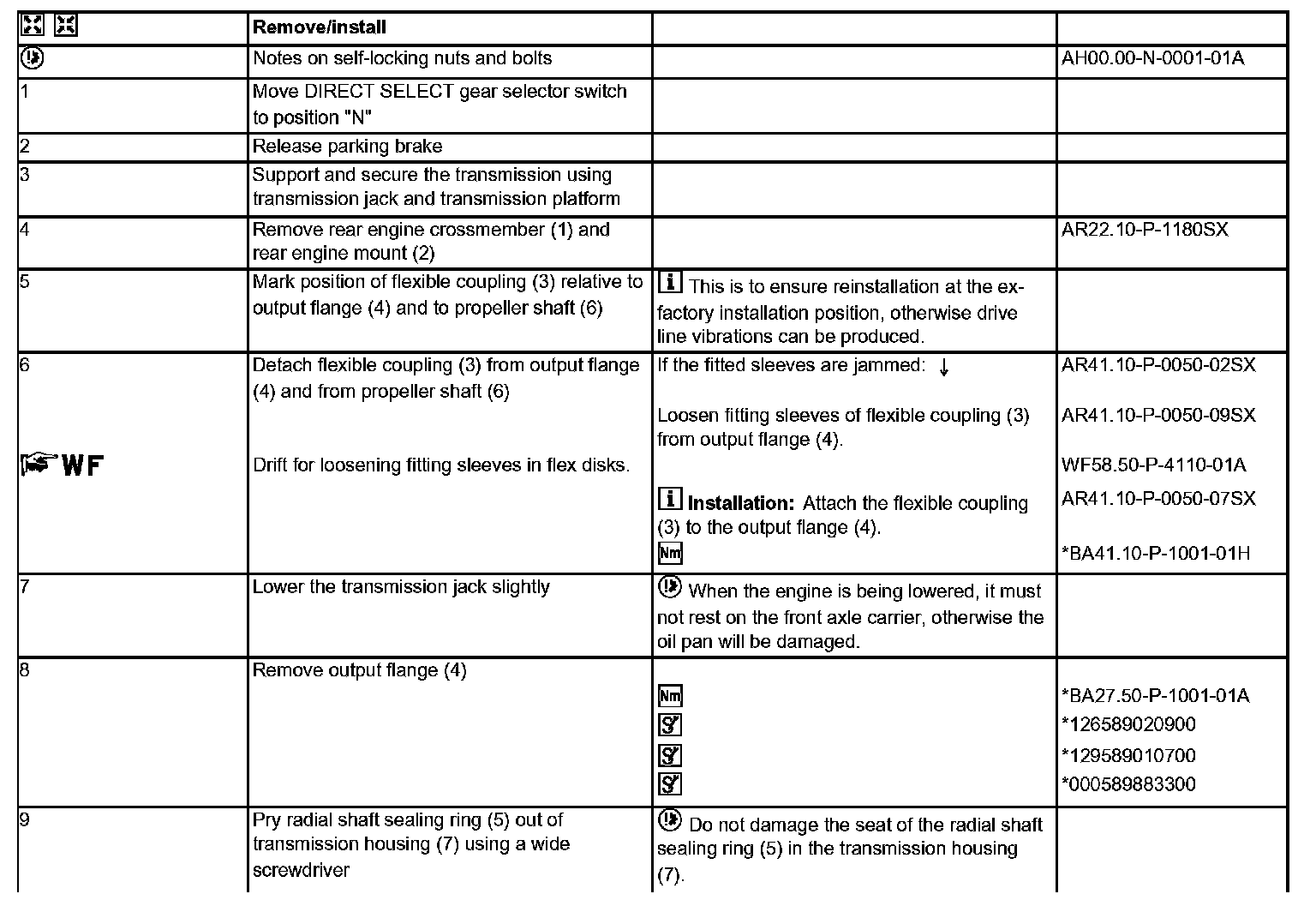

Remove/install Steps 1-9:

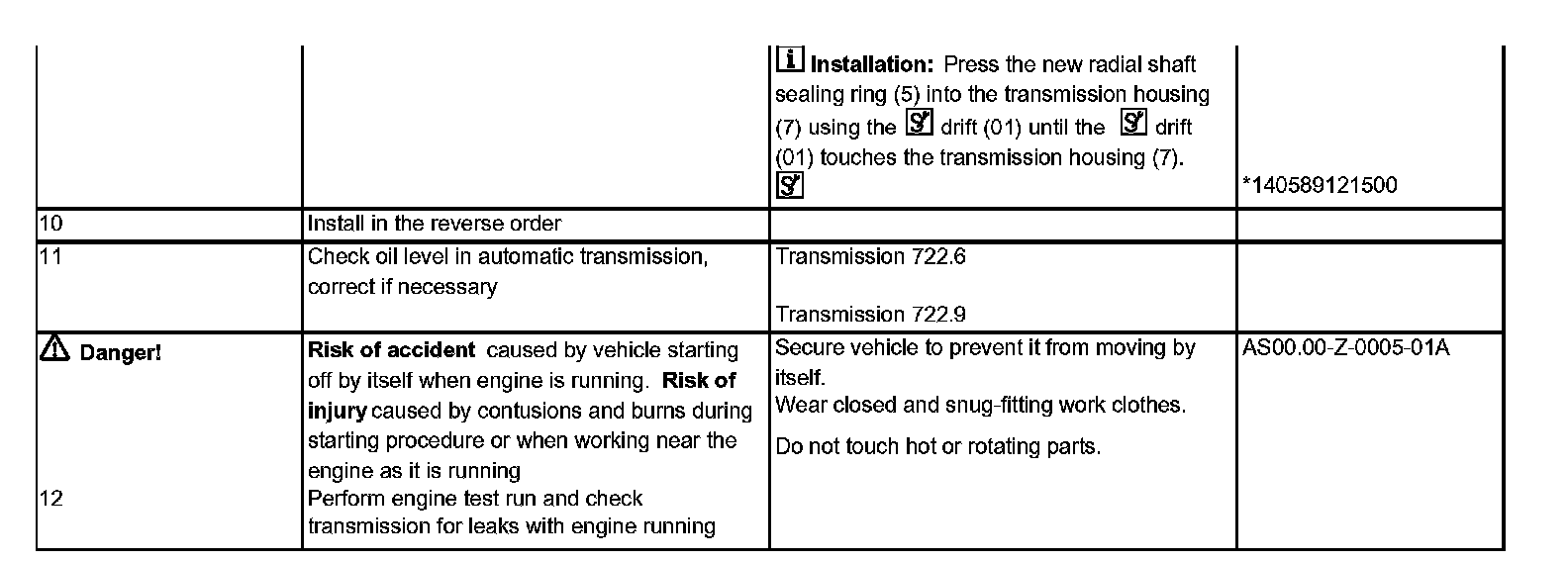

Remove/install Steps 9 (Continued)-12:

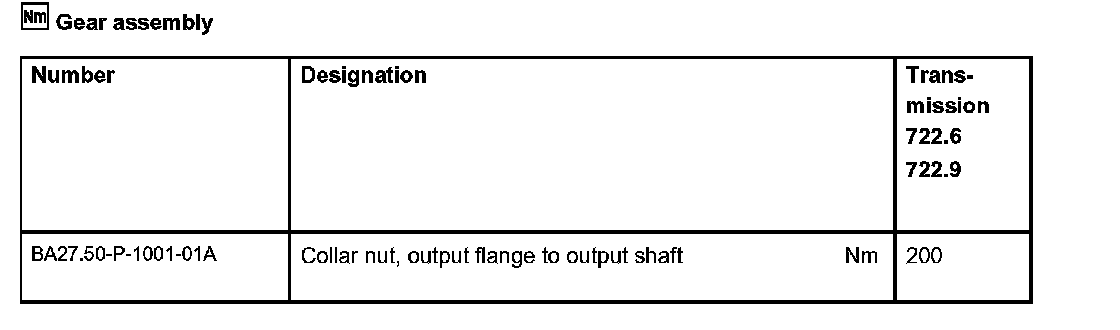

Gear assembly:

Propeller shaft:

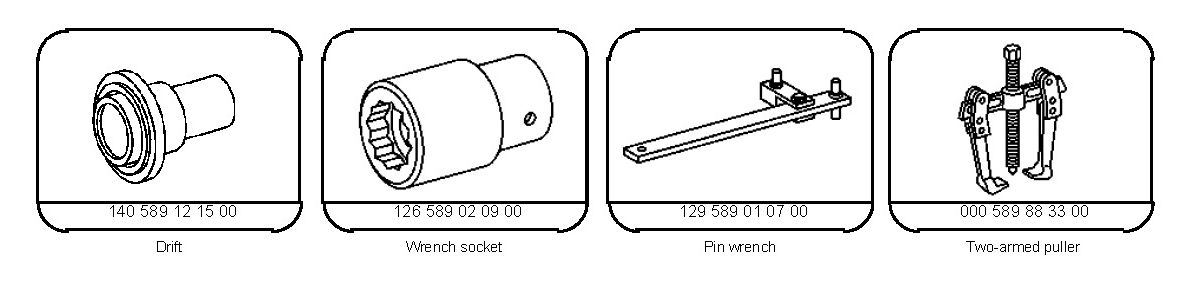

Special Tools:
