Parking Pawl: Service and Repair

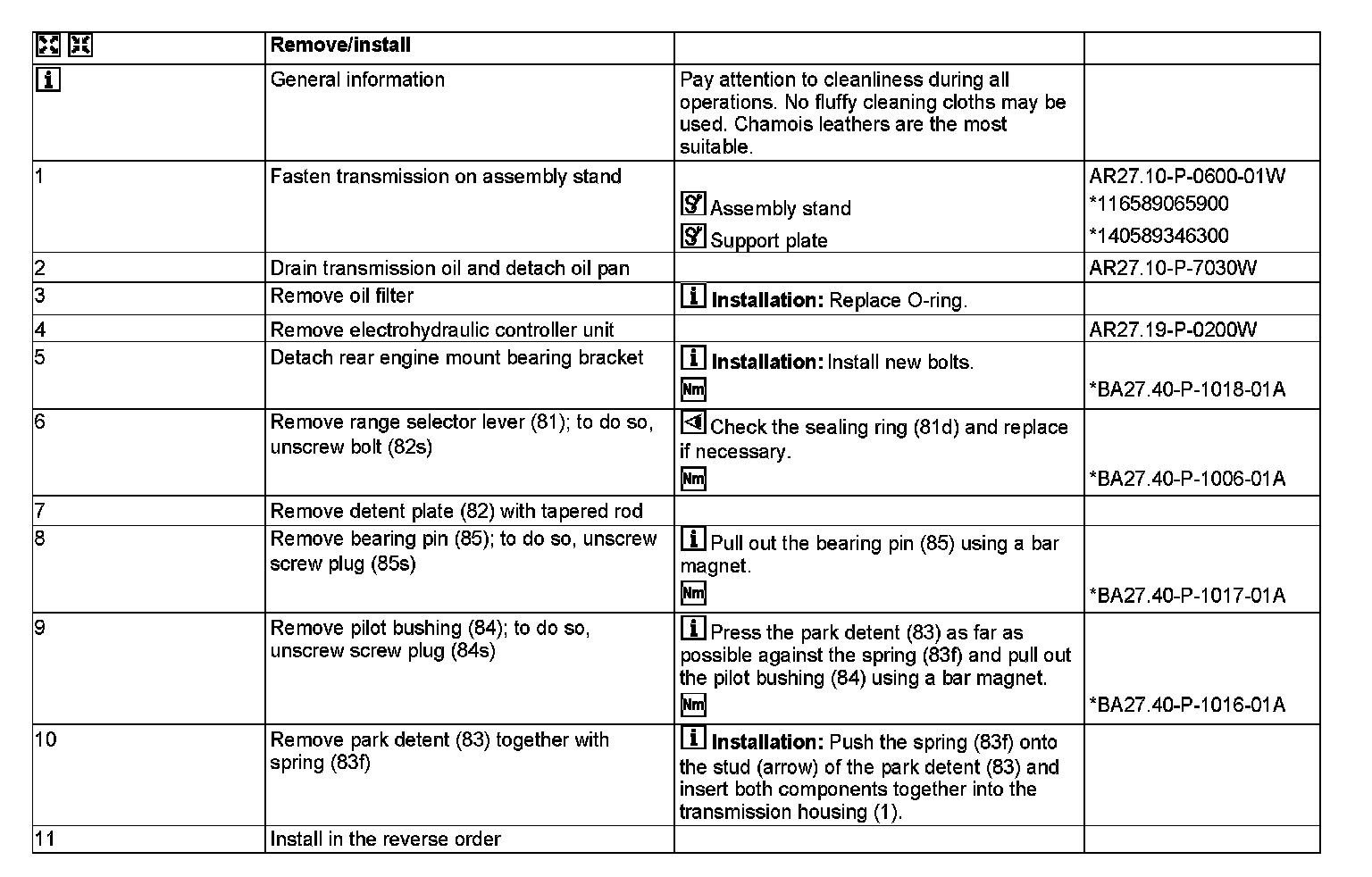

AR27.60-P-0950W Remove, Install Park Pawl Mechanism
TRANSMISSION 722.9

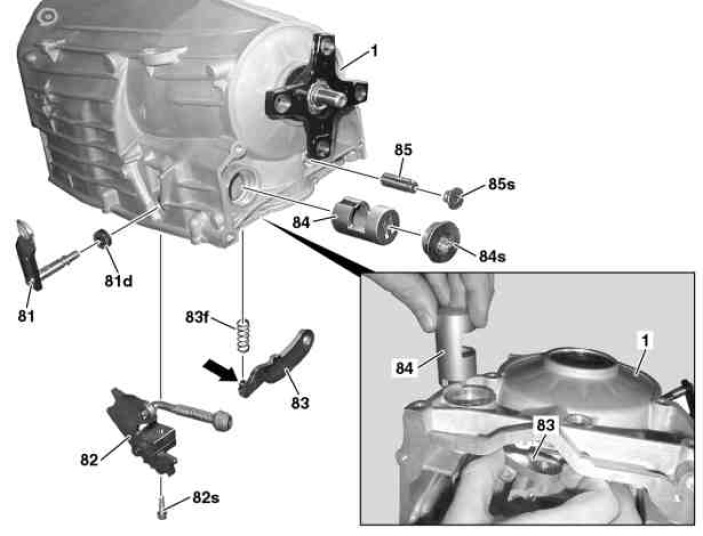

Transmission removed





1 Transmission housing
81 Range selector lever
81d Sealing ring
82 Detent plate
82s Bolt
83 Park detent
83f Spring
84 Pilot bushing
84s Screw plug
85 Bearing pin
85s Screw plug











116 589 06 59 00
Assembly stand





140 589 34 63 00
Support plate
