AR27.55-P-0600SYZ Remove/Install Oil Lines of Oil Cooling For Automatic Transmission



AR27.55-P-0600SYZ Remove/install oil lines of oil cooling for automatic transmission
- with TRANSMISSION 722.9

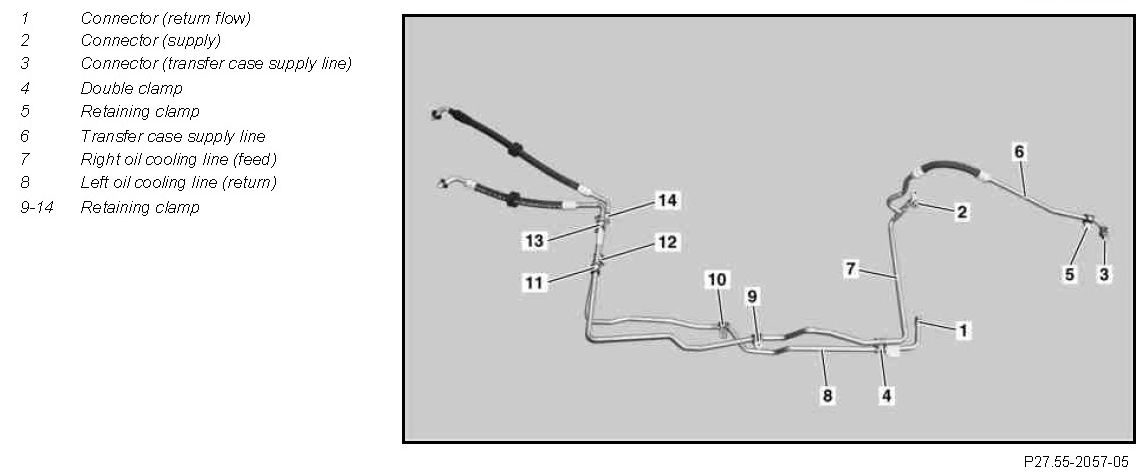

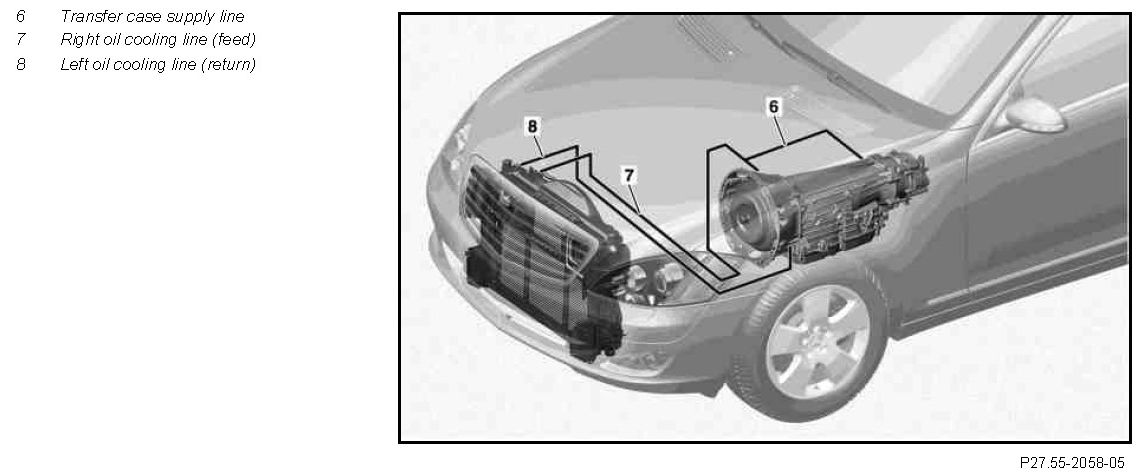

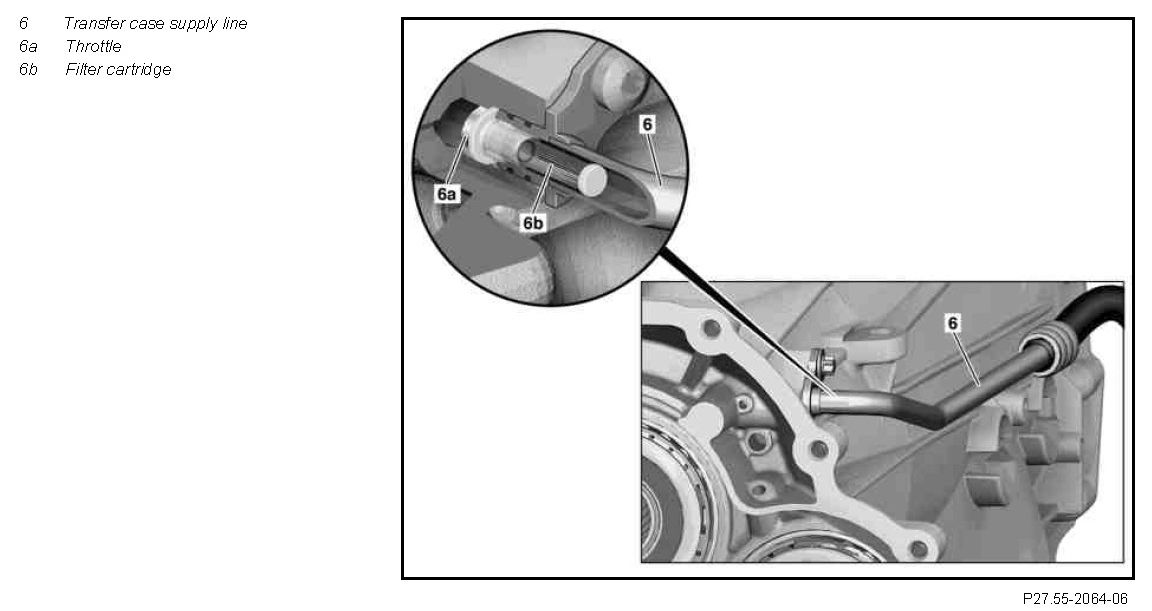

Component Identification:




Component Identification:




Component Identification:

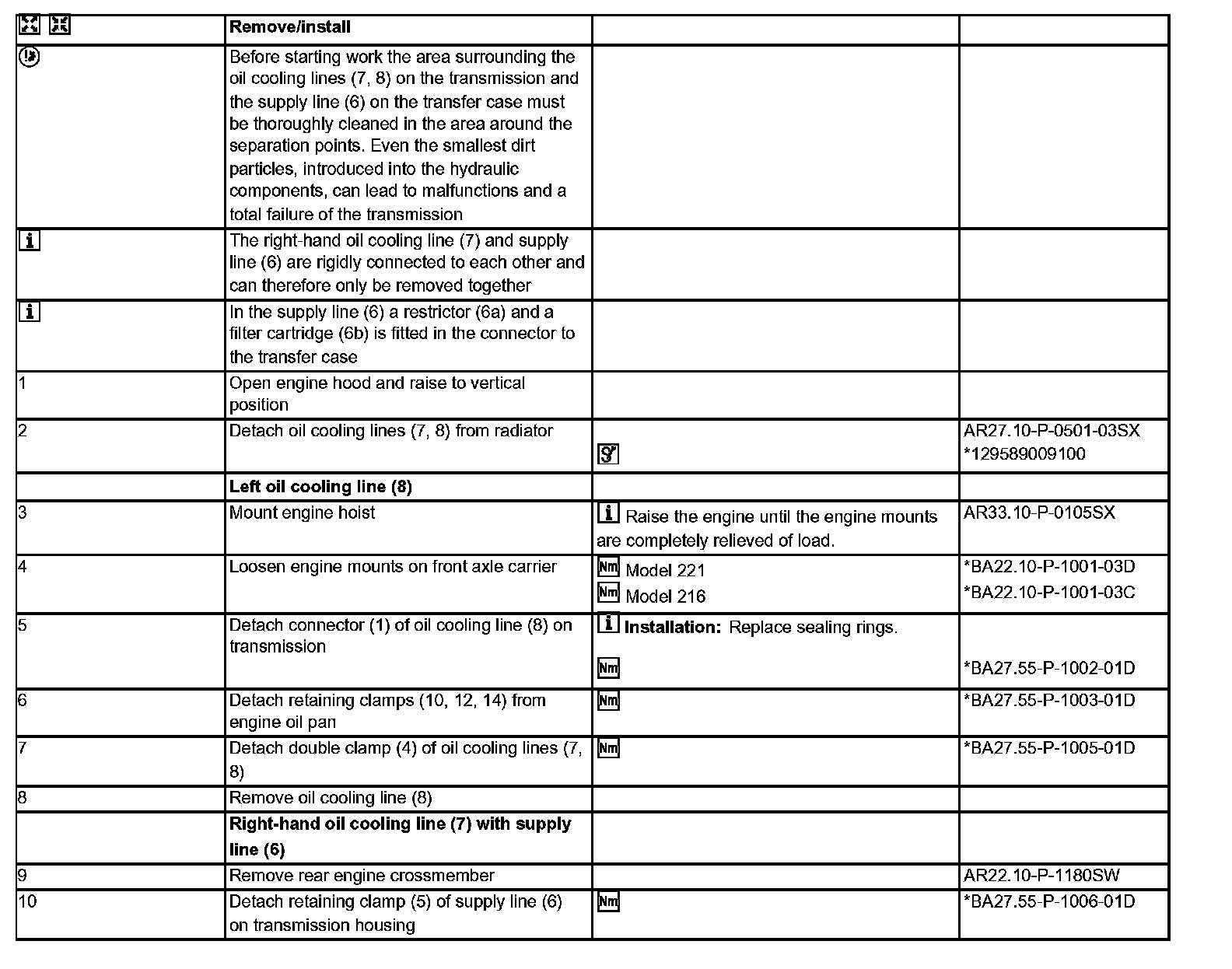

Remove/install Steps 1-10:

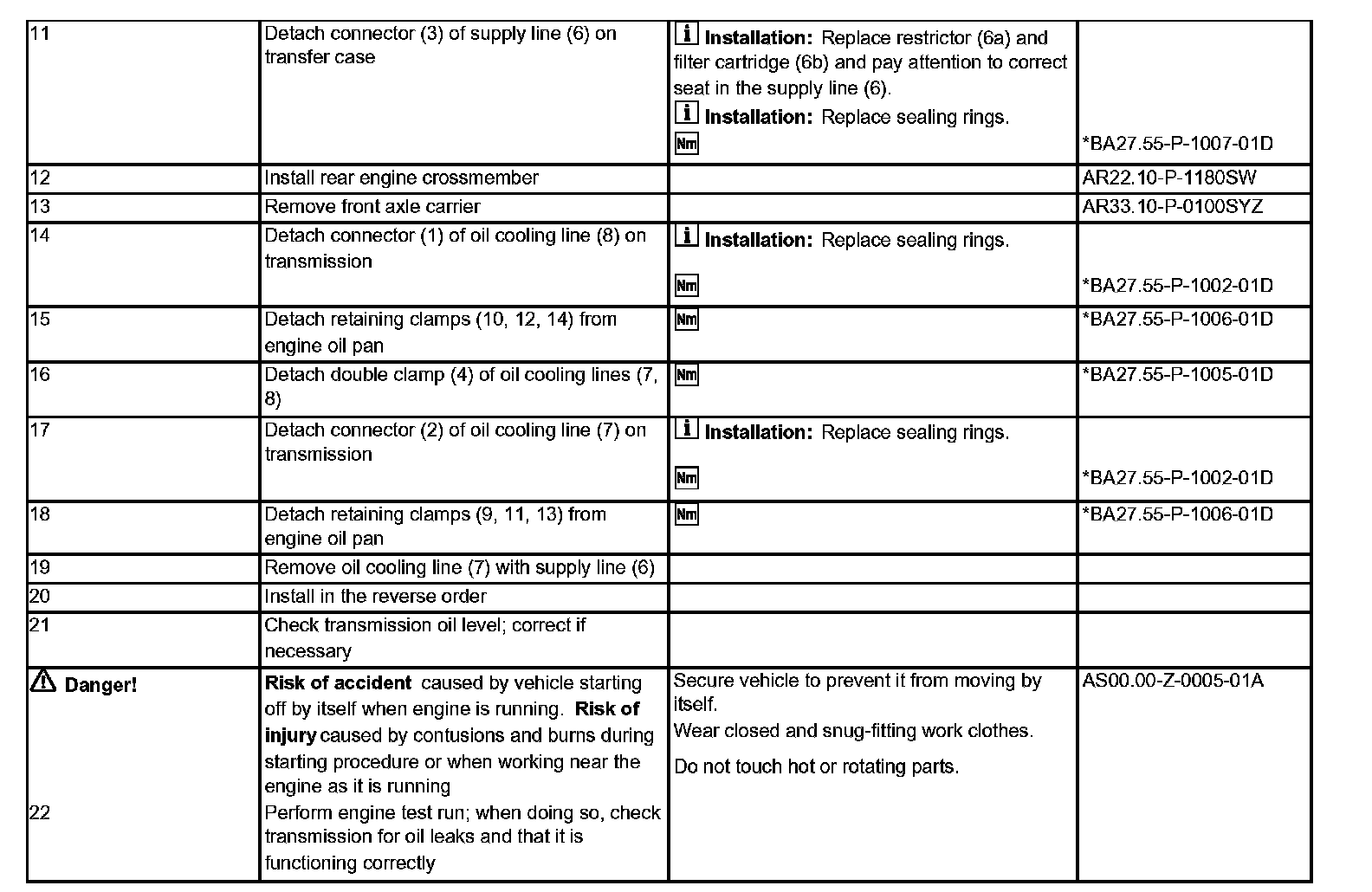

Remove/install Steps 11-22:

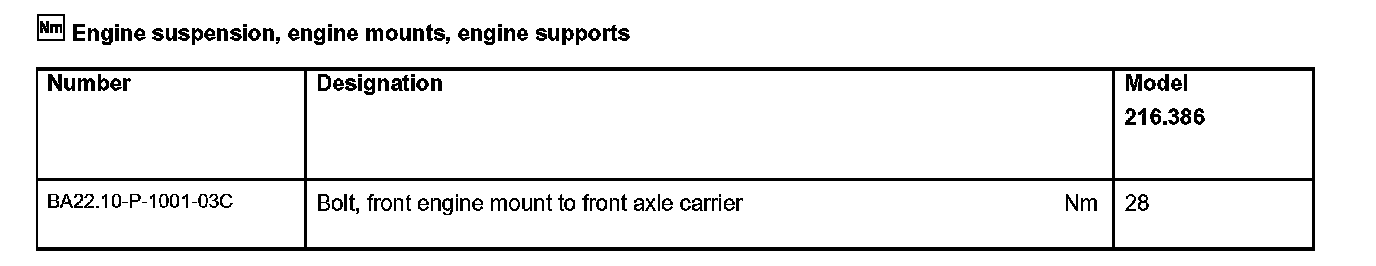

Engine suspension, engine mounts, engine supports:




Engine suspension, engine mounts, engine supports:

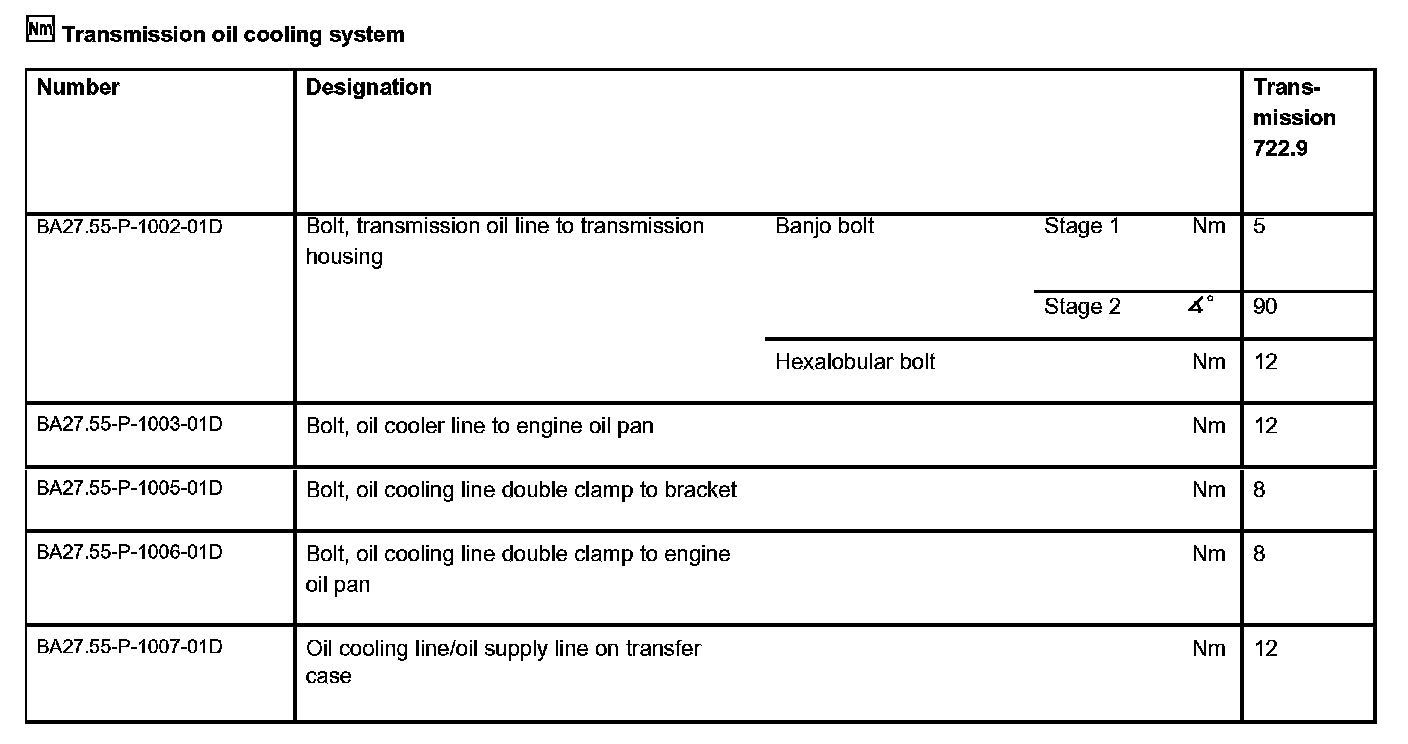

Transmission oil cooling system:

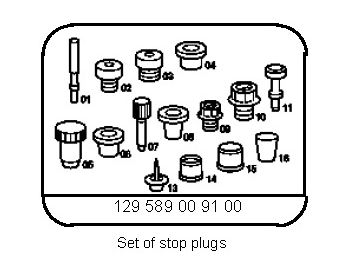

Special Tools:
