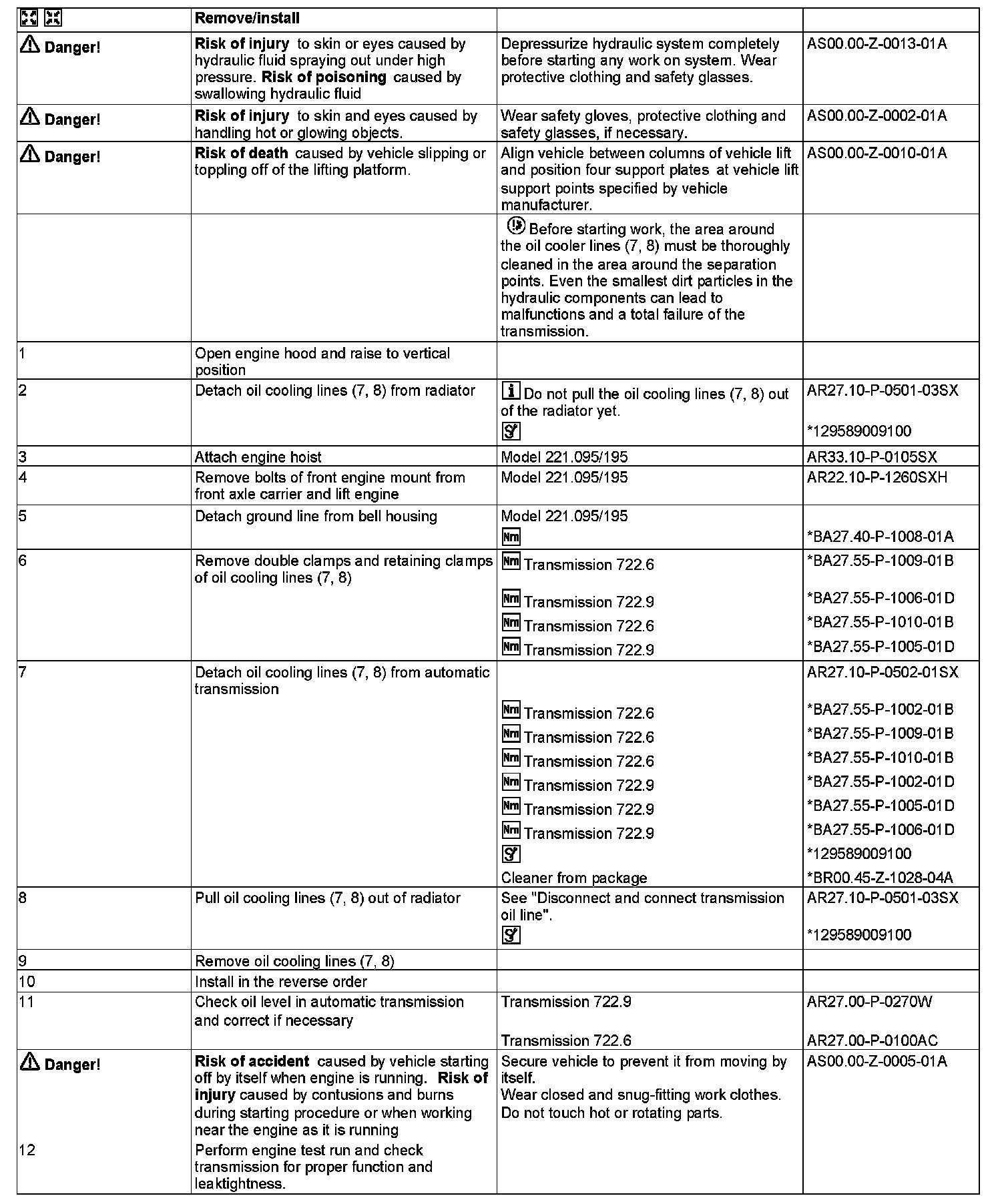

AR27.55-P-0600SX Remove/Install Oil Lines of Oil Cooling For Automatic Transmission

AR27.55-P-0600SX Remove/Install Oil Lines of Oil Cooling For Automatic Transmission
TRANSMISSION 722.9 in MODEL 221.0 /1, 216.3
without 4MATIC
TRANSMISSION 722.6 in MODEL 221.1, 216.3





7 Right oil cooling line (feed)
8 Left oil cooling line (return)

















129 589 00 91 00
Set of stop plugs
