GF27.60-P-3019ACS Torque Converter Lockup Clutch Control Pressure, Function

GF27.60-P-3019ACS Torque converter lockup clutch control pressure, function
- Transmission 722.649


Function requirements for torque converter lock-up clutch control pressure, general
^ Circuit 87 ON
^ Circuit 61 (engine running)

Torque converter lock-up clutch control pressure in general
Apart from the extreme states of open or closed, it is possible to operate the torque converter lockup clutch with preset slip speeds. To enable this, the torque converter lockup clutch regulating valve has to have variable control pressure applied to it.

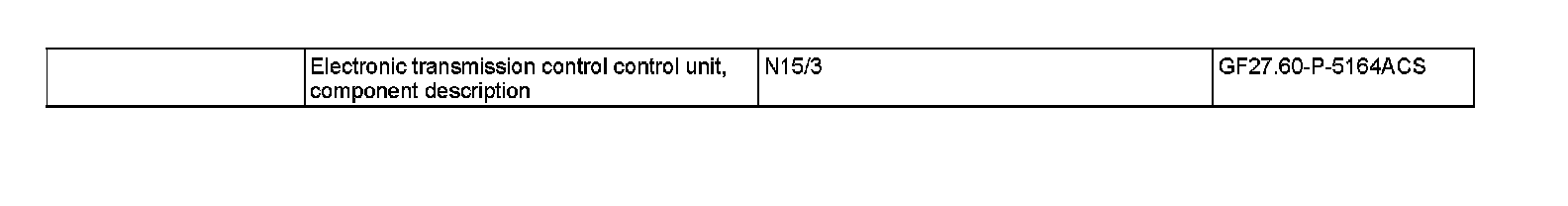

The torque converter lock-up clutch control pressure is adapted to the respective operating condition by the EGS control unit via the torque converter lockup PWM solenoid valve (Y3/6y6) which is actuated by the EGS control unit (N15/3).
