S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>

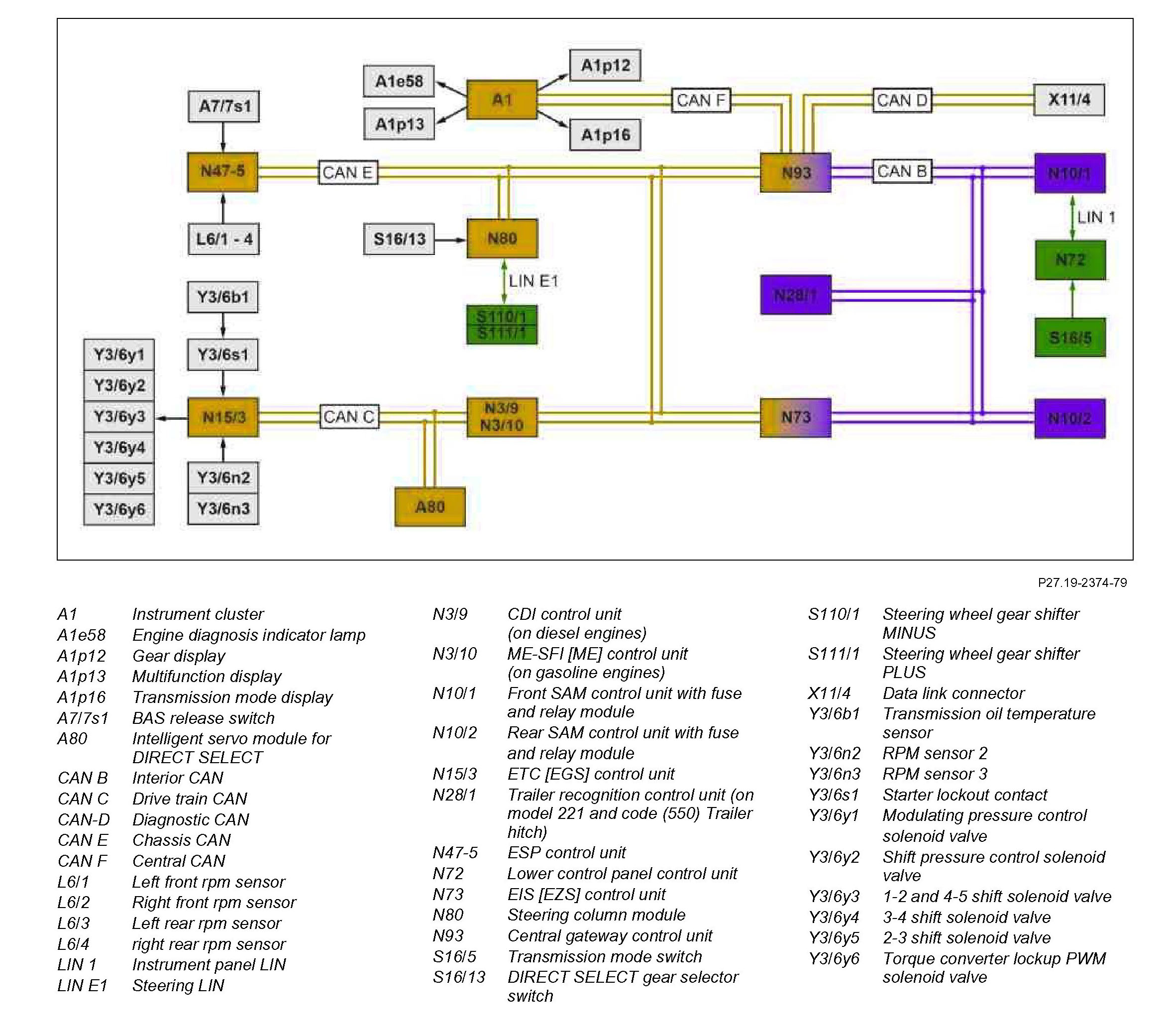

GF27.10-P-0001-20ACS Automatic Transmission (AT), Block Diagram
GF27.10-P-0001-20ACS Automatic Transmission (AT), Block Diagram
GF27.10-P-0001-20ACS Automatic transmission (AT), block diagram
- Transmission 722.649
