GF27.10-P-0001-08ACS Automatic Transmission (AT), Location of Electric/Electronic Components

GF27.10-P-0001-08ACS Automatic transmission (AT), location of electric/electronic components
- Transmission 722.649

Component Identification:

Component Identification:

Component Identification:

Component Identification:

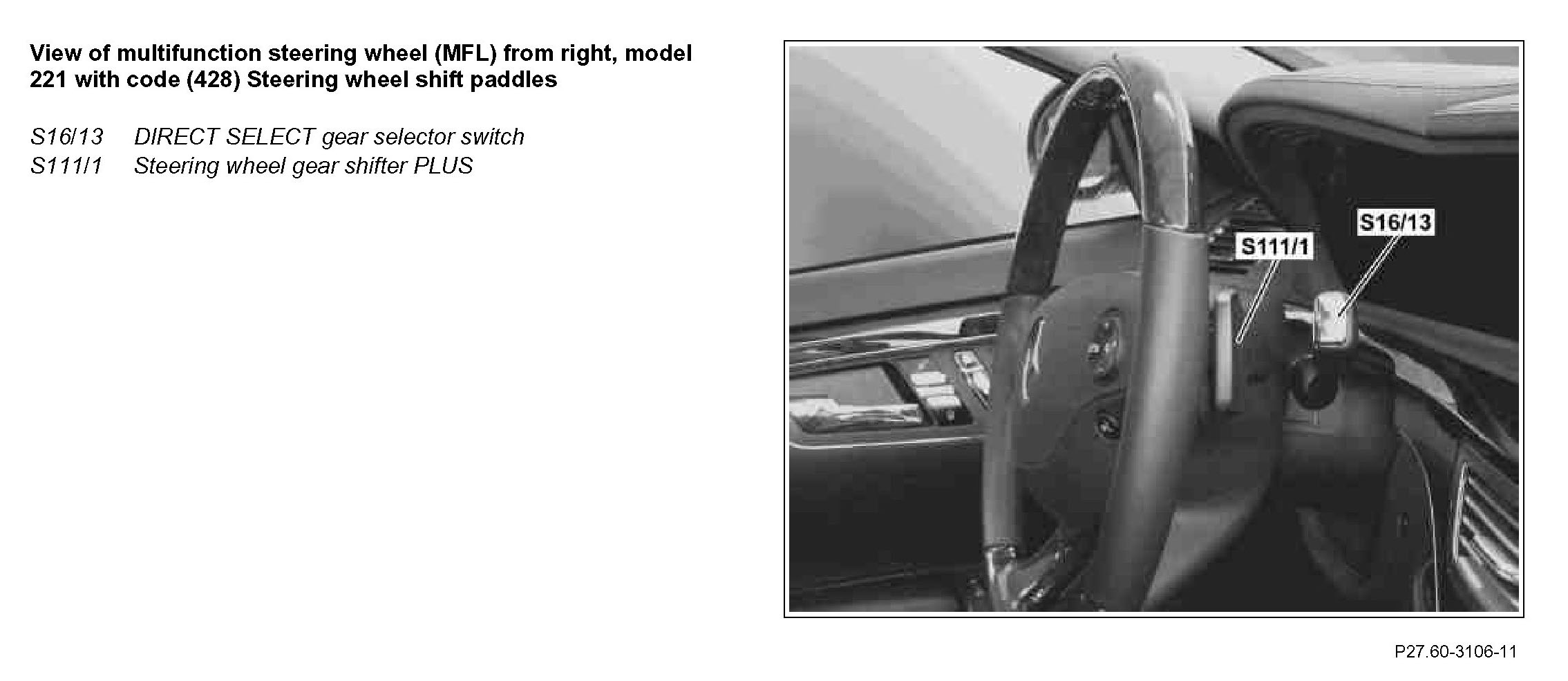

On the back of the multifunction steering wheel on the right is located the steering wheel gear shifter PLUS, the gear selector switch DIRECT SELECT and on the left the steering wheel gear shifter MINUS (S110/1).
