Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> AP00.20-P-0053SX Check All Visible Parts For Leaks and Damage

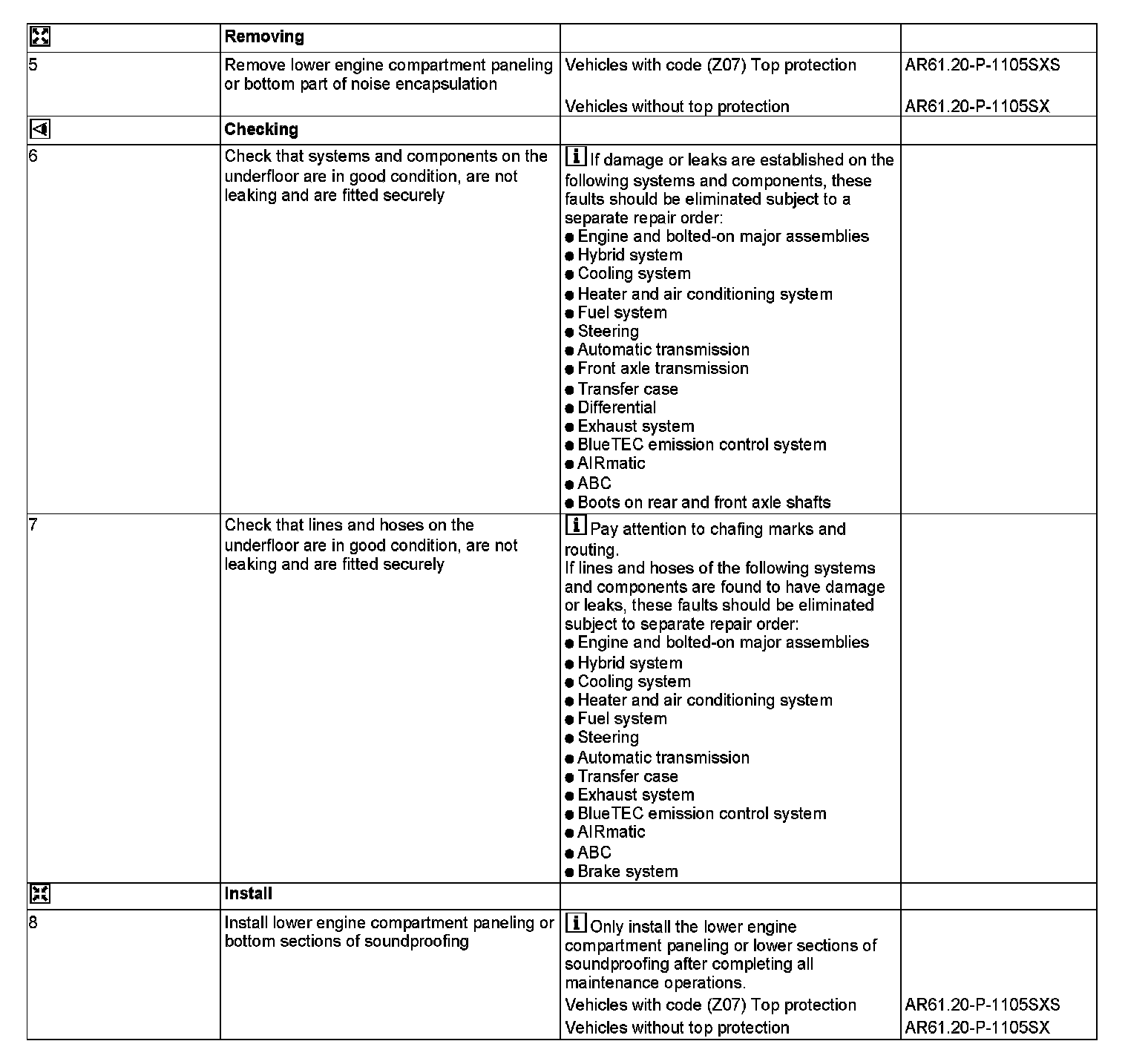

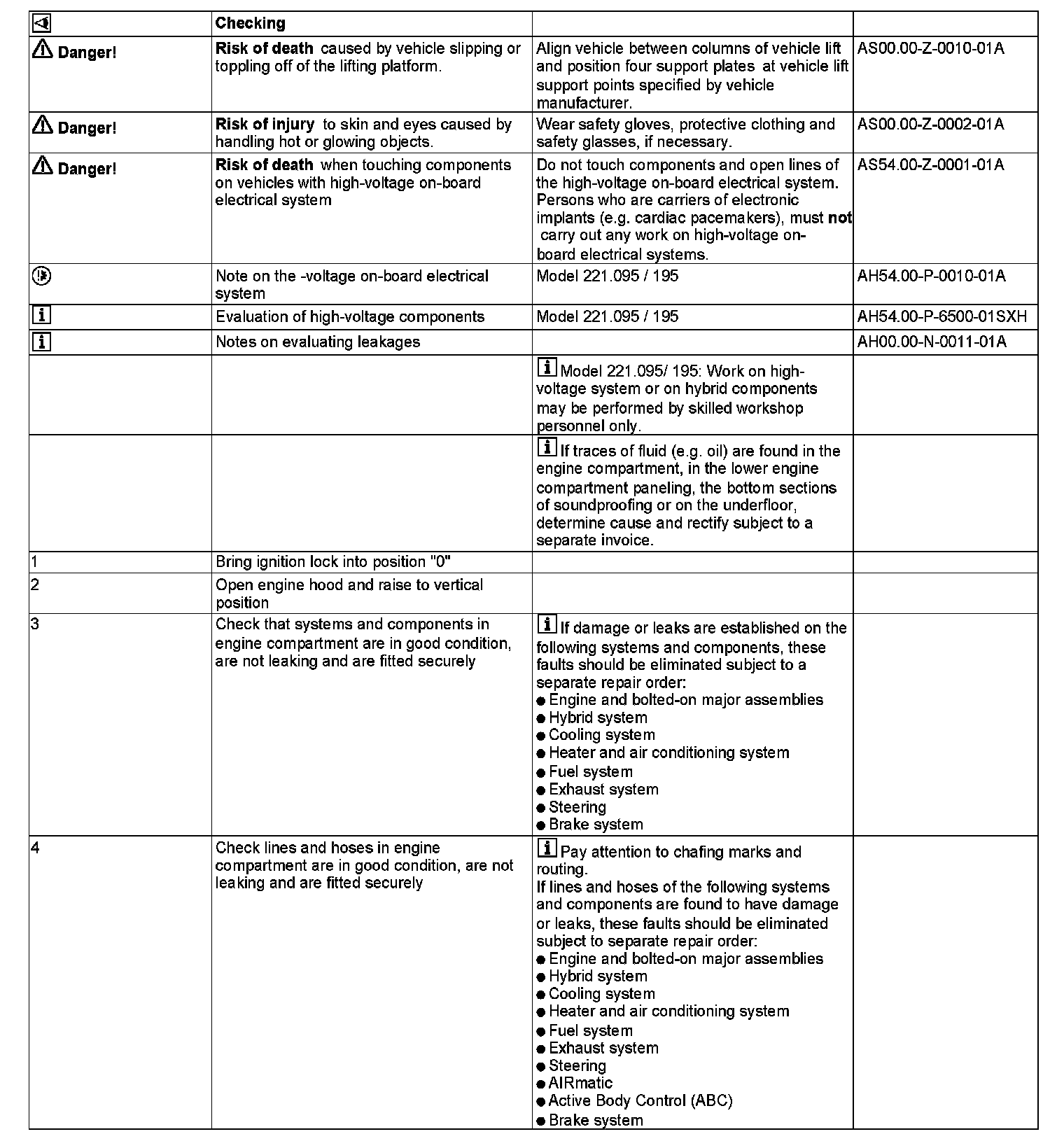

AP00.20-P-0053SX Check All Visible Parts For Leaks and Damage




AP00.20-P-0053SX Check All Visible Parts For Leaks and Damage

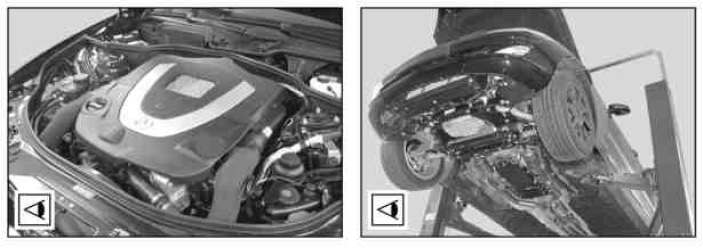

MODEL 216
MODEL 221





Shows model 216
